Tobee Effluent Handling
$12,600
Salt manufacturing and Alkaline Industry vertical axial flow pump
- Category: >>>
- Supplier: Shanghai Shuangbao Machinery Co. Ltd.
Share on (62025219930):
Product Overview
Description
Product Description

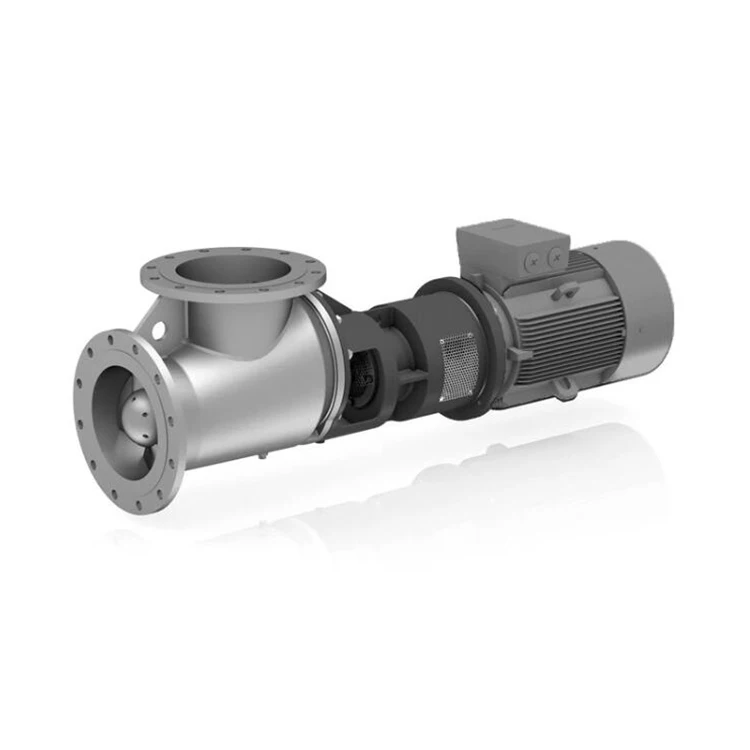

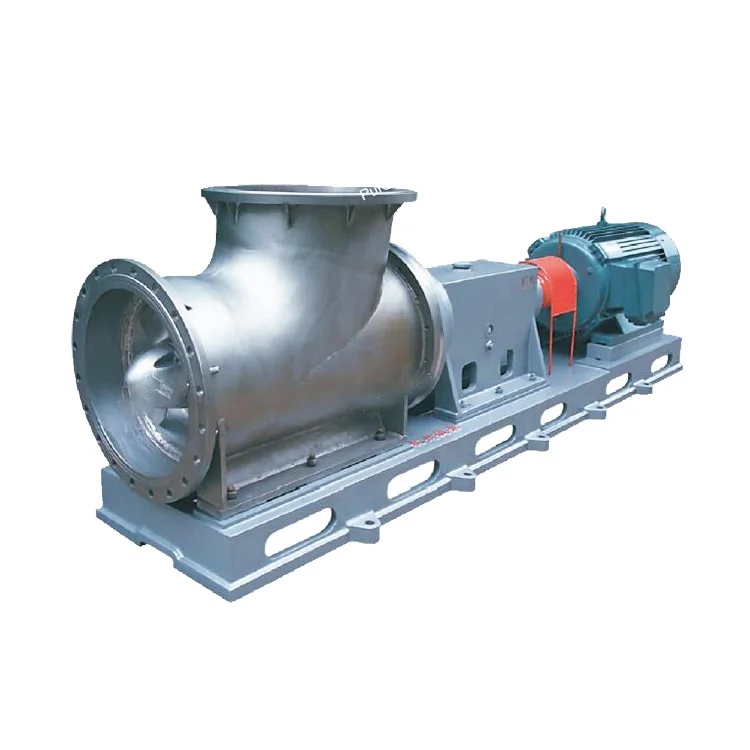

Salt manufacturing and Alkaline Industry vertical axial flow pump

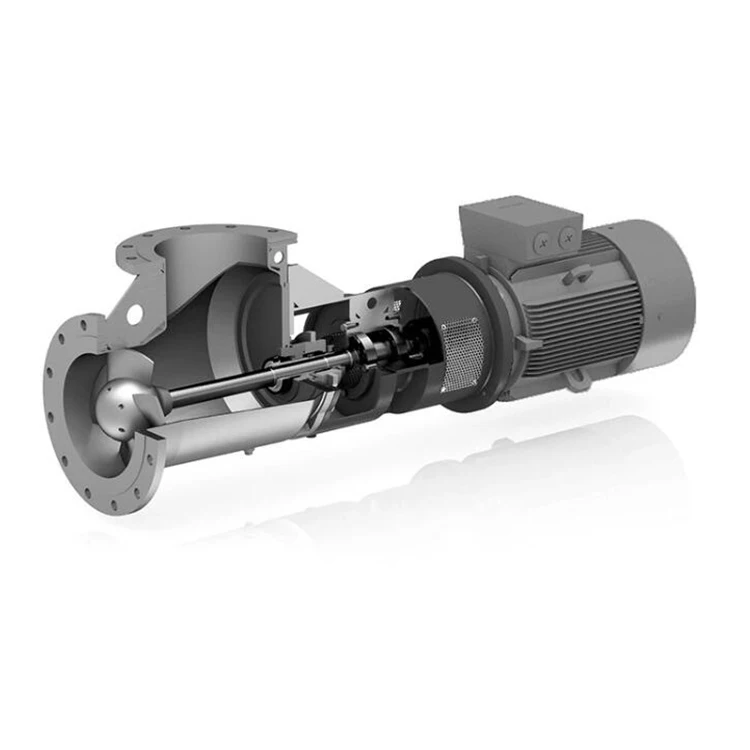

AFP type pump is a single stage, Axially split, Axial flow pump and the design make use of the siphon principle saving energy and minimize valves in system.The pumps are used where low heads and high capacities are needed.
Applications:
Salt manufacturing and Alkaline Industry
Forced Circulation, etc.
For pumping larger flow-low head liquid mediums
Forced Circulation, etc.
For pumping larger flow-low head liquid mediums
Specification
AFP | ISO | US | |||||
Design | Axial flow pump | ||||||
Capacity | Up to 30000m3/h | Up to 132000 Gpm | |||||
Temperature Range | -20~180 Dec C | -68~350 Dec F | |||||
Pressure Range | Up to 6 bar | 90 psi | |||||
Head | Up to 10m | Up to 33 feet | |||||
Motor Syne. Speed | 600rpm | 720 rpm | |||||
Material Range | Carbon Steel, SS, Duplex, Super Duplex, Hast alloy | ||||||
Nozzle Direction(suc/dis) | Customized as per requirement | ||||||
Flange Standard | ANSI / HG / DIN / JIS | ||||||
Options | Vertical is available | ||||||
