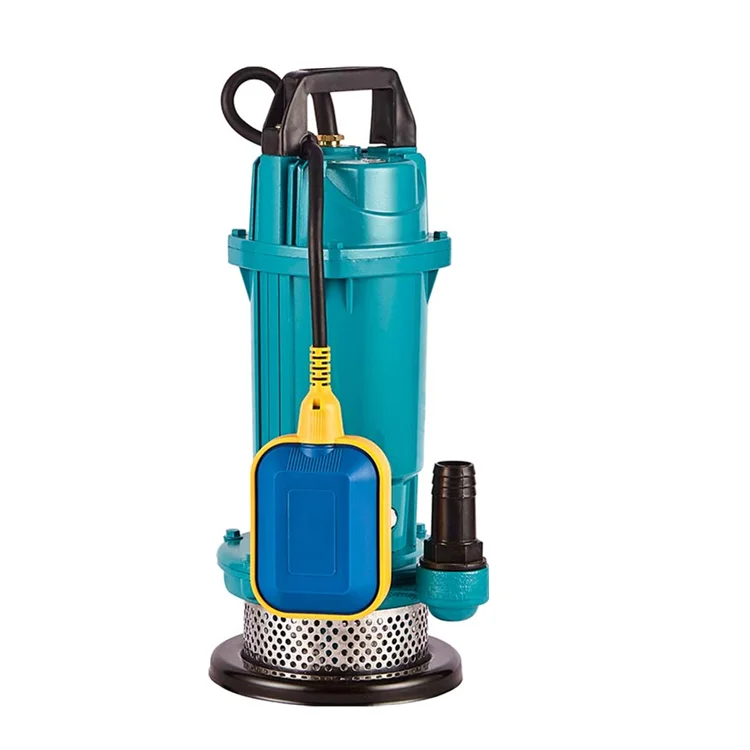

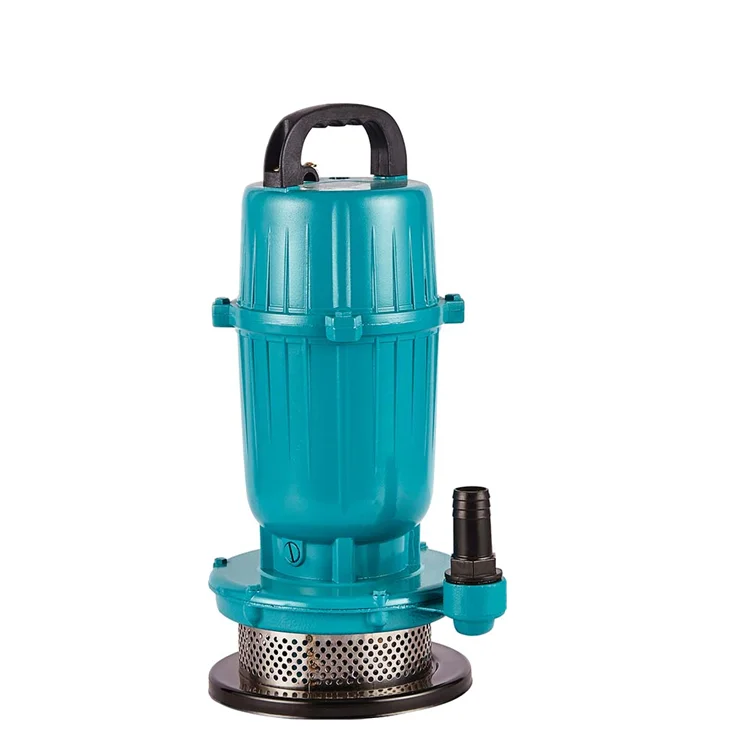

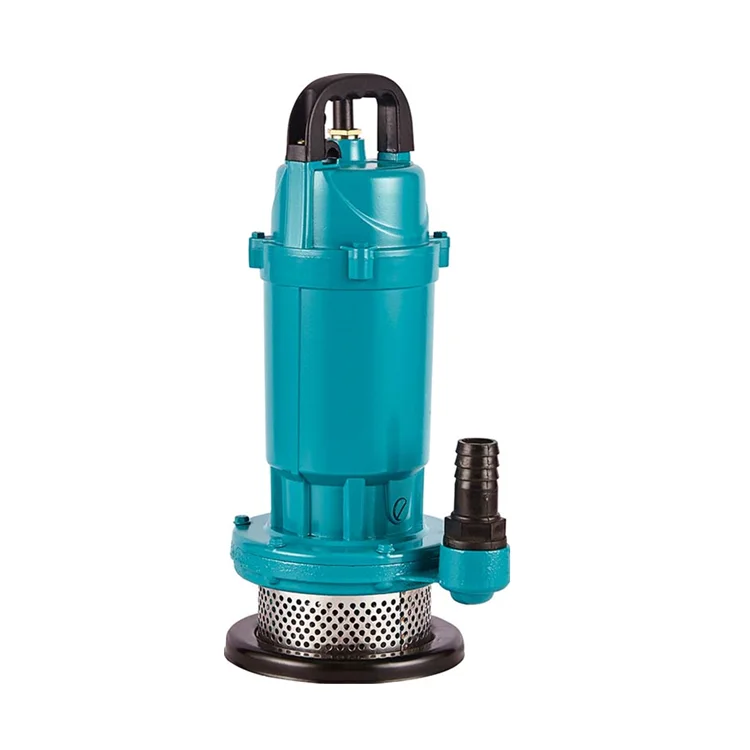

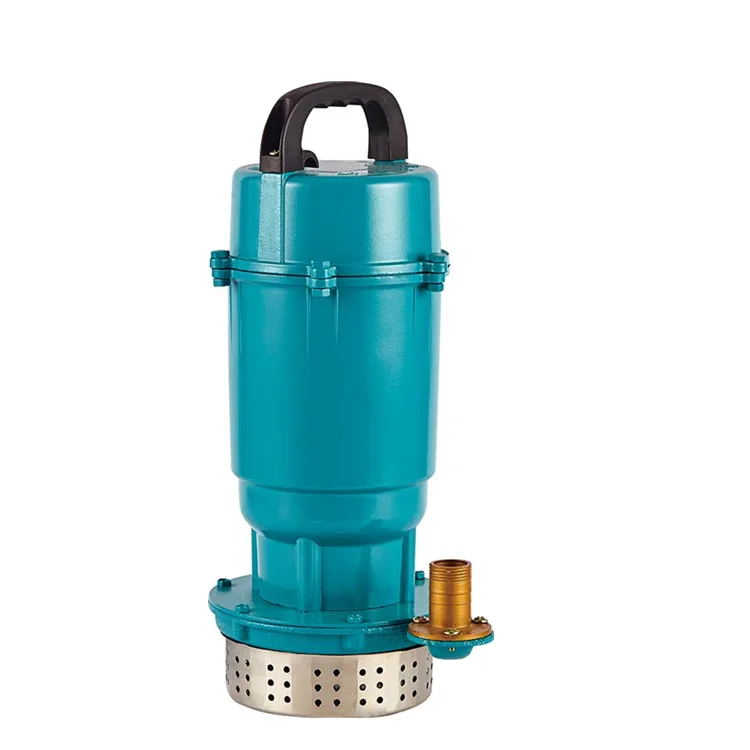

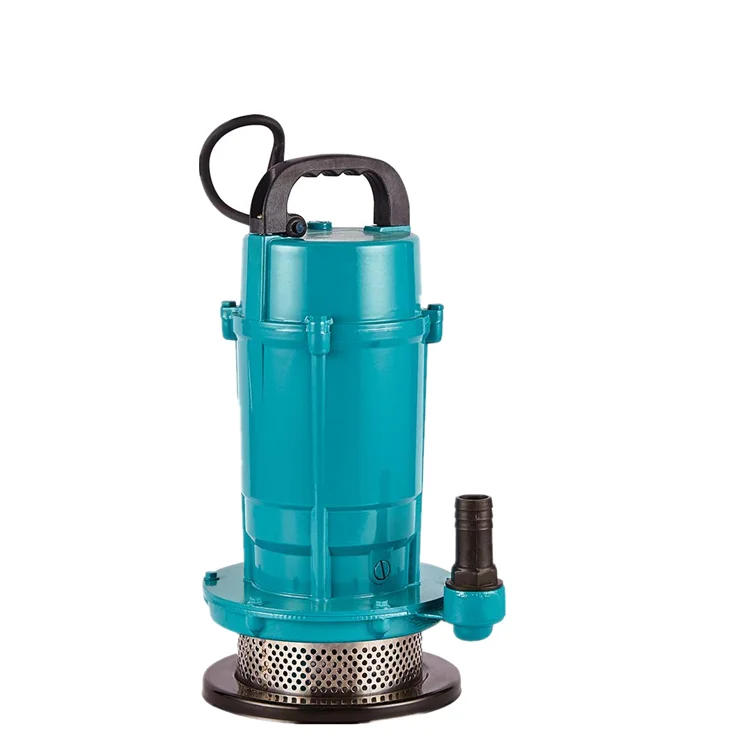

High Lift Submersible Pump Price/pump the water

Share on (62025220922):


Price:$22.00

Quantity:


Product Overview

Description



Product Details




Working Condition                                                                Motor


1.For clear water. PH: 6.5-8.5.                                               1.Degree of protection: IP54


2.Solid impurity no more than 0.1%.                                   2.Insulation class:B


3.Fluid temperature: 0-40℃.                                                  3.Continuous operation


4.Maximum ambient temperature:+40℃.





Technical Data

















































































































      Model

Power


(KW)



Power


(HP)



Max.head


(m)



Max.flow


(m3/H)



Max.Depth


(m)



Outlet


(mm)


QDX1.5-16-0.370.370.5161.5725
QDX3-18-0.550.550.75183.0725
QDX10-10-0.550.550.751010750
QDX1.5-32-0.750.751.0321.5725
QDX7-18-0.750.751.0187732
QDX10-16-0.750.751.01610750

V2200F2.23.01720550
SPA6-28/2-1.1AF1.11.5286550
SPA6-39/3-1.5AF1.52.0396550
SPA6-50/4-1.8AF1.82.5506550












Related products


















Company Information

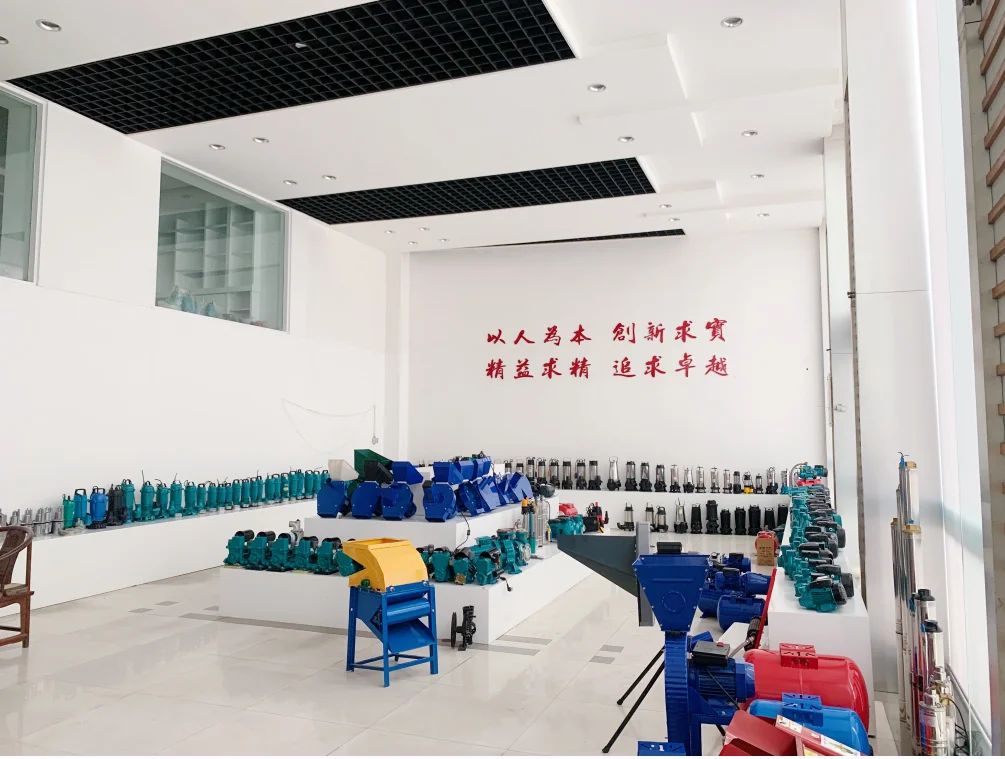

_20240111142137.png5410  .png


_20190227102757_


Applicance


1.Used for garden and gardening irrigation.


2.Domestic, Civil and Industrial Pumps


3.Water is supplied from wells, lakes, rivers and rivers, etc.





Certificate


QQ20190226153528_ 1QQ20190226153528_








Our Services








FAQ


Q1.What is your product range ?


A.Our products are not only for water pump but also the crushing machine and Grape skin peeling machine.Best selling are Submersible pump ,Centrifugal pump ,and etc.


Q2.Are you a manufactuer or trading company?


A.Yes.We are a manufacture.





Q3.Can I get a sample ?


A.Yes ,We can sent you a sample .


Q4.The specification requirements of our machine are different with what you give out,can you customize them as my data?


A.Yes,We can .Please send me your detailed specification requirement then we will choose the suitable machine to quote you .


Q5.:How long does it take for my order to be ready?
A : We process your order right away. For order within 20pcs, we can ship within 1 week; for orders with large quantity, within 30 days. For exact lead time, please contact customer service for confir-mation.
