Product Overview
Description
Product Description
Product Presentation

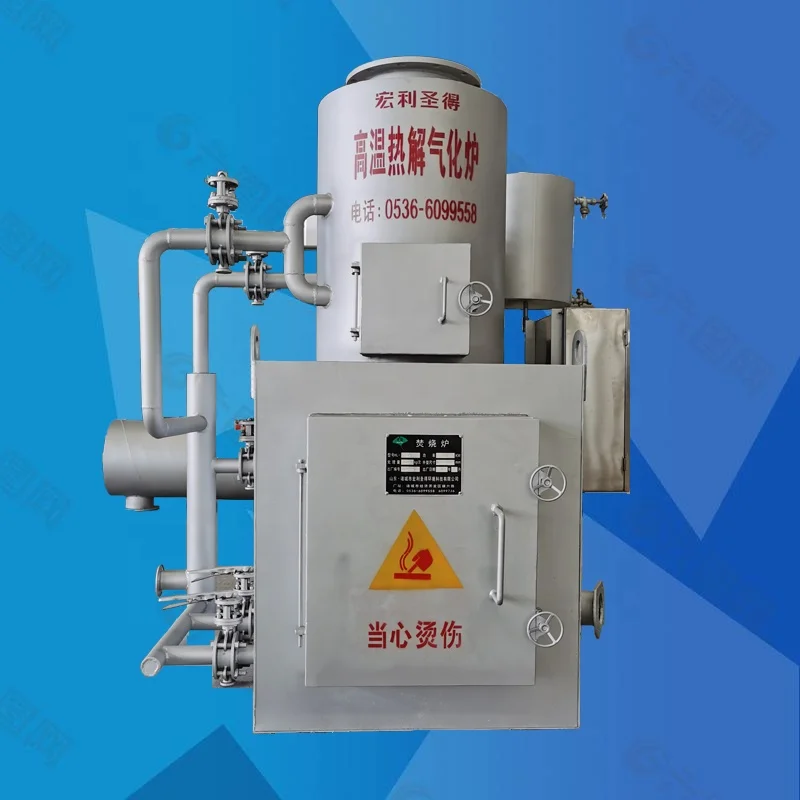

HLPG series domestic (medical) garbage incinerator is provided with the currently most advanced incineration way,primary pyrolysis gasification + co-firing of surrounding wind +secondary incineration +burnout treatment.
The primary incineration chamber of this incinerator is provided with the gasification incineration technique, which makes temperature inside incineration rise from 550ºC to 750ºC. The problem such as clinker, residue and sintering will never happen in the process of garbage incineration.
The secondary incinerator and toroidal air supply device are set inside the secondary mixed incineration chamber. The combustible gas in the smoke will be burnt fully under high temperature,
The smoke enters the high-temperature incineration chamber tangentially and combustion-supporting air also enters it in a tangential manner, making the smoke incinerate fully again in the incineration chamber. The flue gas dust removal is made by the swirling air flow. The retention time of incineration smoke in the incinerator is greater than 2s, so that the combustible gas in smoke and the combustibles in the flying ash burn fully. The odor in smoke will be decomposed under the high temperature.
The smoke purification system is provide with calcium hydride filter brick which will be involved in neutralization reaction with the acid gas in order to absorb the acid gas and purify the tail gas. The harmful components of the smoke are decomposed below the value specified in the national standard "Pollution Control Standard for Hazardous Wastes Incineration (GB18484-2014)".
Main features
1)the incinerator temperature reaches above the 850 centigrade degrees continuously to ensure smokeless and tasteless and discharge up to standard .
2)Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
3)Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
4)Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
Advantage
1) Long lifetime;
2) The main of the incienratro is reasonably designed with the double layer insulation design.
3) Suitable for treating infectious waste;
4) Totally encloseed operation,avoid secondary pollution;
5) Simple operation and fuel saving
Product Parameters
| Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
| Incineration capacity | 20-30kg/time (3-6time a day) | 30-50kg/time (3-6time a day) | 100-150kg/time (3-6time a day) | 200-300kg/time (3-6time a day) | 300-500kg/time (3-6time a day) |
| Incineration size (m) (L X B X H) | 1.45 X 0.9 X 1.75 | 1.8 X 1.15 X 3 | 2 X 1.4 X 3.5 | 2.2 X 1.55 X3.8 | 3 X 2 X 4.8 |
| Garbage inlet size (mm) | 480 X 600 | 620 X 800 | 760 X 960 | 900 X1100 | 1080 X 1280 |
| Chimney (mm) | Outer diameter Φ280 | Outer diameter Φ280 | Outer diameter Φ300 | Outer diameter Φ400 | Outer diameter Φ460 |
| Induced draft fan | 0.37KW | 0.37KW | 0.55KW | 0.75KW | 1.1KW |
| Combustion-supporting device | Power 0.11kw, fuel consumption 5-10kg/h | Power 0.11kw, fuel consumption 5-10kg/h | Power 0.11kw, fuel consumption 5-12kg/h | Power 0.22kw, fuel consumption 7-14kg/h | Power 0.22kw, fuel consumption 7-14kg/h |
| Reburning device | Power 0.11kw, fuel consumption 5-10kg/h | Power 0.11kw, fuel consumption 5-10kg/h | Power 0.22kw, fuel consumption 7-14kg/h | Power 0.37kw, fuel consumption 10-20kg/h | Power 0.11kw, fuel consumption 15-26kg/h |
| Operating voltage | 380V or 220V | 380V or 220V | 380V or 220V | 380V or 220V | 380V or 220V |
| Weight(kg) | 2300 | 4000 | 7000 | 8000 | 13000 |

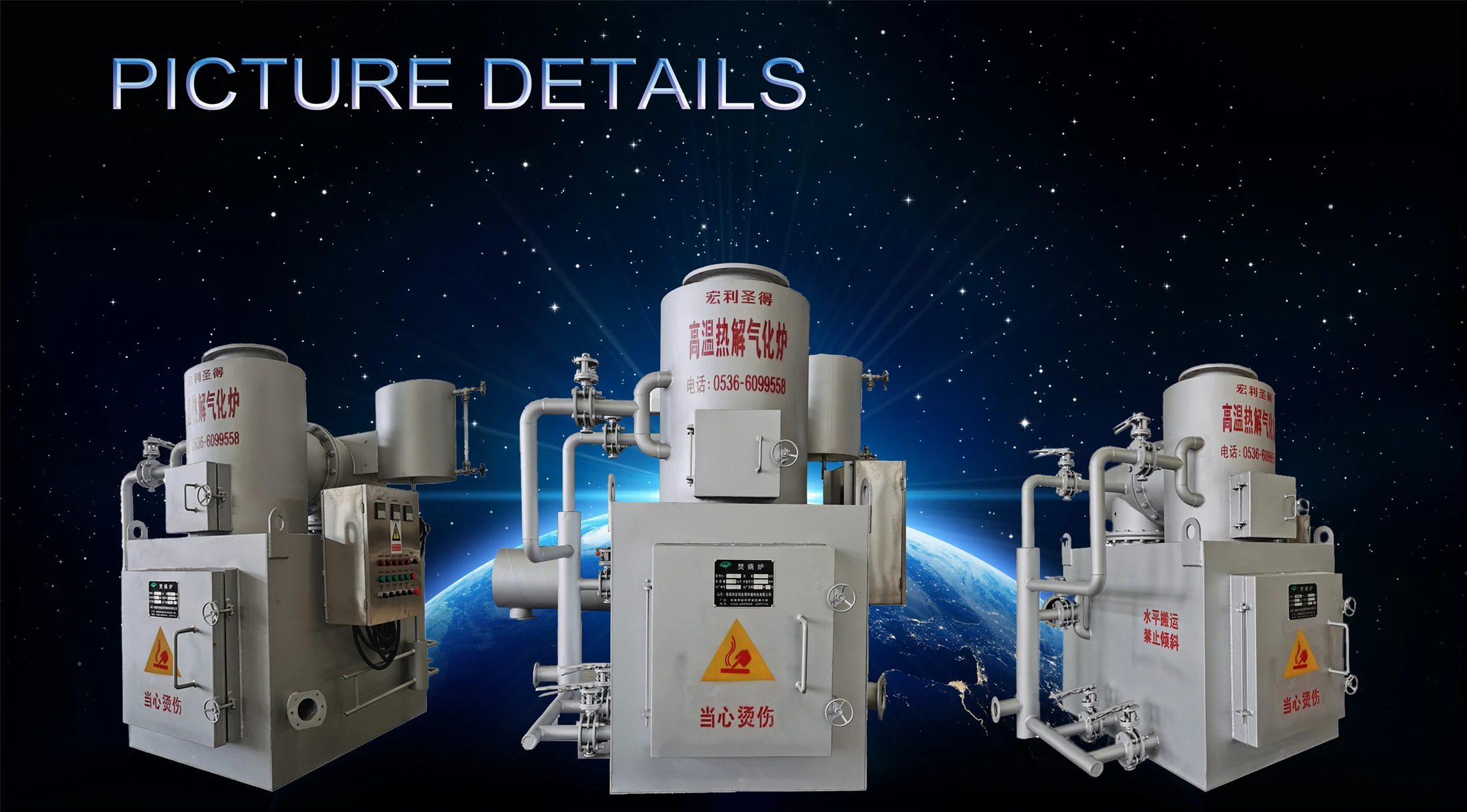

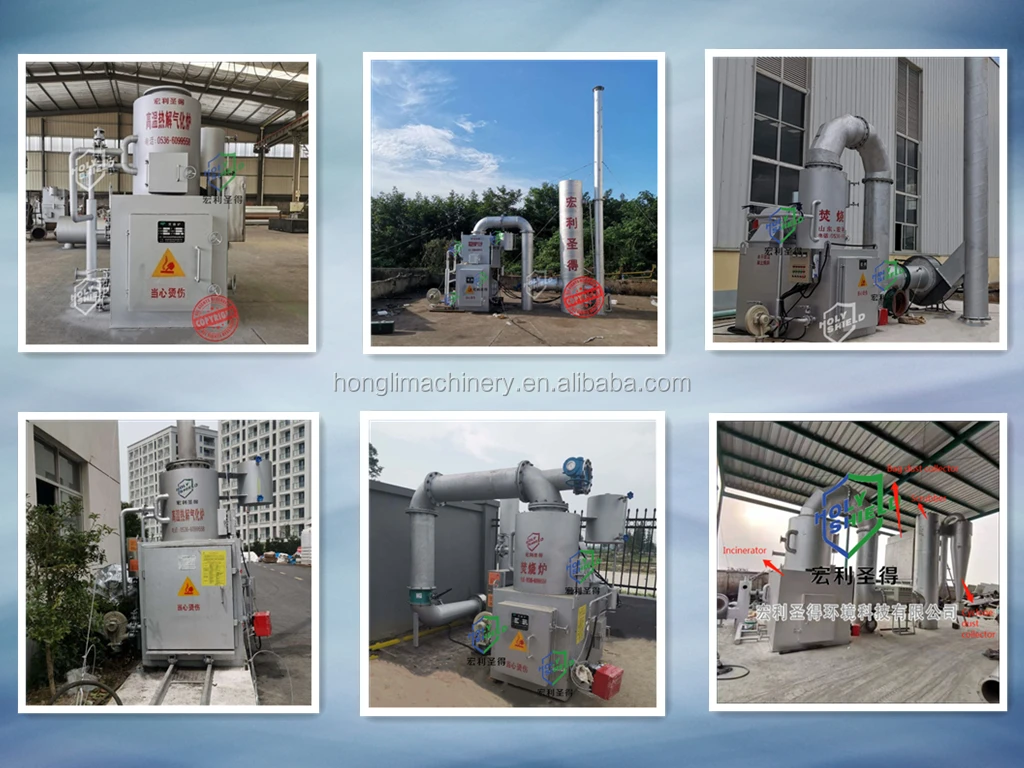

Pictures Details

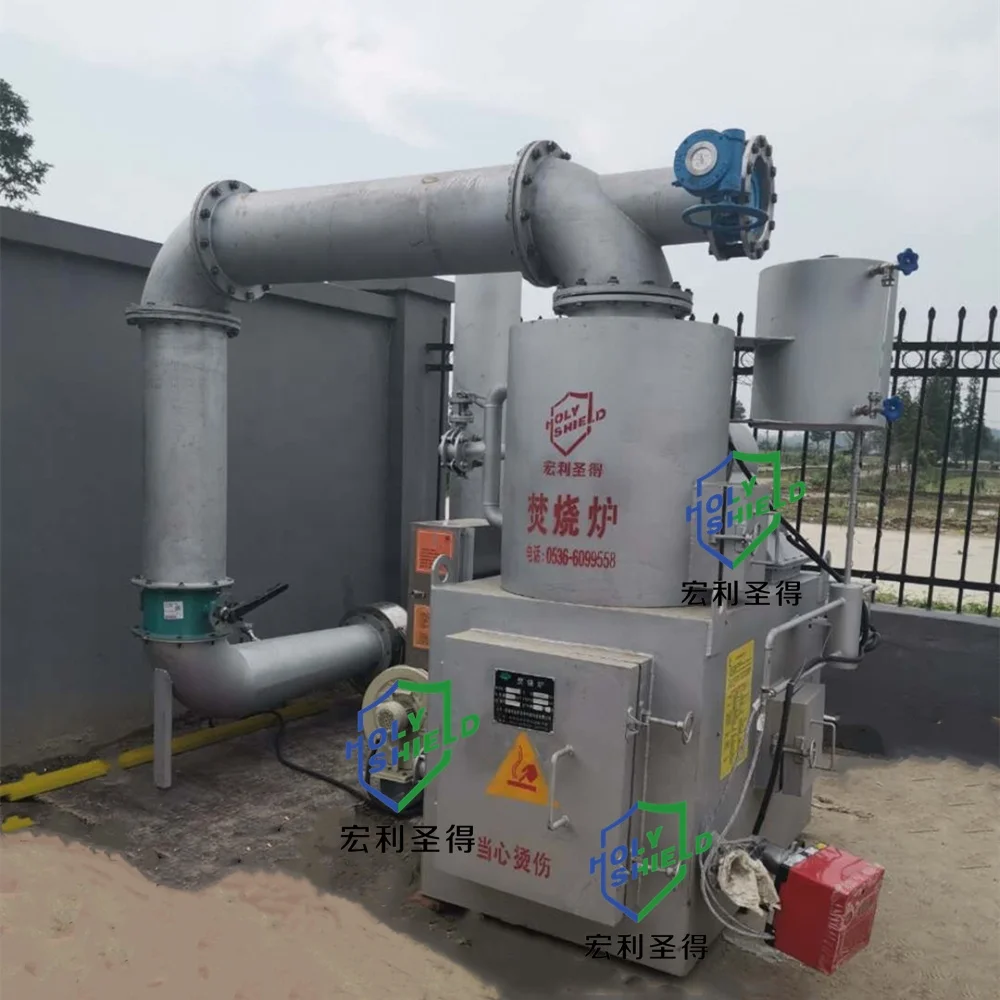

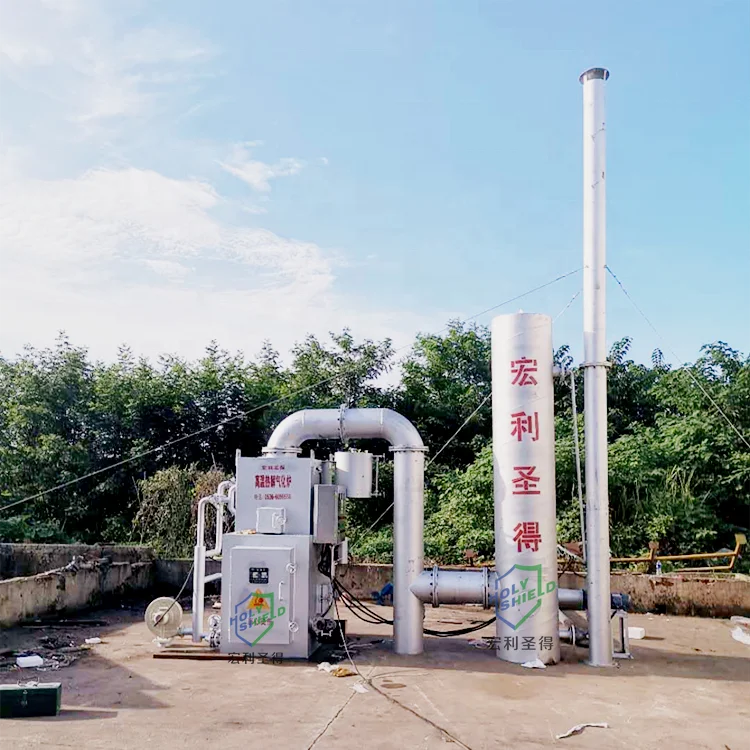

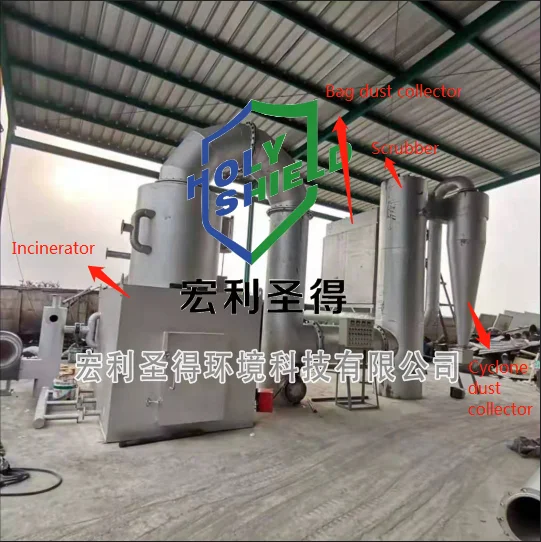

Site Assemby
Test and Report
Authoritative Flue Gas Quality Test And Report
we invited one of the only three qualified testing institutes in China to make Professional Authoritative and Exclusive flue gas quality test and report in the industry.
Certifications
we have more than twenty pateented technology,including invention patent,design patent,untility model patent ,etc.and have energy conservation and environmental protection certification ,ISO9001 quality certification,EU CE certification and other certification.
Customer Visit
