Product Overview

Description

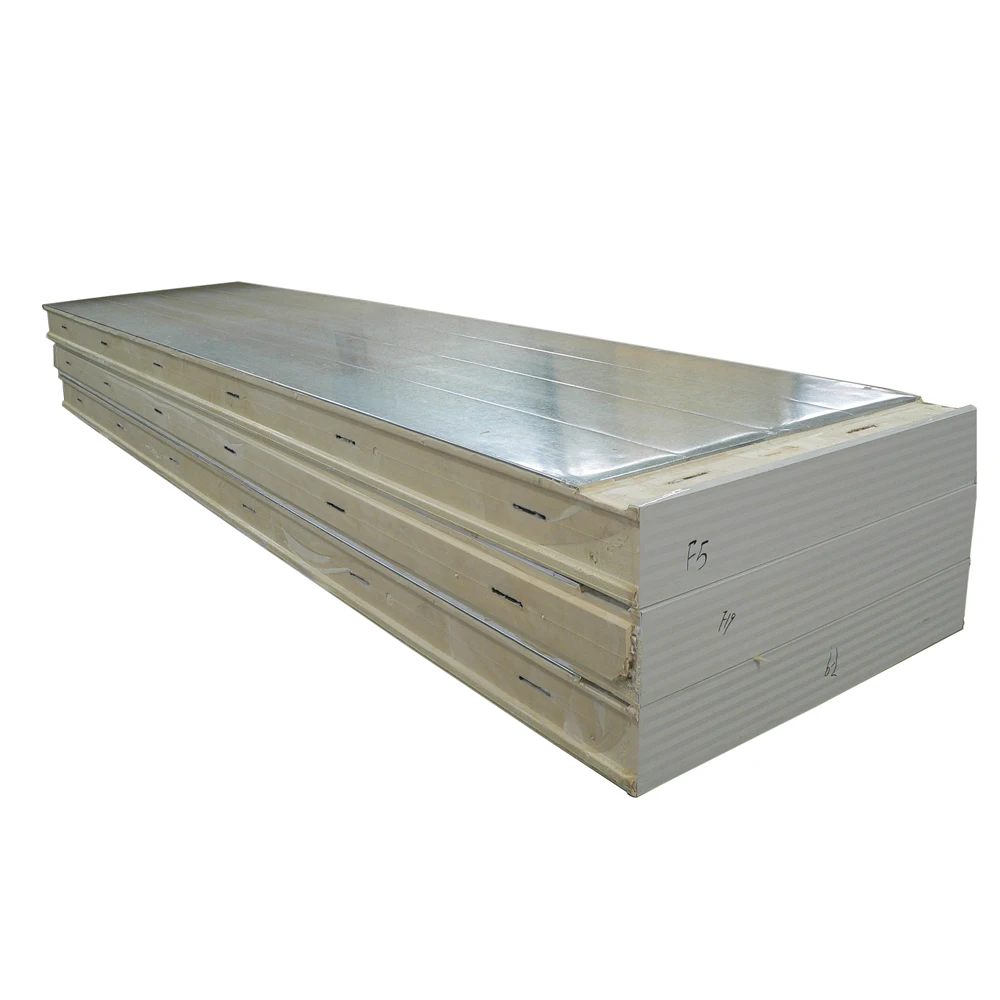

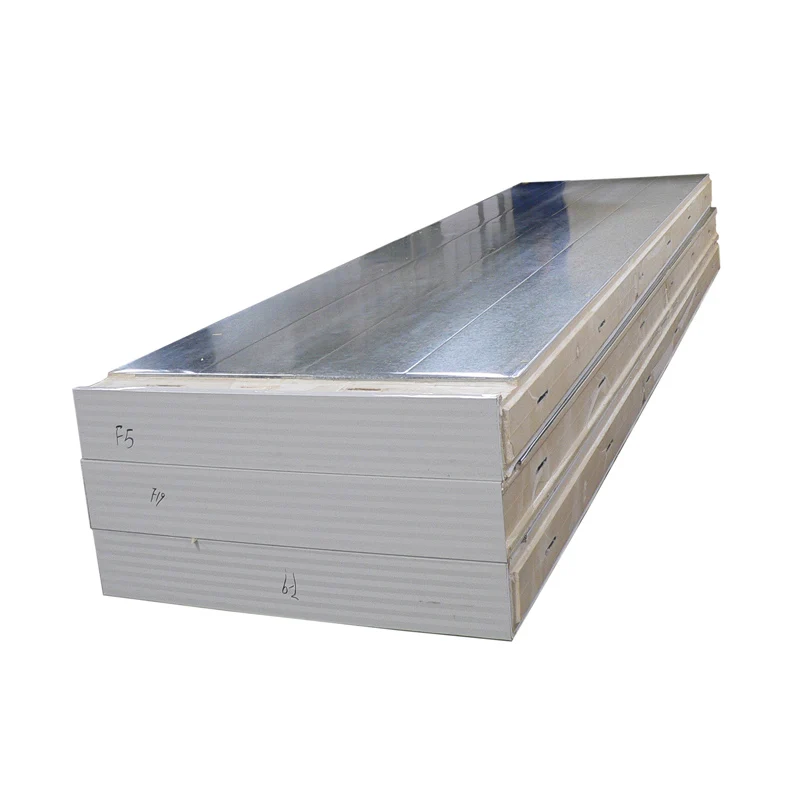

Polyurethane insulation floor panel for cold storage room


1





polyurethane insulation floor panel Product Description


Polyurethane insulation floor panel is used with Germany BASF polyurethane foam material,which is constructed by being foamed in place with retarted Polyurethane using high pressure.They have certain dimensions.Standard widths of panels are a multiple of 295.3mm. The maximum lengths of panels are 13.5m.Non-standard sizes are also available upon request with price varying.





polyurethane insulation floor panel feature:


1. Polyurethane insulation floor panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The polyurethane insulation panel density is up to 43kg/m3 or above.


3.The maximum length of polyurethane insulation panel is 13.5m and the standard width is 295.3mm with fire resistance
4. The internal polyurethane insulation floor panel is made by 1.0mm galvanized steel and durable for anti-scratch.


5. The hinged door panel is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
6. The connection of our polyurethane insulation panel is made with PE sealing rubber which is with high quality sealing.


7. The connection of our polyurethane insulation panel is with cam lock construction and excentric fasterners for tight connection and sealing of the cold room





polyurethane insulation floor panel specification:

























Panelpolyurethane insulation panel,43kg/m3,fire resistance
Foaming materialBASF
Panel thickness50mm,75mm,100mm,150mm,200mm
Steel coverStucco embossed aluminum,Painted galvanized steel,Stainless steel
Panel connectionCam lock type,use hexagonal key to assemble and disassemble




polyurethane insulation floor panel introduction:


1.Polyurethane insulation panel test specification





























































No.Inspection ItemUnitTechnology requirementInspection result
1Densitykg/m332~5043
2Compressing strength(10%deformation)Kpa≥ 160200
3Bending StregthKpa≥ 245331
4Absording rate%≤ 43
5Heating coefficient

W/m.k


0.0240.021
6Average burning time(vertical)S≤ 303
7Average burning height(vertical)s≤ 250250






2.polyurethane insulation floor panel


 advantages:


1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3 which enable the panel with better thermal conductivity of  0.021W/(m.k).The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.


2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.


3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years


4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.

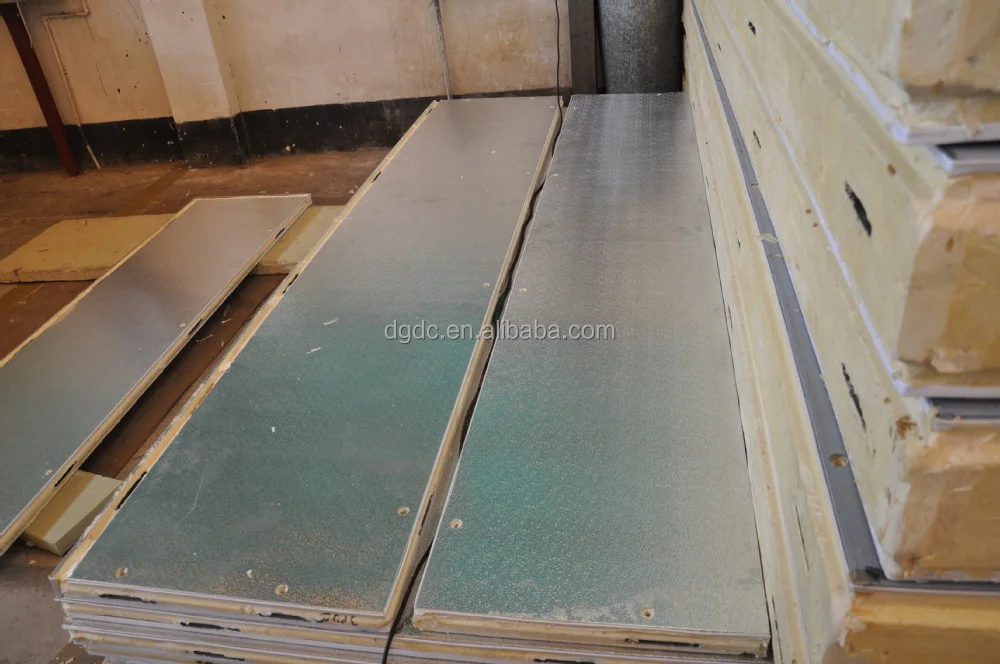

3.polyurethane insulation floor panel


surface material: painted galvanzied steel, stucco embossed aluminum, stainless steel, PVC stell

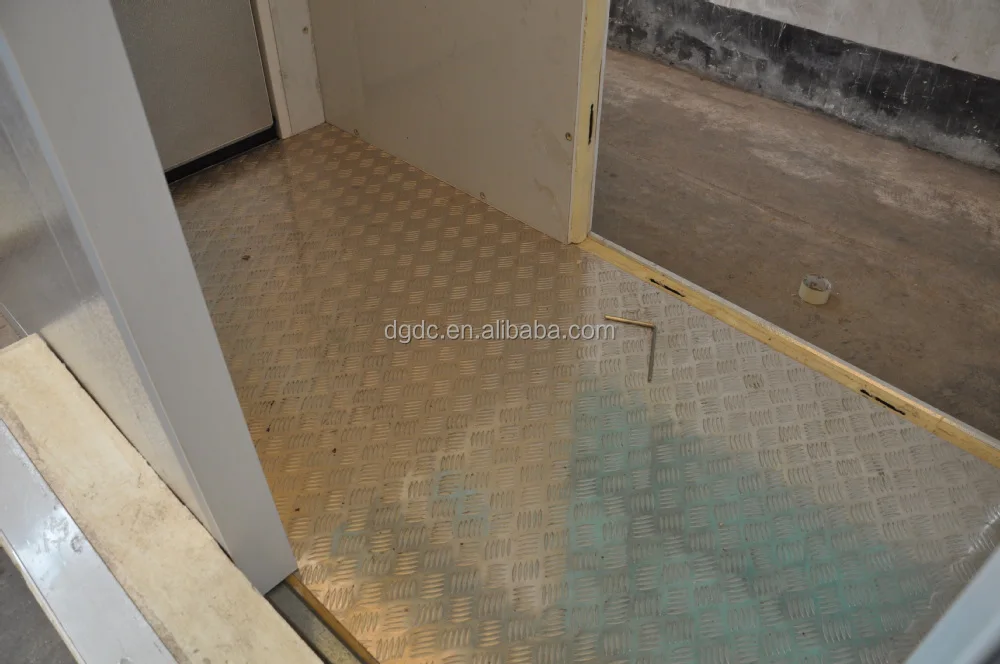

4.polyurethane insulation panel of floor


The internal cold room panel of floor is made by 1.0mm galvanized steel and durable for anti-scratch.

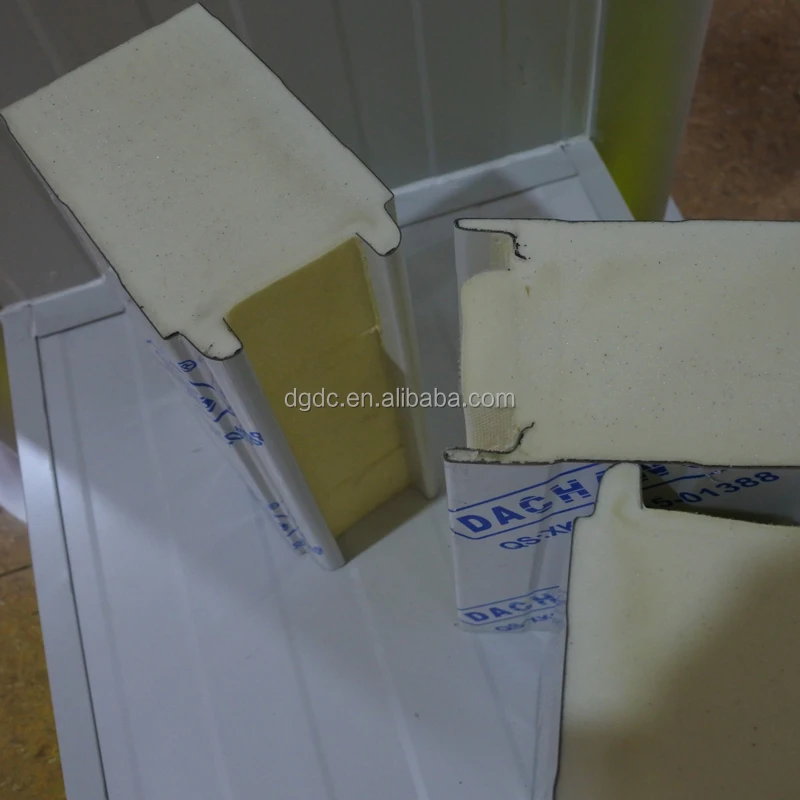

5.polyurethane insulation floor panel installation


cam locke type panel , the cam lock is pre-burried inside the panel , use a key to lock them together.

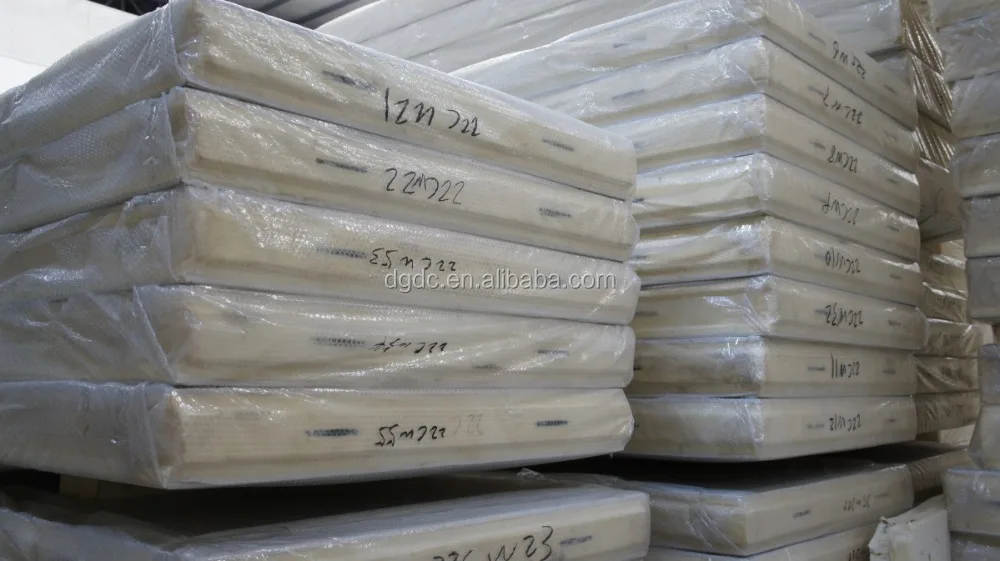

6.polyurethane insulation floor panel package








Packaging & Shipping





the panel and door packed with PE film and bubble paper, it is very convient to ship and saving the cost.

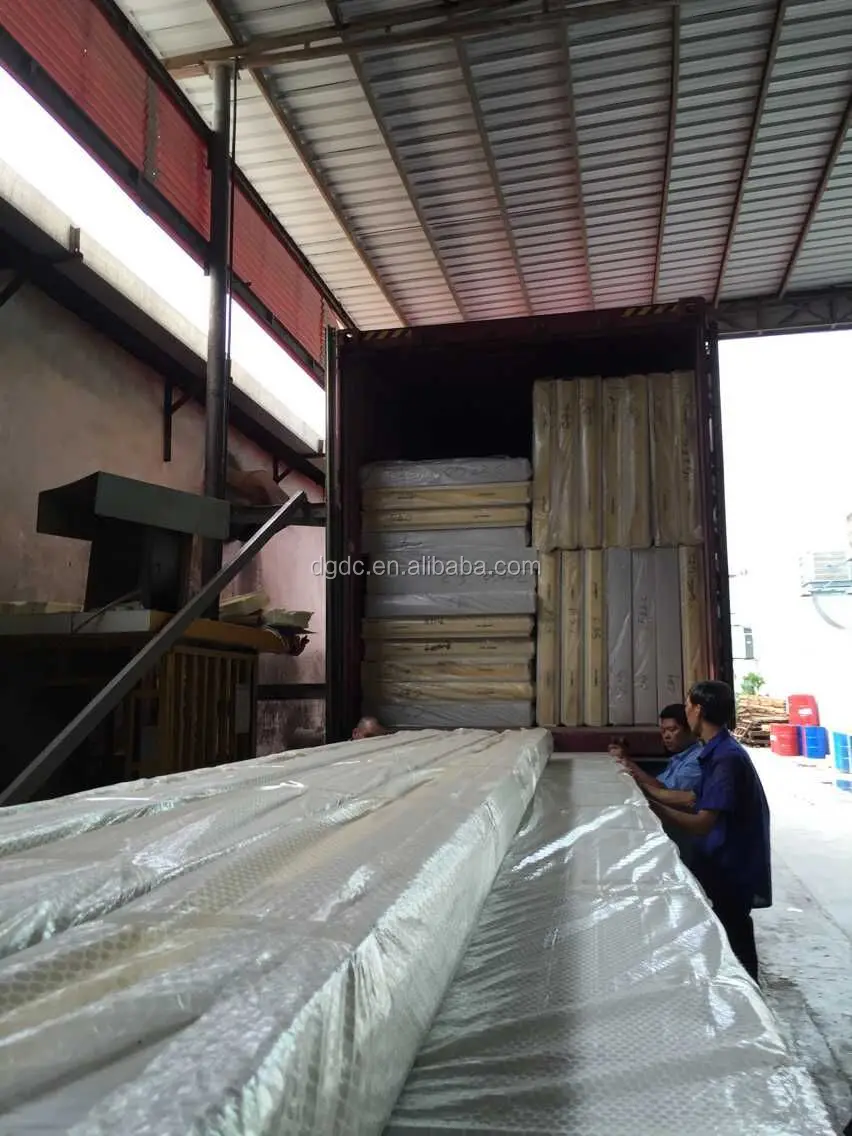

7.polyurethane insulation floor panel loading

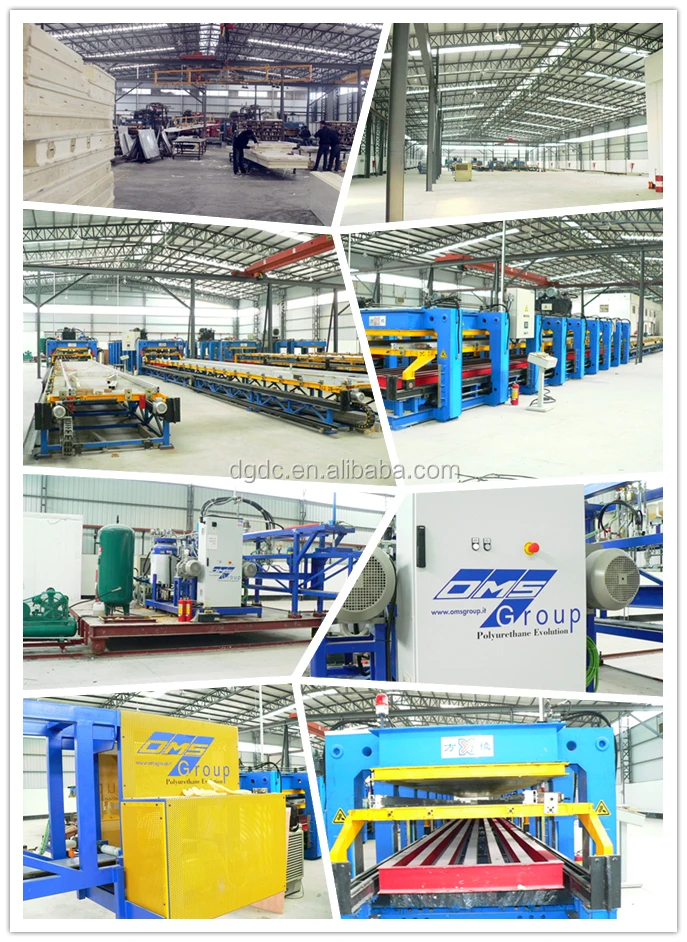

Factory picture:
