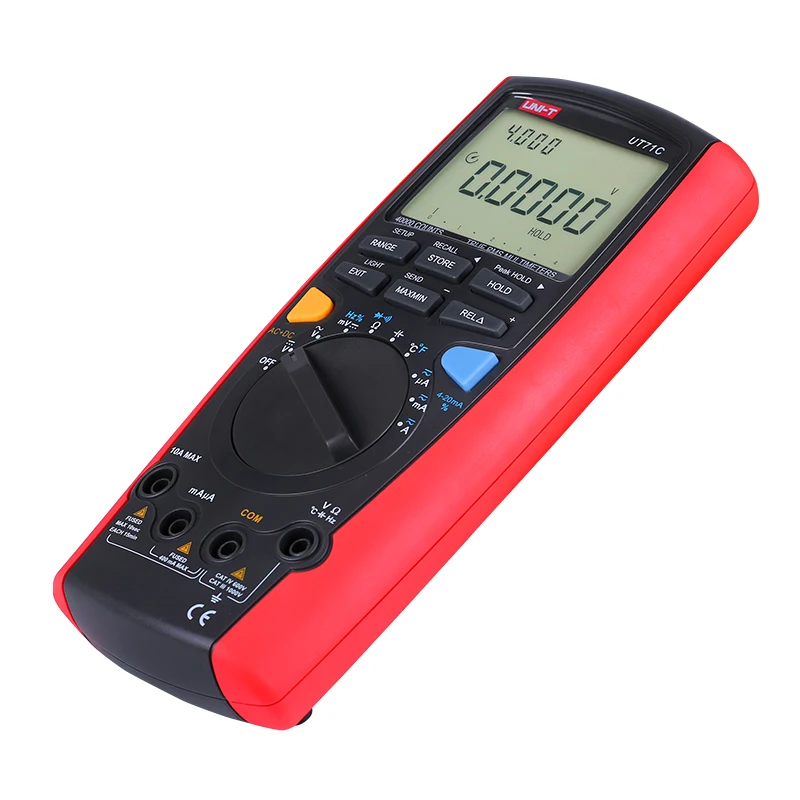

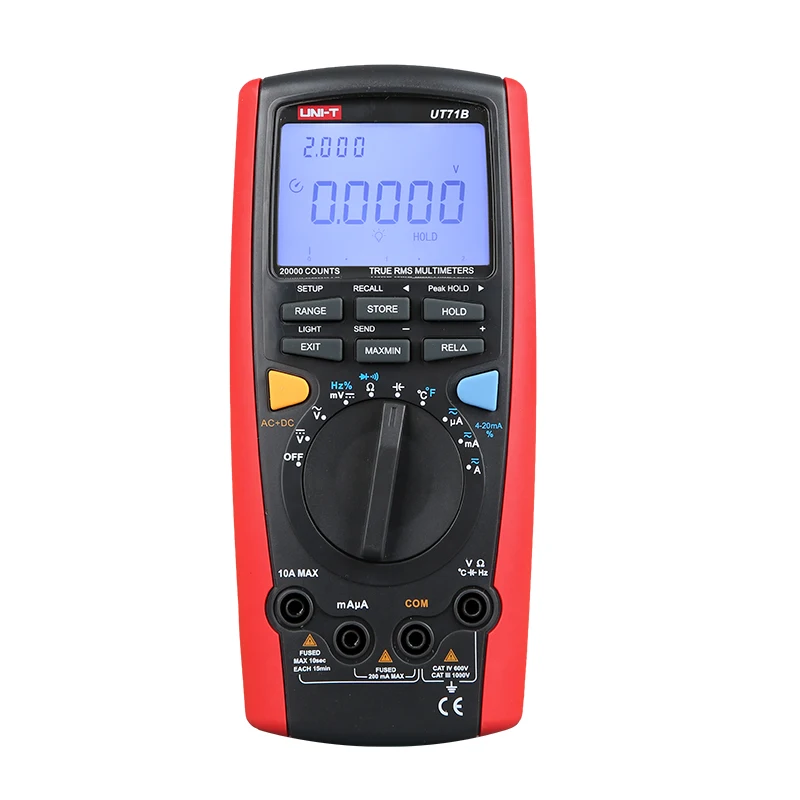

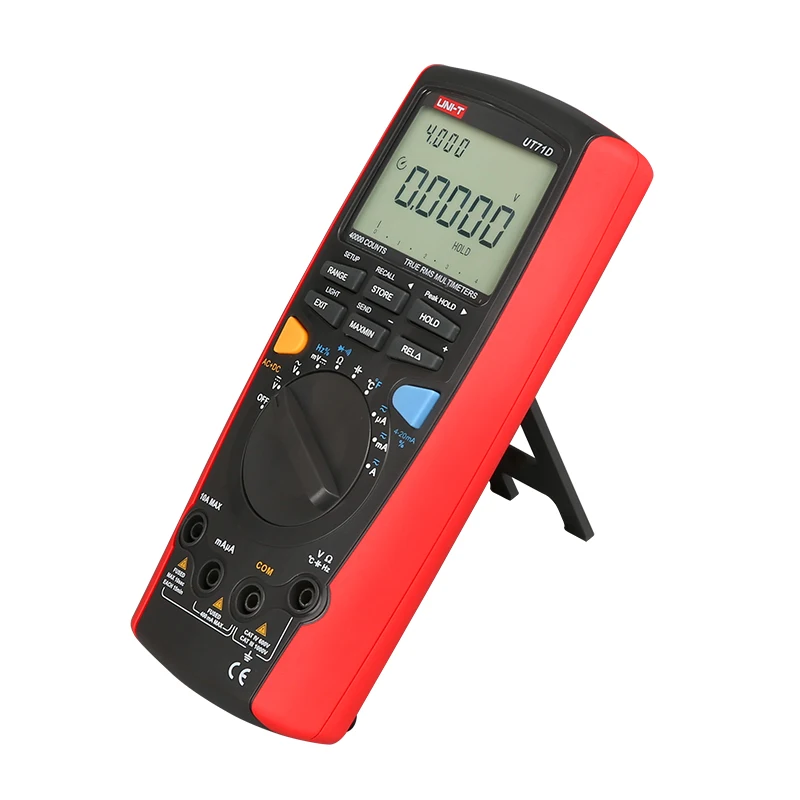

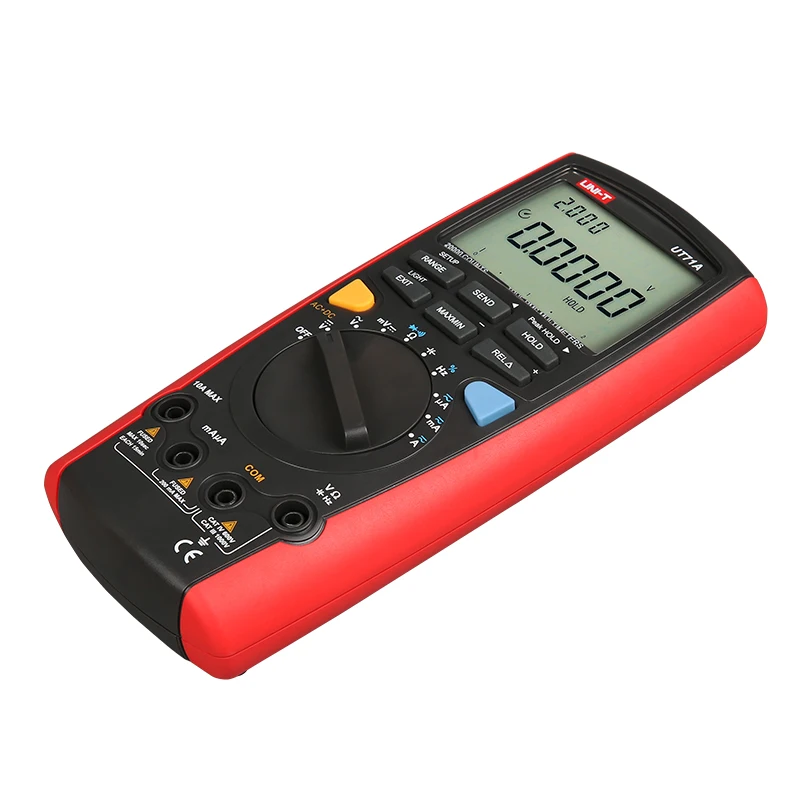

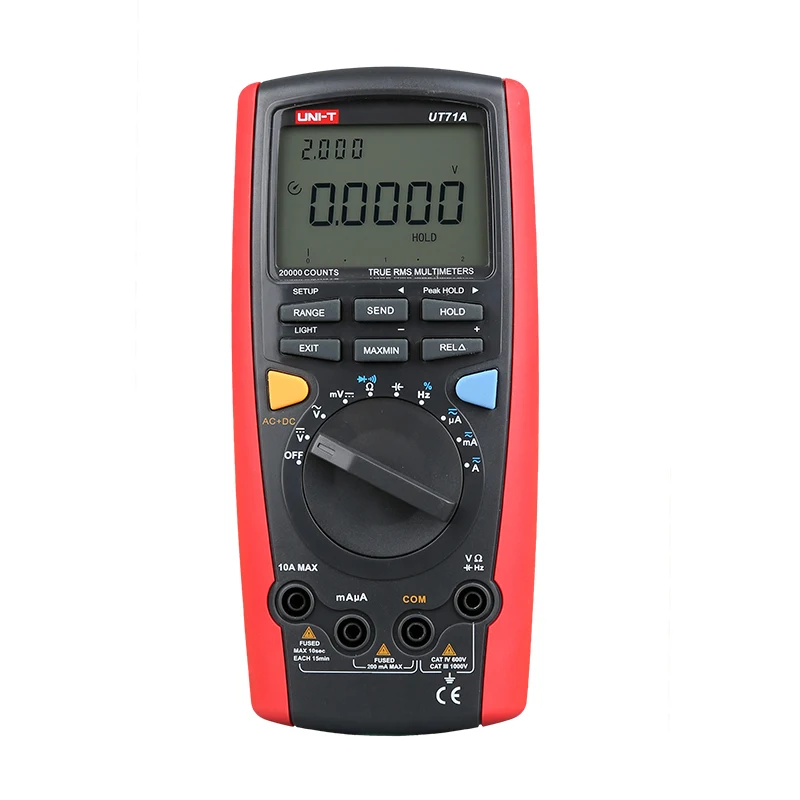

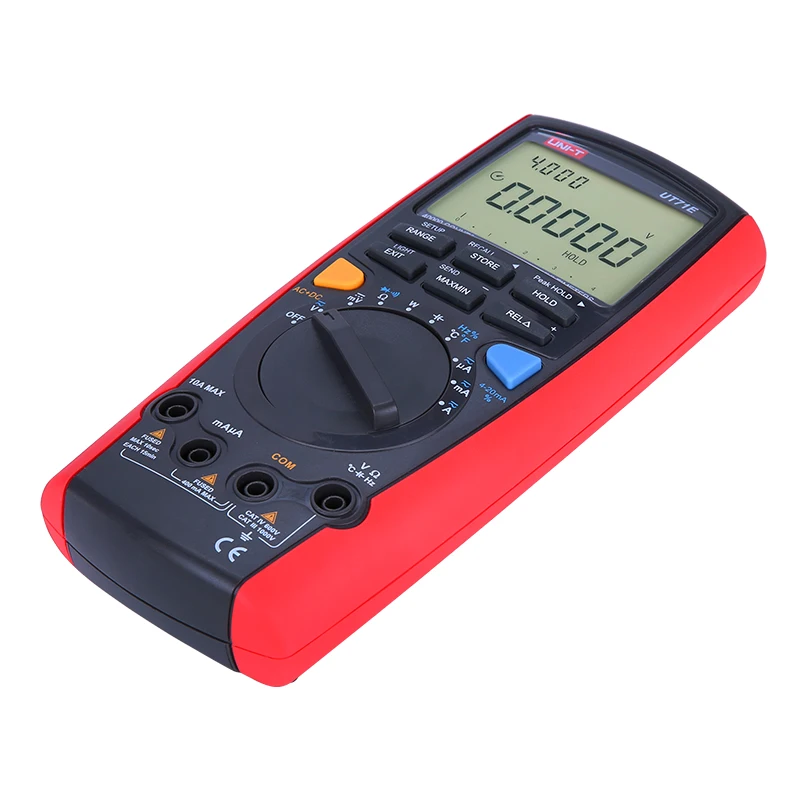

Uni t UT71 Series Middle Size Intelligent Digital Multimeter professional multimeter
- Category: >>>
- Supplier: Shenzhen Mindwill Trading Co. Ltd.
Share on (62025286346):
Product Overview
Description
| Specifications | Range | UT71A | UT71B | UT71C | UT71D | UT71E |
| DC voltage (V) | 1000V | ±(0.1%+8) | ±(0.05%+5) | ±(0.025%+5) | ±(0.025%+5) | ±(0.025%+5) |
| AC voltage (V) | 1000V | ±(0.8%+40) | ±(0.6%+40) | ±(0.4%+30) | ±(0.4%+30) | ±(0.4%+30) |
| DC current (A) | 10A | ±(0.2%+20) | ±(0.15%+20) | ±(0.1%+15) | ±(0.1%+15) | ±(0.1%+15) |
| AC current (A) | 10A | ±(1%+15) | ±(0.8%+15) | ±(0.7%+15) | ±(0.7%+15) | ±(0.7%+15) |
| Resistance (Ω) | 20MΩ | ±(0.5%+20) | ±(0.4%+20) | |||
| 40MΩ | ±(0.3%+8) | ±(0.3%+8) | ±(0.3%+8) | |||
| Capacitance (F) | 20mF | ±(1.5%+20) | ±(1.2%+20) | |||
| 40mF | ±(1%+20) | ±(1%+20) | ±(1%+20) | |||
| Frequency (Hz) | 20Hz~200MHz | ±(0.1%+15) | ±(0.1%+15) | |||
| 40Hz~400MHz | ±(0.01%+8) | ±(0.01%+8) | ±(0.01%+8) | |||
| Temperature | -40°C~1000°C | ±(1%+30) | ±(1%+30) | ±(1%+30) | ±(1%+30) | |
| -40°F~1832°F | ±(1.5%+50) | ±(1.5%+50) | ±(1.5%+50) | ±(1.5%+50) | ||
| Display count | 20000 | 20000 | 40000 | 40000 | 40000 | |
| General Characteristics | ||||||
| Power | 9V battery (6F22) | |||||
| Display | 73mm x 50mm | |||||
| Product color | Red and grey | |||||
| Product net weight | 384g | |||||
| Product size | 200mm x 93mm x 40mm | |||||
| Standard accessories | Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe (UT71B/UT71C/UT71D/UT71E), power adaptor (UT71E) | |||||
| Standard individual packing | Gift box, English manual | |||||
| Standard quantity per carton | 10pcs | |||||
| Standard carton measurement | UT71A/UT71B/UT71C/UT71D: 515mm x 380mm x 205mm; UT71E: 540mm x 360mm x 275mm | |||||
| Standard carton gross weight | UT71A/UT71B/UT71C/UT71D: 9kg; UT71E: 12.5kg | |||||
