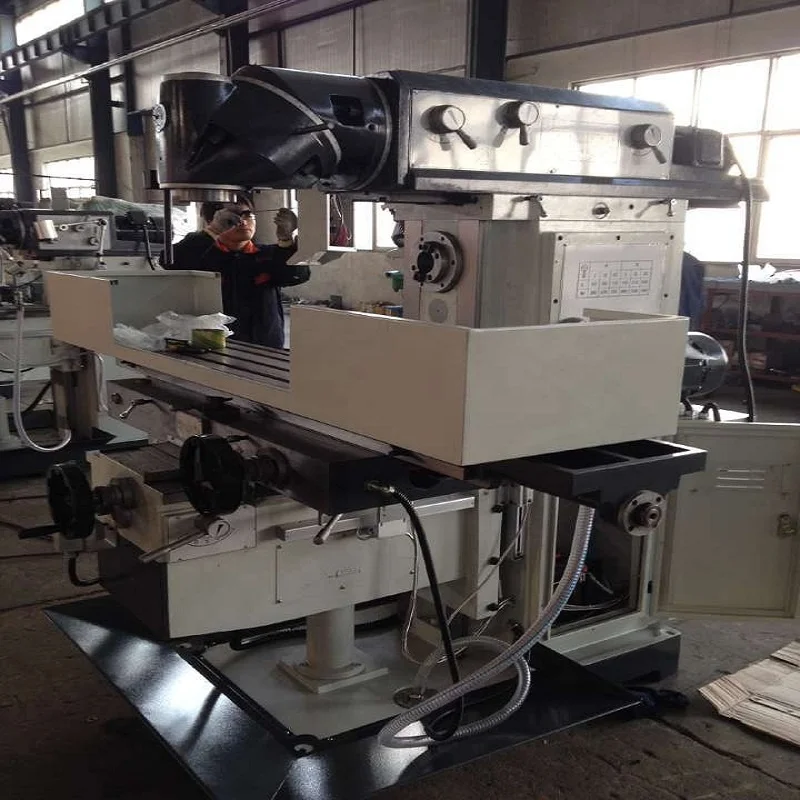

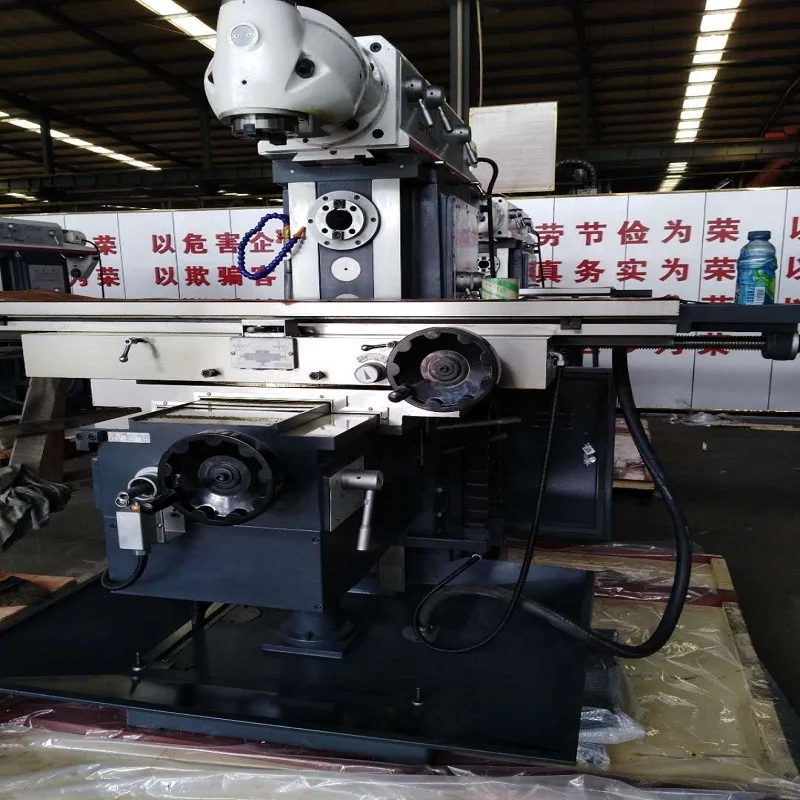

china universal ram milling machine with horizontal and vertical milling X6436 XL6436
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (62025314773):
Product Overview
Description

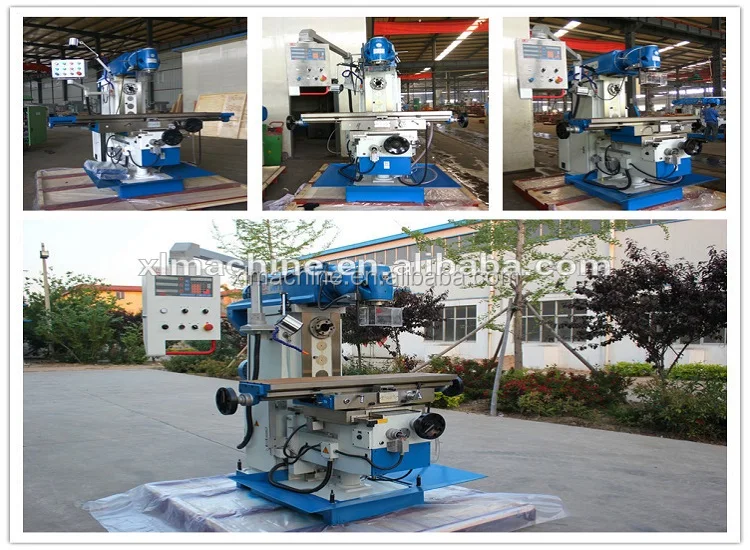

China universal ram milling machine with horizontal and vertical milling
Specifications | Unit | XL6436 | XL6436C | XL6436CL | |
Table size | mm | 1325×360 | 1600×360 | ||
Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 | |
Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | |||
Spindle taper |
| 7:24 IS050 (H) 7:24 IS050 (V) | |||
Arm travel | mm | 550 | |||
Distance between spindle nose and table surface | mm | 196-656 | 196-646 | ||
Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | ||
Distance between spindle and arm | mm | 200 | |||
Spindle speed range | r.p.m | 12steps 60-1750 (V) 12steps 60-1800 (H) | |||
T-slots(NO./width/pitch) | mm | 3/18/80 | |||
Main motor power | Kw | 5.5 (H) 4 (V) | |||
3 to feed Ac servo motor torque | N.m | 10 | |||
Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 | |
Net weight | kg | 2650 | 2750 | 2800 | |

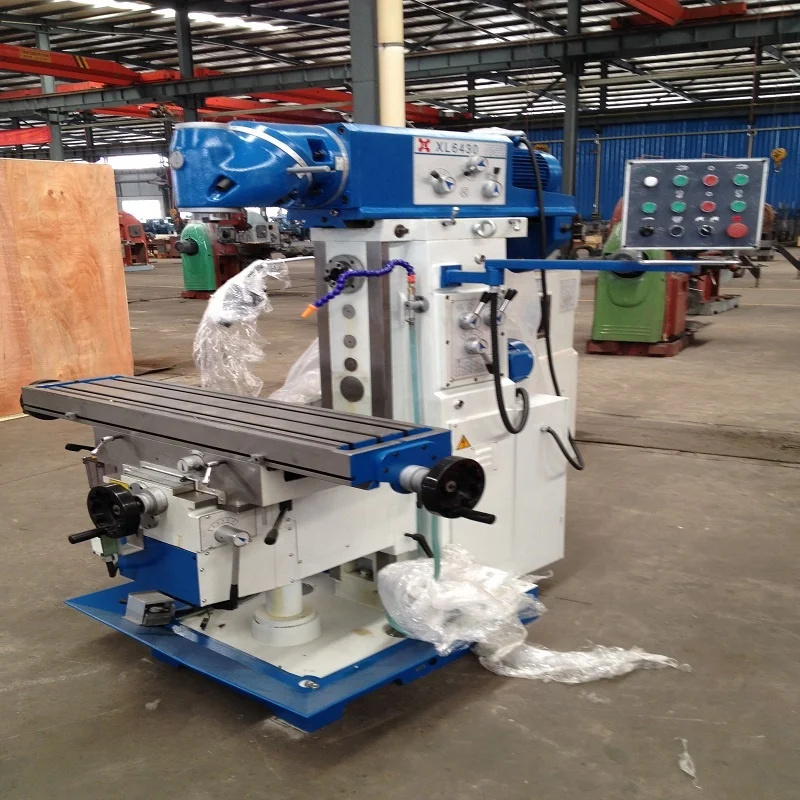

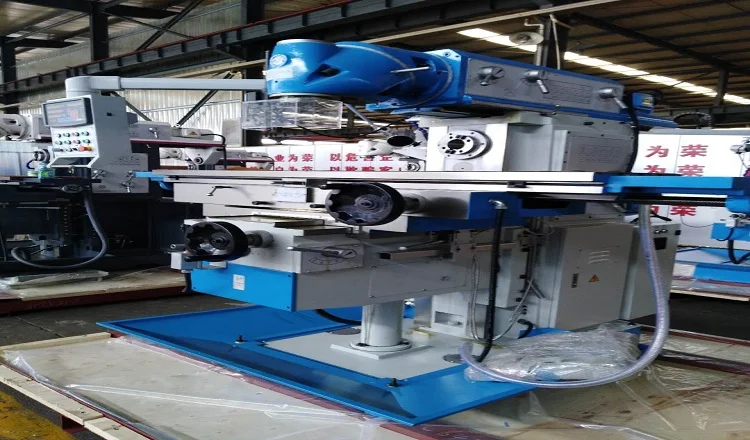

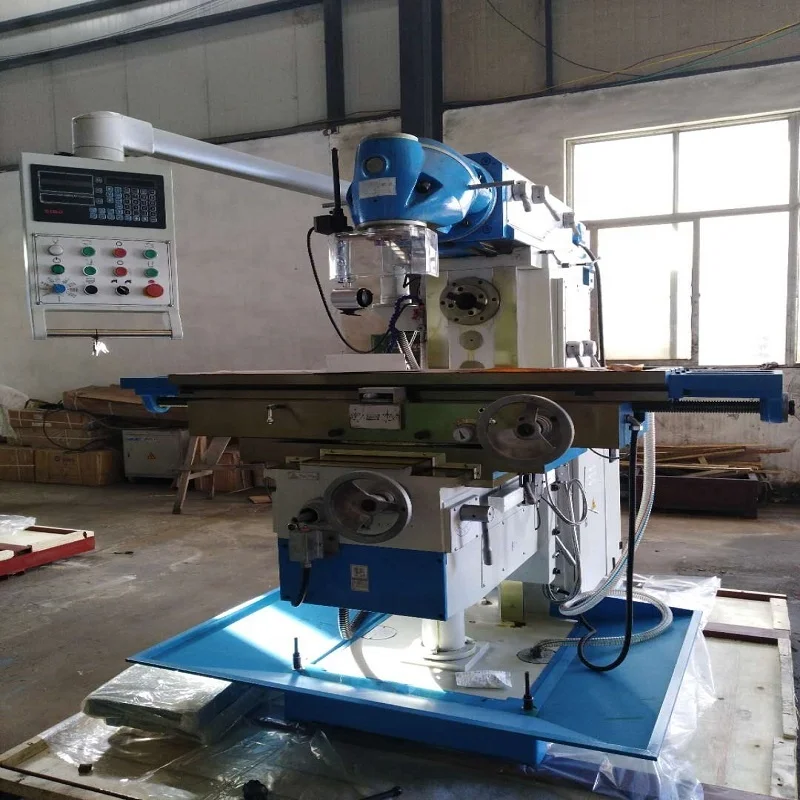

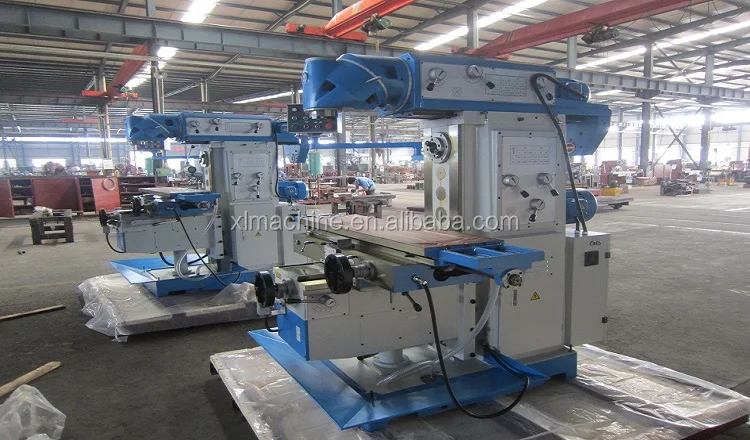

china universal ram milling machine with horizontal and vertical milling is a universal ram milling machine with servo motor and automatic feeding on 3 axis, this kind of milling machine equiped swivel milling head, and rotary table and more longer worktable can be ordered as optional, it is very popular, and sells very well these years.

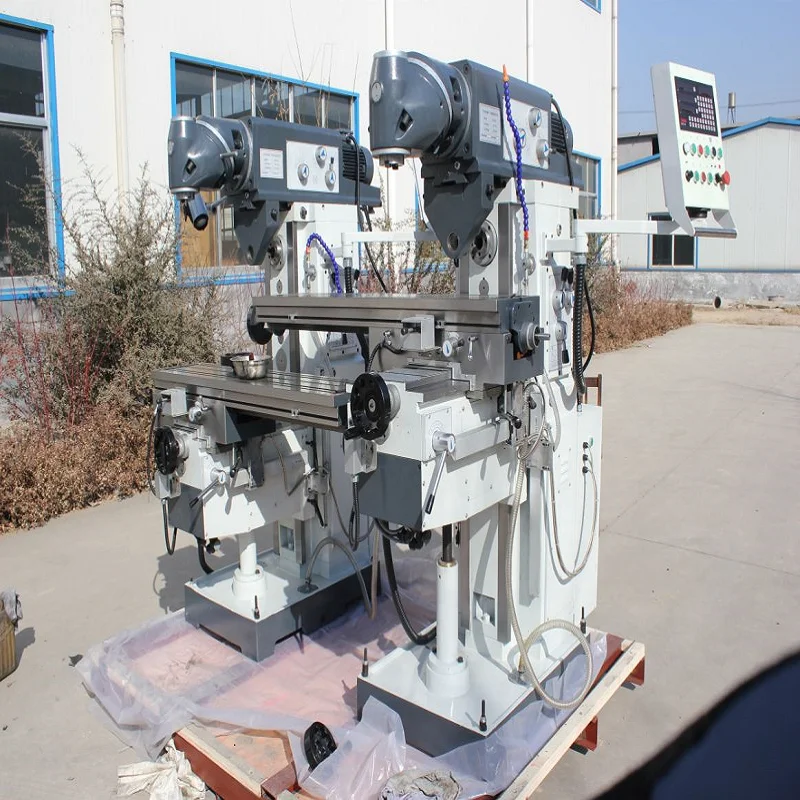

Rotary Table Swivel Head universal Milling Machine XL6436W
1.Driven by Ac servo motor
2.Table automatic feed on X,Y,Z
3.Automatic rapid feed X,Y,Z
1.Driven by servo motor;
2.Table automatic feed on X,Y,Z;
3.Automatic rapid feed X,Y,Z.
4.ISO 50 spindle taper;
5.Milling head can swivel 360 degree;
6.Worktable can swivel ±45°;
7.High spindle speed;
8.Powerful main motor.
XILI --- Packaging
Plywood Case and Steel Pallet
XILI --- Customers
XILI-Certifications

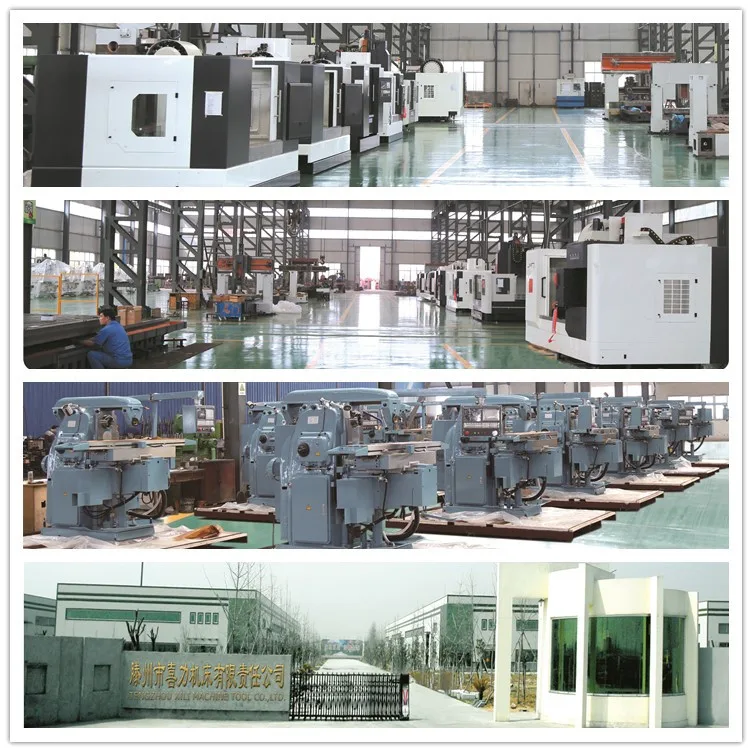

Company Information
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. are special on milling machine and CNC drilling machine We have more than 30 years manufacturer experience. All our products passed CE, ISO9001. We also do OEM for Germany Knuth, Optimum, Austria Bernado and so on. You can trust our quality and service.
Hope we can build long-term business relationship with you.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
