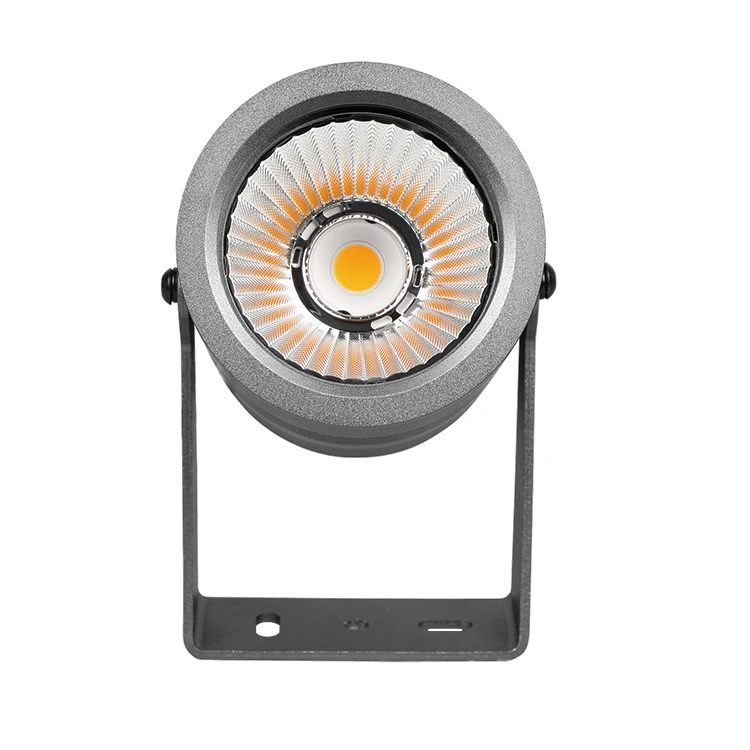

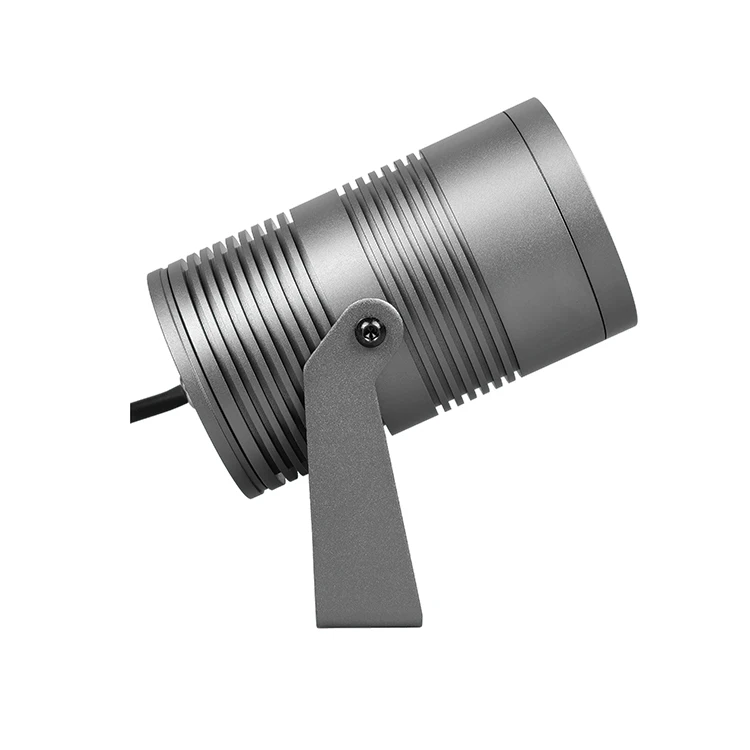

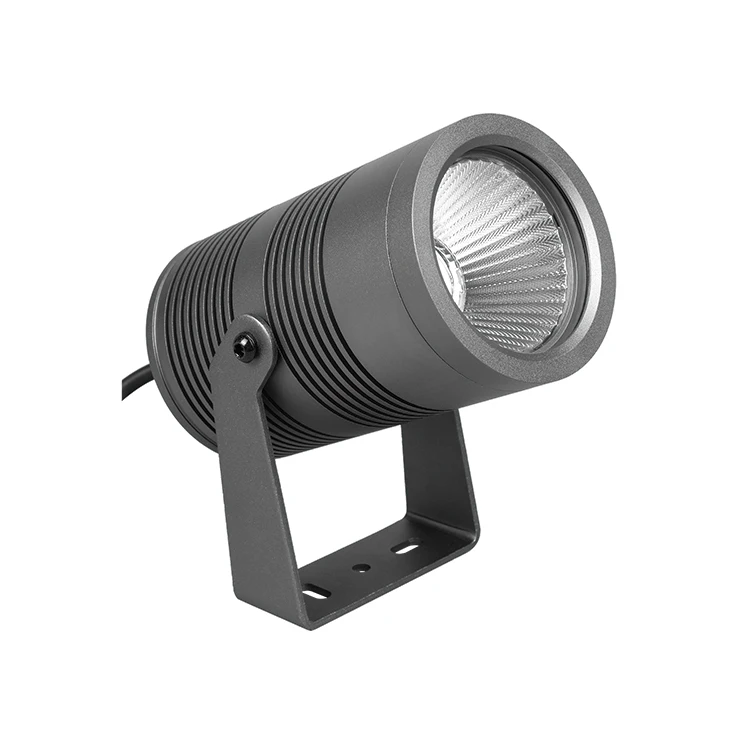

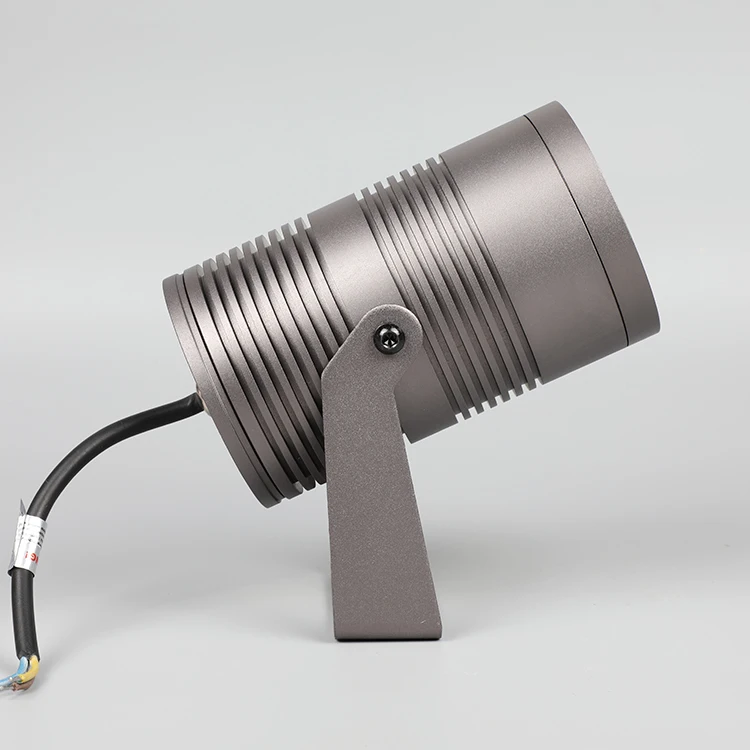

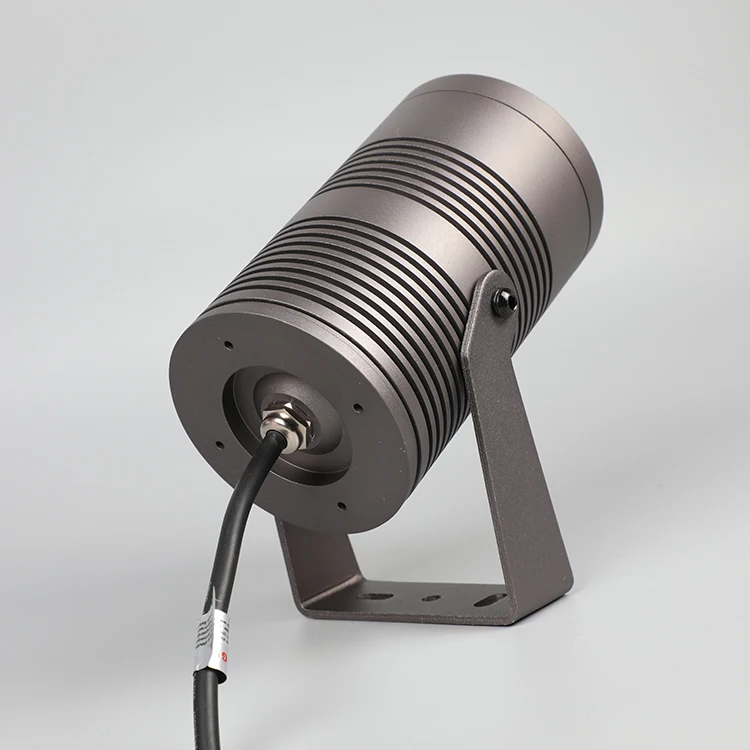

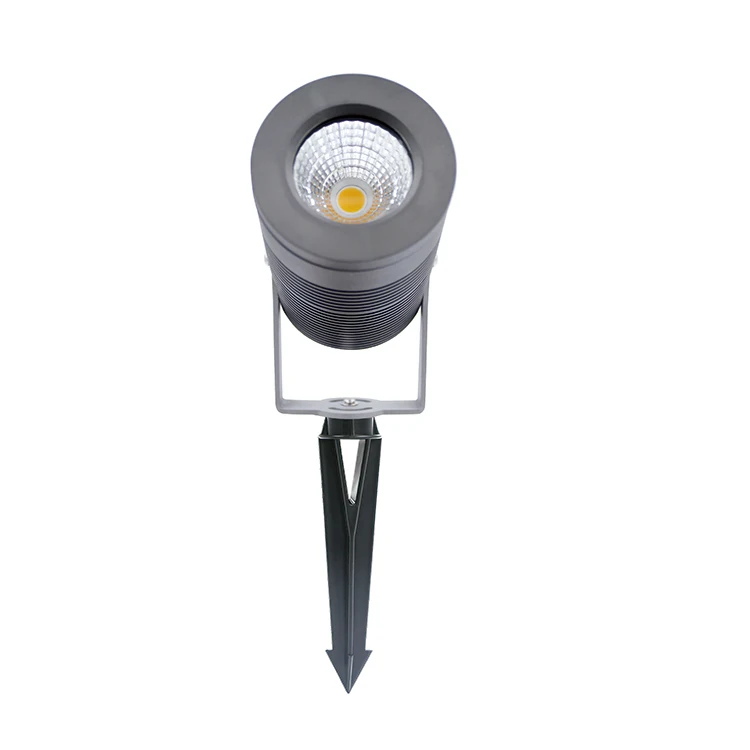

China Factory 3 Years Warranty 1 PC 25W COB LED Spike Light
- Category: >>>
- Supplier: Puyuan Electronic Illumination Co. Ltd.Puyuan Ltd.
Share on (62025321705):
Product Overview
Description
Product Description
.1 PC 25W COB LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.15°,23°,38°,45°,60° beam angle as options
.2100~2300 lm luminous flux output
.IP67 waterproof
.3 years warranty
.8~10 years professional sales and technicians to serve you
General Data | |
Item No. | UL-15W-COB-1500-BH |
Power | 25 Watts |
LED type | 1 PC 25W COB LED |
Luminous flux | 2100~2300 lm |
CCT | 2700K,3000K,4000K,6000K |
CRI | 80+ |
Beam angle | 15°,23°,38°,45°,60° |

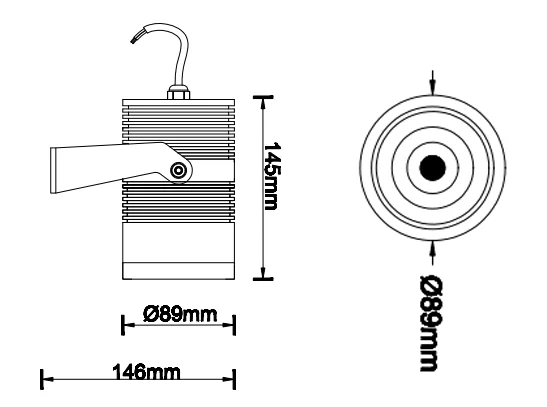

Dimension | 89 x 145 (mm) Diameter x Height |
Cut out | / |
Net weight | 1.37 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | AC95-265V |
Insulation class | Class I |
Cable | 1PC rubber cable 1M H05RN-F 3x1mm square |
Driver | high voltage constant current driver with transformer |
Construction Data | |
IP rating | IP67 Waterproof |
Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
Protection finishing | 20~25μm thickness anodized film for housing .Dark grey |
Trim | Passivated (Anodizing) Aluminum |
Glass | Step tempered Glass.T=4mm. |
Loading capacity | 220 kgs |
Cable Gland | PG7 IP67 |
Gasket | O-ring PMQ silicone seal |
Accessories | |
Spike | With Aluminium spike as spike spot lights (Standard) |
Round base | With SS304 round base for wall mounting (optional) |

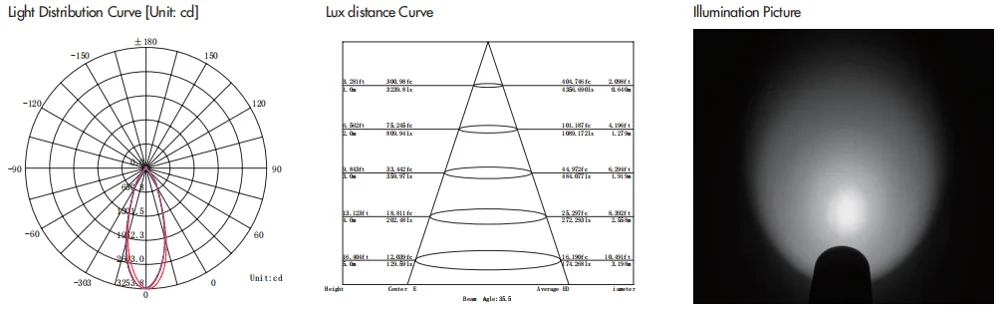

Photometric Data (3000K, 38°) & Illumination Picture

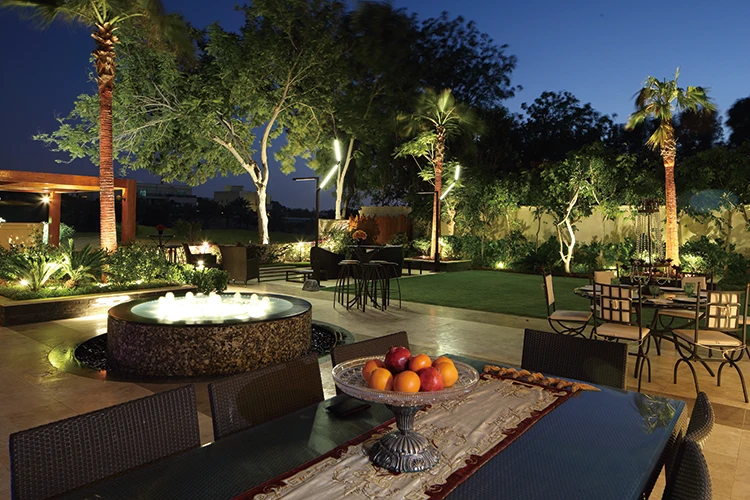

Application Pictures
Company Information
Packaging & Shipping
Our Services
1.Are you a trade company or a manufacturer?
We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.
2.What is your delivery date?
The delivery date is around 7-15 days for samples,and 15~25 days for regular orders after receipt of payment.
3.What is your payment terms?
For samples: 100% deposit.
For regular order:30% deposit in advance and 70% balance before shipment.
The payment method can be Paypal,western union bank, bank for TT .
4.What's your delivery terms ?
We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.
5.What's your warranty ?
We are confident on our quality of design,and the warranty is 3 years.
6.Can I buy the quantity below MOQ ?
Yes, please contact us for the detailed prices based on your detailed quantity requirement.
7. How many years are you producing exterior LED lighting ?
12 years since 2007.
