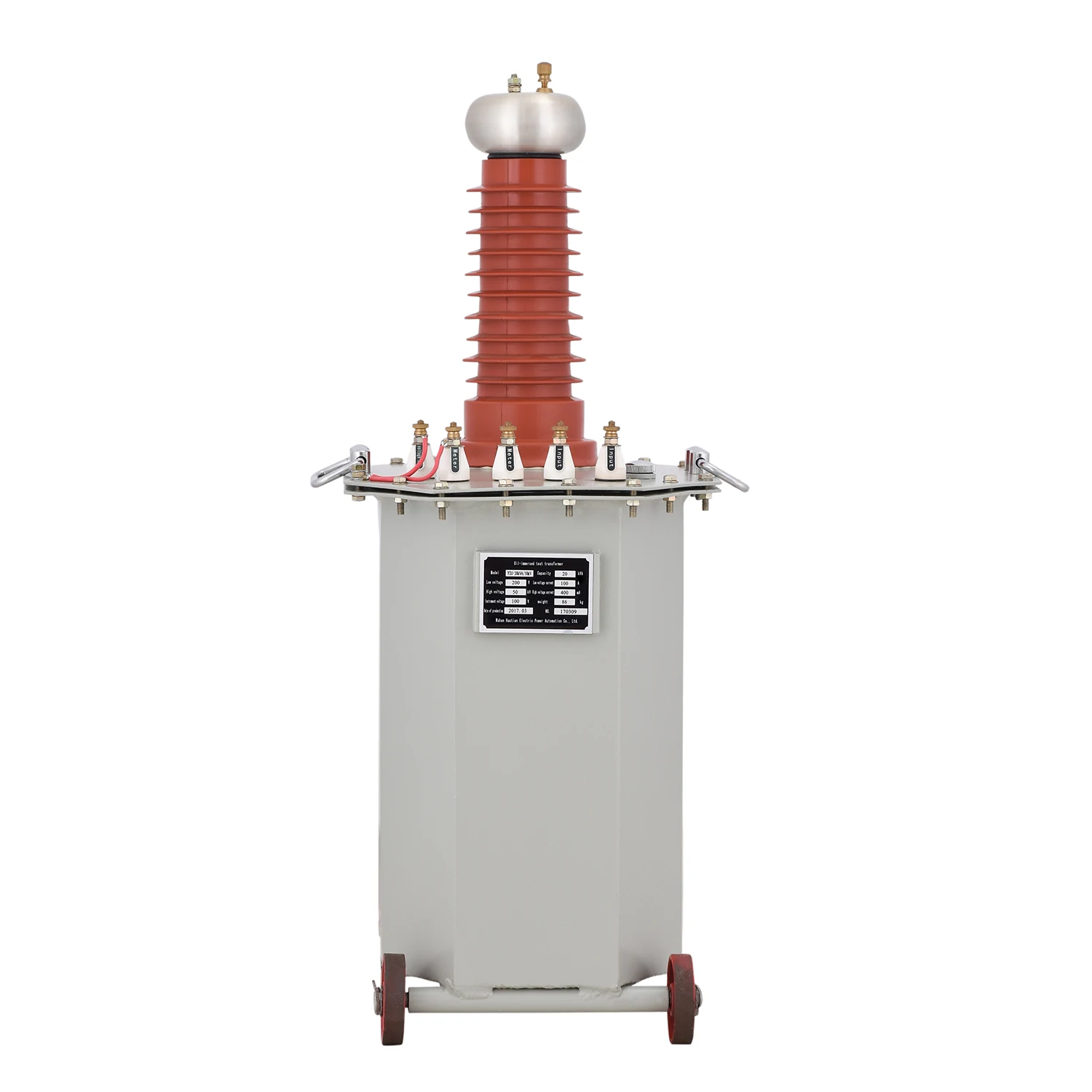

HT 10010 Non woven High Voltage Electrostatic Generator Static Generator

Product Overview

Description







High-power Electrostatic Electret Generator

Featurs:

1.The regular voltages including 70KV, 100KV, 120KV, 140KV, etc.

2.High Power 10kW   140kV   100mA

3.24 hours continuous operation

4.Strong load capacity, stable output, strong electrostatic lock capacity

5.BFE(Bacterial Filtration Efficiency) is not less than 95%

6.Depending on the different machines, raw materials, the installation location and distance, the finnal efficiency of the power may different. According to customers' feedback, the efficiency is generally about 98%, some can reach to 99%, even 100%.





Brief Introduction

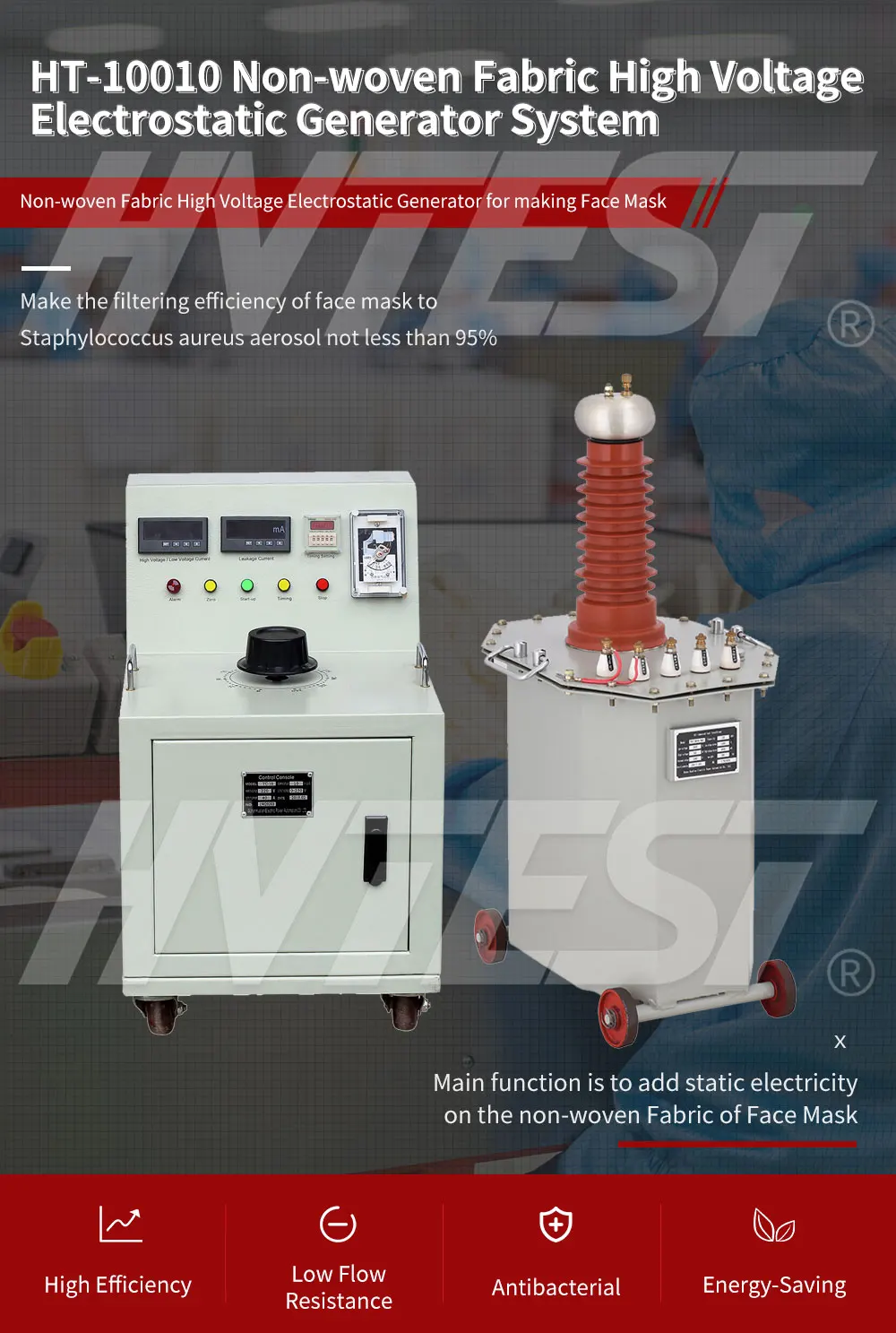

Huatian Electric has designed and developed a melt-blown cloth electrostatic electret generator for maask production based on customer needs. This equipment can continuously produce high-voltage static electricity. The main function is to melt-blown static electricity from the non-woven fabric of the maask, so that the maask will have an average particle diameter. The filtration efficiency of (3 ± 0.3) μm S. aureus aerosol is not less than 95%. The melt-blown cloth electrostatic electret generator plays an indispensable role in the maask production line.

Meltblown filter principle. The main material of melt-blown non-woven fabric is polypropylene, which is a kind of ultra-fine electrostatic fiber cloth that can capture dust. When the droplets containing pneumonia virus are close to the melt-blown non-woven fabric, they will be electrostatically adsorbed on the surface of the non-woven fabric and cannot penetrate. This is how this material isolates germs. After the dust is caught by the ultra-fine electrostatic fibers, it is extremely difficult to separate due to cleaning, and the washing will also destroy the electrostatic suction ability of the static electricity. Therefore, this maask can only be used once.

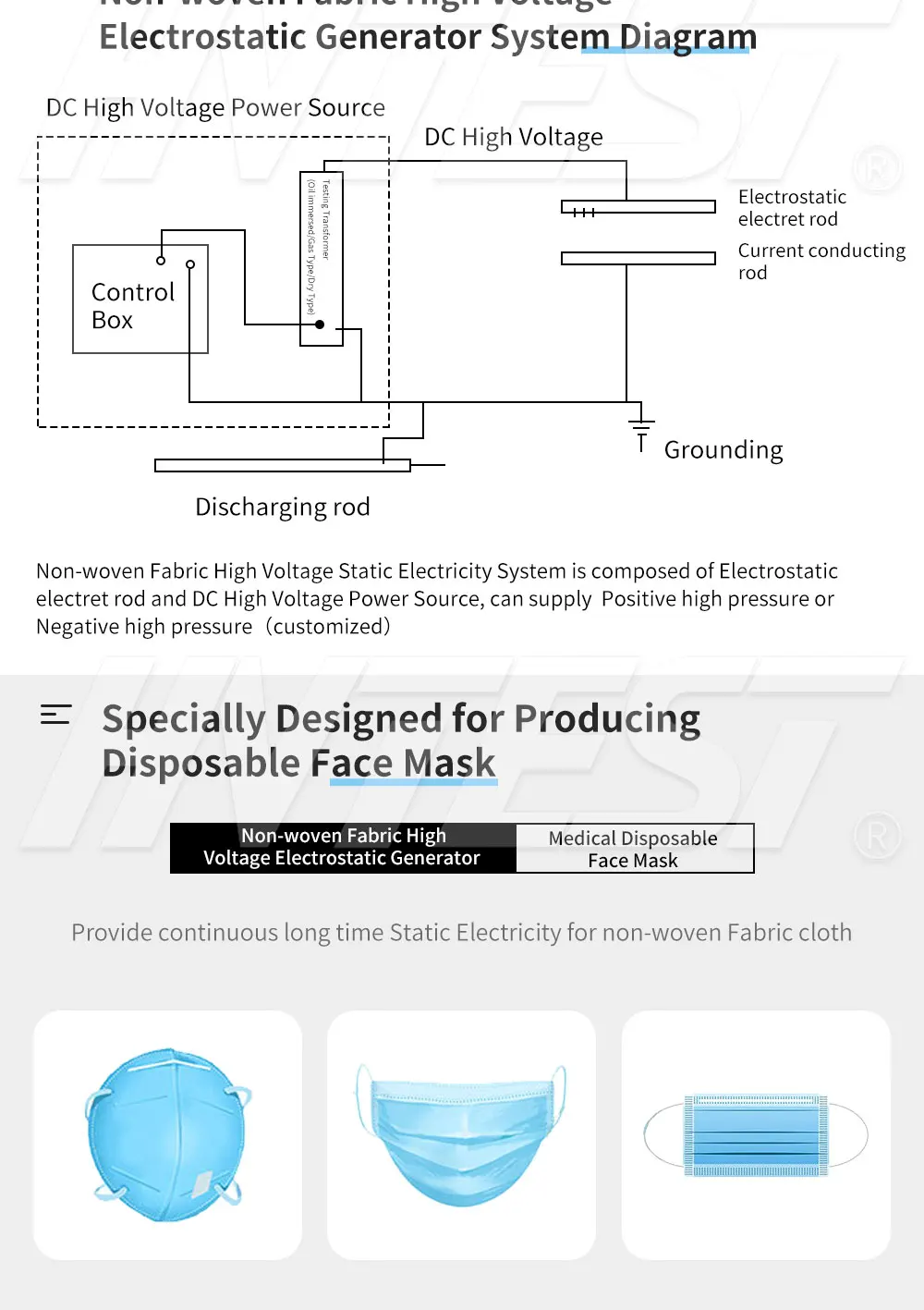

Meltblown non-woven fabrics need to be added with a trace substance called "electret", which is easily charged with static electricity. Non-woven fabrics are subjected to "coroona discharge" through electrostatic electret equipment to melt Sprayed non-woven fabrics have been charged for a long time.

Electret processing. Electret refers to a dielectric material with long-term charge storage function. It has the advantages of high efficiency, low flow resistance, antibacterial, energy saving, etc. On the basis of ensuring the physical collision barrier effect of conventional filter materials, the electrostatic adsorption effect is increased. The electret treatment makes the filter material fibers charged, combined with the dense characteristics of melt-blown ultrafine fiber materials, so a large number of electrodes are formed between the charged fibers. The charged fibers can not only attract most of the charged particles in the environment like a magnet, but also Part of the uncharged particles can be polarized, and then some pollutants with smaller particle size can be adsorbed. Even nano-scale substances such as viruses can be electrostatically adsorbed or blocked by charge repulsion.



Features

1. The instrument has high safety and comprehensive protection.

2. The instrument has good electrical performance, strong moisture resistance, no leakage, good performance and high precision.

3. The instrument can attach static electricity to the raw materials of the maask, so that the mask can filter Staphylococcus aureus aerosol with an average particle diameter of (3 ± 0.3) μm not less than 95%.

4. Adopt special high-voltage power supply, digital control mode, full abnormal slow start, nanosecond arc-response ability to ensure that the melt-blown production line is fault-free and runs all day.

5. The energy storage is small, and it will not cause damage to the non-woven fabric during discharge and ignition; the nanosecond arc response capability ensures that the power supply restarts quickly within 20ms, so that the charging effect is even. High stability can make the ionization effect more stable.

6. It has the advantages of high efficiency, low flow resistance, antibacterial, energy saving, etc., on the basis of ensuring the physical collision barrier effect of conventional filter materials, the electrostatic adsorption effect is increased



Parameter

Model		10/100
Capacity		10kVA
High voltage voltage	AC	100kV
	DC	140kV
High voltage current		100mA
Low voltage input	voltage	200V
	current	50A
Ratio(high/instrument)		1000
Temperature rise℃(30minutes)		10
