MG C700 MEDIUM SPEED PAPER CUP MACHINE

Product Overview

Description

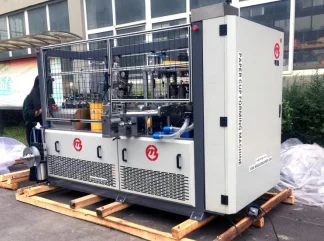

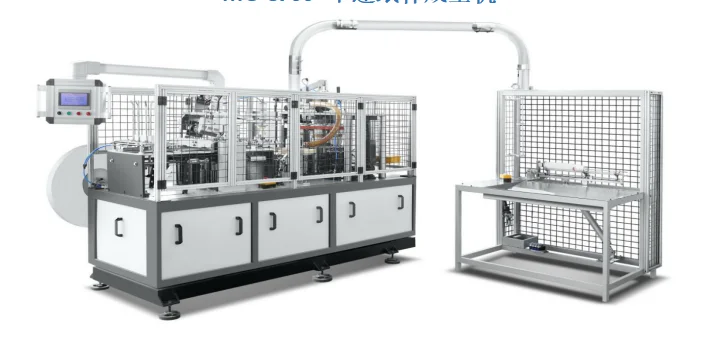

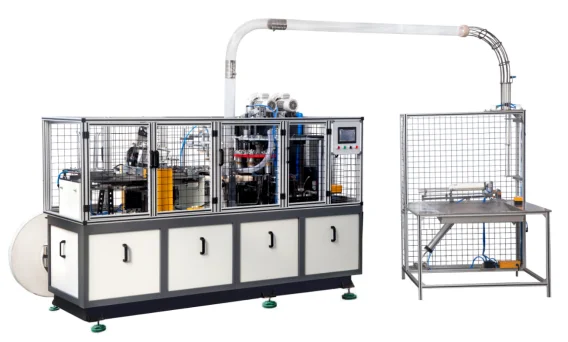

MG-C700 Paper Cup Machine

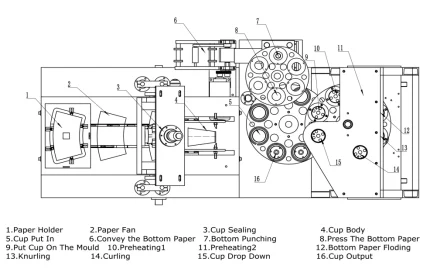

PLANE GRAPH



TECHNICAL SPECIFICATION

Model	MG-C700
Paper cups specification	4-16oz (100-450ml)(mold exchangeable) T:55-85mm H:60-135mm B:55-70mm
Air supply requirement	0.5-0.8MPa,0.4cbm/min
Paper specification	150-350 GSM single/double PE coated paper
Production capacity	60-80 pcs/min
Voltage	220V/380V
Total Power	7KW
Total Weight	3000KG
Dimensions	2800mm*1300mm*1850mm
Note	Customized service is available



MACHINE INTRODUCTION

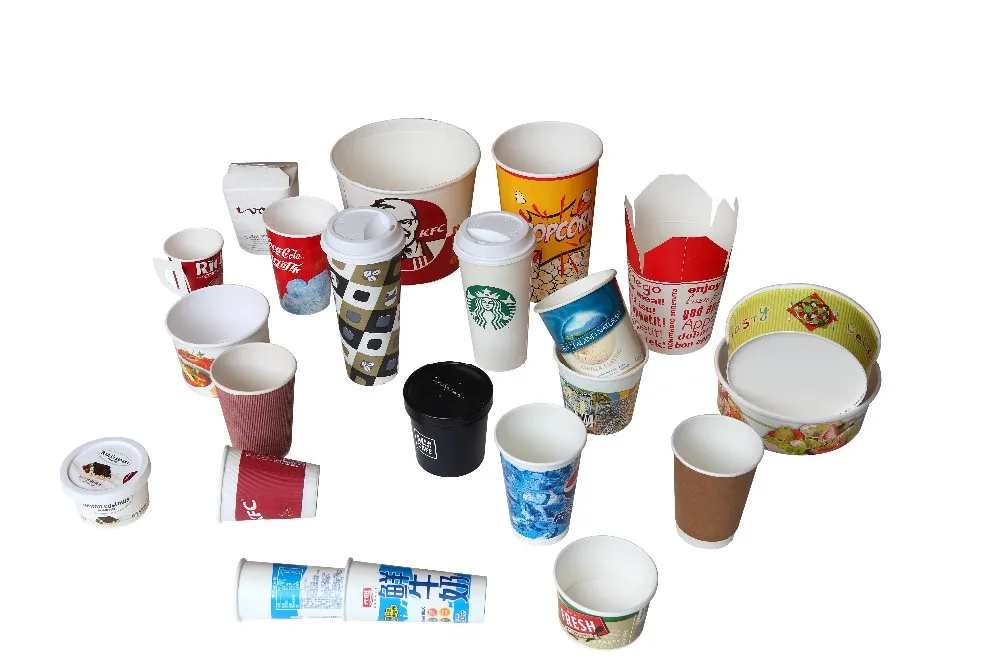

MG-C700, a newly developed paper cup machine, achieves a manufacturing speed of 65-85pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.

FEATURE

A. The machine adopts open cam type structure, high precision, large out-put and long life.

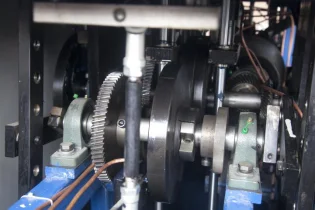

B. Longitudinal gear drive. This make up the chain drive jitter and instability's weakness.

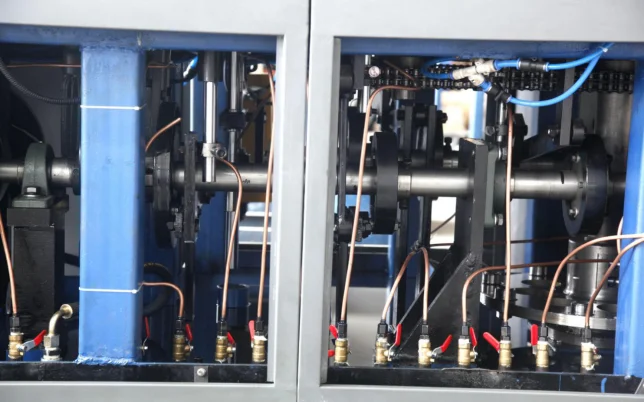

C. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.

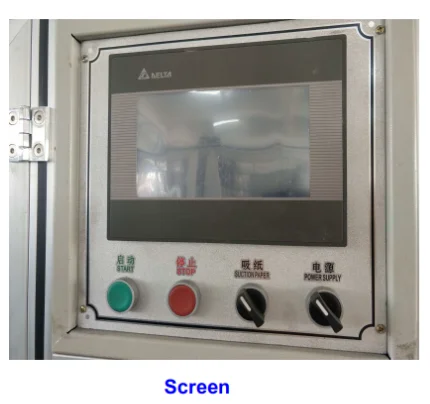

D. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process.



E. Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.



F. Stretch knife uses for bottom cutting. Easy changed and more stable.



G. Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.

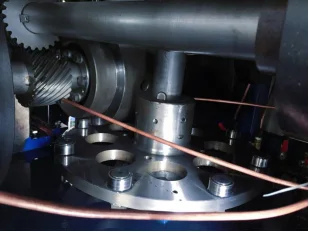

H. The knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.



AFTER SERVICES

A. One year warranty. (Non-artificial damage of parts we will send to customer, customer need pay for the transport cost.)

B.First time, when machine delivery, if customer need, then we will send the engineer to

customer country install the machine and adjust the machine for customer( customer

need pay the return tickets cost, hotel cost, visa cost, engineer salary 100usd/one day(include on the plane days)).

C.The details depend on contract or proforma invoice.

CERTIFICATE

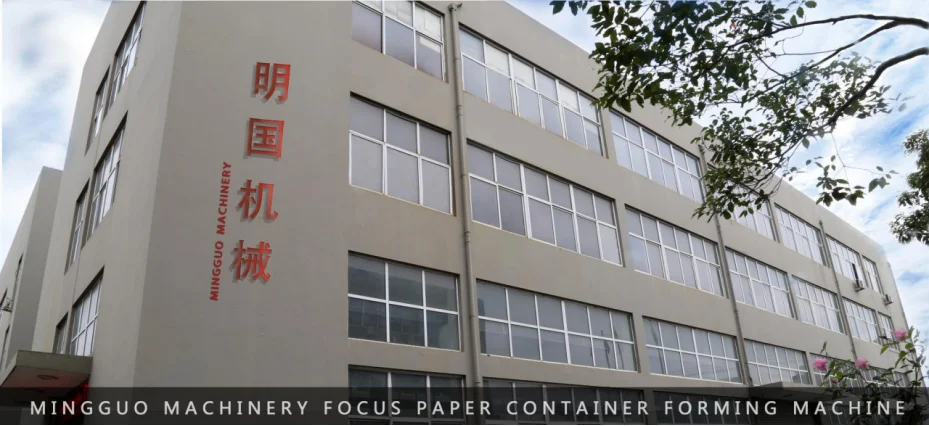

Ruian Mingguo Machinery Co., Ltd is specialized in manufacturing automation machinery and equipment of paper containers. We transcend constantly, innovation, pursue excellence and effort to improve ourselves. We have a strong technical force, exquisite workmanship, rich  manufacture experience and absorbed the advantages of similar products widely to compa-rison, analysis, and digestion.
