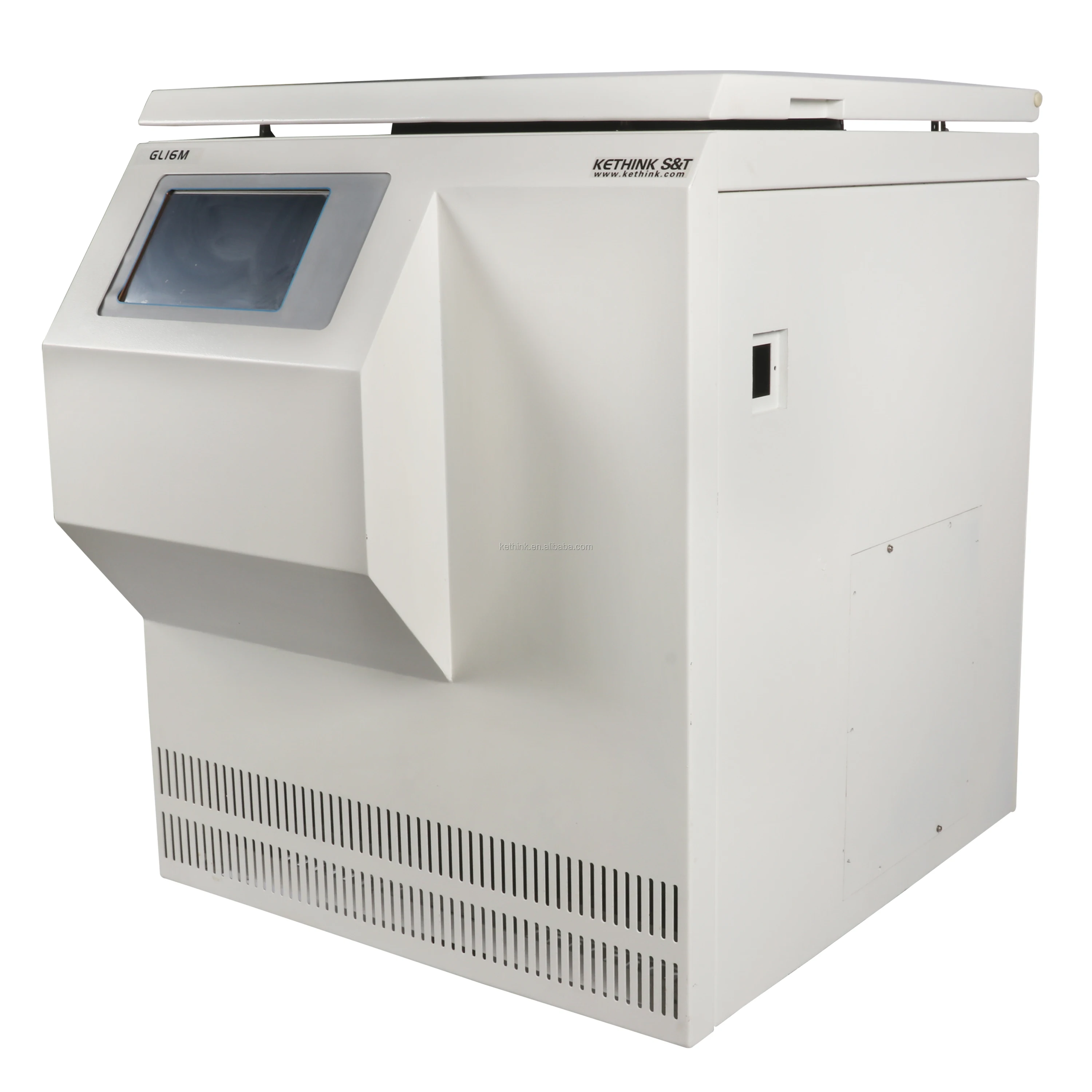

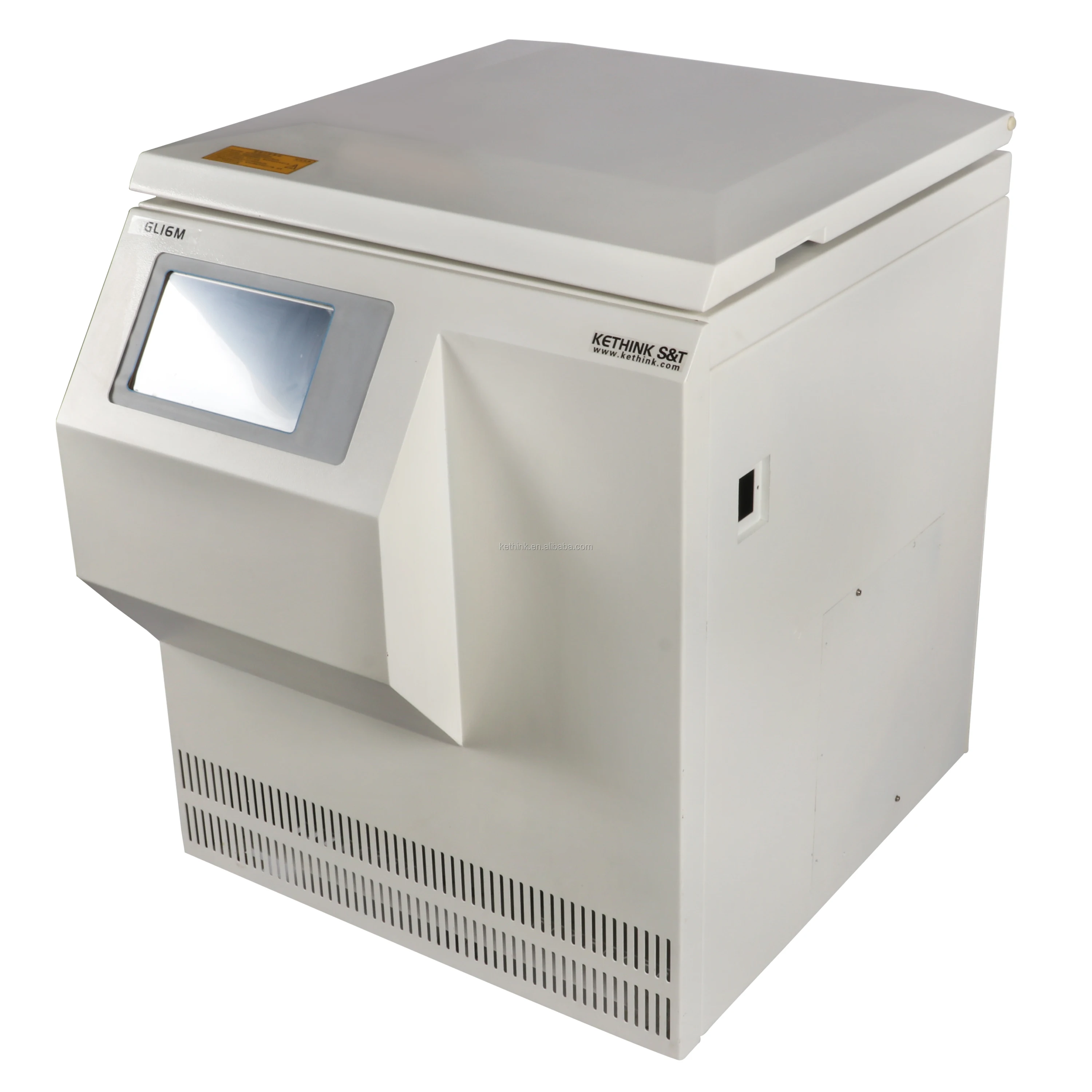

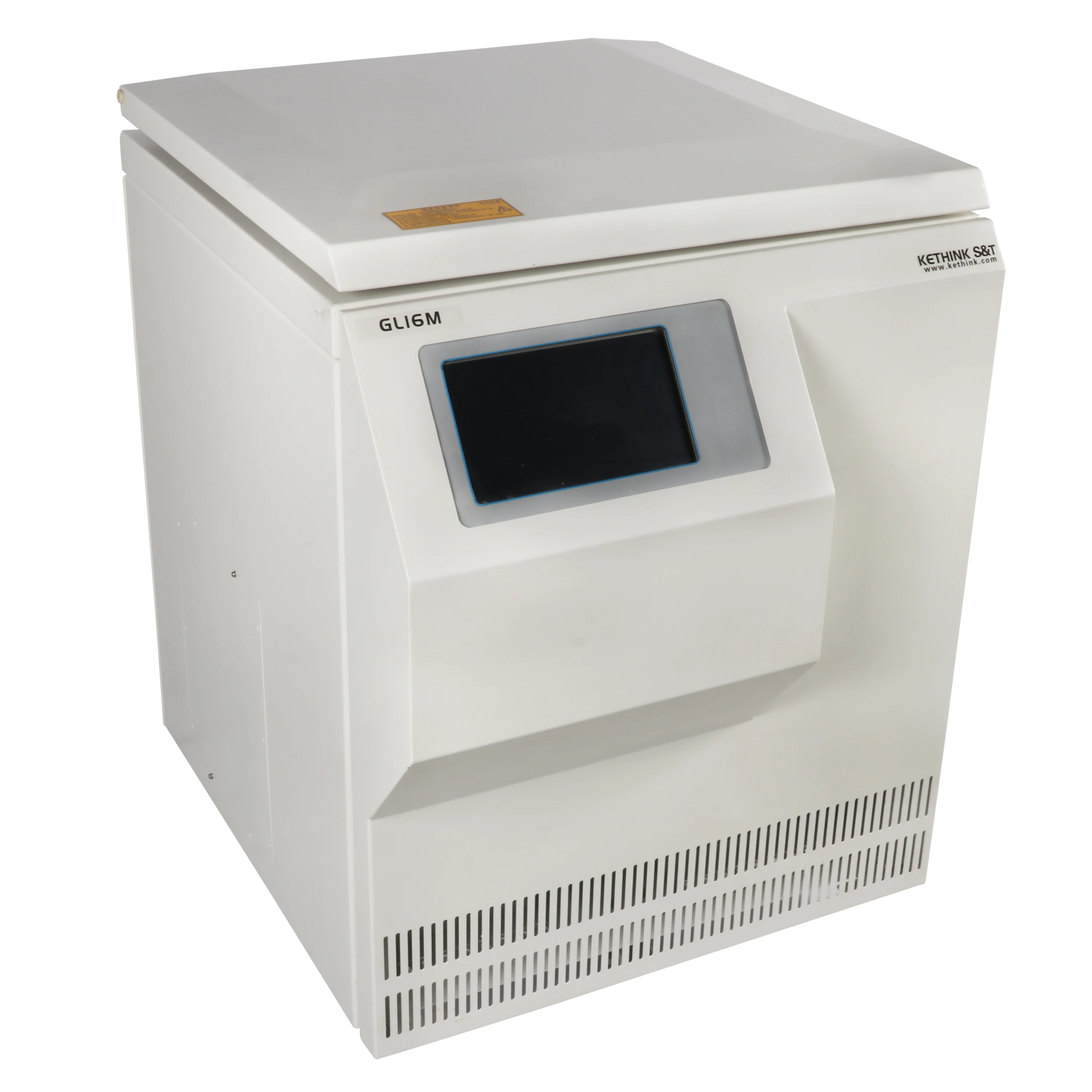

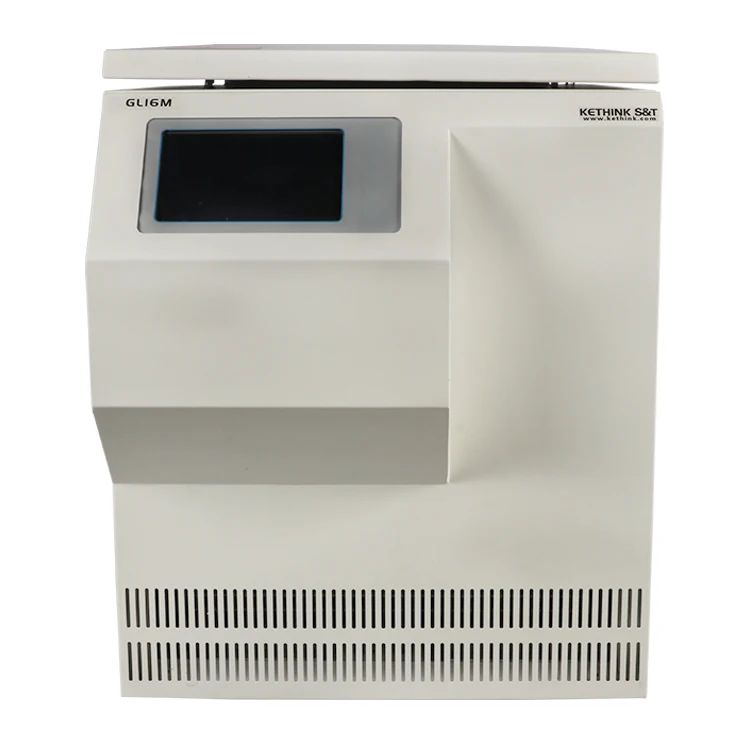

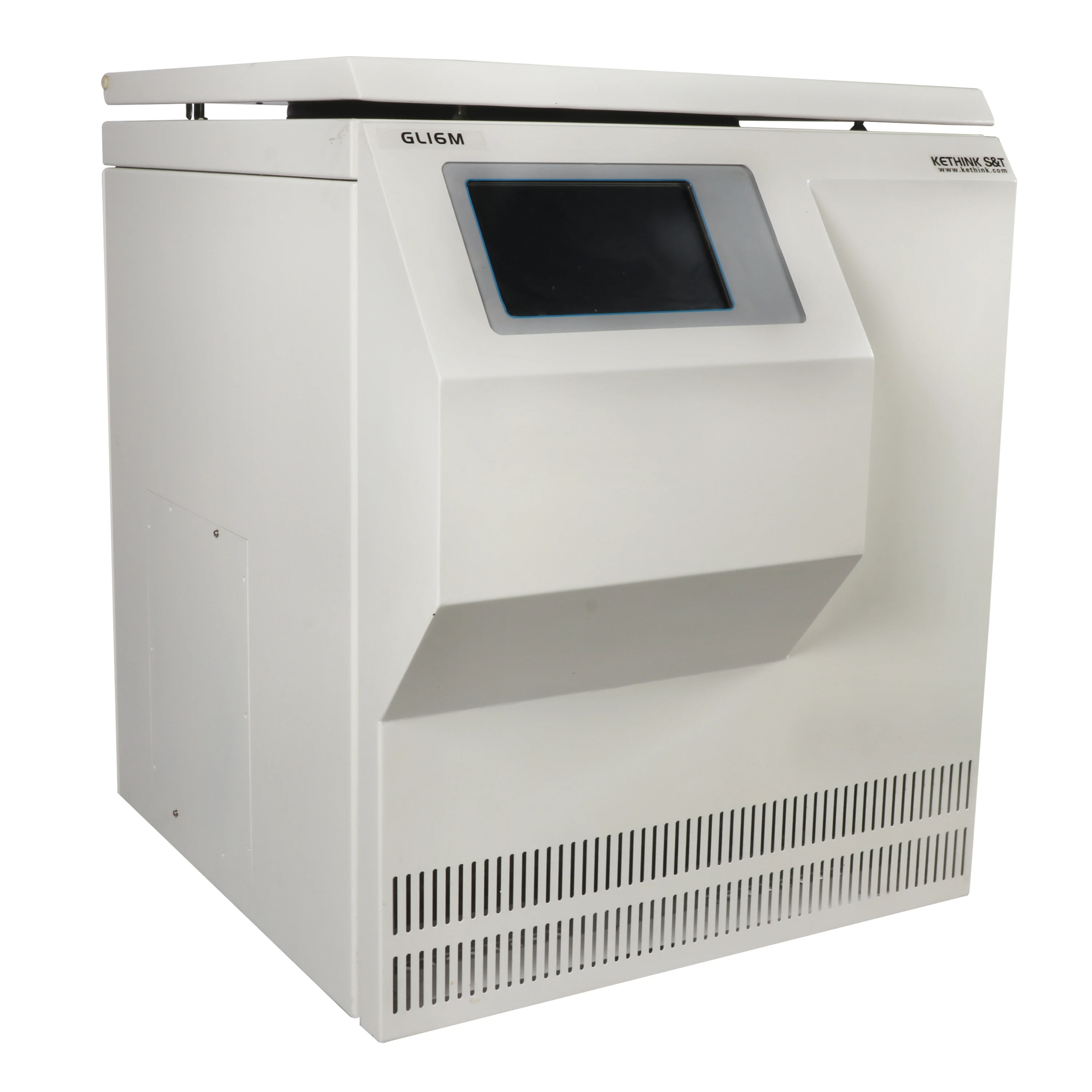

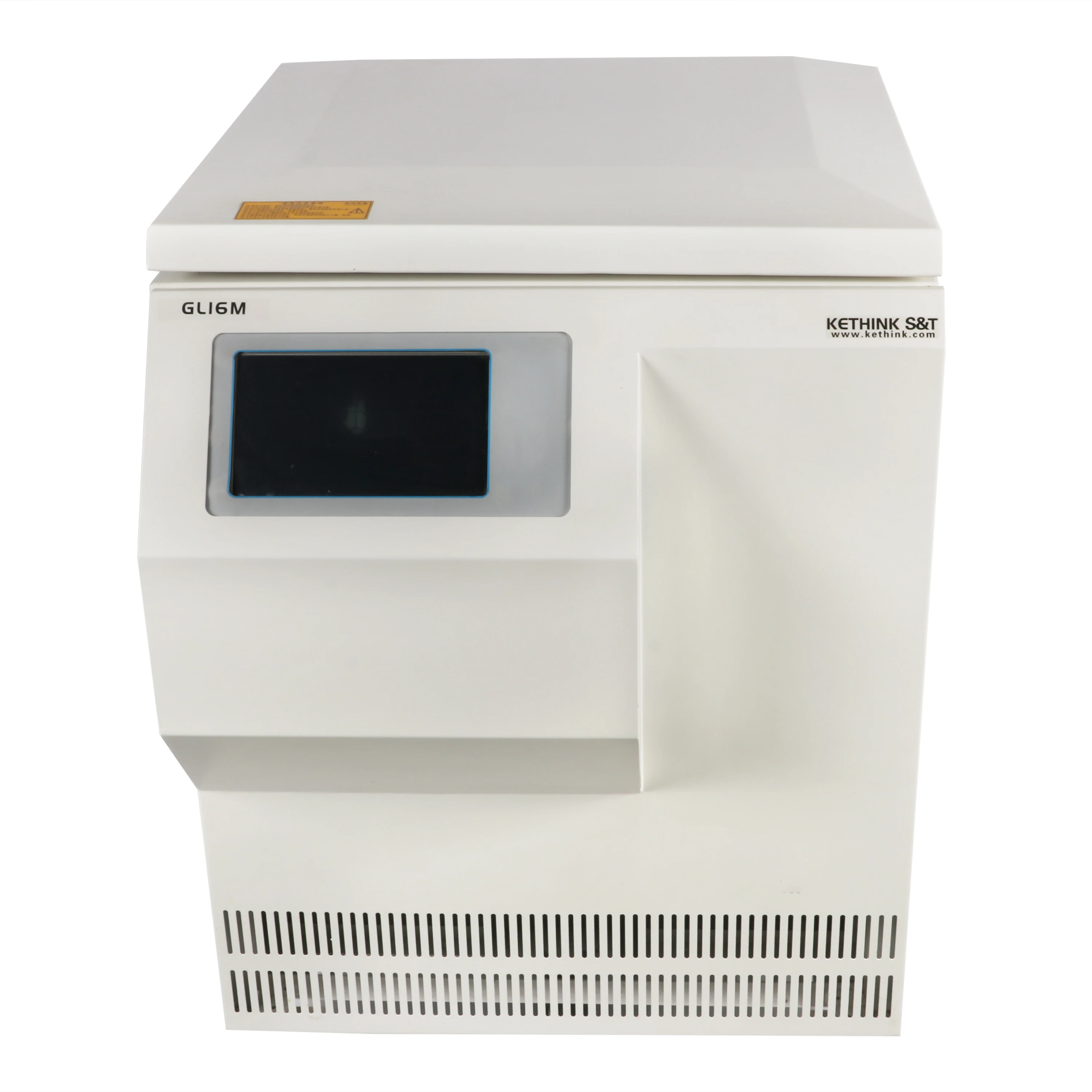

GL16M floor stand High Speed Large Capacity Refrigerated 16000 rpm Centrifuge
- Category: >>>
- Supplier: Changsha Kethink S&T Co. Ltd.
Share on (62025378219):
Product Overview
Description
Product Description
GL16M floor stand High Speed Large Capacity Refrigerated 16000 rpm Centrifuge
Features
1.Adopting carbon brushless high torque torque frequency conversion motor, no dust pollution, maintenance-free, fast rise and fall speed.
2. All adopt microcomputer processor for precise control, digital / LCD touch display, key programming, conversion of operating parameters and RCF value.
3. Fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, precise temperature control, and fast cooling.
4. 10 sets of programs can be stored and recalled, and 10 kinds of lifting speeds are available for selection.
5. Door cover independent motor servo, reduce operator safety and automatic protection for over-speed, over-temperature, unbalance.
6. The body is made of high-quality steel structure, built-in anti-riot protection inner sleeve stainless steel centrifugal chamber, safe and reliable, easy to use.
7. Equipped with a variety of rotating heads for selection, and can design different specifications of rotors according to test requirements, three-stage vibration reduction, and the best centrifugal effect.
2. All adopt microcomputer processor for precise control, digital / LCD touch display, key programming, conversion of operating parameters and RCF value.
3. Fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, precise temperature control, and fast cooling.
4. 10 sets of programs can be stored and recalled, and 10 kinds of lifting speeds are available for selection.
5. Door cover independent motor servo, reduce operator safety and automatic protection for over-speed, over-temperature, unbalance.
6. The body is made of high-quality steel structure, built-in anti-riot protection inner sleeve stainless steel centrifugal chamber, safe and reliable, easy to use.
7. Equipped with a variety of rotating heads for selection, and can design different specifications of rotors according to test requirements, three-stage vibration reduction, and the best centrifugal effect.
Application
Molecular biology,
Cell biology,
Clinical applications,
Bioengineering,
High-volume preparation,
Blood, protein precipitation and other high-tech fields.
Technical Data
Model | GL16M |
Max Speed | 16000 rpm |
Max RCF | 28948 xg |
Max Capacity | 6 * 500ml |
Speed Accuracy | ± 10rpm |
Temperature Range | -20°C ~ +40°C |
Temperature Accuracy | 土°C |
Timer Range | 1 〜9h59min/99h59min |
Display | LCD |
Motor | AC Inverter |
Power Supply | 220V 50HZ 30A |
Compressed Units | imported environmentally friendly refrigerant |
Power | 4.0KW |
Noise | ≤62dB（A） |
Device Dimensions | 980*940*1000mm(L*W* H) |
Net Weight | 280kg |
Detailed Images

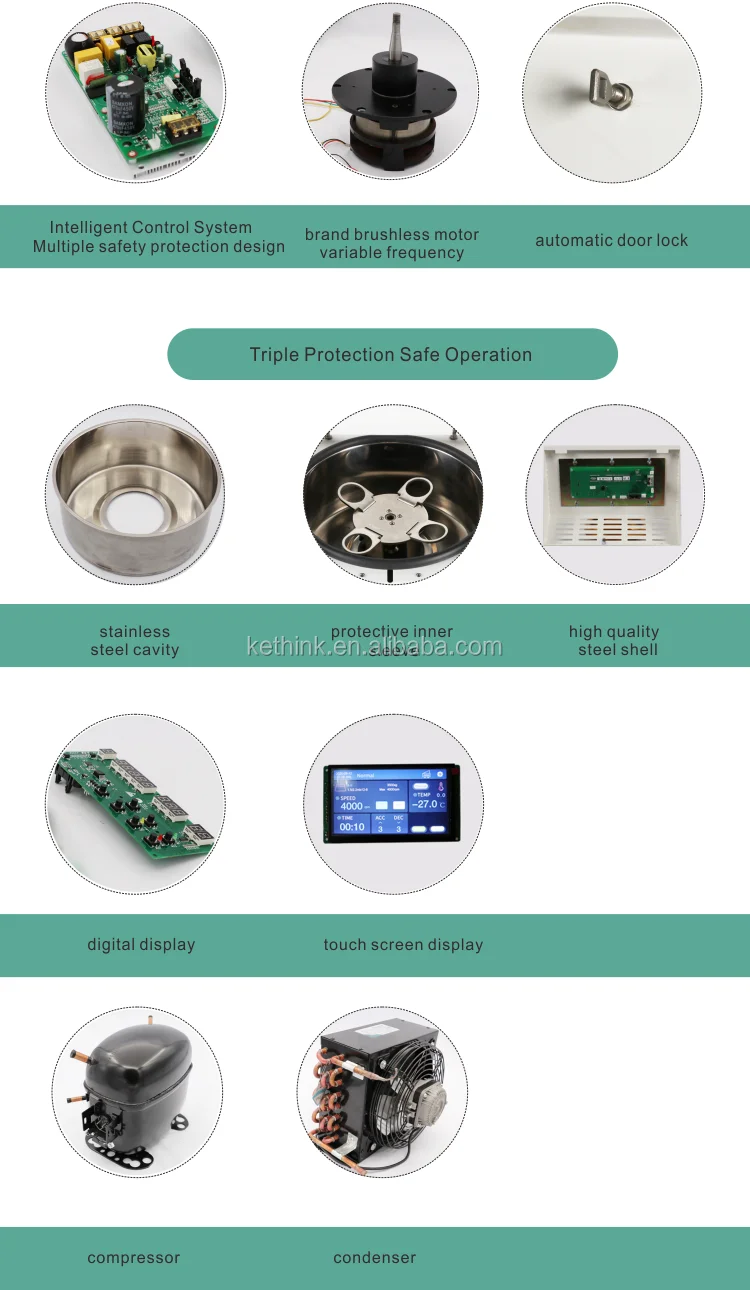

Main Components
Matched Rotors
NO | Item | Capacity(ml) | Max Speed(rpm) | Max RCF（xg） |
1 | Angle rotor | 12 x 1.5ml | 16000rpm | 28948xg |
2 | 12x10ml | 16000rpm | 28948xg | |
3 | 6 x 50ml （round） | 16000rpm | 28948xg | |
4 | 24x2.2/1.5ml | 15000rpm | 26529xg | |
5 | 6 x 70ml | 15000rpm | 25366xg | |
6 | 6 x 100ml | 15000rpm | 25366xg | |
7 | 4 x 300ml | 13000rpm | 24198xg | |
8 | 6 x 250ml | 12000rpm | 21807xg | |
9 | 6 x 300ml | 12000rpm | 22470xg | |
10 | 8 x 100ml | 12000rpm | 19826xg | |
11 | 6 x 500ml | 9000rpm | 14435xg | |
12 | Continuous centrifugal rotor | 300ml/min | 14000rpm | 21528xg |
Plugs Available

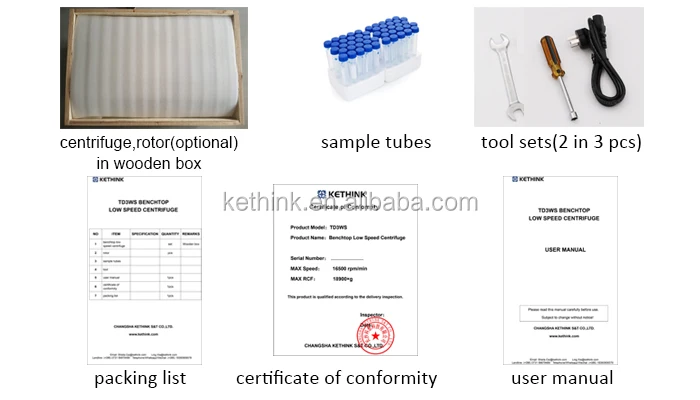

Packing List
Packing&Shipping
Packing:
1) Waterproof membrane;
2) Shockproof packaging;
3) Standard export wooden box
Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.
1) Waterproof membrane;
2) Shockproof packaging;
3) Standard export wooden box
Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.
After Sales Service
1.Warranty
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.
5.OEM & ODM SERVICE
customized shell,control system interface,language, logo,packing.
customized shell,control system interface,language, logo,packing.
