High Quality Airjet Bottle Vacuum Cleaning Machine Model
- Category: >>>
- Supplier: LODHA INTERNATIONAL LLP
Share on (62025389983):
Product Overview
Description
Product Description

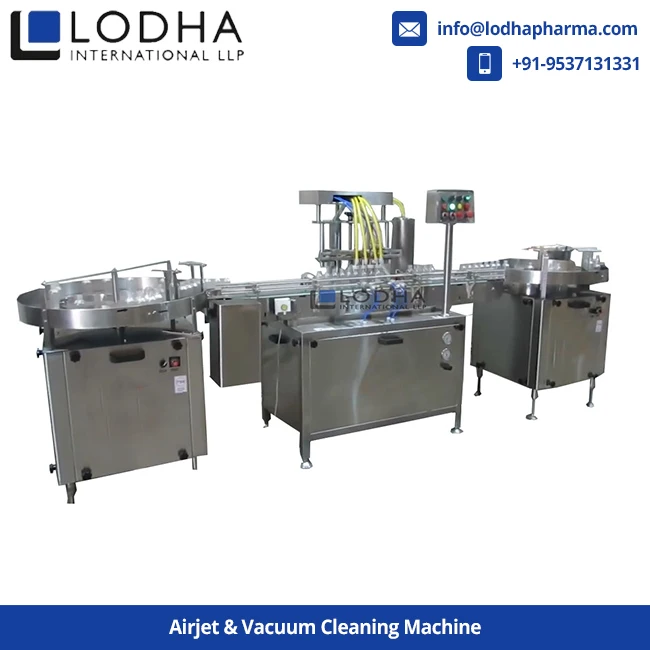

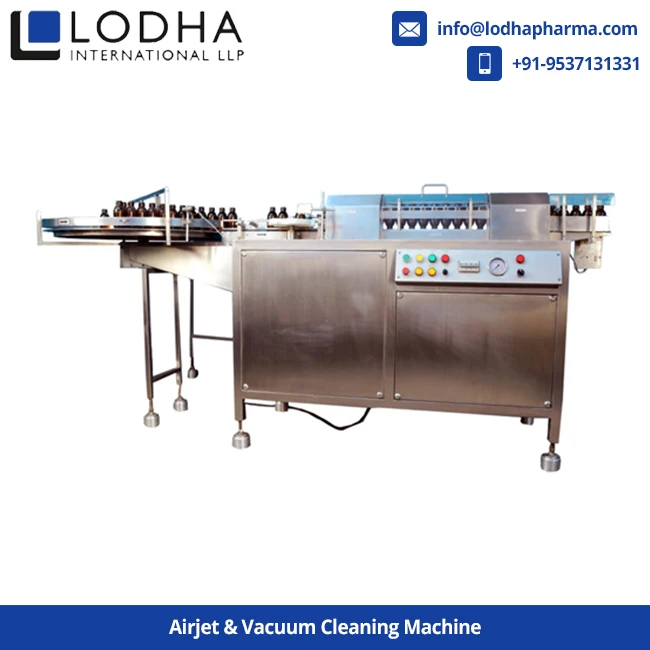

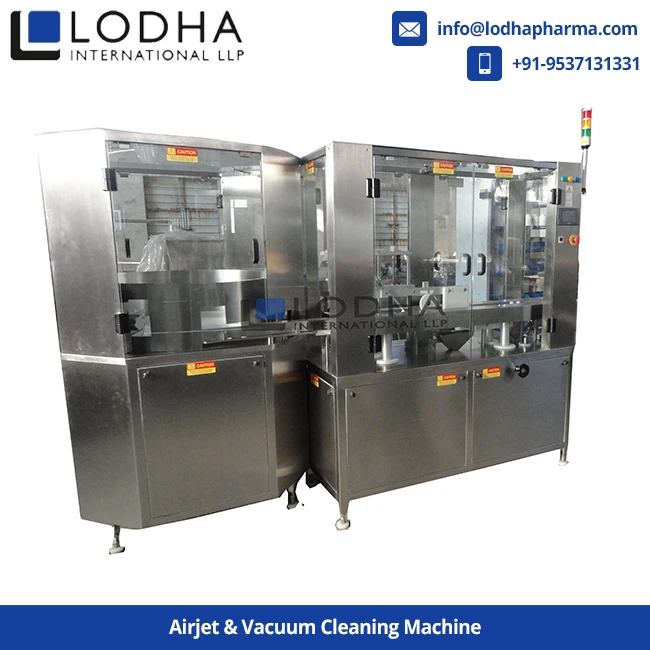

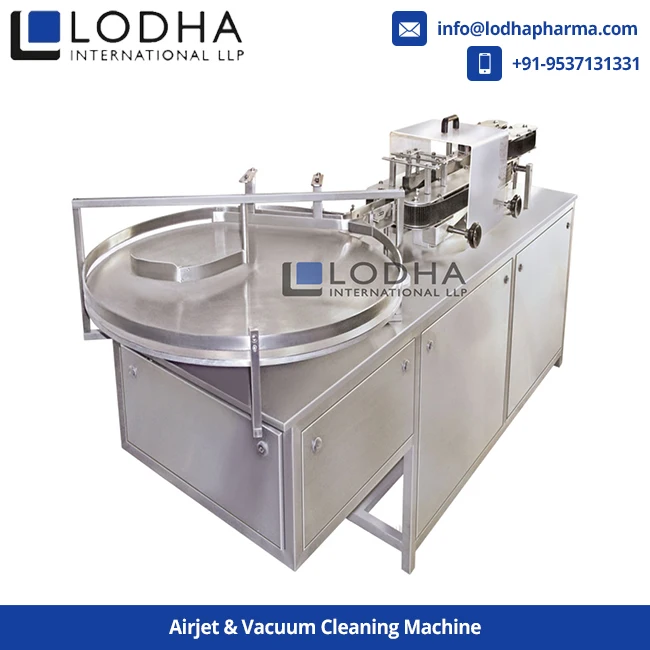

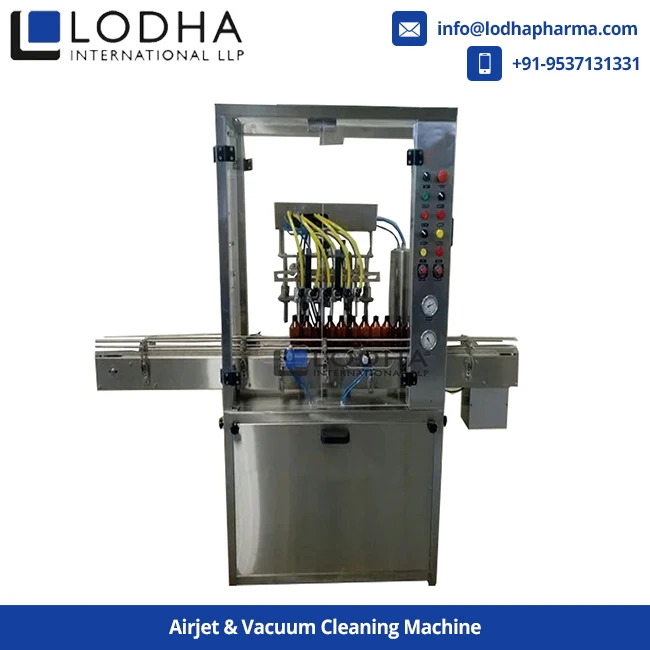

High Quality Airjet Bottle Vacuum Cleaning Machine Model
- “LODHA"Airjet Bottle Vacuum Cleaning Machine Model: LI-AVC is compact and highly efficient machine with elegant look. This multi featured machine meets the GMP requirements of clean glass and plastic bottles & Jars for non-sterile products like Dry Syrup, Bulk Packing for Tablets & Capsules etc and found a method of cleaning each individual Bottle/Jar by air jet & vacuum.
Process Operation
- Air & Vacuum Cleaning Machine is inbuilt with Turntable for smooth transfer of container to the Cleaning Section. This machine works with the principal of back pressure of container. Container feed by the Turntable to reach to the separator assembly, which transfers the container to the cleaning section one after the. Air & Vacuum Cleaning Machine consists of two Inverters, which inverts container and push it to cleaning section through back pressure of other container, Cleaning section is equipped with continuous vacuum system. Container reaches to the cleaning section a pair of air nozzles starts to flush the air inside the neck of the container and simultaneously vacuum will suck the particles, disturbed by the air. Then container passes to the inverter, where the containers are re-inverted in upright position and then after container moves for next operation.
Special Features
- Positive & Negative Air pressure for proper cleaning.
- Easy operation. Stationary nozzles eliminate contamination.
- The stationary nozzles avoid chipping of bottle necks.
- Separate zone for dust collection chamber for easy cleaning after operation.
- Over load clutch is provided to prevent jamming on machine.
- Pressure regulator with pressure switch optionally provided.
Input Specifications
| Round Shape | Ø 30 mm to Ø100 mm Respectively height, 50 mm to 270 mm, |
| Ø 22 to Ø 28 Neck*** | |
| Flat / Square | 30 mm to 100 mm (Length) |
| Respectively 10 mm to 50 mm (Width) | |
| Respectively height 58 mm X 190 mm |
Note:
* Depends on container size.
** We can supply as per customer requirements.
*** With help of change parts.
Utility Requirement
| Electrical supply | 3 Phase + Neutral + Earthing |
| Electrical load | 1.29KW |
| Air Pressure: Minimum | 6 bar pressure 5 CFM |
Specifications
| Model | LI-AVC 60 | LI-AVC 120 | |
| Output/ Hour | 2400 to 4000 | 3600 to 6000 | |
| Direction of Machine** | Left to Right | Left to Right | |
| Power Consumption | Main motor | 1 HP / 415 Volts / 50 Hz | 1.0 HP / 415 Volts / 50 Hz |
| Pumps 2 nos | 0.5 HP / 415 Volts / 50 Hz | 0.75 HP / 415 Volts / 50 Hz | |
| Electrical Specifications** | 1.5 HP / 415 Volts / 50 Hz | 1.75 HP / 415 Volts / 50 Hz | |
| Blower Tank Capacity | 100 cfm | 120 cfm | |
| Working height | 850 to 900 mm | 850 to 900 mm | |
| Consumption of Air | 6 Kg/cm2 | 6 Kg/cm2 | |
| Machine Dimension | 2175 mm(L) x 780 mm(W) x 1550 mm(H) | ||
| Case Dimensions | 2500 mm (L) x 1000 mm (W) x 1750 mm (H) | ||
| Net Weight | 600 kgs | ||
| Gross Weight | 850 Kgs | ||
* Specification can be changed as per customer’s requirements
