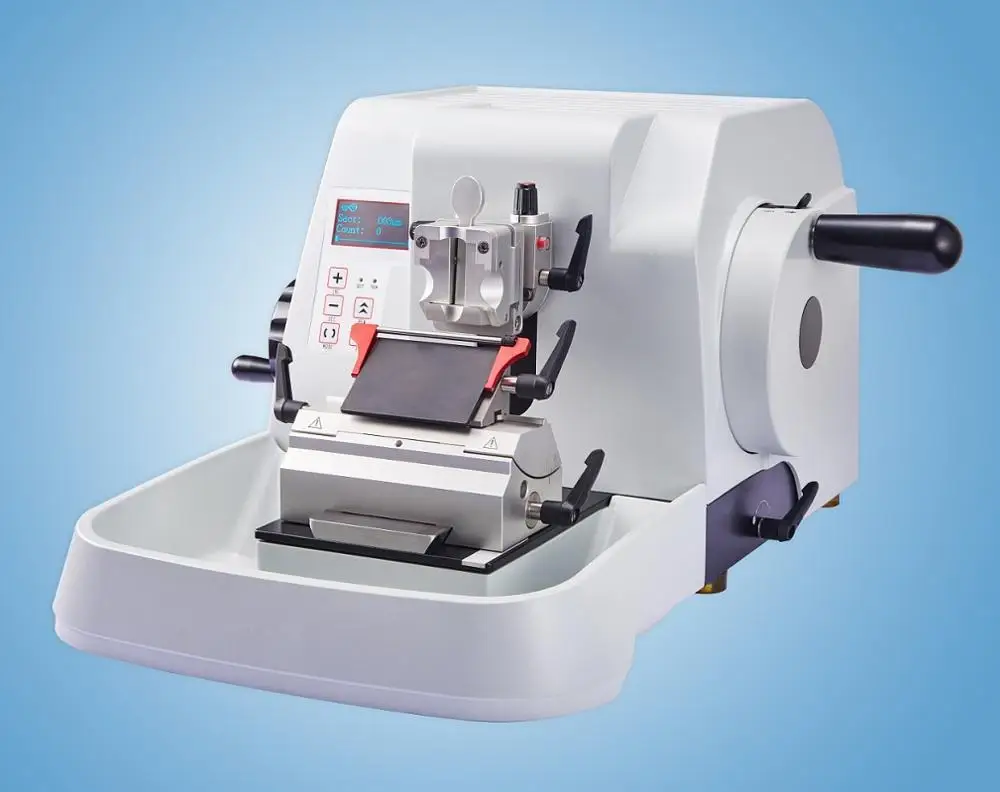

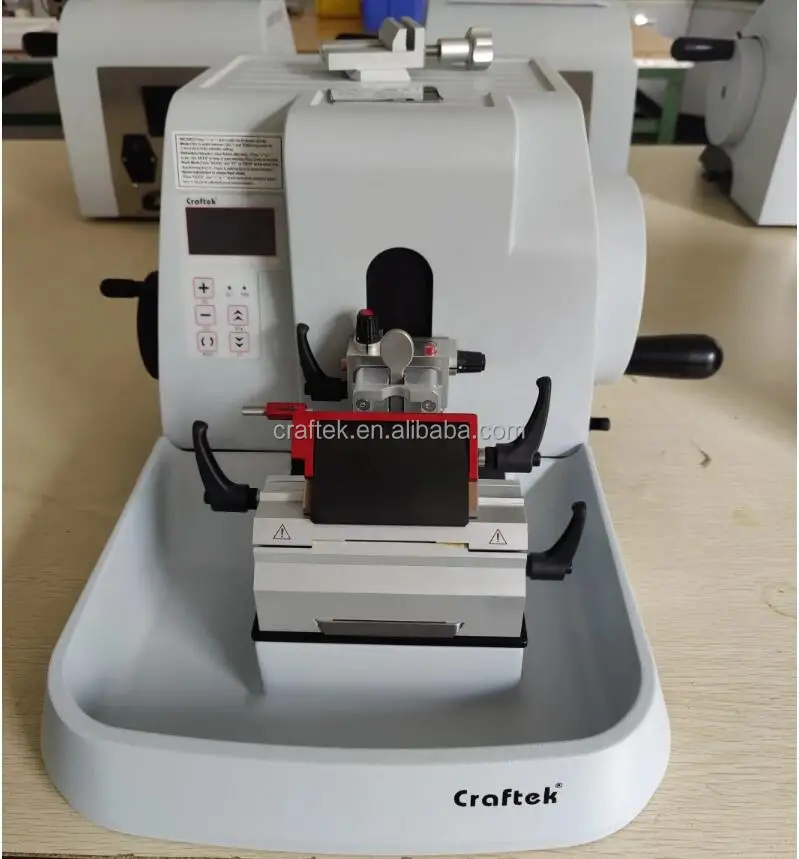

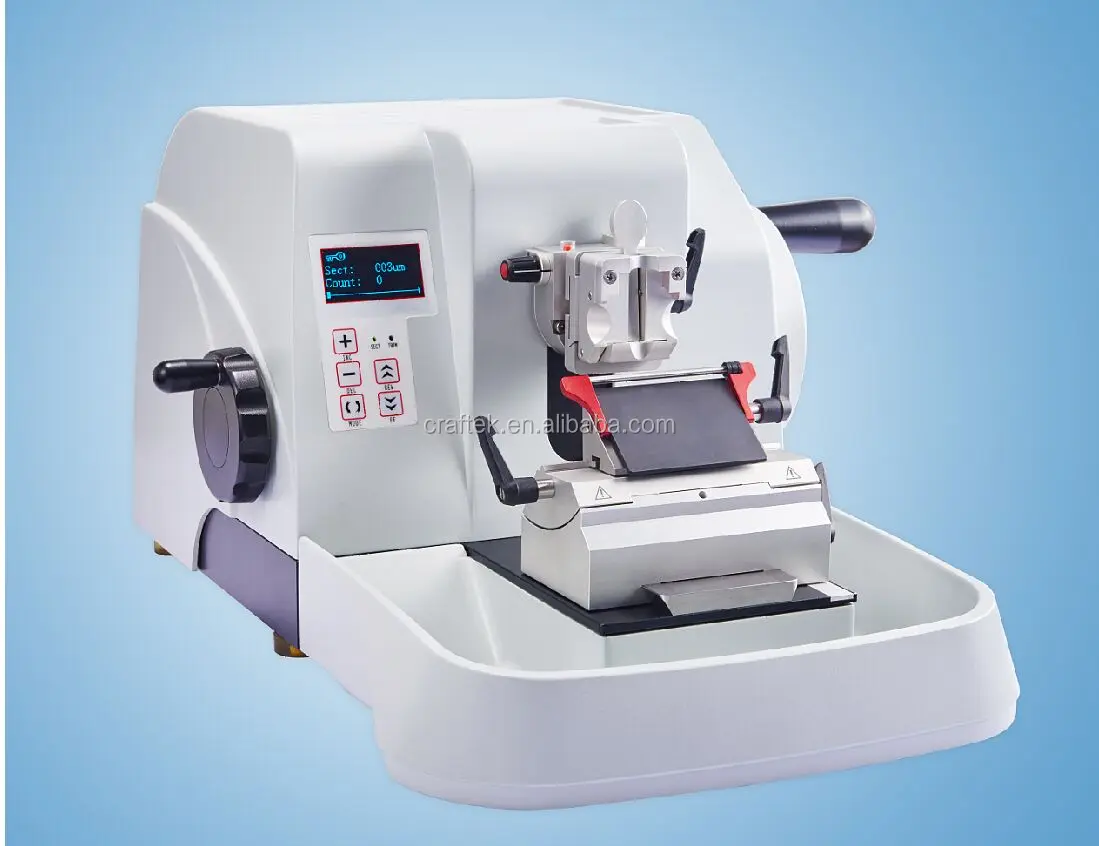

2 Mode Slicing Cutter for Pathology

Product Overview

Description









Product Info

This machine can be operated with 2 modes: panel contrl mode, and 2nd hand wheel control mode.

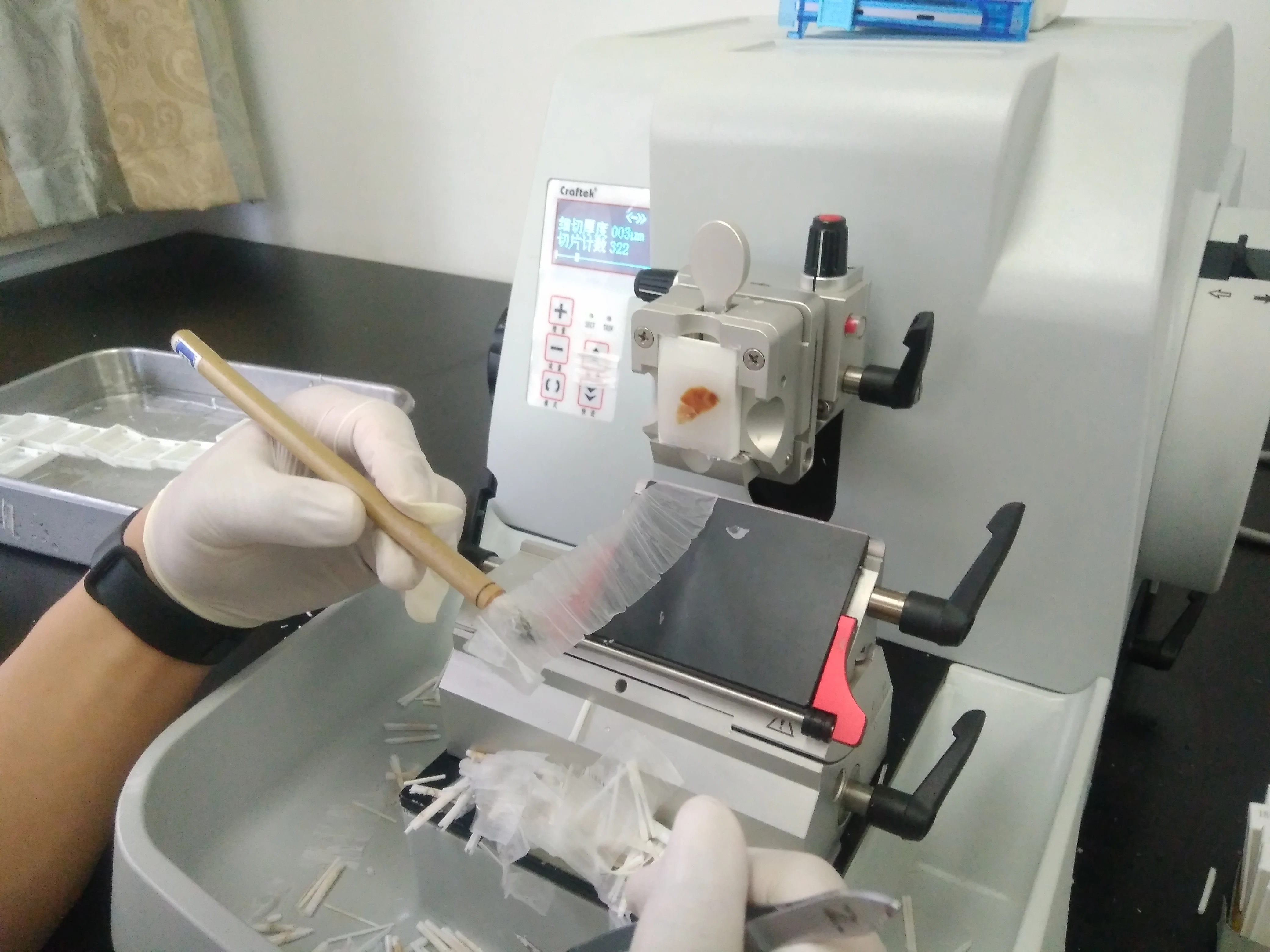

Rotate the 2nd smaller hand wheel (which controls the servo motor in the machine) at the left side of the instrument feed or retraction. It imitates a fully manual operating machine. This function meets the requirements of skillful operators, and improving the work efficiency greatly.

The operators can also press the button on the panel to enable the movement of specimen fedd or retraction, like a standard semi-automatic instrument does.

The operators can work alternatively with the two control modes.

Technical specification:

Sectioning thickness range: 0.5~100μm

setting values: from 0.5~5μm in 0.5μm increments

from 5 ~ 20μm in 1μm increments

from 20 ~ 50μm in 5μm increments

from 50 ~100μm in 10μm increments

Trimming thickness range: 1 ~ 600μm

setting values: from 1 ~ 10μm in 1μm increments

from 10~20μm in 2μm increments

from 20~50μm in 5μm increments

from 50~100μm in 10μm increments

from 100~600μm in 50μm increments

Objec feed: 24±1mm

Vertical specimen stroke: 70±1mm

specimen orientation: horizontal ±8º, vertical ±8º

specimen retraction: 5 - 100μm, in 5μm increments, can be turned off

Electric coarse feed: 20 μm/click and 1000 μm/s

Blade holder base movement: ±24 mm

Maximum specimen size (LxHxW): 50 x 60 x 40mm

Dimensions basic instrument:

Width (incl. 2 handwheel on both sides): 480mm

Depth (incl. waste tray): 577mm

Height: 286mm

Net weight: 29kg

Work temperature: +10℃~+35℃

Work humidty:<80%, no condensation water

Nominal supply voltages: 100~240V AC(±20V)

Nomial frequency: 50/60 Hz

Power draw: 70W



Feature:

1) offers two sectioning modes: conventional full handwheel rotation mode, and rocking mode.

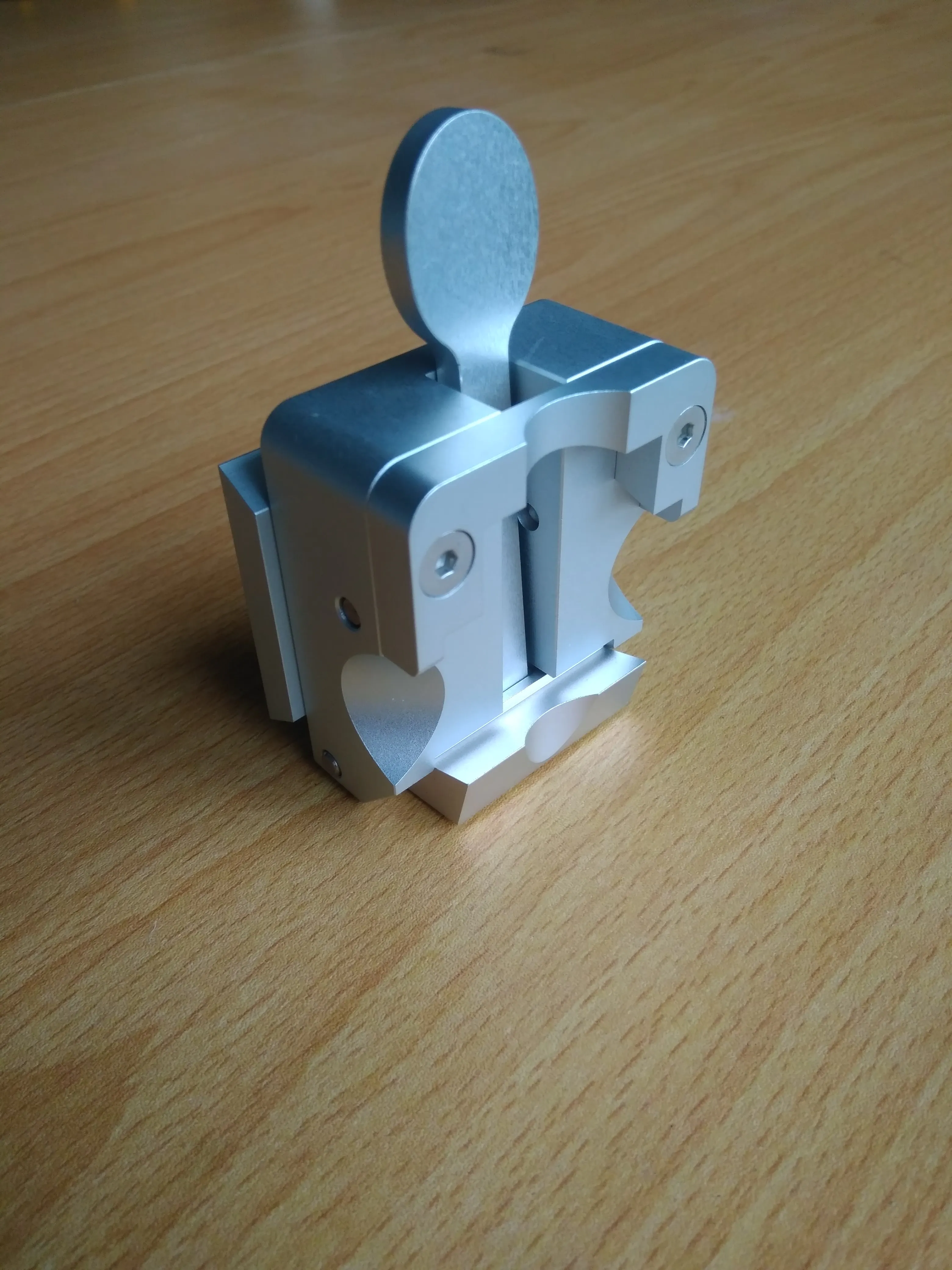

2) precision specimen orientation with clear zero reference point



3) non-sticking coating plate

The blade holder in the instrument is applied non-stick coating and treatment, which enables the specimen to be stick-free and thus achives smoothing sectioning and easy cleaning



4)ergonomics and user saftety

The smooth-running safety hand-wheel has an ergonomically shaped handle.

A hand-wheel locking device for one-thumb operation locks the specimen head in the uppermost position, which is ideal for chaning the specimen and/or blade; A second lockin mechanism on the microtome base allows locking the object head in any position.



5)The humanized design of the foldable handle in the back of the machine.

Unfold the handle to move the mahcine conveniently. Fold the handle after the machine is placed properly.



6)Convenient contrl panel

The user can press the button to set sectioning parameters, such as trimming thickness, sectiong thickness, number of sectioning, distance to the blade, retraction symbol and locking symbol

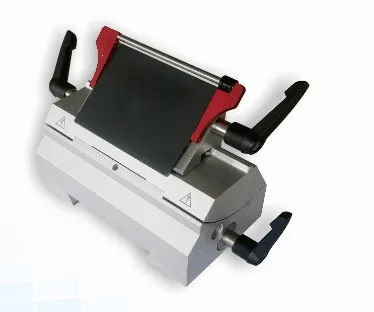

7)Graudation of the blade holder base

There is graduation on the right side of the microtome blade holder base, helping to adjust the blade to an appropriate angle.



8) Mouse control option



9) Auto hibernation

The screen will be put to sleep in 15 minutes after the machine stops working. Press any button to wake it up.



10) Long specimen stroke

The instrument provides a specimen stoke as long as 70mm, enabling larger specimen sectioning and longer distance from the blade and thus achieving improved safety while changing specimen



11)Specimen retraction

It provides specimen retraction function, which can be switched on/off by long pressing the MODE button on the panel. Once it is on, two arrow symbols are displayed. The symbols disappers on the screen when the mode is off.
