DPH 260H blister packing machine
- Category: >>>
- Supplier: Zhejiang Aligned Technology Co. Ltd.
Share on (62025446734):
Product Overview
Description
Product Description

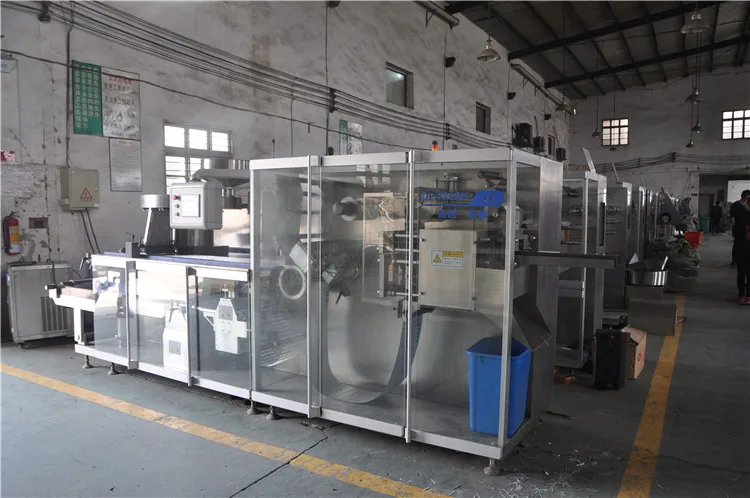

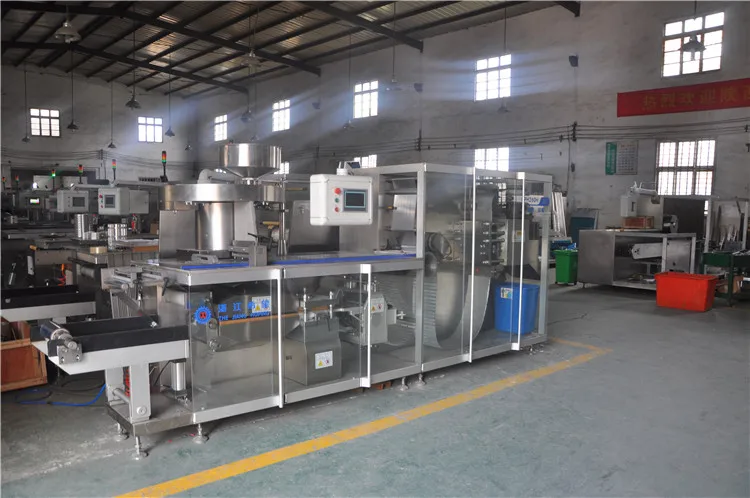

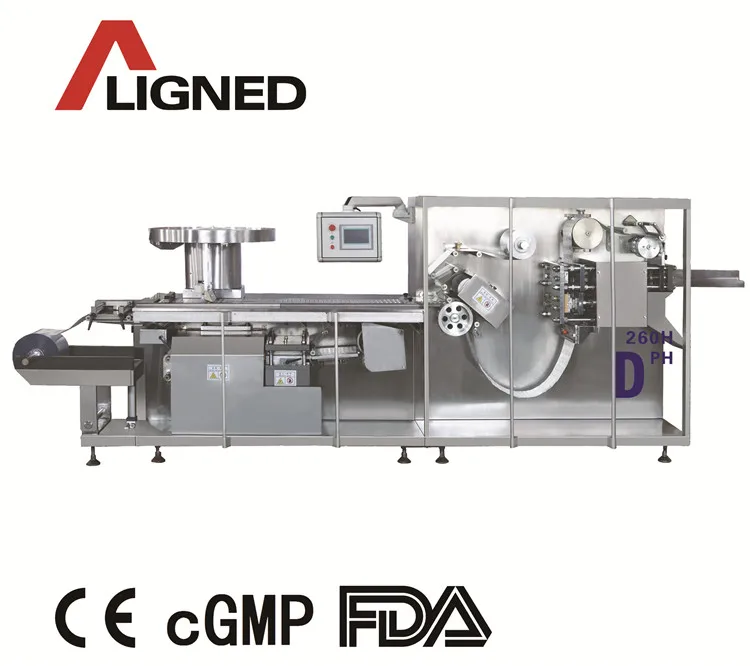

DPH-260H Automatic Blister Packing Machine
application:
This new automatic Blister Packing Machine is wildly used in pharmacy factory, dosage room
of hospital, research institute of pharmaceutical factory ,health products factory ,food products

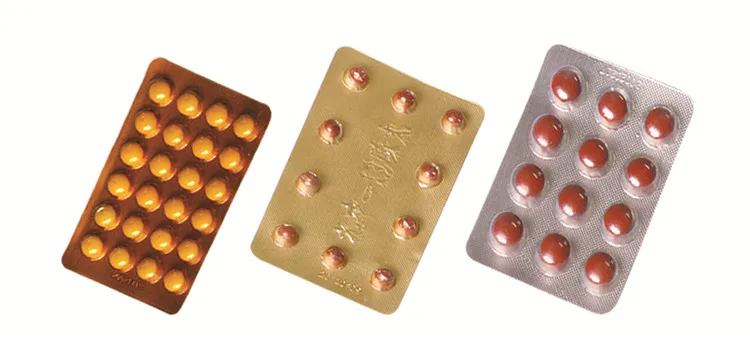

factory and hardware factory for packing capsule, tablet, milk tablet ,candy Butter, honey ,
chocolate and so on.
Feature:
High cutting frequency, energy consumption province, action accurate, stable, mould easy to
change and high yield.
Main Technical Parameters:
| Model | DPP260H | |
| Capacity (Cycle/min) | 100-200 | |
| Range of stroke(mm) | 20-120 | |
| Max.forming area and depth(mm) | 260×250×12 | |
| Packing material | Pharmacy PVC(mm) | (0.2-0.4)×260mm |
| PTP alu foil(mm) | (0.2-0.4)×260mm | |
| Clean compressed air(pressure) | 0.6-0.8MPA | |
| Power | AC380V 50HZ 15.5KW | |
| Water chiller for moulds | Tap water or recycle water with 60L/h consumption | |
| Overall dimension(L×W×H)(mm) | 4860×1070×1750 | |
| Net weihgt(kg) | 3000 | |
