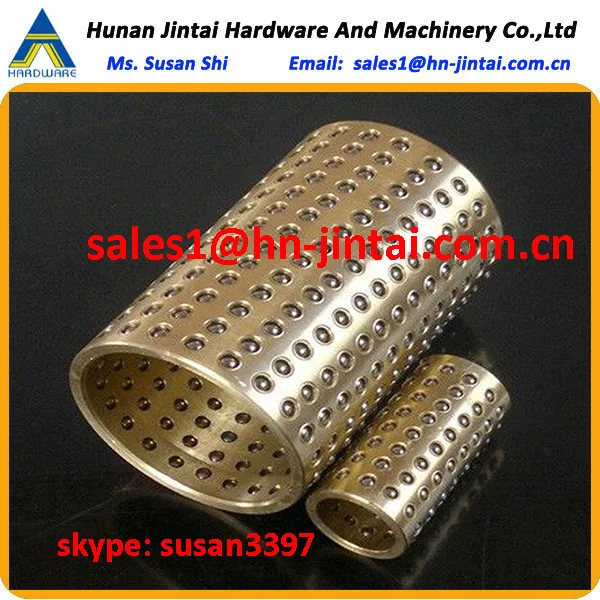

FZ 2475 ball cage guide bronze base brass Copper based FZ steel ball retainers
- Category: >>>
- Supplier: Hunan Jintai Hardware And Machinery Co. Ltd.
Share on (62025511825):
Product Overview
Description

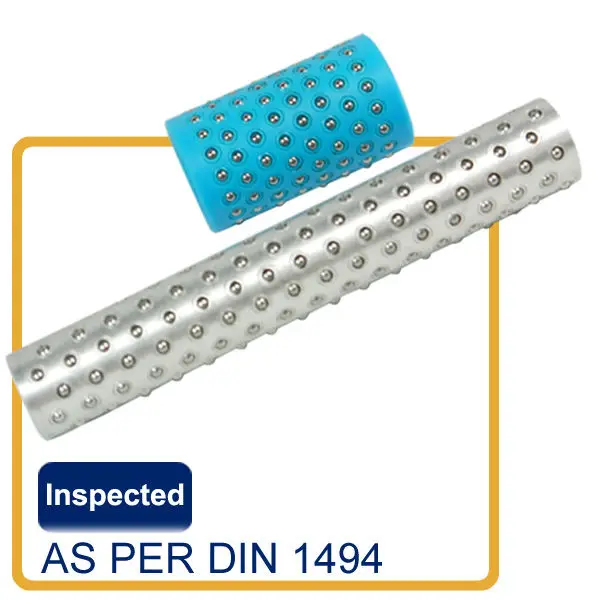

Copper-based FZ steel ball retainers
Product Description
POM resin (FZP) base material and well arranged steel balls.
The products are widely used in machinery industry, such as cold punching mold, precision machine tools, etc.
Features:
1. Quite low friction coefficient
2. Able to move in both radial and axial directions
3. High precision, can working in high speed
4. Normal size from 1950 to 80130
Specifications:
| cage material | FZB | Bronze(brass) + balls |
| FZA | Alluminum + balls | |
| FZP | POM(plastic,nylon) + balls | |
| load capacity | 30N/mm2 | |
| speed limit | 6m/s | |
| yeild strength | 147~294N/mm2 | |
| friction coef | 0.01~0.08 | |
| tolerance of ball | less than 0.002mm |
The steel ball used is strictly inspected, and the steel ball index reaches the national standard G10. (The precision is up to 0.001mm, the difference between the steel balls of a single product is less than 0.25mm). The whole process production is tracked. also a high-quality team of quality control staff, the quality of the products is improved, focus on craft details, the product have high precision, high processing technology and flexible movement,long wear life. Better fit with other products.
DU SF-1 BUSHING (PTFE)
Material: 1. Steel + Bronze powder + PTFE + Pb + Polymer 2. Steel + Bronze powder + PTFE + Polymer - Normally Used 3. Bronze + Bronze powder + PTFE + Polymer 4. Stainless steel + Bronze powder + PTFE + Polymer 5. Stainless steel + PTFE + Polymer 6. Carbon steel + Sintered bronze powder + PTFE + MoS2 |
Structure
| PTFE with lead/Cu/Fibre : 0.01-0.03mm |
Porous bronze : 0.2-0.3mm | |
Steel backing : 0.7-2.3mm | |
Tin-plating 0.005mm or copper plating 0.008mm |
Application:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.
DX SF-2 BUSHING (POM)
Material: 1. Steel + Bronze powder + POM + Pb 2. Steel + Bronze powder + POM - Normally Used |
Structure
| POM with/without lead : 0.3-0.5mm |
Porous bronze : 0.2-0.3mm | |
Steel backing : 0.4-2.2mm | |
Tin-plating 0.005mm or copper plating 0.008mm |
Application:
Automotive:
Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial:
Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
BIMETAL BUSHING
Material: 1. Steel + Bronze alloy (CuPb10Sn10) + PTFE 2. Steel + Bronze alloy (CuPb10Sn10) 3. Steel + Bronze alloy (CuSn4Pb24) 4. Steel + Bronze alloy (CuPb24Sn) 5. Steel + Alloy stage (AlSn20Cu) 6. Steel + Bronze alloy (CuPb30) |
Application: Mechanical handling and lifting equipment, hydraulic cylinders, agricultural equipment, off highway equipment. Construction machines,chassis,apron wheels etc.
BRONZE GRAPHITE BUSHING
Material:
1. CuZn25Al6Fe3Mn3 + Graphite
2. ZCuAl9Fe4Ni4Mn2 + Graphite
3. ZCuSn5AlPb5Zn5 + Graphite
4. ZCuSn10Zn2 + Graphite
5. HT250# Cast Iron + Graphite
6. CuZn25Al6Fe3Mn3 (High-stress Brass)
Application: solid brass bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc
WRAPPED BRONZE BUSHING
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5. All kinds of brass,copper,bronze material
Industrial: Widely used in construction machinery, agricultural machinery and so on.
SINTERED BRONZE BUSHING MOTOR FAN BUSHING CAST IRON BEARING
Performance index | Data |
Maximum load capacity | 150 N/mm2 |
Temperature range | -60~+200 ℃ |
Maximum sliding speed | 2.5 m/s |
Alloy material | CuSn6-6-3 |
Maximum PV value | 2.45 N/mm2*m/s |

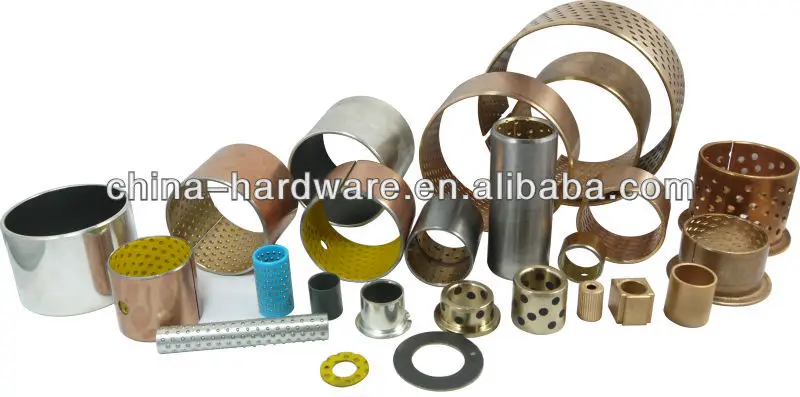

OTHER SLIDE BEARING
Packaging & Shipping
| Packaging: | carton / pallet |
| Delivery: | In About 7-15 Days Based Upon Order Quantity |
