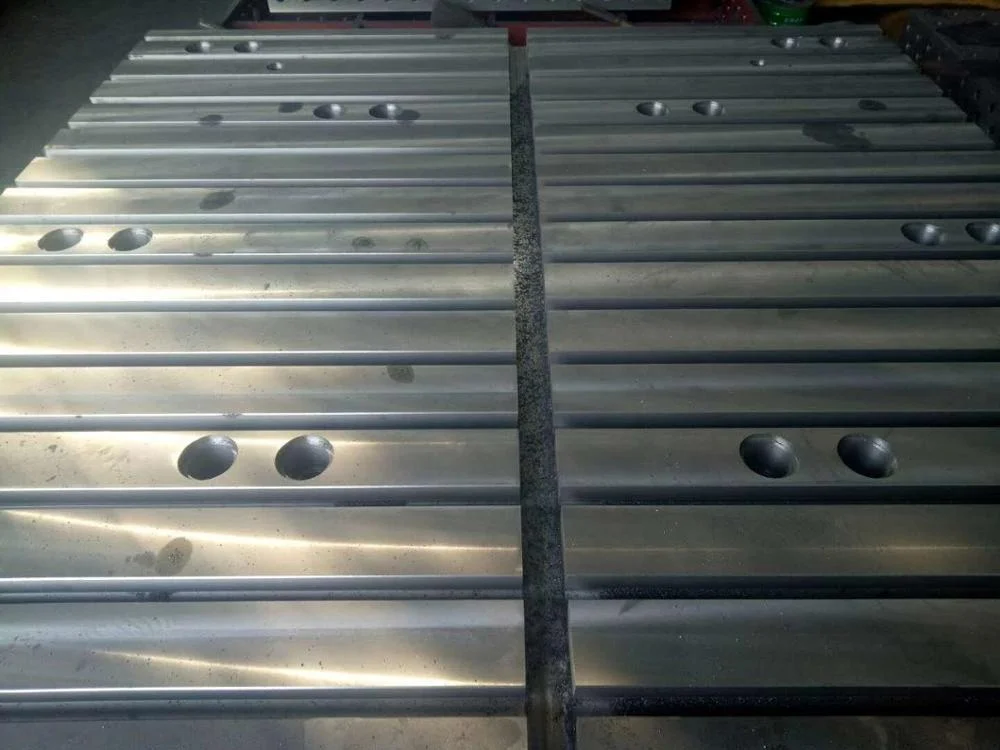

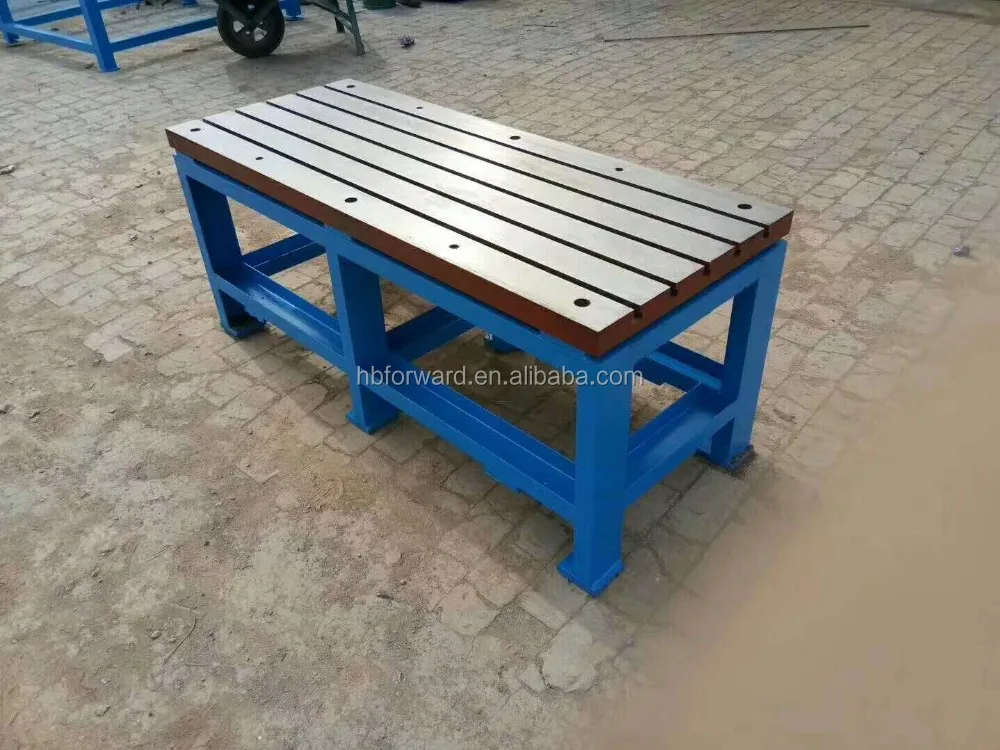

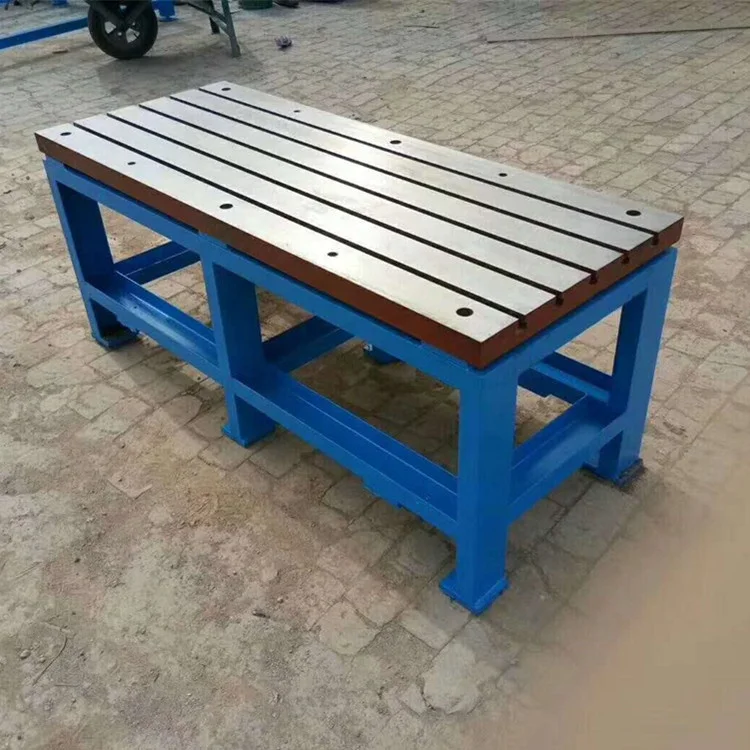

ЧПУ станок, Чугунный Стол для осмотра, измерительные инструменты с Т образным пазом

Cnc Machine Tool Cast Iron Inspection Table measuring tools with T slot

Material: HT200-300

Standard: GB/T22095-2008

Specification: 100x200-3000x8000mm or customize

Surface: flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc)

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped, finish-milling or ground finish

Foundry process: sand casting or centrifugal casting

Molding type: resin sand molding

Painting: primer and face paint

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Surface flatness: Master, Working, Reference

Precision grade: 1-3

Working temperature: (20±5)℃

Packaging: wooden box

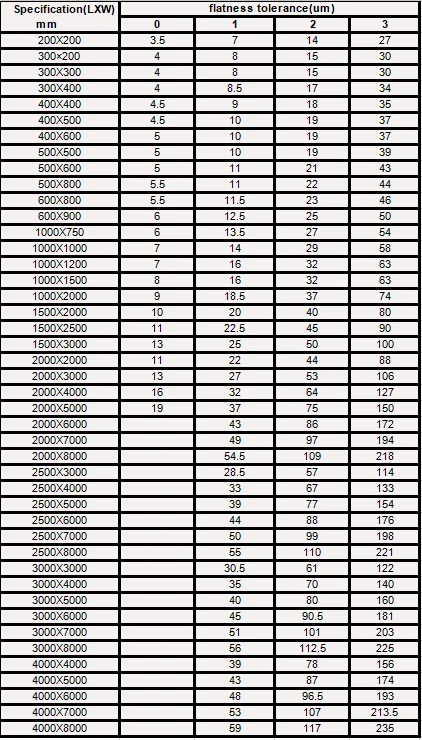

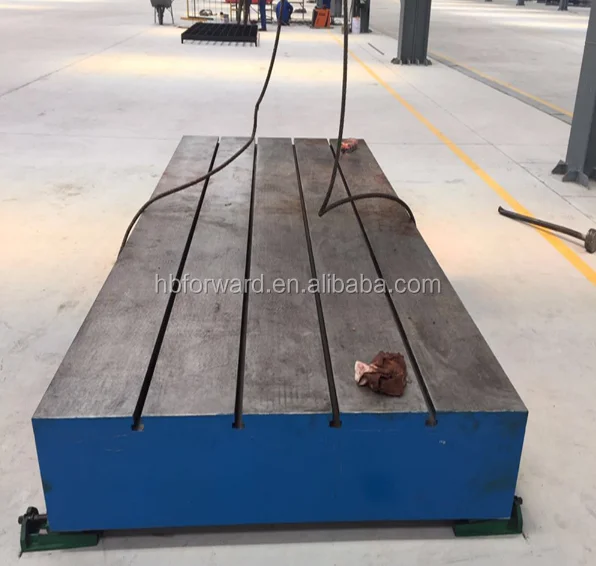

 If your dimension of thet slot cast iron floor plate is standard in the sheet below,we have stock.
