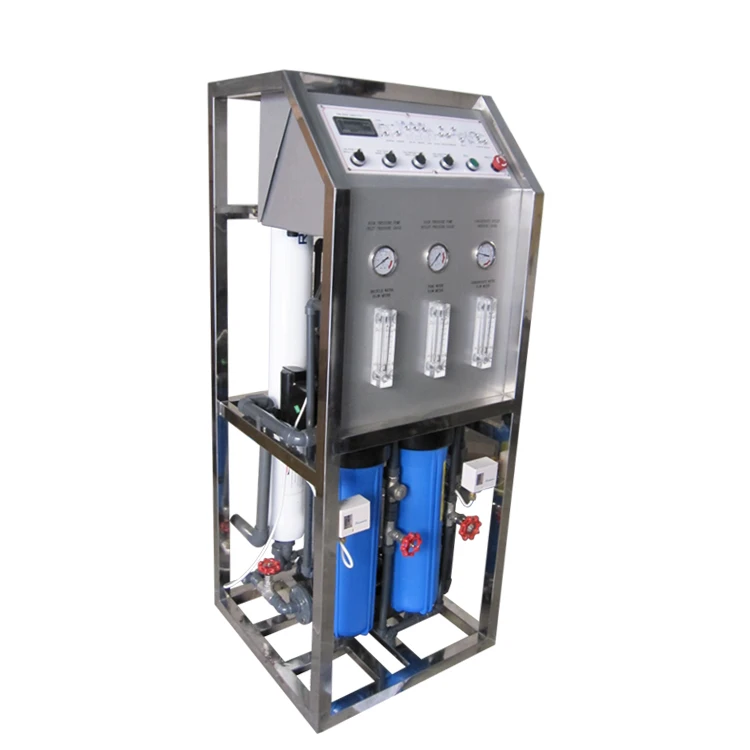

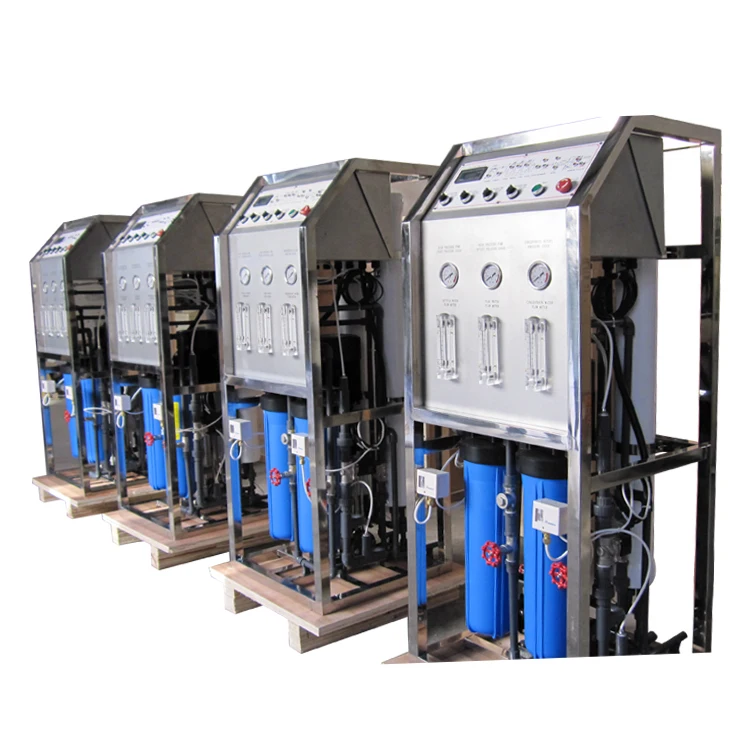

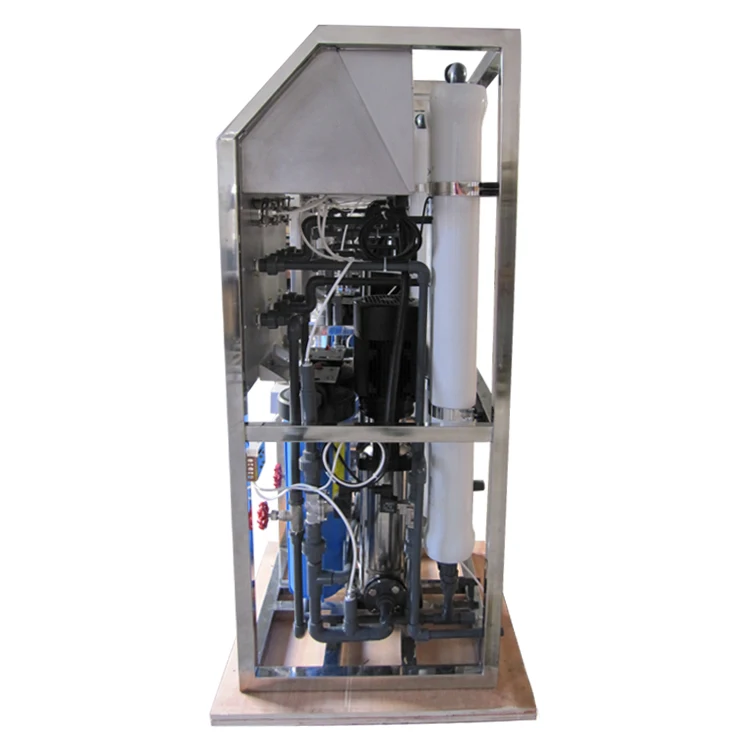

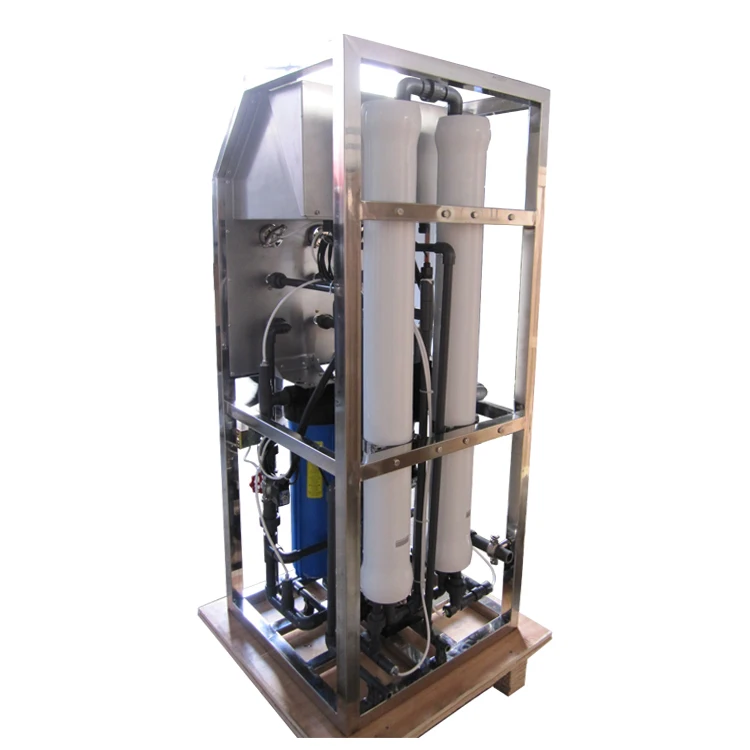

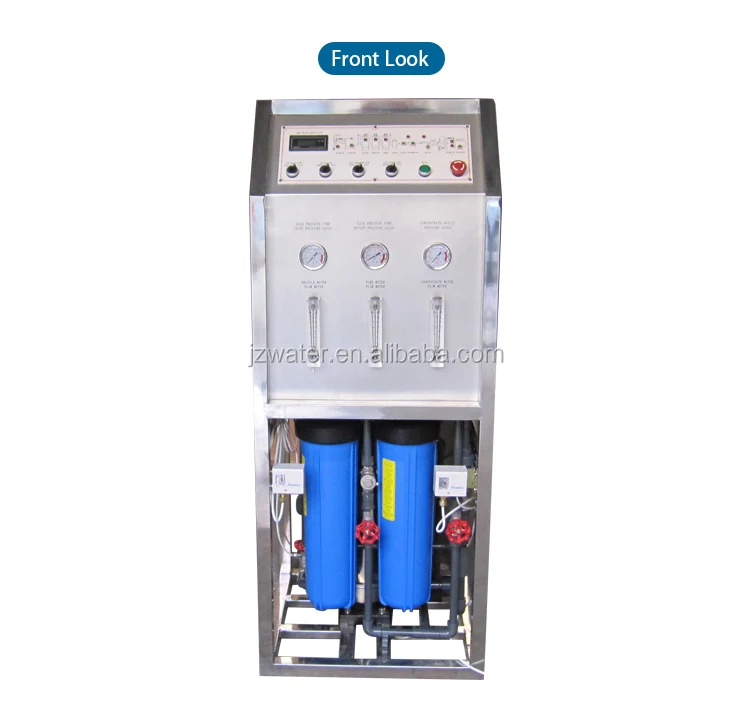

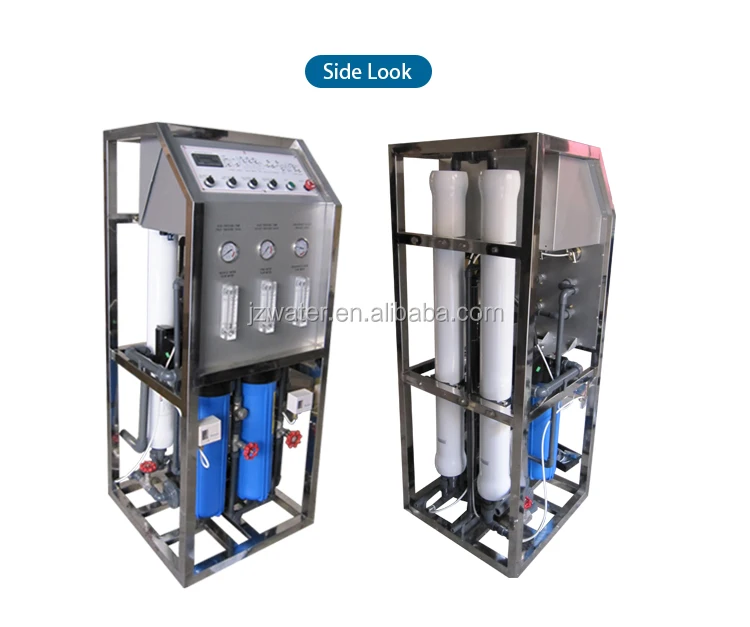

500LPH Reverse Osmosis System for Drinking Water
- Category: >>>
- Supplier: Beijing Jiuzhou Qingyuan Technology Development Co. Ltd.
Share on (62025552073):
Product Overview
Description
Product Description
500LPH RO Pure Water Plant Parameters:
| 500LPH RO Water Treatment Parameters | ||
| 1 | Flow Rate | 500LPH (500L/H) |
| 2 | Working Power | 1.5KW |
| 3 | Product Water TDS | <10ppm |
| 4 | FRP Tanks(Customer buy) | Pentair or Ronsentech or Canature Huayu |
| 5 | RO Membrane Brand | Vontron, CSM, Hydranautics,DOW or Customize |

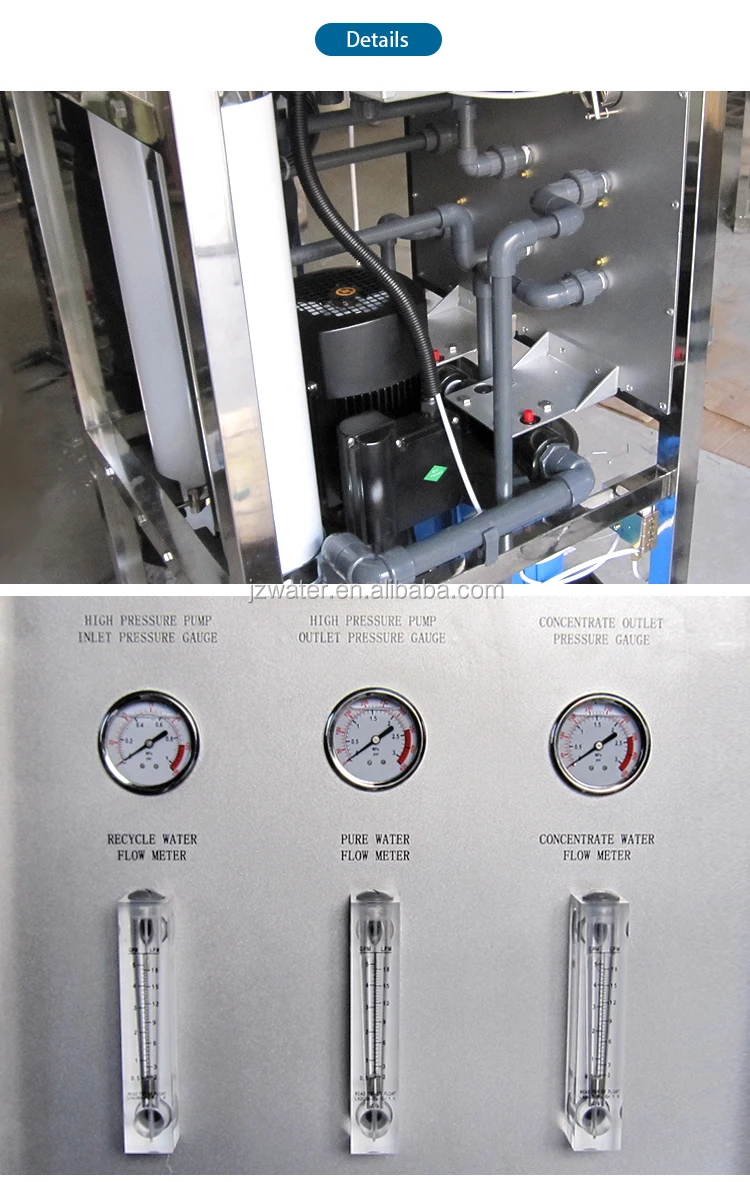

| 6 | Booster&High Pressure Pump | CNP Brand CDMF3-15 |

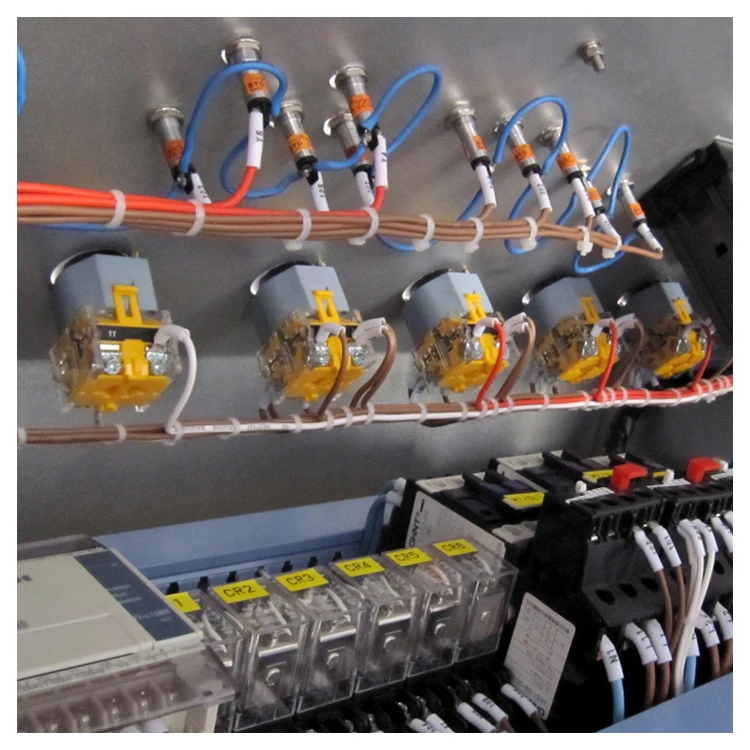

| 7 | Relay Brand | Schneider or CHNT or Customize |
| 8 | Frame Size: | 150*66*66cm |
| 9 | Weihgt(KG): | 100KG |
Feed Water Quality Request: ATTENTION PLEASE!!!
| Feed Water Quality Request | ||
| 1 | Minimum flow rate | 3m3/h |
| 2 | Minimum inlet pressure | 40PSI |
| 3 | water temperature | 5-45℃ |
| 4 | PH value | 4-9 |
| 5 | Hardness(mg/l,CaCO3): | ≤17 |
| 6 | Turbidity: | <1.0NTU |
| 7 | Max. SDI(15min): | <5.0 |
| 8 | residual chlorine density: | <0.1ppm |

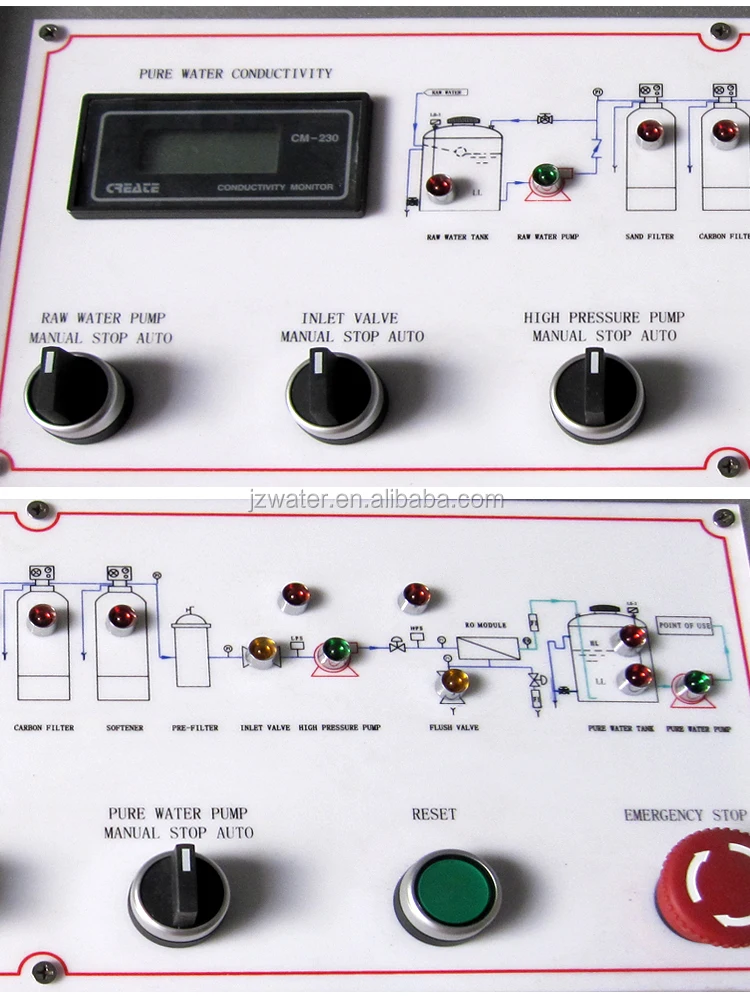

Our RO System Process:
| TECHNOLOGICAL PROCESS | |||
| No. | Adoption process | Main Function | Pure Water Quality |
| 1 | Multi- Media Filter | Remove suspended solids, colloids and other impurities. | SDI Valve < 4 NTU<1 |
| 2 | Activated Carbon Filter | Adsorb Odor, bacteria, remove chlorine. | Bacteria <10000cfu/ml |
| 3 | Softener System | Reducing the concentration of calcium and magnesium ions to prevent fouling of reverse osmosis membrane surface | Hardness <0.03mmol/l |
| 4 | Cartridge Filter | Removal particles and other impurities that diameter greater than 5um,and Prevent RO membrane from scratching or dogging by Fine suspension | |
| 5 | Reverse Osmosis Machine | Mainly removal various inorganic salts ions, bacteria, viruses and other substances | Conductivity ≤20us/cm SiO2≤50ug/l No Bacteria&Virus |
| 6 | UV System | Remove Bacteria | |
Our machine Process Drawing (Pretreatment system offered by Customer)
