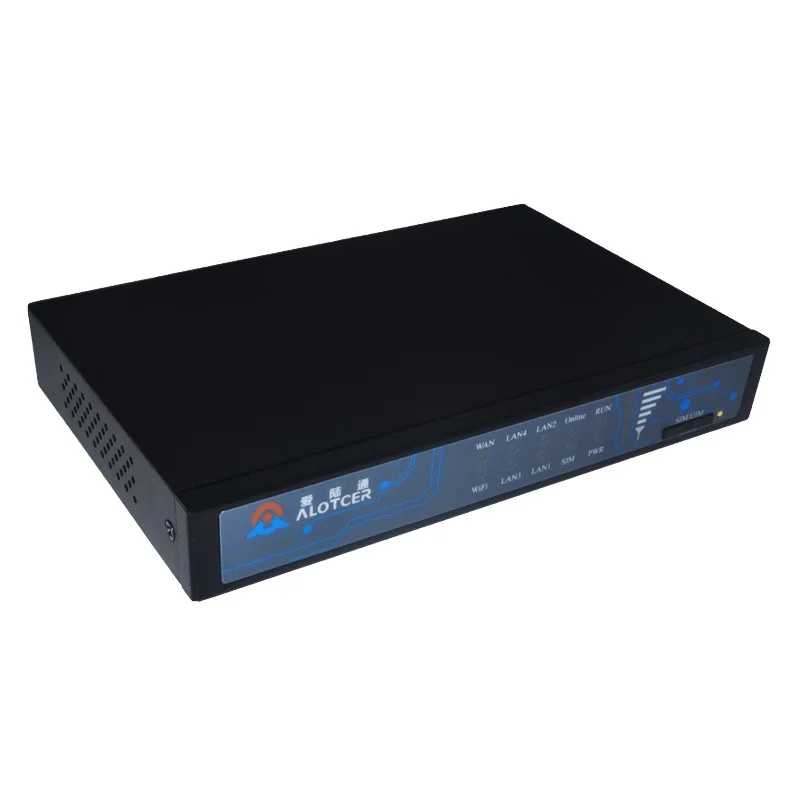

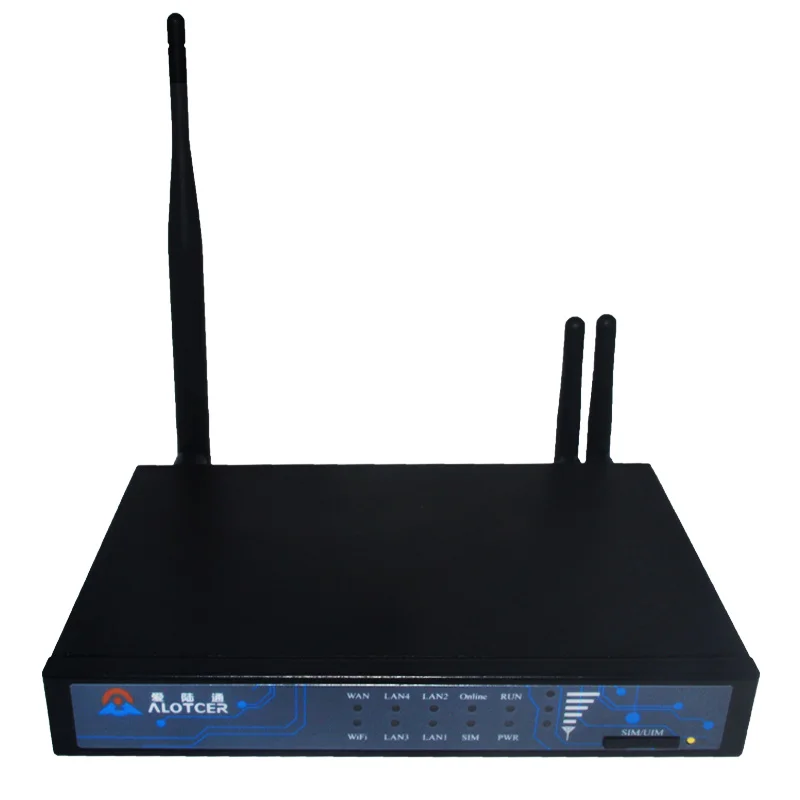

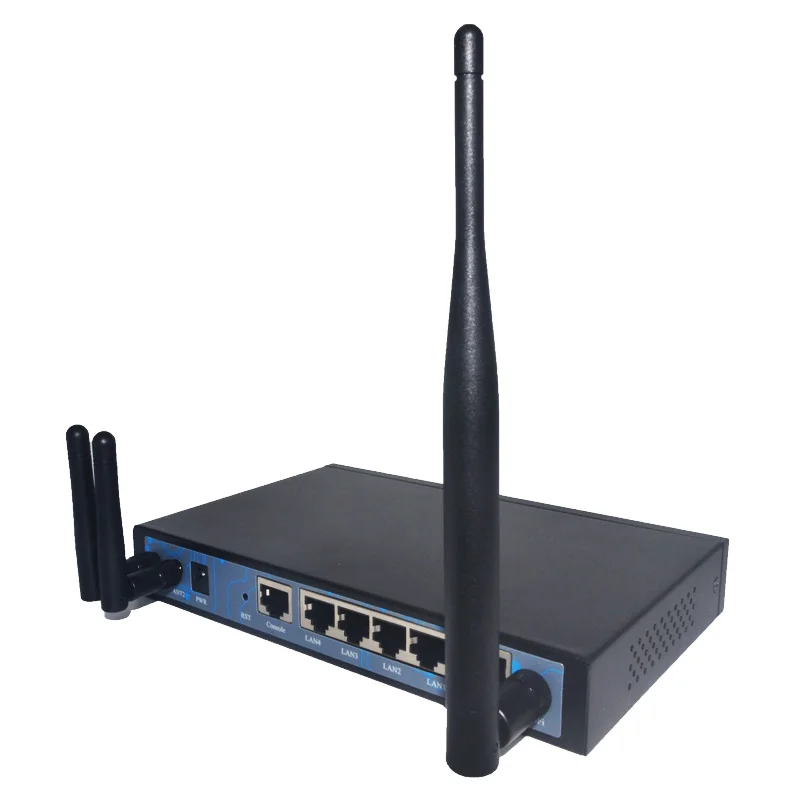

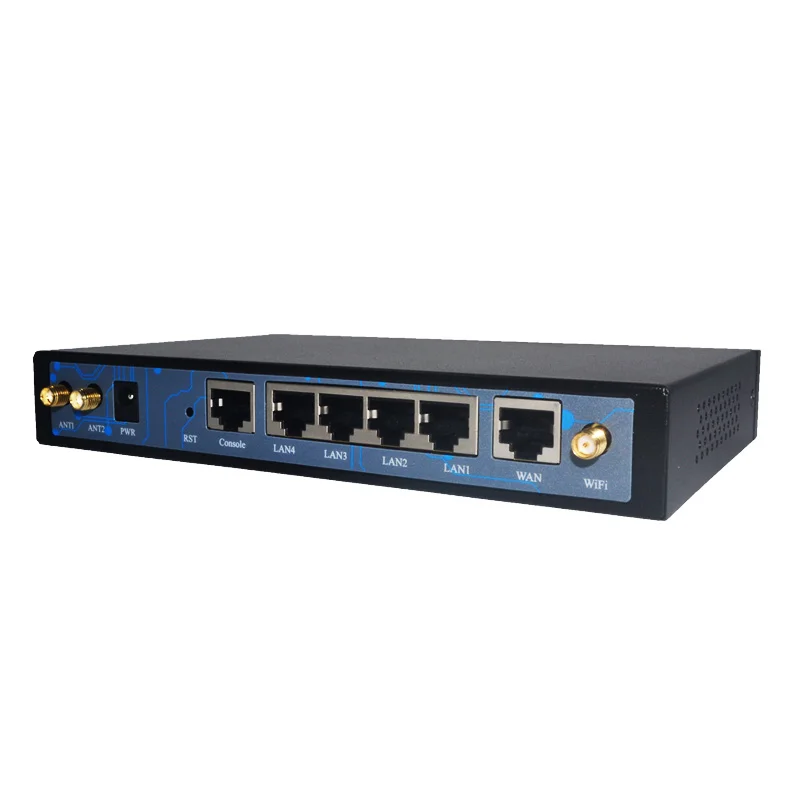

industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial
industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial

industrial 4g router WITH VPN LAN RS232 MODEM fit for Latin America, Taiwan 4G band for industrial

Share on (62025600094):


Price:$130.00 - $140.00

Quantity:


Product Overview

Description


Product Description

AR7000 ROUTER is a kind of terminal device that developed based on 2G/3G/ 4G, WIFI, VPN technology.It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

Related Products
Highlights

Failover between SIM/UIM card and wired network.

Automatic failover betwwen Dual SIM card and wired network. When the primary data link is abnormal, the device automatically switches to the secondary card or wired network channel for backup. Avoid the loss of important data.

High efficient and stable VPN.

Support VPN advanced data encryption to secure data transmission, such as APN, VPDN, IPSEC, L2TP, PPTP, GRE. To ensure that users enjoy "LAN" of data services anywhere, anytime.

Industrial Grade Design.

Electronic components, Core Modules, structural design, operating system, ect. Easily cope with -35 ℃ to 75 ℃.

Profile double backup and offline log storage.

Users can use the offline log storage function quickly troubleshoot problems encountered during the project execution. Improve service efficiency.

Strong signal.

With two high gain 7DB antennas to strong the signal.

24 hours of uninterruptible work.

Coupled with the industrial grade hardware design. So that the data transmission has never stopped, online rate above 99.99%.

Specifications
\t
                                              Items
\t
                                             Contents
\t


     Hardware System
\t
CPU
\t
Industrial 32bits CPU
\t
FLASH
\t
16MB (Extendable to 64MB)
\t
SDRAM
\t
128MB
\t




            Interface
\t
WAN
\t
1 10/100Mbps WAN port(RJ45)
\t

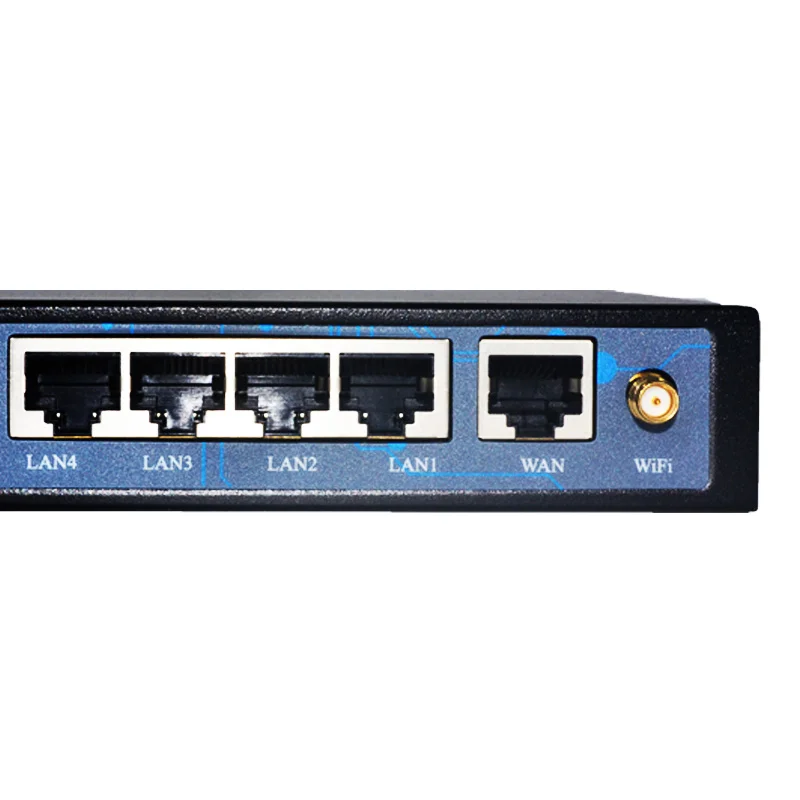

LAN
\t
4 10/100Mbps Ethernet ports(RJ45)
\t
Serial
\t
1 RS232(or RS485/RS422) port
\t

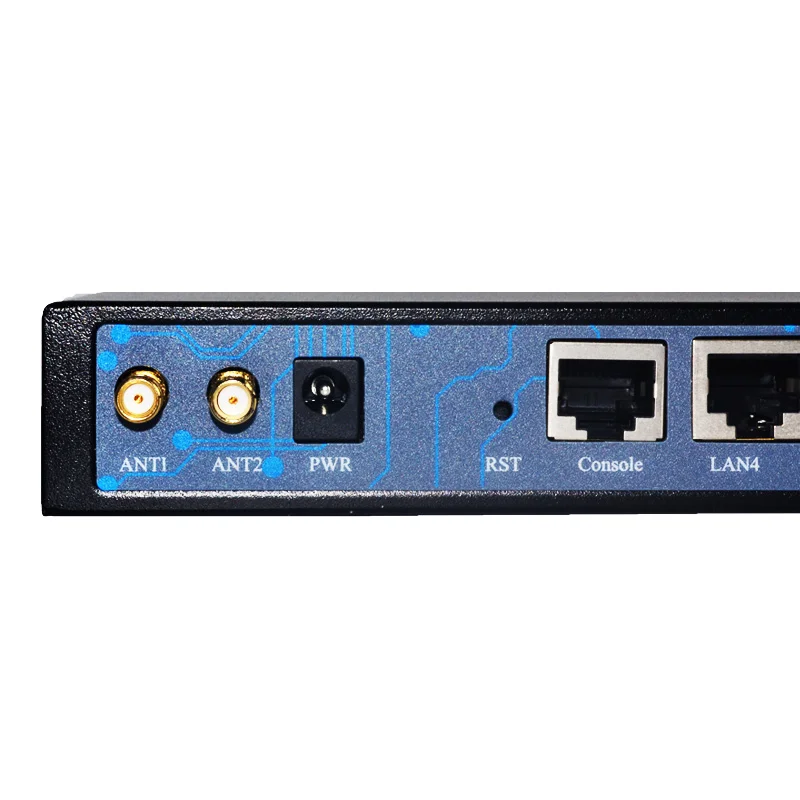

Antenna
\t
Cellular: Standard SMA femal
WIFI: Standard SMA male
GPS(optional):Standard SMA female
\t


           Network
\t
Wireless Network
\t
GSM/GPRS/EDGE: 850/900/1800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
TDD-LTE: Band 38/39/40/41& Band 61/62
FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28/66
\t

               GPS
          (optional)
\t
Receiver Type
\t
GPS L1(1575.42MHz)C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
\t
Accuracy
\t
Position: 2.5m CPE
SBAS: 2.0m CPE
\t

                WIFI
\t
Standard
\t
IEEE802.11b/g/n
\t
Bandwidth
\t
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
\t

      Power supply
\t
Standard Power
\t
DC 12V/1.5A
\t
Power range
\t
DC 5~35V
\t

          Physical
\t
Dimensions
\t
186.8x120.2x28mm
\t
Weight
\t
580g
\t
      Temperature
\t
Operating Temperature
\t
-35~+75ºC (-31~+167℉)
