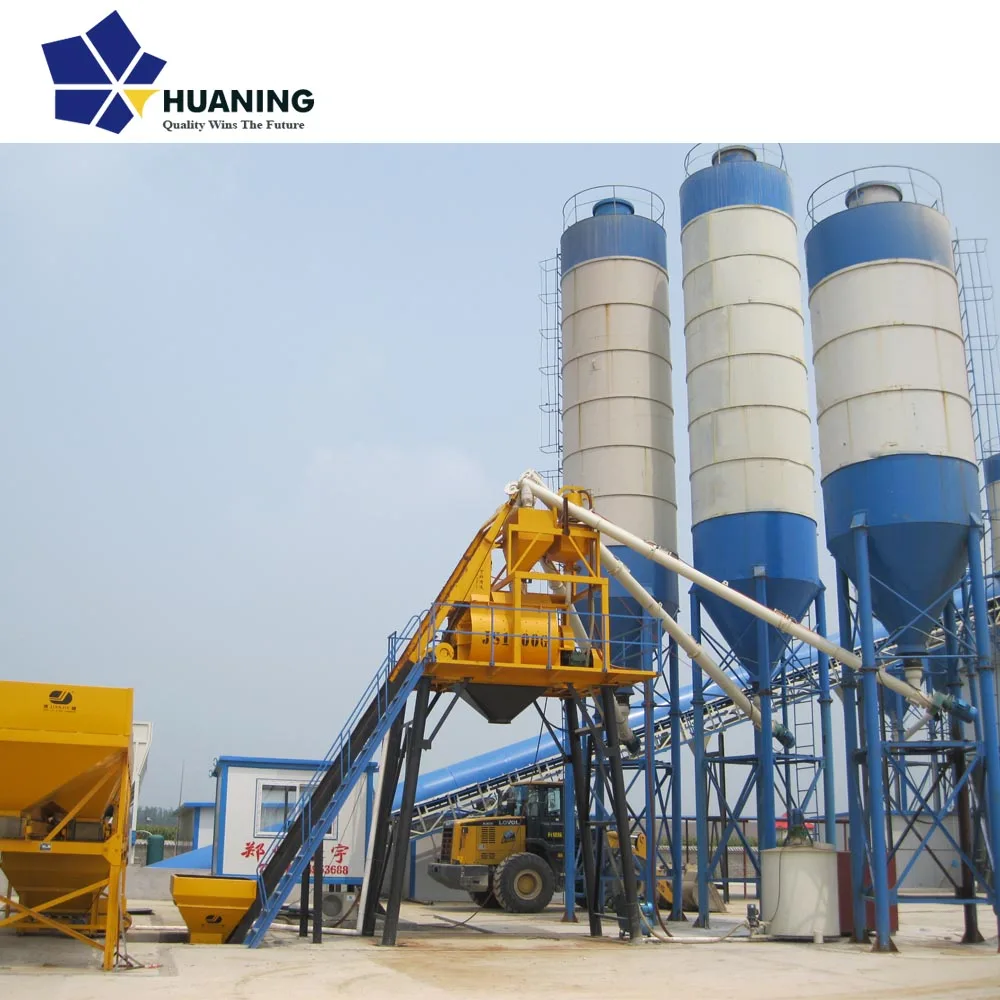

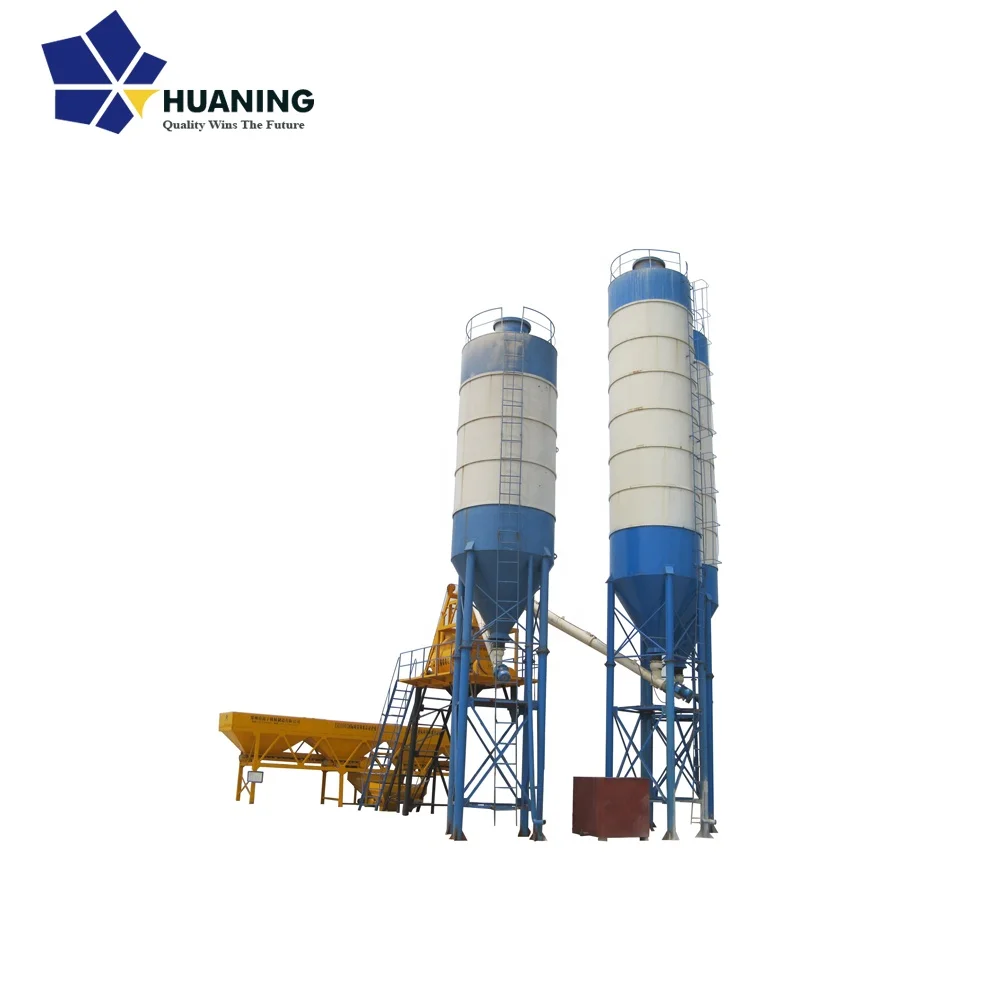

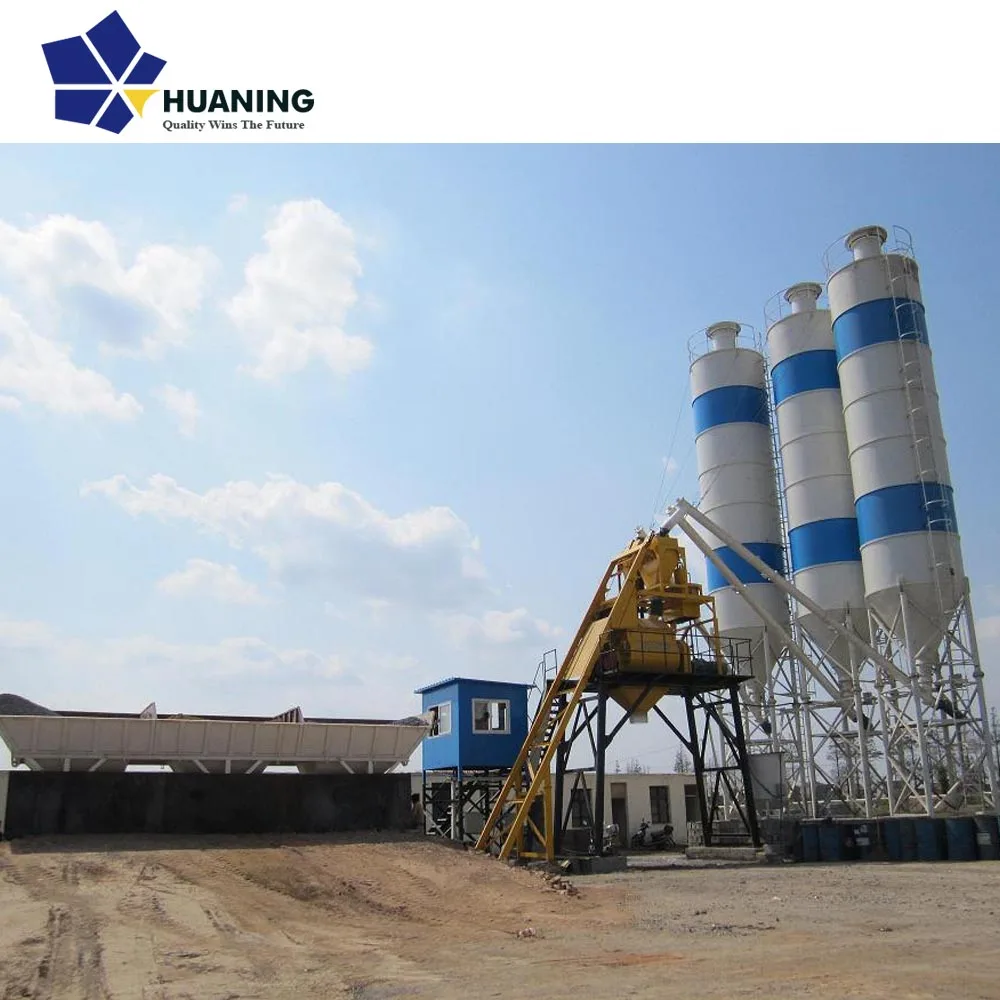

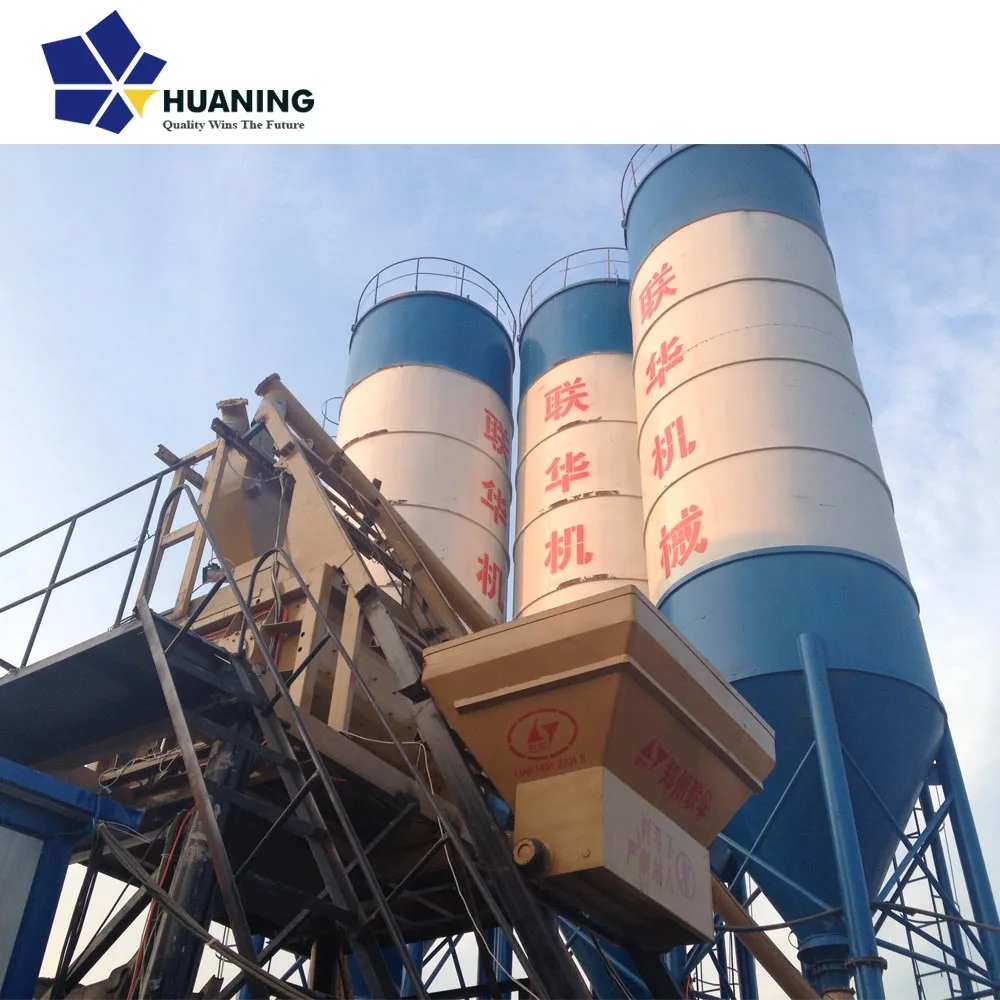

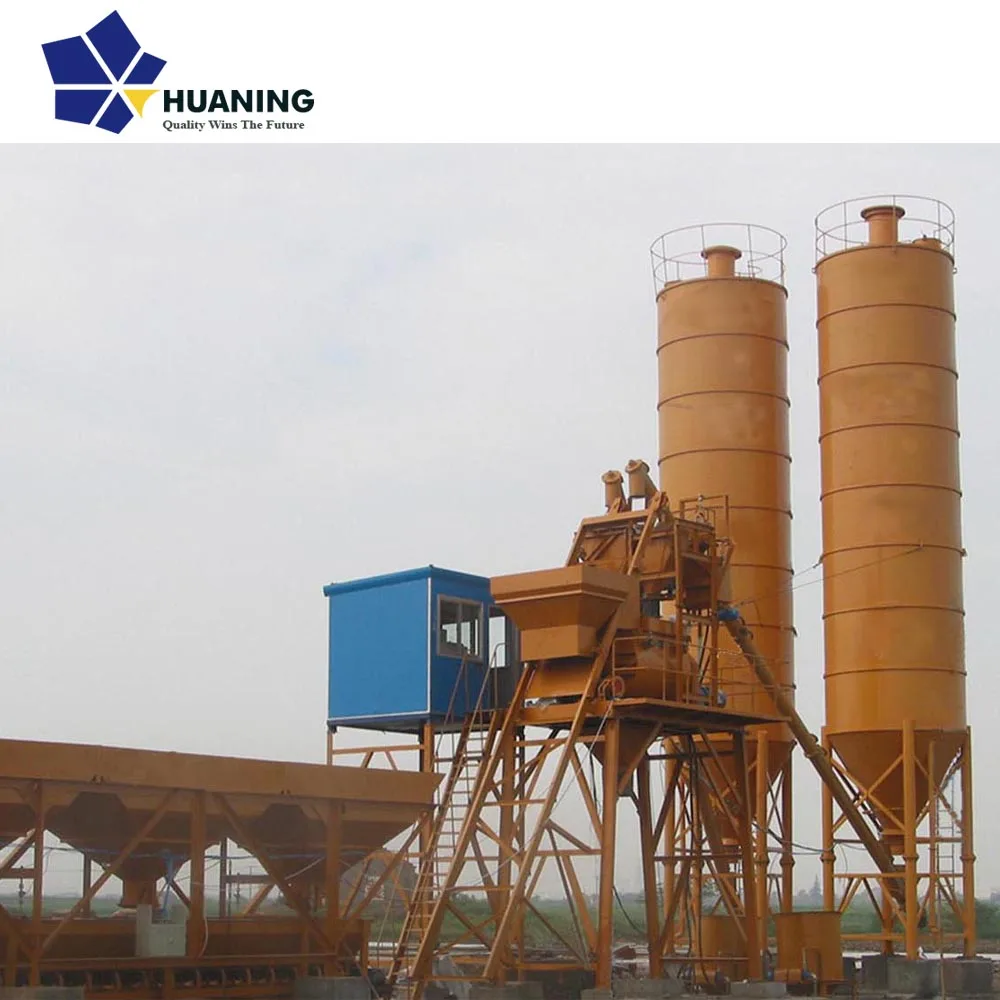

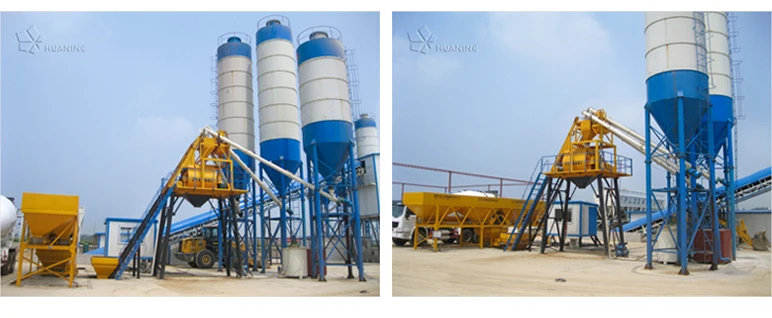

HZS50 stationary concrete batching plant has large output and appropriate price
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (62025732345):
Product Overview
Description
HZS series Concrete Batching Plant on Sale is composed of feeding system,mixing system,electrical syatem and auxiliary equipents(such as air compressor,water pump etc.),fea-tured by high-precision computer control.And aslo there are manual system,automatic head-drop compensation and aggregate moisture compensation.
| Model | HZS50 | |
|---|---|---|
| The whole station | Max. productivity | 50m3/h |
| Discharge height | 3.8m | |
| working cycle | 72s | |
| Dimension(L*W*H) | 15922*13500*17750mm | |
| Total power | 90kw | |

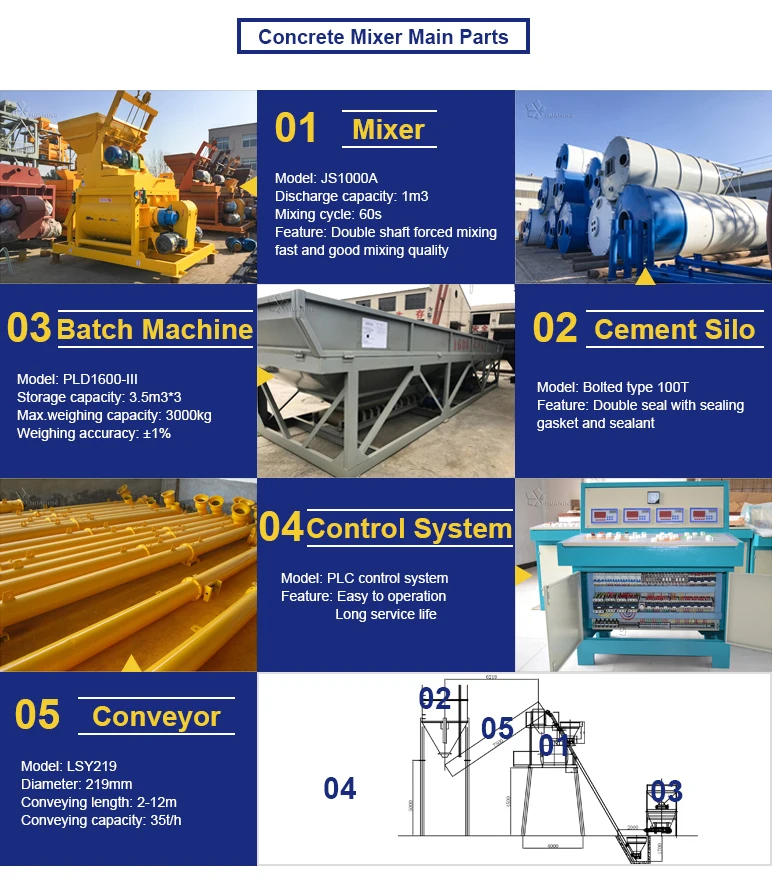

| Concrete mixer | JS1000-A | |
| Concrete batching machine | PLD1600 | |
| Pneumatic system | Air compressor model | 1.5-7 |
| Nominal displacement | 1.67m3/min | |
| Reted discharge pressure | 0.8Mpa | |
| Motor power | 7.5kw | |
| Weighing system | Sand and gravet | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Additives | ±1% | |
Click here for more information
