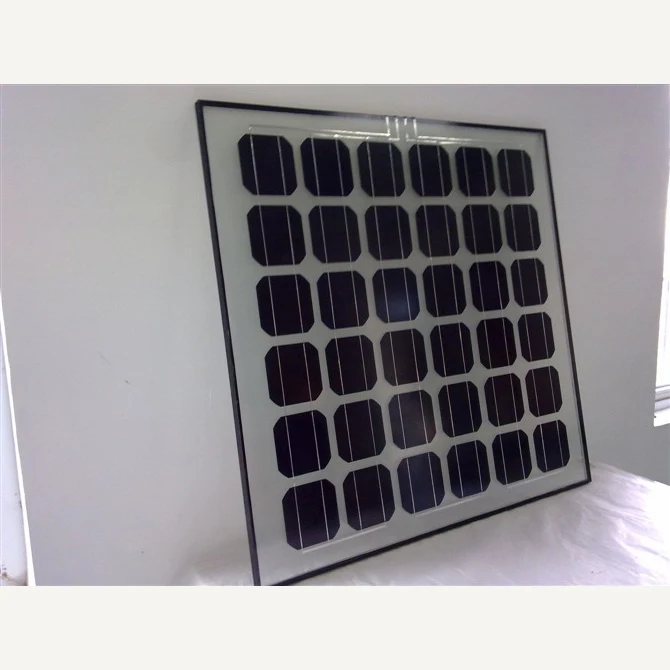

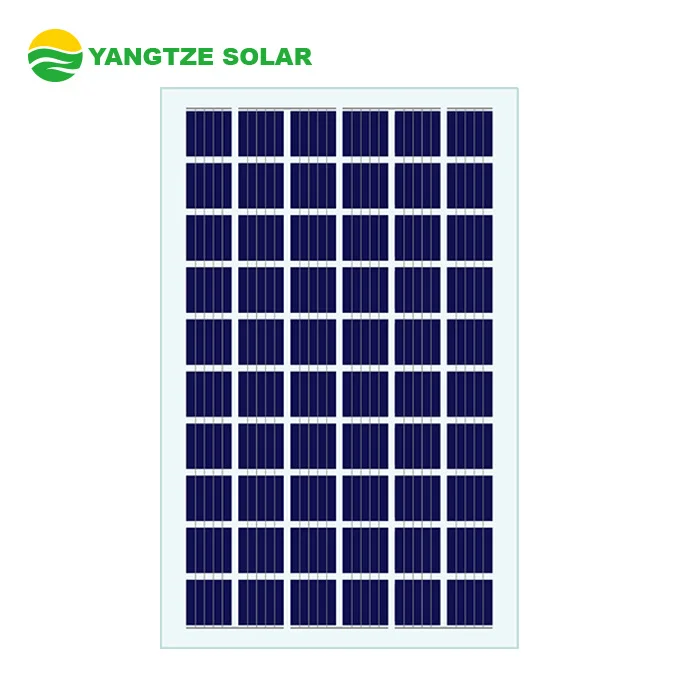

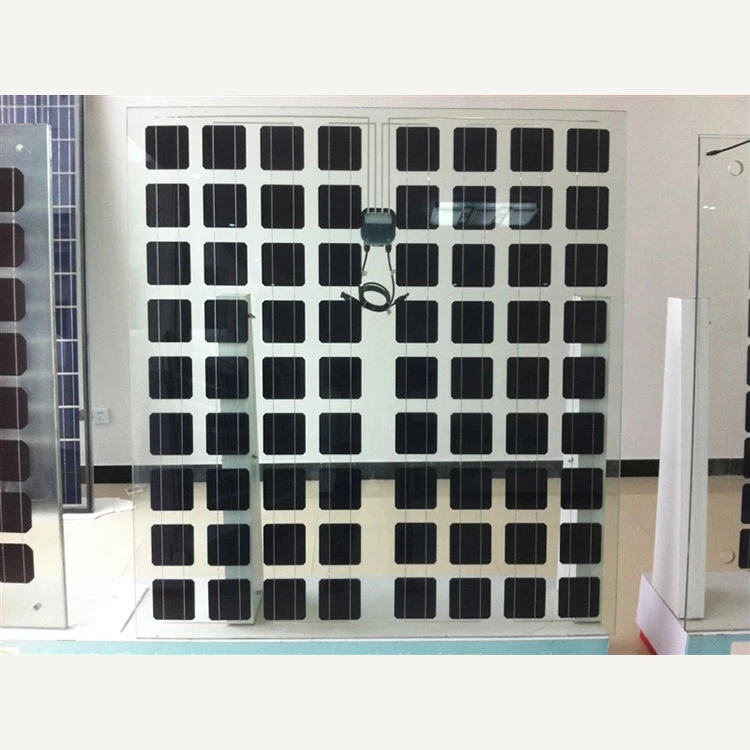

Yangtze ce transparent poly solar panel 330 340 watt
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.Hefei Ltd.
Share on (62025771521):
Product Overview
Description
Product Description
| Model | YS165P-36 | YS170M-36 | YS275P-60 | YS285P-60 | YS330P-72 | YS340M-72 |
| Rated Maximum Power at STC | 165W | 170W | 275W | 285W | 330W | 340W |
| Maximum Power Voltage (Vmp) | 18.4V | 18.9V | 30.5V | 30.9V | 36.6V | 37.0V |
| Maximum Power Current (Imp) | 8.99A | 9.01A | 9.01A | 9.23A | 9.01A | 9.19A |
| Open Circuit Voltage ( Voc) | 22.4V | 24.1V | 37.2V | 37.7V | 44.7V | 45.2V |
| Short Circuit Current (Isc) | 9.35A | 9.54A | 9.41A | 9.64A | 9.41A | 9.60A |
| Transmittance | 55% | 25% | 10% | |||
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||
| Mechanical Parameters | ||||||
| Cell Type | Poly-crystalline | |||||
| No. of Cells | 36 / 60 / 72 | |||||
| Dimension | 1950x986x7mm | |||||
| Weight | 34kg | |||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
| Junction Box | IP65&IP67 Rated | |||||
| Output Cable | Section Size: 4mm² , Length: 900mm | |||||
| No. of Bypass Diodes | 3&6 | |||||
| Connector | MC4 Compatible | |||||
| Working Conditions | ||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | |||||
| Operating Temperature | -40°c~+85°c | |||||
| Maximum Series Fuse | 15A | |||||
| NOCT | 45±2°c | |||||
| Application Class | Class A | |||||
| Temperature Coefficient | ||||||
| Temperature Coefficient of Pmax | -0.40%/°c | |||||
| Temperature Coefficient of Voc | -0.30%/°c | |||||
| Temperature Coefficient of Isc | +0.06%/°c | |||||
Packaging & Shipping
Company Information
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
