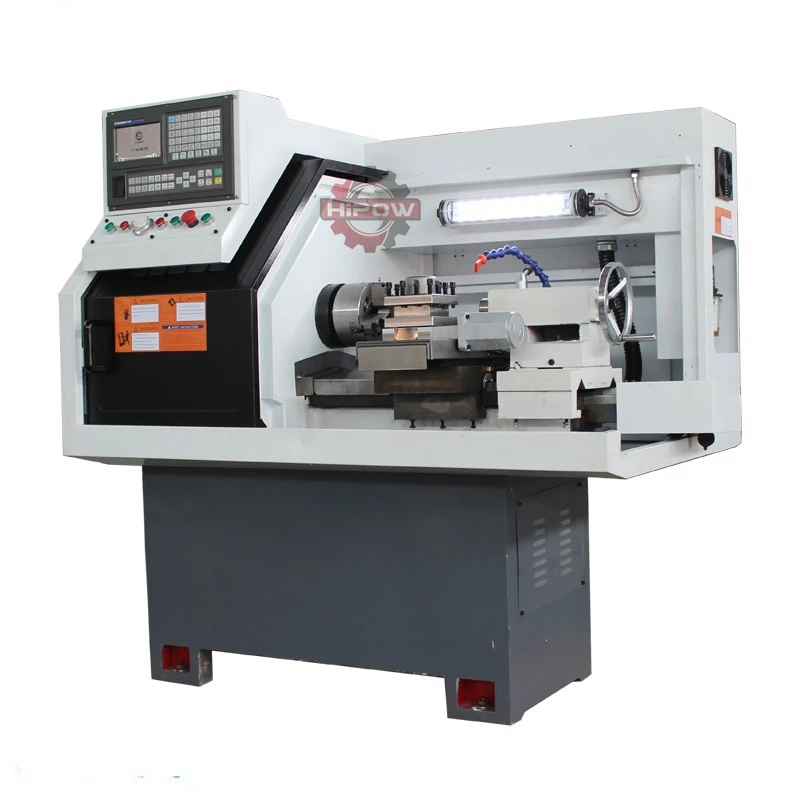

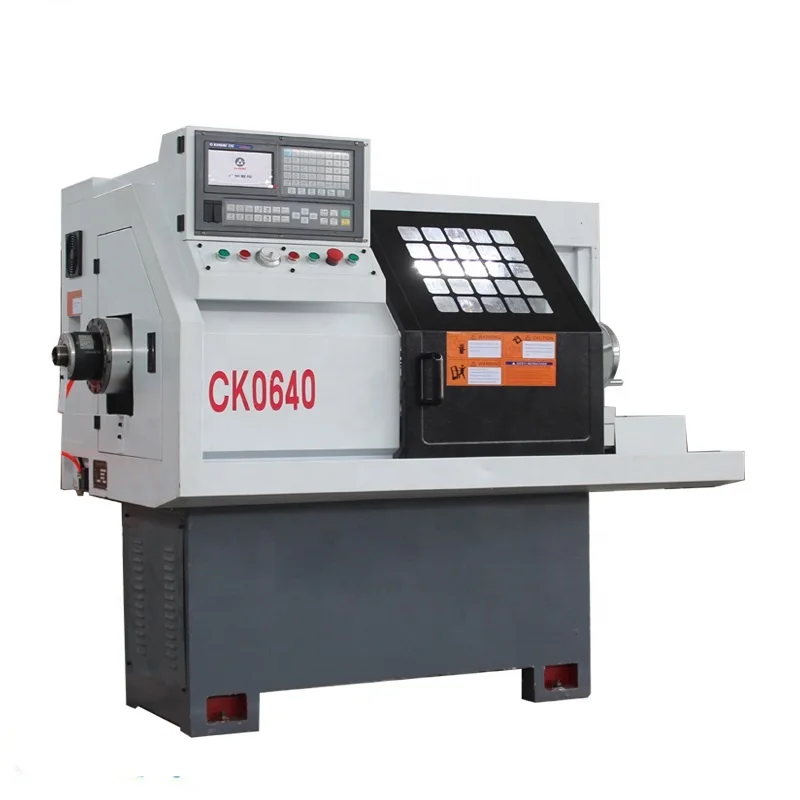

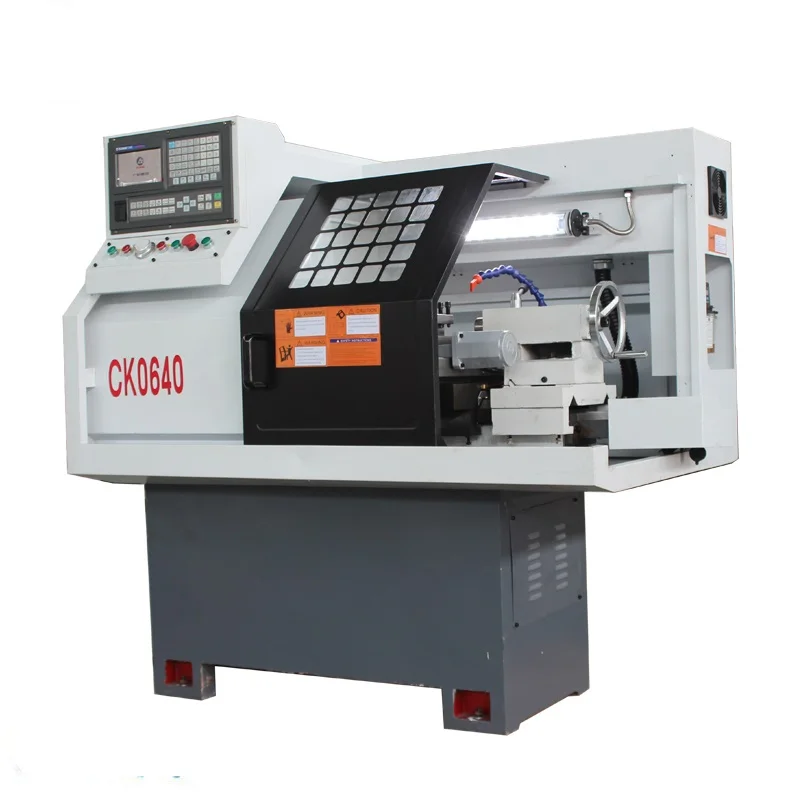

CK0640 china cheap mini cnc torno metal cutting lathe machine
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62025813668):
Product Overview
Description
Product Description
 |
CK0640 china cheap mini cnc torno metal cutting lathe machine |
 |
Main Feature 1.Widening high stability bed 2.Two gear spindle speed,stepless in gear 3.Wider layor board 4.Intergrated automatic lubrication system
|

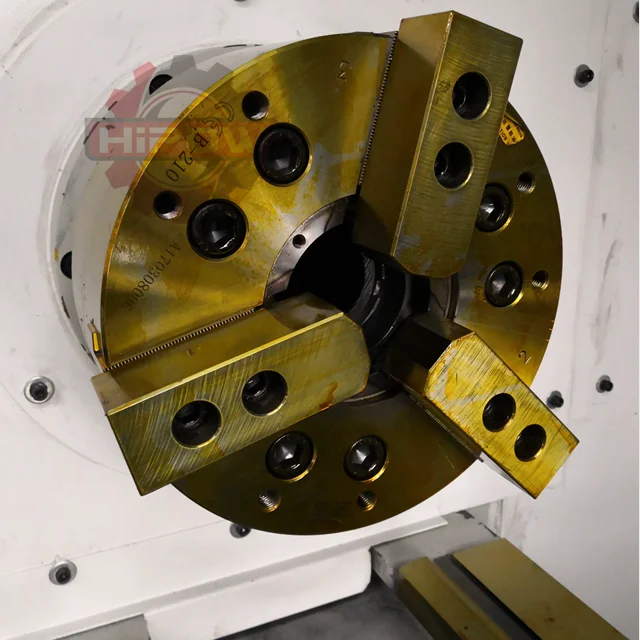

1. High Precision Chuck and spindle hole

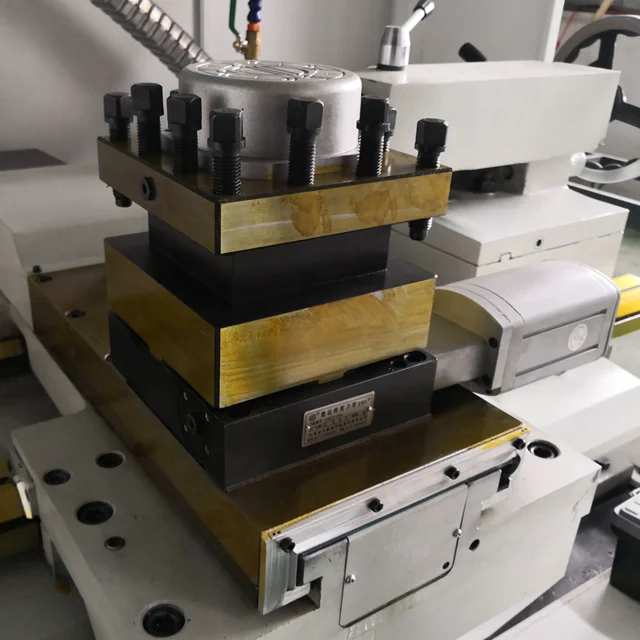

2. Precision Tool Post

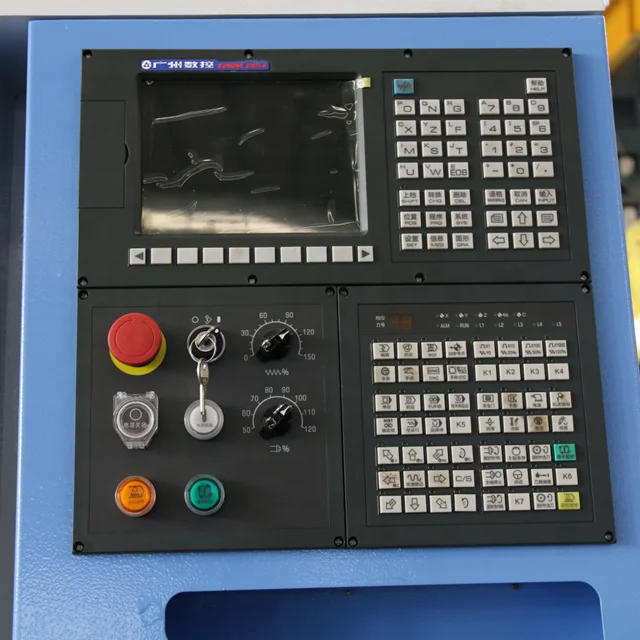

3. Reliable Control System
1).Standard : GSK980, KND System,
2).Optional:Fanuc,Siemens,Mitsubishi and other customized system

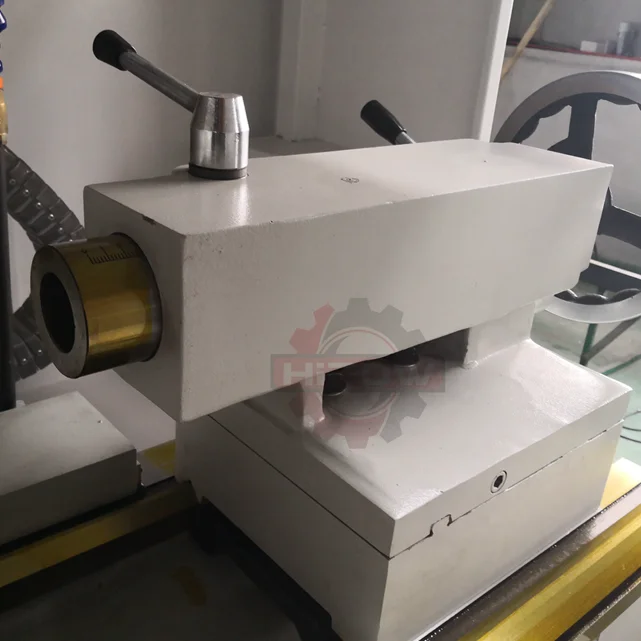

4. Customized Tail Stock
1).Standard tail stock is manual
2).Hydraulic tail stock can be customized
5. High Precision Mini Machine Body
 |
Items | CK0640 |
Spindle bore | Φ42mm |
Max. swing over bed | Φ300mm |
Max. swing over carriage | φ130mm |
Max length of work piece | 240mm |
X- axis max motion traveling schedule | 200mm |
X-axis fast moving speed | 6000mm/min |
Z- axis fast moving speed | 8000 mm/min |
X-axis feed rates | 1~2000mm/min |
Z- axis feed rates | 1~1800mm/min |
Range of spindle speed | 50~2500rpm |
Thread machining scope (metric system) | 0.25~12mm |
Thread machining scope (British system) | 28~3 1/2 |
Stations of tool carrier | gang-type tool carrier |
Power of the main drive motor | 3KW |
Overall dimensions(L×W×H) | 1550×920×1450 |
Net weight | 850 kg |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
