Airports, police, firefighting, great conference& events, post offices, courts, Railway station, subway, customs, frontier and port, underground garage etc.
Technical Specifications
Ion Mobility Spectrometry
Explosives Detected
Most commercially available and military explosives such as TNT, DNT, RDX, PETN, NG, BP, Tetryl, HMX, Semtex, C4, AN, etc.
Sensitivity
ng to pg level
Analysis Time
2 to 10 seconds
Warm-up Time
20 minutes (hot-start 5 minutes)
Sample Collection
Particulate collection via wiping, non-contact vapor collection
Sample acquisition
Less than 20cm for non-contact vapor collection
Power
110/220VAC, 50/60HZ
Battery
22.2VDC, lithium ion battery, work more than 4h
Alarm
Audio and visual, with substance identification and display on LCD
Data Display
3.5" color TFT displa
Calibration
lnternal automatic calibration
Dimensions(L×W ×H)
410×140×140 mm (16.2"×5.2"×5.2 ")
Weight
Less than 3.3kg (with battery)
Working Temperature
-10℃ to 60℃
Relative Humidity
≤93%
lnterface
USB, RS232
Data Memory
100000 records (2G SD card)
Main Features
• High sensitivity and detecting ng to pg level explosives • Fast response and give analysis result within 10 seconds • Three optional sensitivity, with hot-start function • External vaccum sampling unit for effective sample collection • Environmental adaptability, used normally in highlands • Portable and lightt, 3.3 kg in total • 3.5" color TFT display, rich interface prompts, easy to use • Open databases, remote online services, use without worry

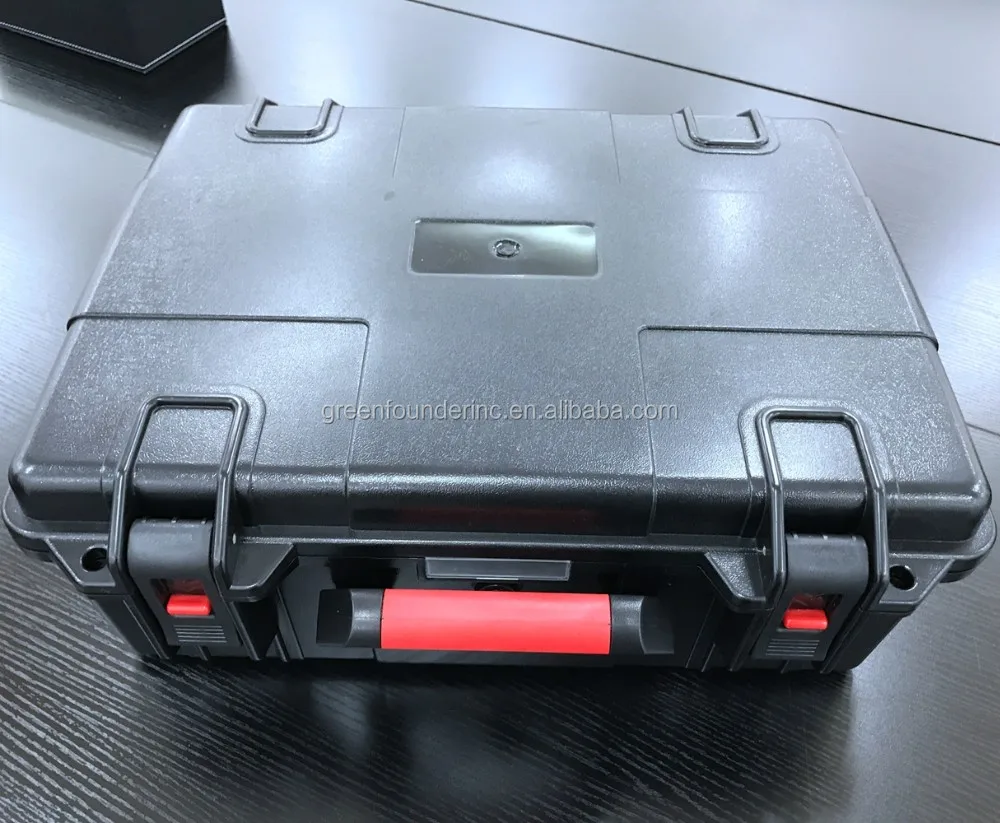

The inner packing box is rugged packing box, and outside is carton.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
