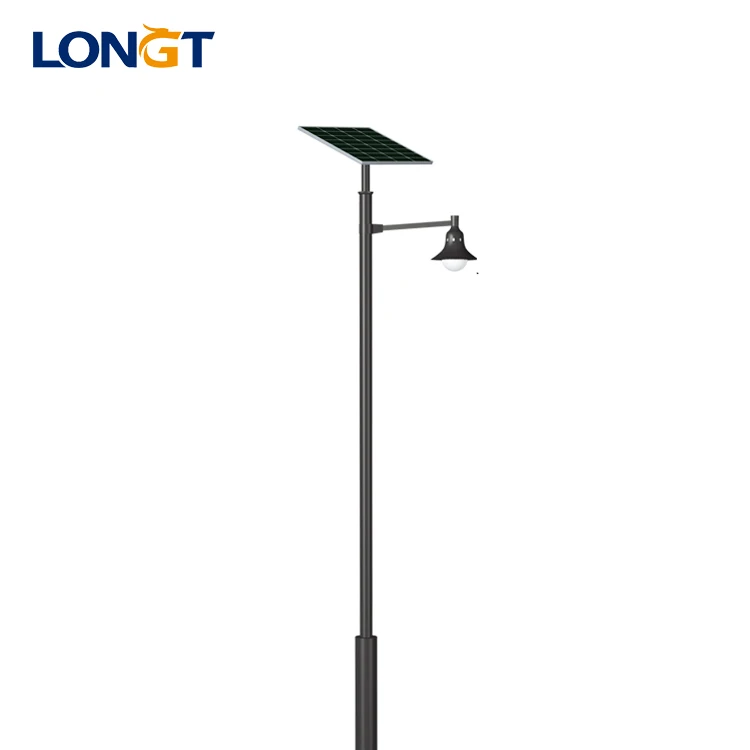

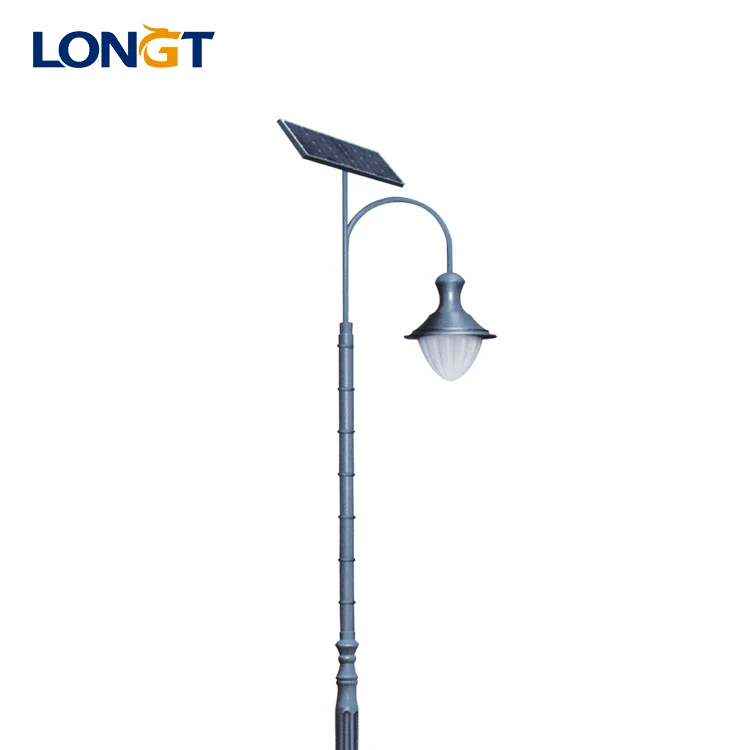

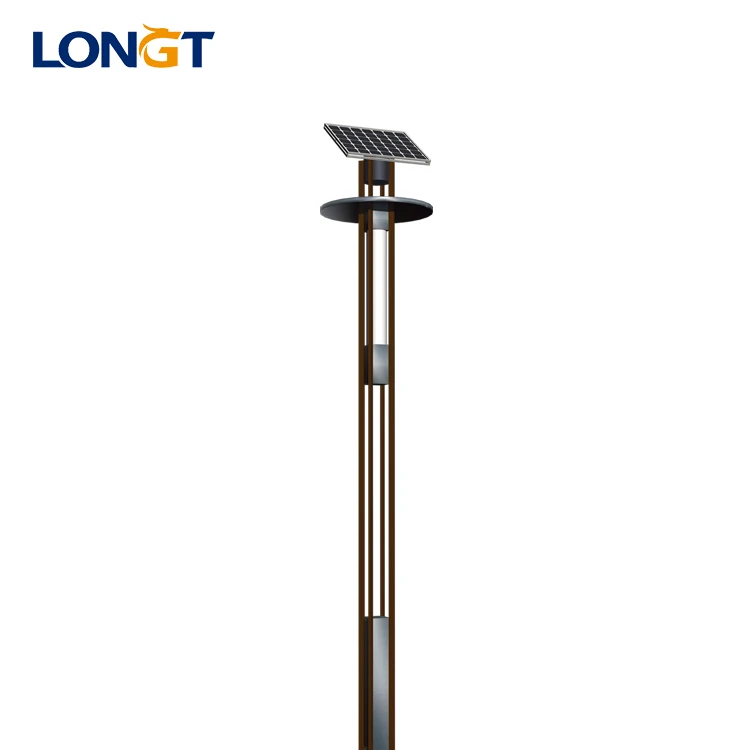

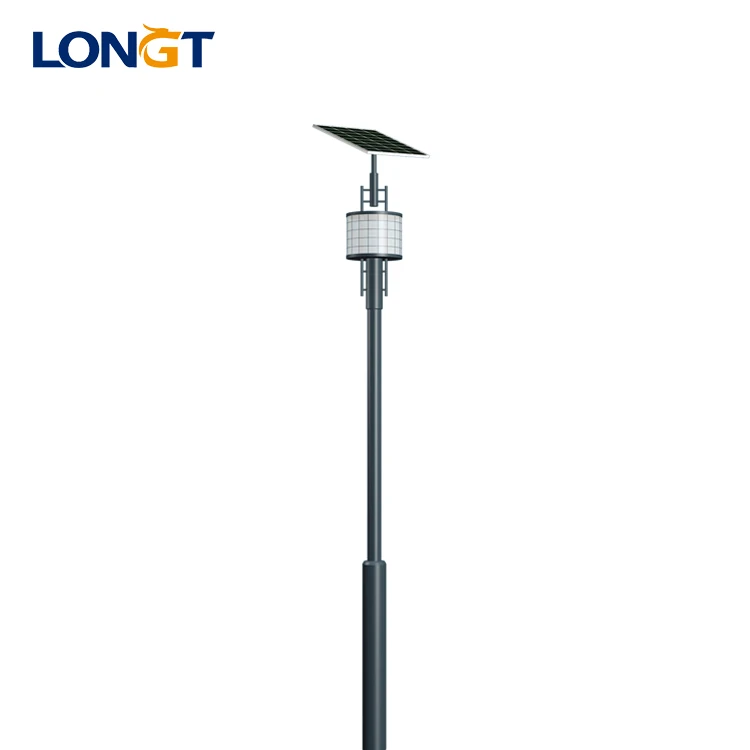

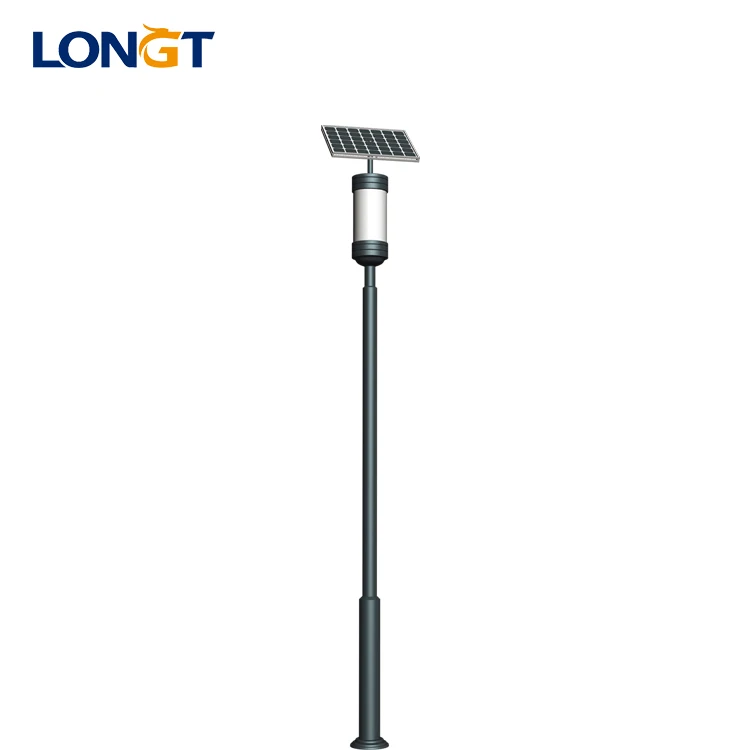

Все в одном, интегрированный солнечный уличный фонарь (62025931240)

Share on:

Price:399,00 $ - 449,00 $
Price in USD:Details


Product Overview


All in one integrated solar street light pole_20210414172402.jpg

Product Description


Light source50w LED Street Light, Bridgelux/Philips chip, 50000 hours life span, ≥6000 Lumens, 3 years warranty
Solar PanelPolysilicon PV modular, 150w, 17%-19% convert rate, 10 years warranty
Storage BatteryDeep cycle gel battery, 180Ah capacitor, 3 years warranty
ControllerIntelligent controller, light control, time control, with overcharge protection, with remote control to turn on and off.
Battery box

Buried in the ground: ABS Plastic waterproof

Hang up on the pole: galvanized steel

Light postMaterial: Q235, Height: 7m, thickness: 3mm, finishing: hot dip galvanized and power coated with RAL color, with base plate and anchor bolts
Cable2*2.5mm² copper cable

Working Princple.jpg


  • Lamp Body: Die-Casting Aluminum. Corrosion Resistant

  • Application with Polyester Substance in its Surface.

  • Implement of Reflect: Made of High Purity Aluminum.

  • Cover: High Strength and High Transparent Toughened Glass

  • Fastener Bolt and Screws: Stainless Steel

  • Arm Diameter: 48 - 60mm

  • IP65


  • Finish: Black; hot dip-galvanized (HDG) only; HDG plus powder coated

  • Galvanization standard: ASTMA123/EN ISO1461

  • Welding: AWS D 1.1/BS EN 1011-1,BS EN 1011-2

  • Design: We have our standard pole with our design, OEM and ODM is also acceptable

  • Package: Standard seaworthy

  • Delivery time: with two weeks after confirm the order

  • Thickness: 1mm to 4mm


    Types of solar panel: Mono crystalline silicon & Poly crystalline silicon

  • Monocrystalline Solar panel , efficiency of more than 18.5%

  • Polycrystalline solar panel, efficiency of more than 17.8%

  • A GRADE high efficient solar panel

  • Hydrophobic layer with higher light absorption and minimal surface dust

  • 10 years warranty for solar panels


  • Low-internal resistance clapboard, low internal resistance, good battery capacity Self-discharging rate less than 3% every month

  • Gassing rate of gelled batteries is only 5% of ordinary sealed batteries.

  • The lifespan is greater than 1000 times at 25C°




* The above configuration is only  for reference and the actual configuration is designed according to the local climate conditions and the customer special requirements.

* We promise a guaranteed warranty for the entire system for three years, during which if there is any quality problem found, repair or replacement shall be provided free of charge, and a guarantee for life-long repair.
