AC/DC Current Probe

Introduction:

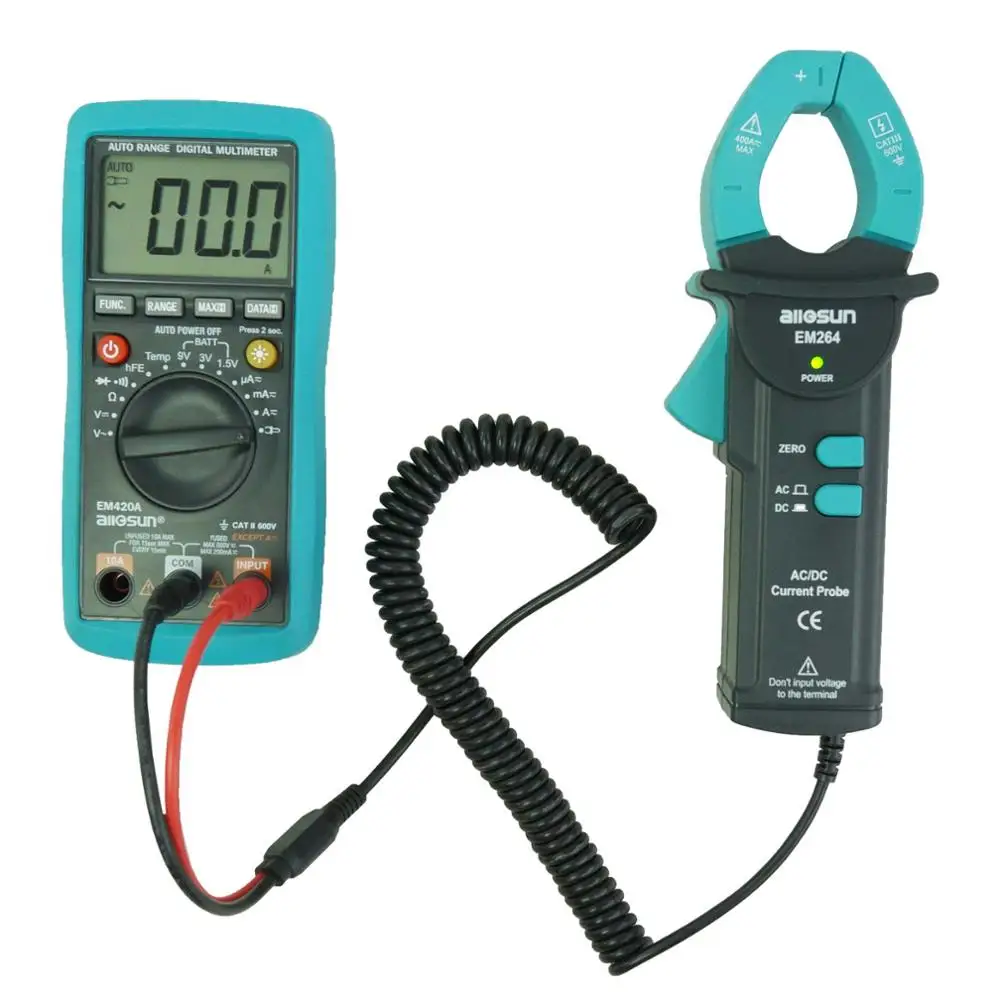

This AC/DC Current Probe is based on Hall Effect technology and is designed to be used in conjunction with multimeter for AC and DC current measurements.

The current probe clamp EM264 is matching with EM420A/EM420B series multimeter.

Electrical Specifications

Max.Measurable Current: 400A

Frequency Range: 50Hz - 60Hz

Output: 0mV - ±400mV, DC

Output Sensitivity: 1mV/1A   10mV/A

Max. Working Voltage: 600V ac/dc rms, CAT III

Accuracy: ±(3.0% rdg + 5d)

General Specifications

Operating Condition: 0°C to 50°C, <80%RH

Storage Condition: -20°C to 60°C, <85%RH

Max. Conductor Size: φ30mm

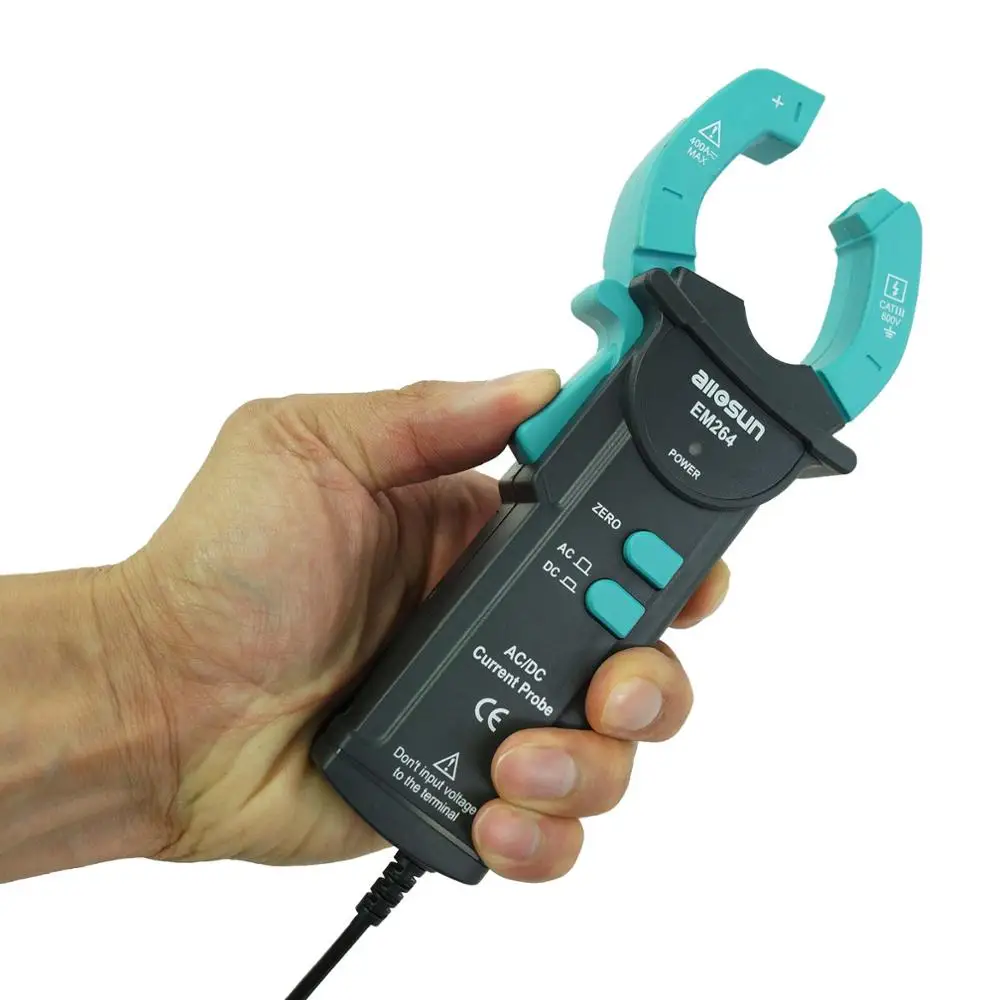

Max. Jaw Opening: 33mm

Size: 215*110*50mm (main body)

Weight: about 375g
