Application of phase change materials in building HVAC







Microcapsule phase change materials can be used for indoor floors, walls, ceilings, phase change material glass, and the like. The phase change material exchanges heat with the indoor environment to maintain a comfortable temperature in the room.
Product line: Honeycomb sheet
Microcapsule powder





purpose:

1. Energy-saving: use nighttime low-cost electricity to store energy and release refrigeration when needed during the day;

2. Space saving: reduce the volume of the ice storage tank;

3. Constant temperature: fluctuation of the surface temperature, always constant temperature.





application:

Residential, small and medium-sized buildings, hospitals, banks, airports, etc.

Several forms of industrial constant temperature and humidity machine air conditioning system









1.The air medium

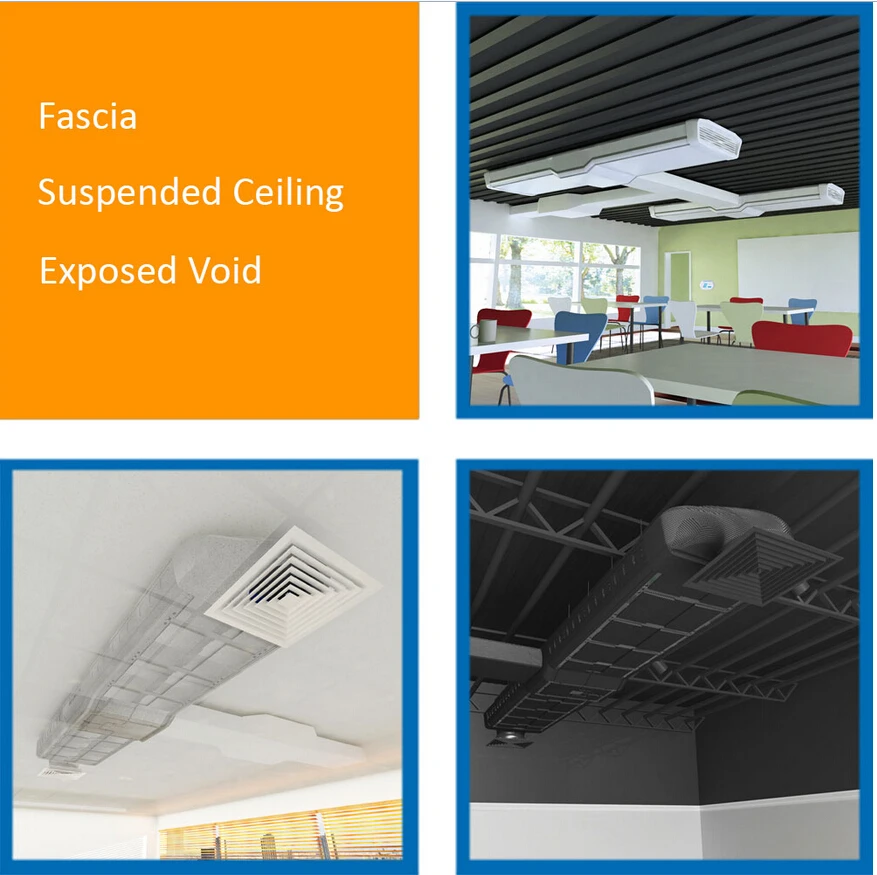

Example: PCM air conditioning air supply system with phase transition temperature of 18 °C

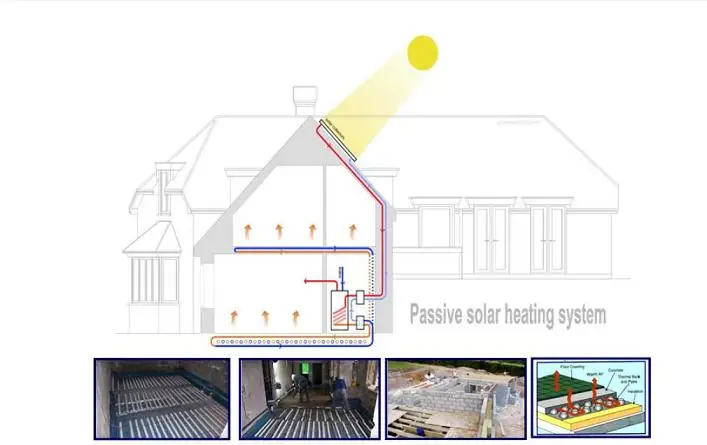

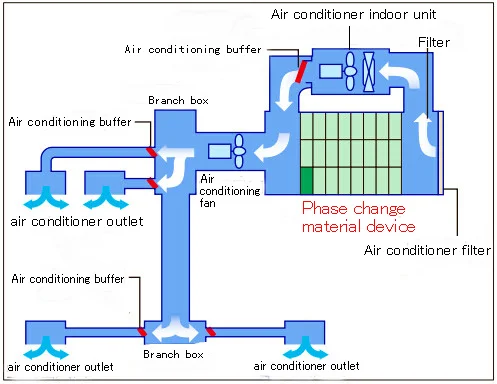

System concept map:

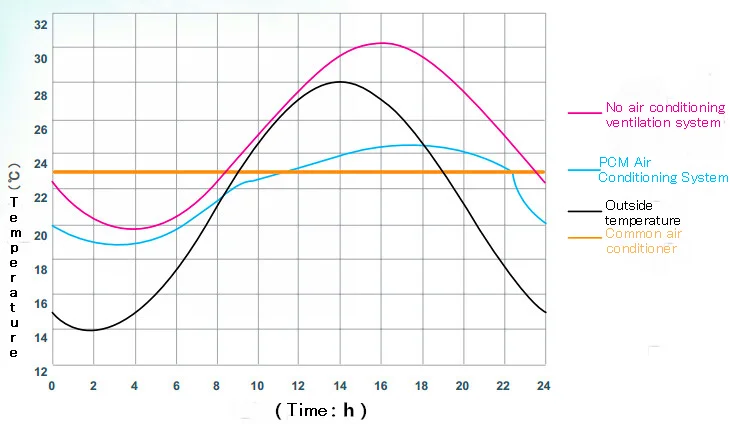

Effect curve





Application case:

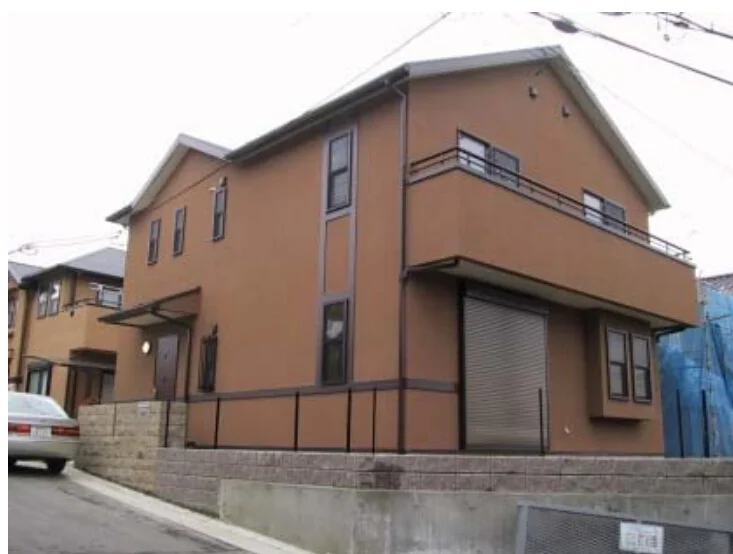

A house in Baodi City

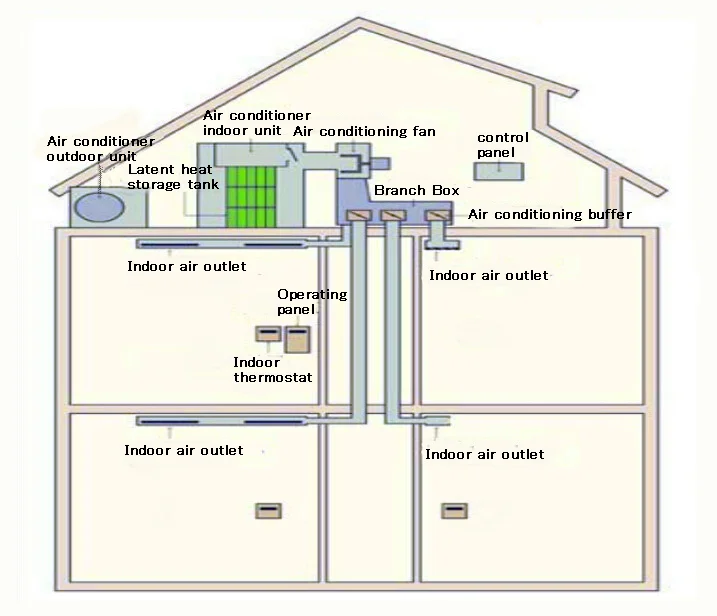

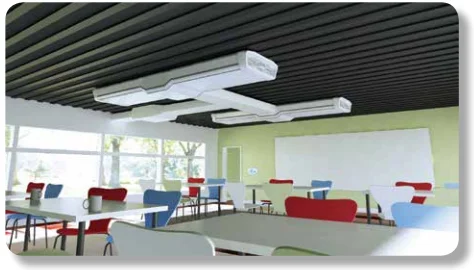

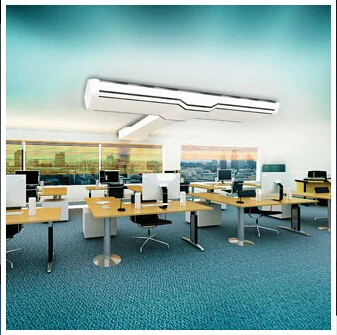

Actual installation indoor renderings:















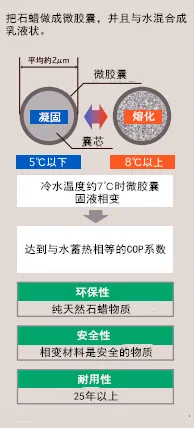

2. The water medium

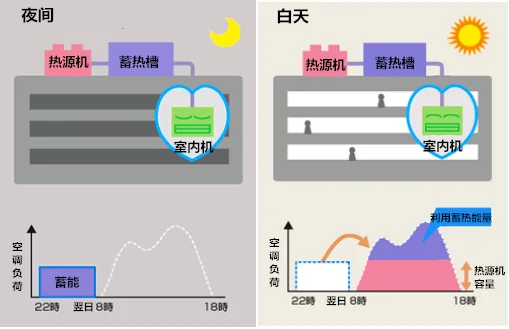

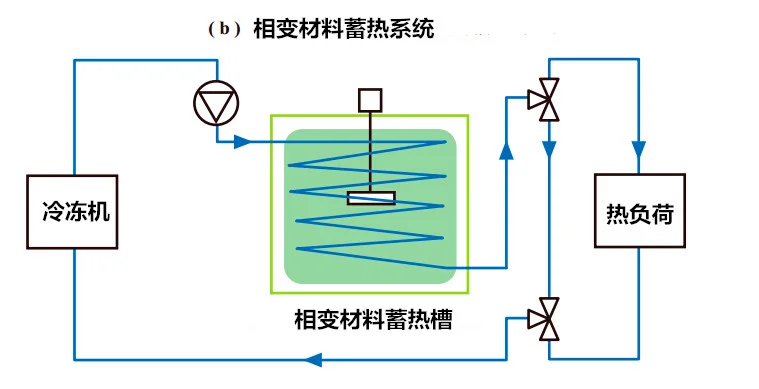

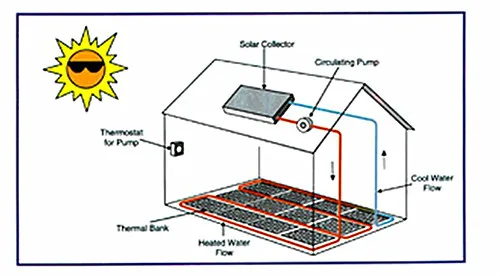

System concept map:

The phase change material microcapsule heat storage system can be modified without changing the original system, and the heat storage capacity of the heat storage tank can be increased.

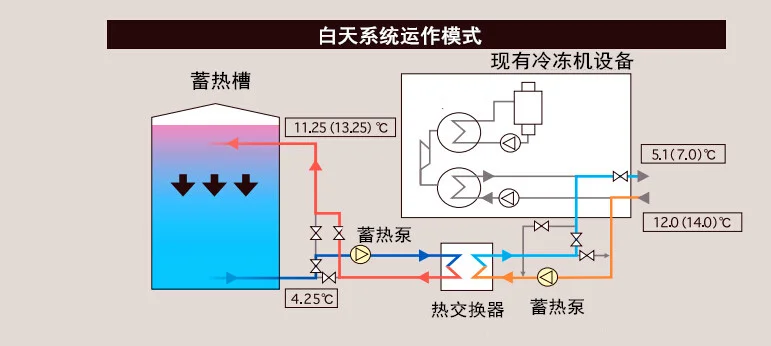

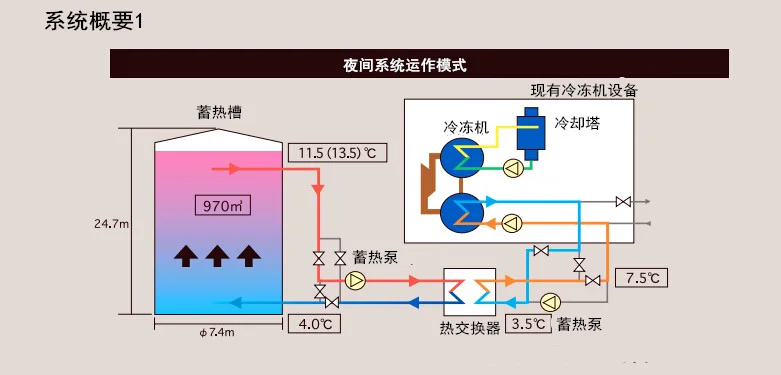

Working mode diagram:

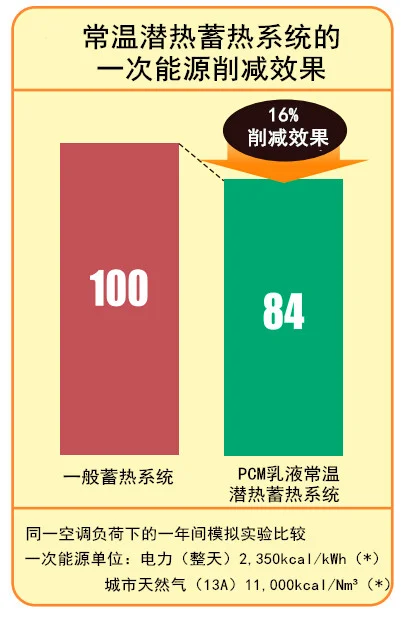

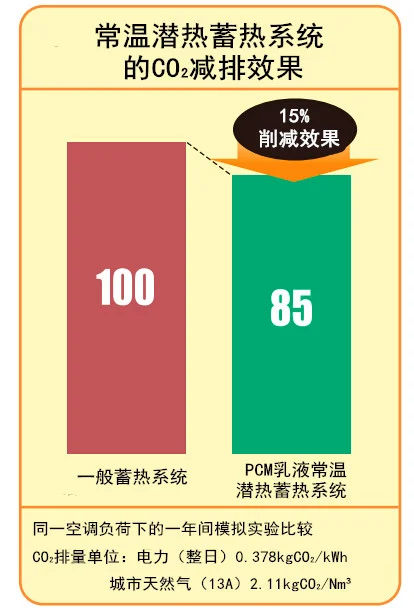

Energy saving and emission reduction effects:





Energy saving calculation example:



The example of a medium-sized heat storage tank (35m3, 10 tons) is calculated:



Heat storage capacity of 1MWh large-scale heat storage tank (35m3, 10 tons of ice)



Ice storage heat = 320kj/kg. Microcapsule heat storage = 200kj/kg*0.8 (actual volume) = 160kj/kg







Traditional ice heat storage tank



Where 35 tons of water can produce 10 tons of ice (the ice making rate is about 30%):



10*103kg*320kj/kg=320GJ (heat storage)







Ice + phase change microcapsule heat storage tank



In order to achieve the above-mentioned ice heat storage capacity (320GJ), 12 tons of phase change microcapsules are solidified (6 ° C), and then 4 tons of water is frozen (-19 ° C). Under these conditions, the heat storage of the two is:





Ice: 4*103kg*320kj/kg=128GJ



Phase change microcapsule: 12*103kg*160kj/kg=1.92GJ





Compared with the original ice storage method, the power consumption ratio is: (1.28 + 1.92 * 1/2) / 3.2 = 0.7, that is, energy saving 30%.



Comparison of ice thermal storage system and phase change material thermal storage system:





Application case:



New Tokyo International Airport Airport (Narita Airport) Central Air Conditioning System
