Single cylinder 4 stroke air cooled 2 inch diesel water pump motor
- Category: >>>
- Supplier: Jiangsu United Power Friend Technology Co. Ltd.
Share on (62026092242):
Product Overview
Description

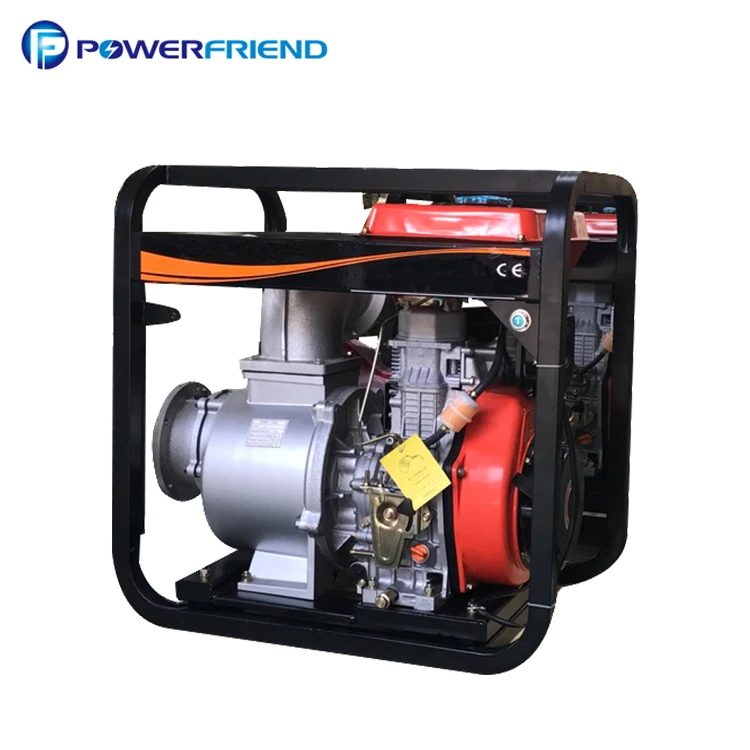

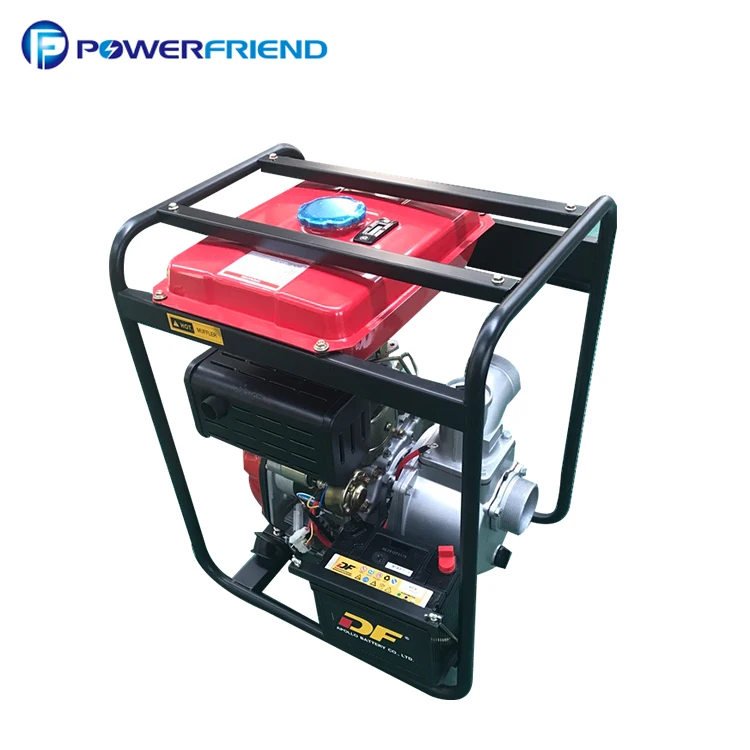

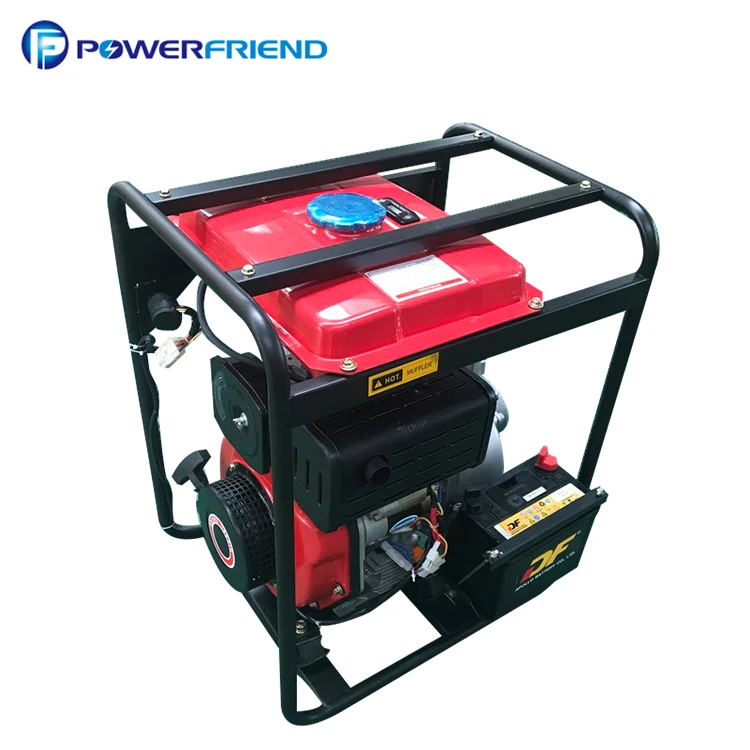

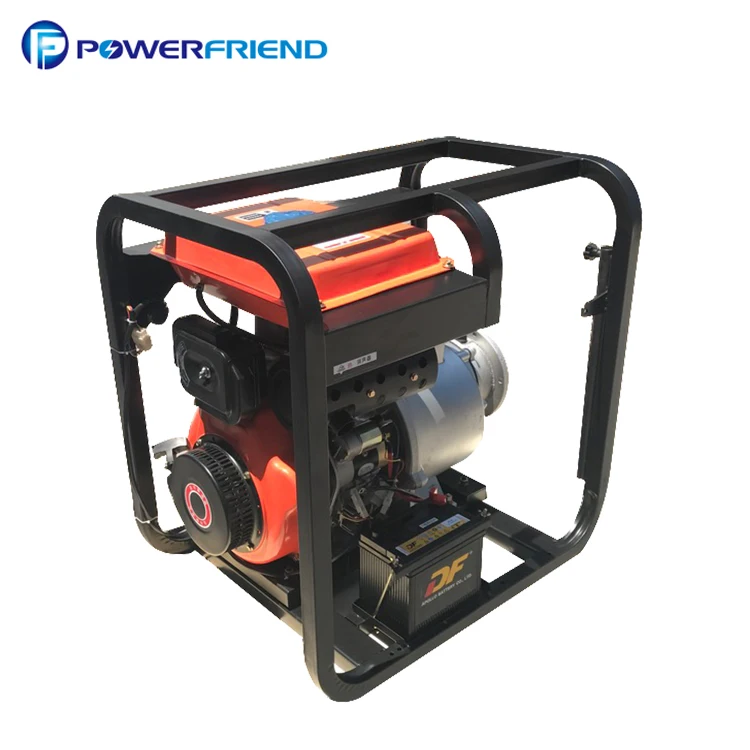

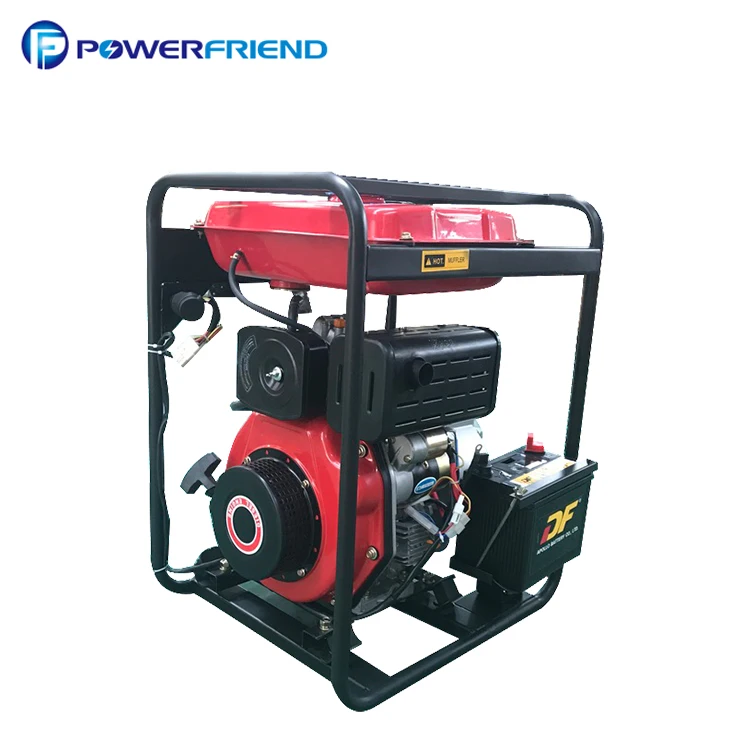

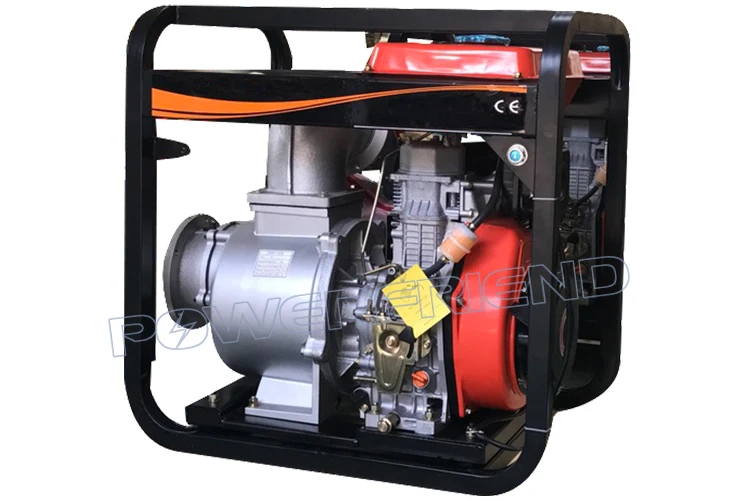

Single cylinder 4-stroke air cooled 2 inch diesel water pump motor
Description of Goods
| Mode | PD50D(E) | PD80D(E) | PD100D(E) |
| Suction, discharge port diameter (mm/in) | 50/2 '' | 80/3'' | 100/4'' |
| Discharge capacity (m3/h) | 22 | 30 | 40 |
| Max head (m) | 15 | 13 | 16 |
| Max suction (m) | 8 | 8 | 8 |
| Engine speed (rpm) | 3600 | 3600 | 3600 |
| Priming time (s/4m) | 80 | 120 | 180 |
| overall dimension (LxWxH) | 520x420x580 | 590x470x600 | 680X500X660 |
| Engine type | 170F | 178F | 186F |
| Rated power kw | 2.8 | 4 | 6.3 |
| Engine Horse Power | 3.808 | 5.44 | 8.568 |
| Displacement ML | 211 | 296 | 406 |
| Net weight kg | 35 | 52 | 69 |
| Fuel tank capacity L | 2.5 | 3.5 | 5.5 |
| Fuel consumption ( g/kw.h) | 288 | 285 | 281 |
| Water pump description |
| 1.Lower consumption, lower noise, lower pollution. Higher efficiency and environmental friendly |
| 2.Strict testing system, stable voltage and frequency |
| 3.Secured ground terminal |
| 4.Stronger automatic startup system, staring within only 1-5s |
| 5.Smart in size, delicate in style, longer service life |
| 6.very diversified and customerized choices |
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.
We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
We supply Generator Sets from 2kva to 3000kva.
Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm
Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm
PowerFriend Projects----
500kva for Guatemaia Genset for Property Genset for Government
IVECO gensets for Sinopec 40 sets of silent genset for Ukraine Army 14 sets of Paralleling Gensets
Certificate----
Trade shows----
Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.
Contact PowerFriend
Portable Generators
If you have some question about this one, please click the picture below to contact us. We will reply you as soon as possible!
If you want to know different types of portable diesel generator, please click below to find the one you like.
