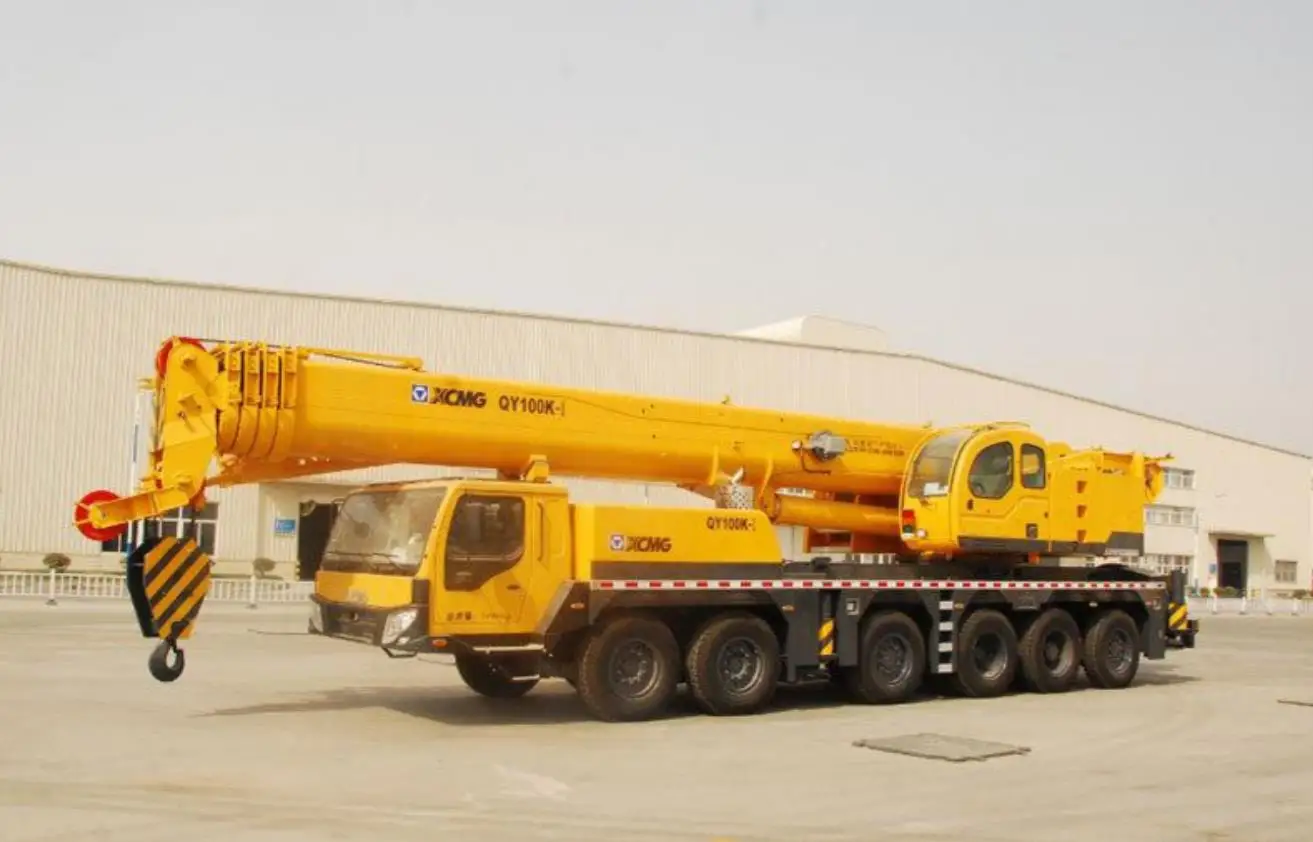

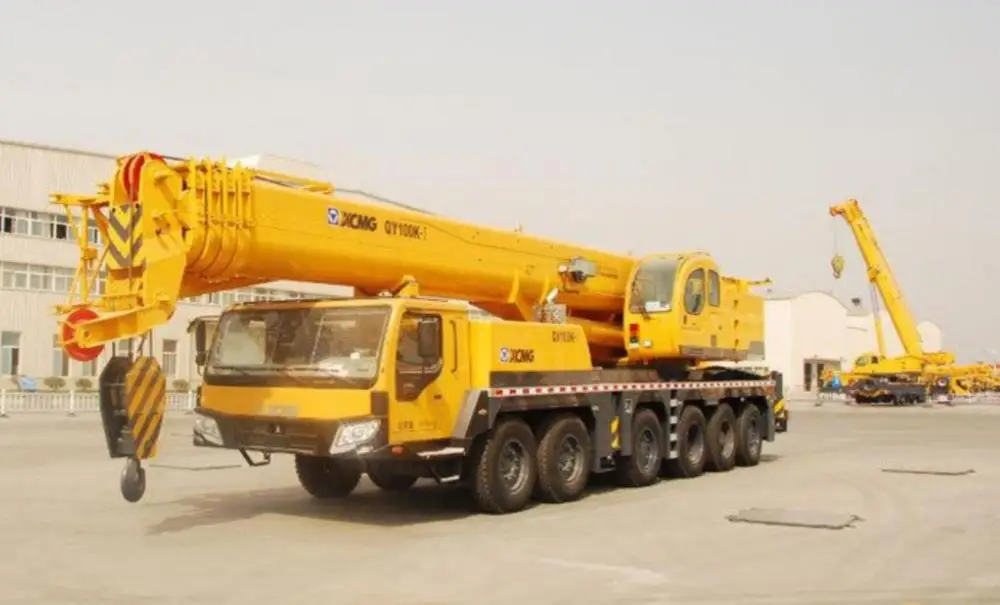

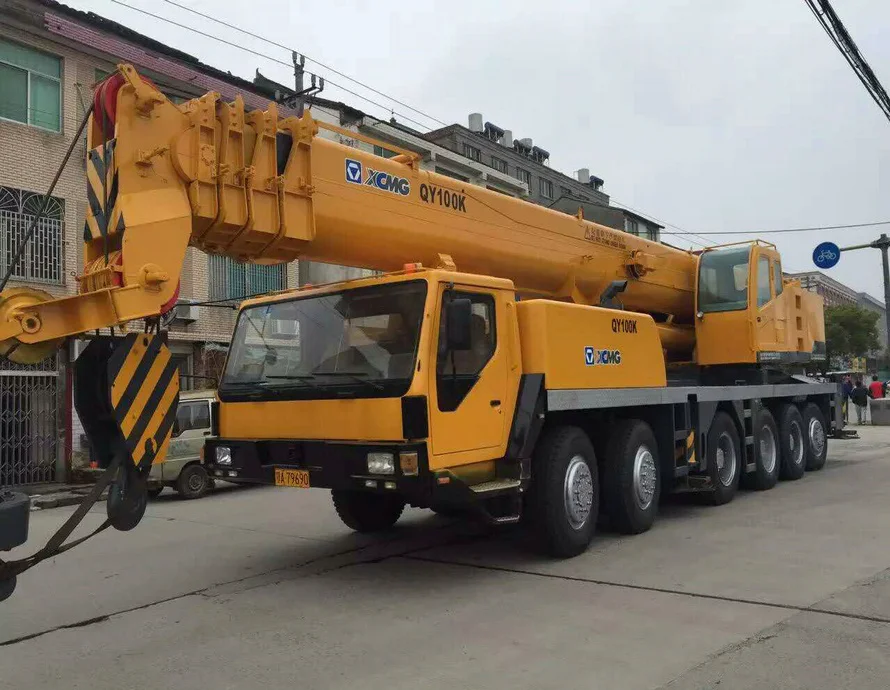

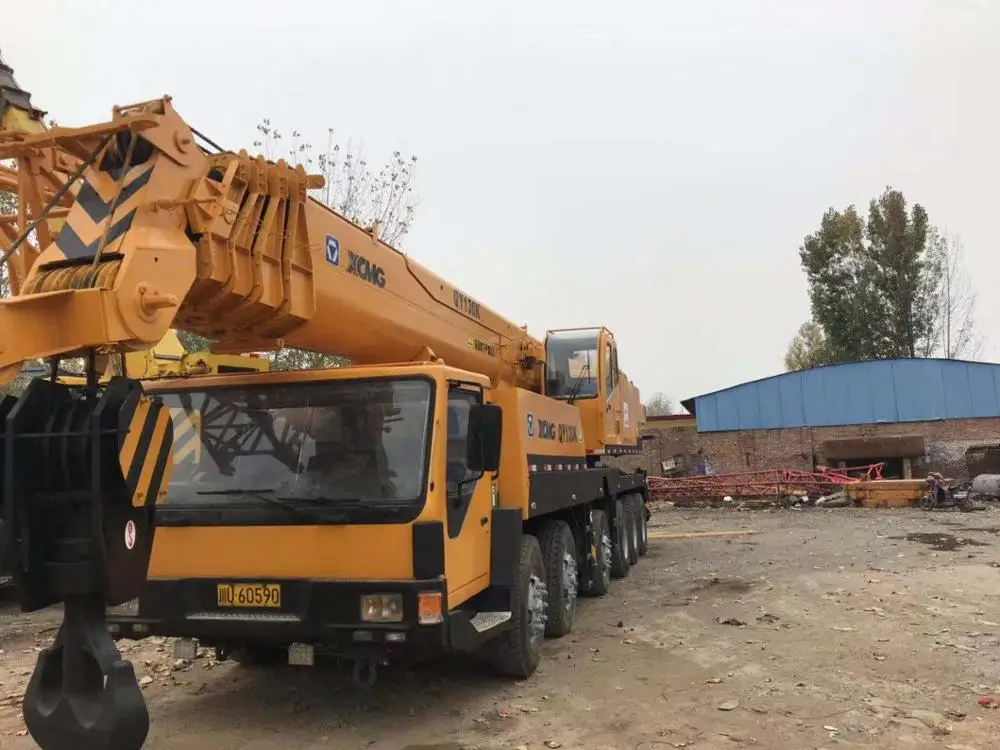

XCMG QY100K-I 100 ton used mobile crane truck.
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Specification
Item | Unit | ||
Dimensions | Overall length | 15600×3000×3850 | mm |
Weighet | Operation mass in travel state | 1420+2420+1800+1420+1505 | mm |
Axle load | 54900 | kg | |
1st axle | 8000 | kg | |
2nd axle | 8000 | kg | |
3rd axle | 7900 | kg | |
4th axle | 12000 | kg | |
5th axle | 12000 | kg | |
6th axle | 7000 | kg | |
Travel | Approach angle | 20 | ° |
Departure angle | 14 | ° | |
Braking distance(at 30km/h) | ≤10 | m | |
Max.grade ability | 40 | % | |
Min.turning diameter | 24 | m | |
Min.ground clearance | 300 | mm | |
Fuel consumption per 100km | 70 | L | |
Lifting Performance | Max.total rated lifting capactiy | 100 | t |
Min.rated working radius | 3 | m | |
At counterweight | 4200 | mm | |
At auxilary winch | 4590 | mm | |
Base boom | 3450(4m×88t) | kn.m | |
Full-extended boom | 1925(2.4m×8.3t) | kn.m | |
Full-extended boom+Jib | 708(25.8×2.8t) | kn.m | |
Longitudinal distance | 7.56 | m | |
Lateral distance | 7.6 | m | |
Base boom | 13.5 | m | |
Full-extended boom | 50.9 | m | |
Full-extended boom+Jib | 70.4 | m | |
Base boom | 13.5 | m | |
Full-extended boom | 51 | m | |
Full-extended boom+Jib | 51+18.1+4 | m | |
Working speed | Jib offset | 0,15,32 | ° |
3Boom raising | 75 | s | |
Full-extending | 160 | s |
