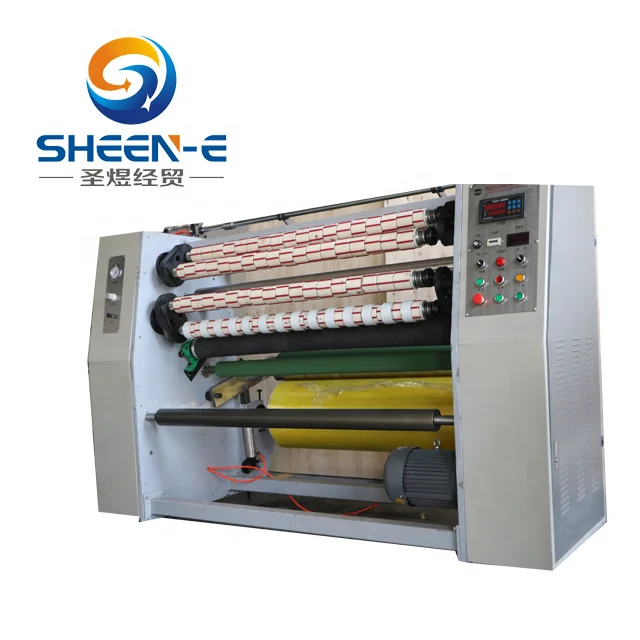

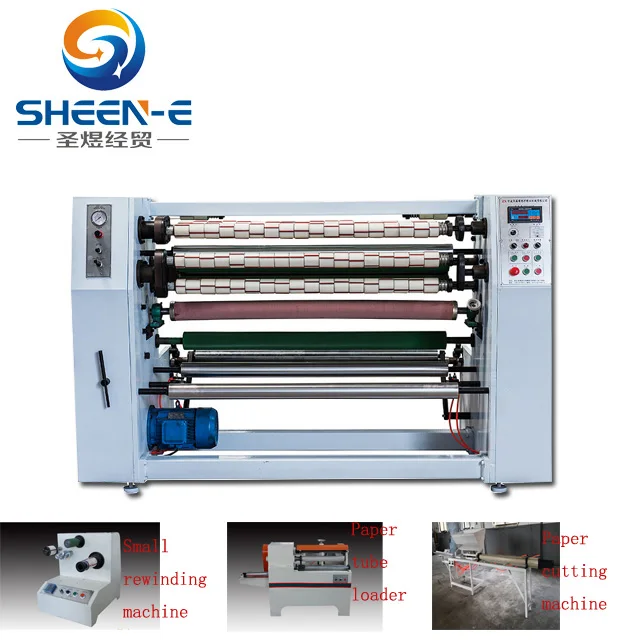

SY1300 Tape Slitting Machine

Technical parameters:
| Width of mechanical roller | 1400mm |
| Max. unwinding diameter | 700mm |
| Slitting width | According to customers request |
| Rewinding tube dia. | 3"(76.2mm) |
| Rewinding dia. | Four-axis exchange 25.4mm-76.2mm |
| Tool use | Induatrial straight knife |
| Mechanical speed | 0-180m/min |
| Power supply | 380v 50Hz 3phase |
| Air compressor | 5kg (prepared by customer) |
| Weight | 1100kg |
| Demension | 1200mm(L)×2300(W)×1500(H) |

| DETAIL | ||
| Discharge shaft | Manual | 1 Pcs |
| Discharge brake | Pneumatic brakes 10Kg | 1 Group |
| Discharge roller | Hard chrome on steel | 1 Group |
| Main motor | Decelerates motor 5HP | 1 Set |
| Counter | Three-stage electronic counting control | 1 Group |
| Transition roller | Aluminum surface anodizing | 1 Set |
| Transmission | Steel surface embossed teflom | 1 Set |
| Slitting tool | Industrial straight knife 60×22×1.2t | (prepared by customer) |
| Slitting tool transmission | Pneumatic | 1 Set |
| Edge material rewinding | Roller-type bilateral synchronous coiling | 2 Pcs |
| Automatic roll change system | AC mator 1HP | 1 Set |
| Rewinding roller | Aluminum with slip bushing | 4 Pcs |
| Unwinding wheel | Surface covered with rubber, diameter 100mm | 1 Pcs |
| Noise cancellation | 1 Set | |
Features of tape slitting machine
1. Automatic consecutive 4-shaft changing:TAPE SLITTING MACHINE
When the rewinding operation is finished on one set of shafts, the machine will change automaticlly onto another set of shafts without any stop. It will have higher efficency.TAPE SLITTTING MACHINE
2. Three-step length counter:TAPE SLITTING MACHINE
Giving accrate pre-setting of rewinding length.TAPE SLITTING MACHINE
3. Pneumatic brake:TAPE SLITTING MACHINE
Brings the machine to an immediate halt when working at high speed because of inertia, ensures excellent steady performance.TAPE SLITTING MACHINE
4. Automatic tension control.
5. The noise reduction function is added to the original equipment.TAPE SLITTING MACHINE
![]() |
Double plates 4-shaft rotary rewinding, automatic changing, consecutive working |
| Banana roller to eliminate tape wrinkling and flat rewinding | ![]() |
![]() ![]() | Preset tape length in advance, it can make accurate rewinding length and auto stop |
| Centralized control panel | ![]() |

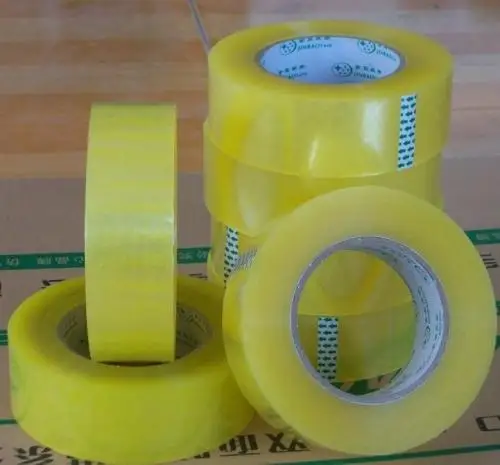

Samples for tape slitting machine

Packaging Detail : Wooden case or according to the customers' request
Mode of transportation : By Sea
Port of shippment : Main port in China mainlan

Weifang Sheen-E economic and Trade Co., Ltd Founded in May 2018. Firstly, we mainly sever China mainland customers. In order to adapt to world market development, now we do the exporting business directly. After these years
of development, we have high quality professional teams, skillful talents, strong technical force, strong and independment research and development capabillties, advanced production equipment and a perfect after-sale service system. So choose us,
equaling to choose the competitive price and stable quality both.
OUR FACTORY:

OUR BUSINESS BUILDING

CERTIFACATION

♥ All of our machine have one year warranty, life-long maintance.
♥ 24 hours online answers your questins.
♥ Delivery it to you as soon as possible.
♥ Lowest price,best quality.
