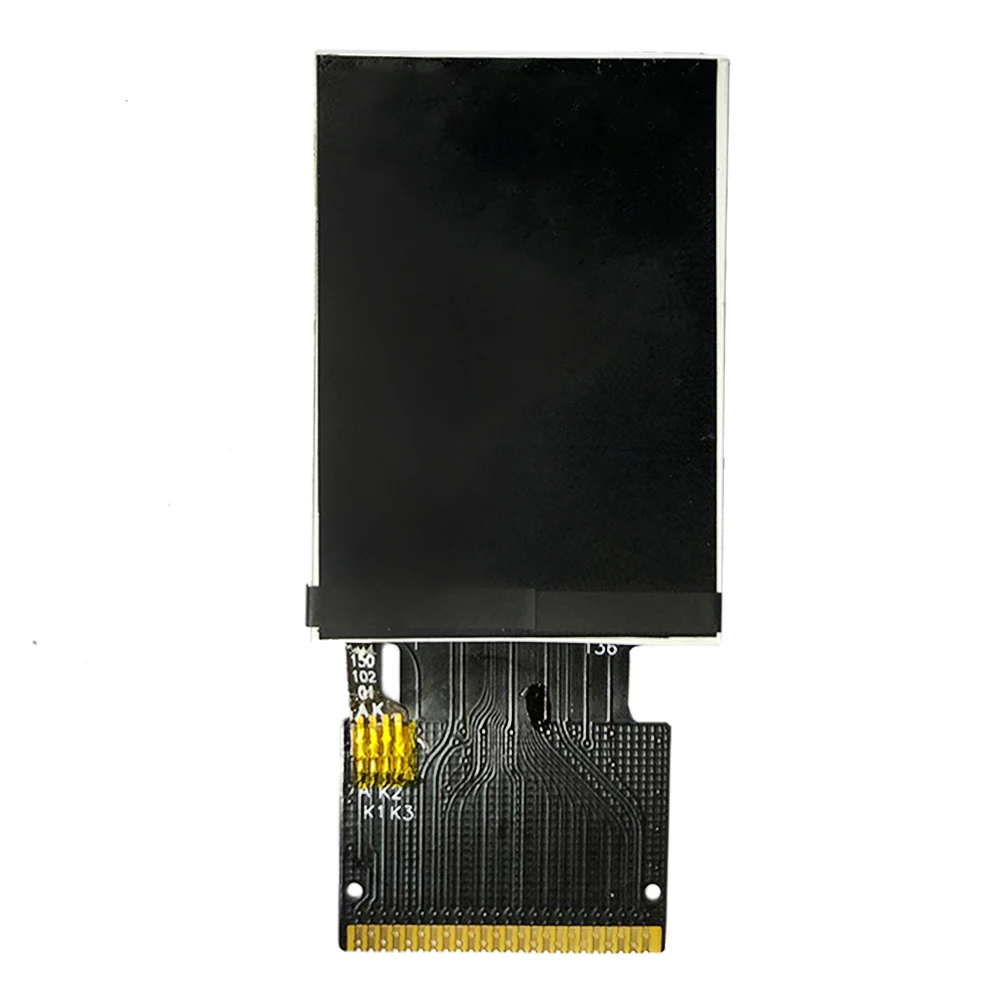

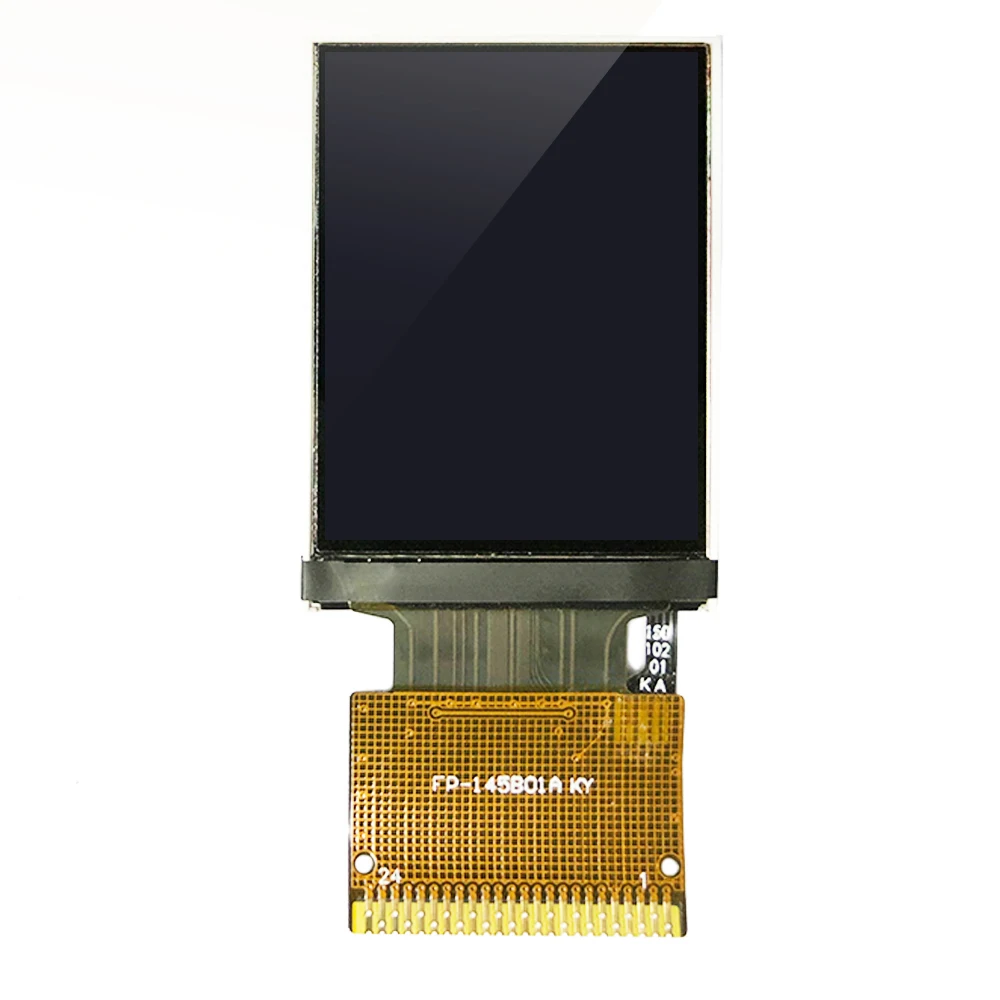

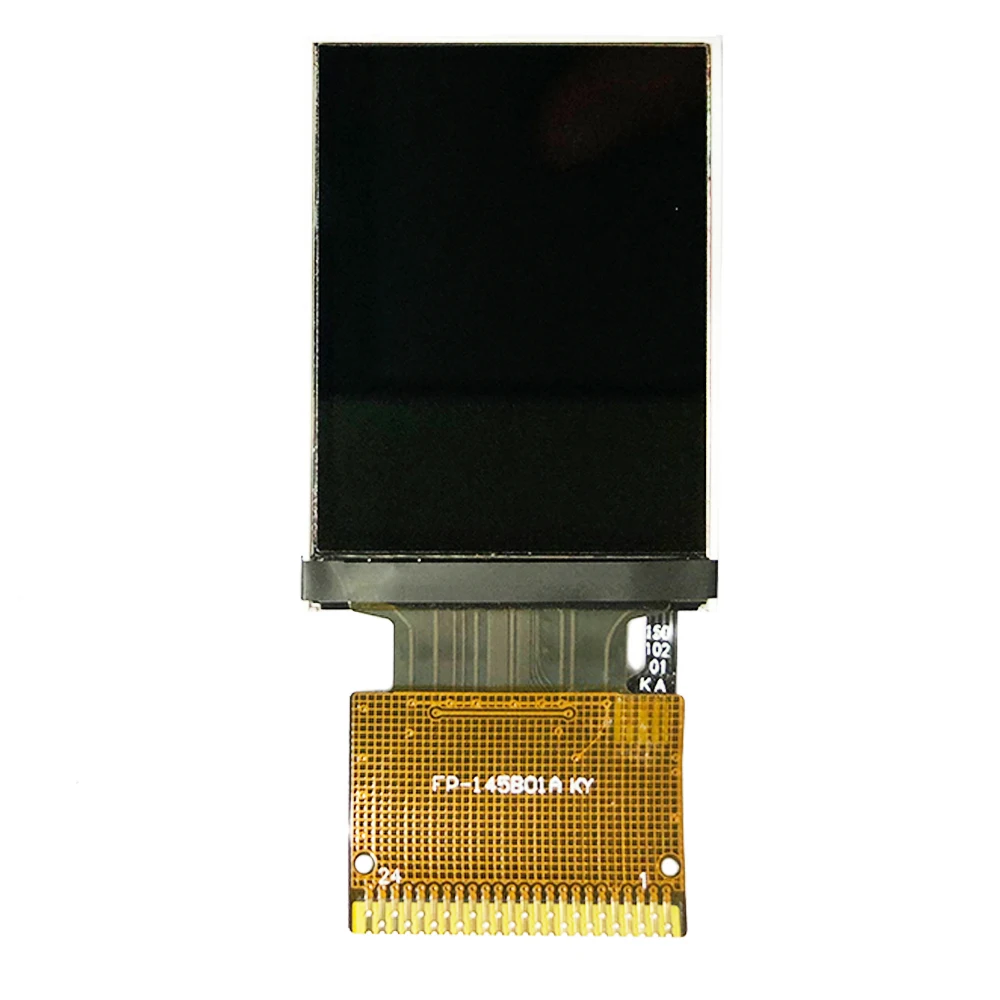

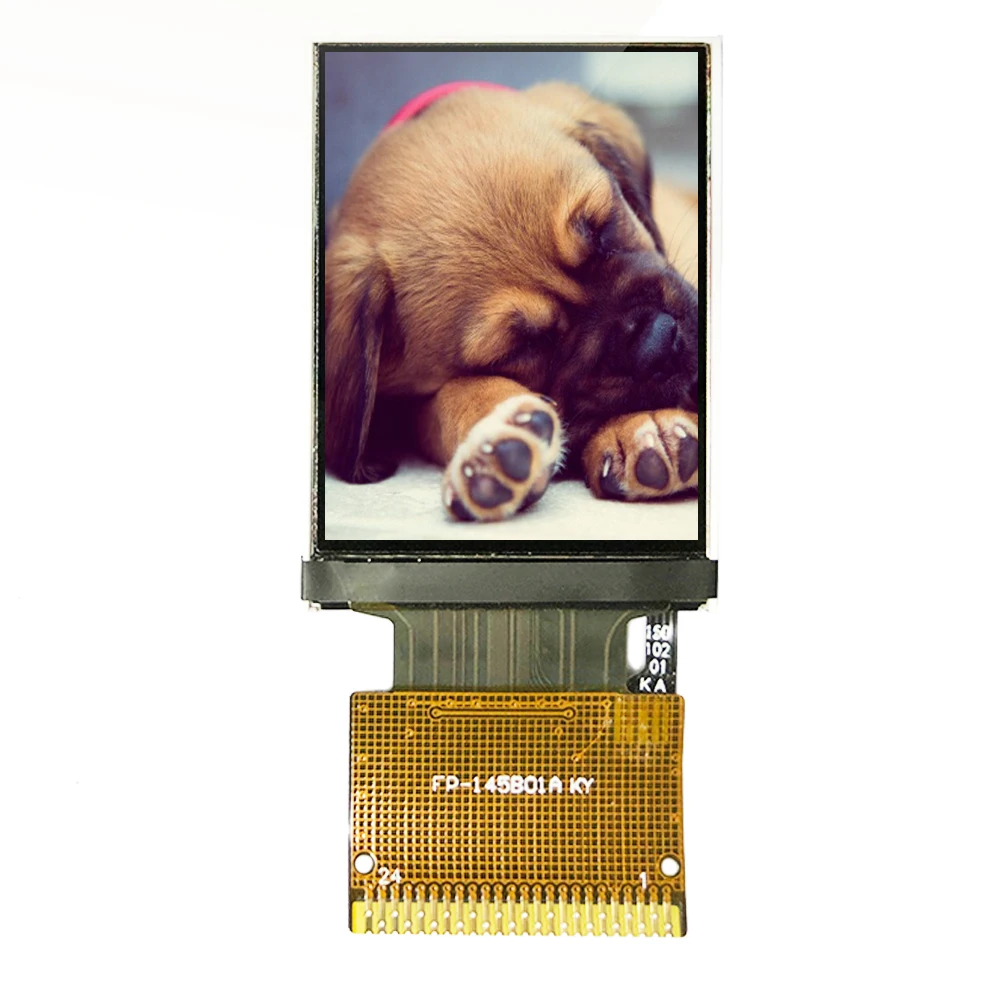

1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board
1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board
1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board
1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board
1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board
1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board

1.45inch Color 240RGB x320 TFT Cheap LCD Controller Board

Share on (62026272557):


Price:RUB 208.12

Quantity:


Product Overview

Description

Diagonal Screen Size
1.45inch SPI 240(RGB)X320TFT display
Color
RGB Vertical Stripe
Module Construction
COG
Number of Pixels
240(H)(RGB)x320(V)
Active Area
22.104(H)X29.472(V)mm
Panel Size
25.9(H)X35.97(V)X1.65(D)mm
Pins
24
Drive IC
ST7789VW
Interface
 4-Line SPI

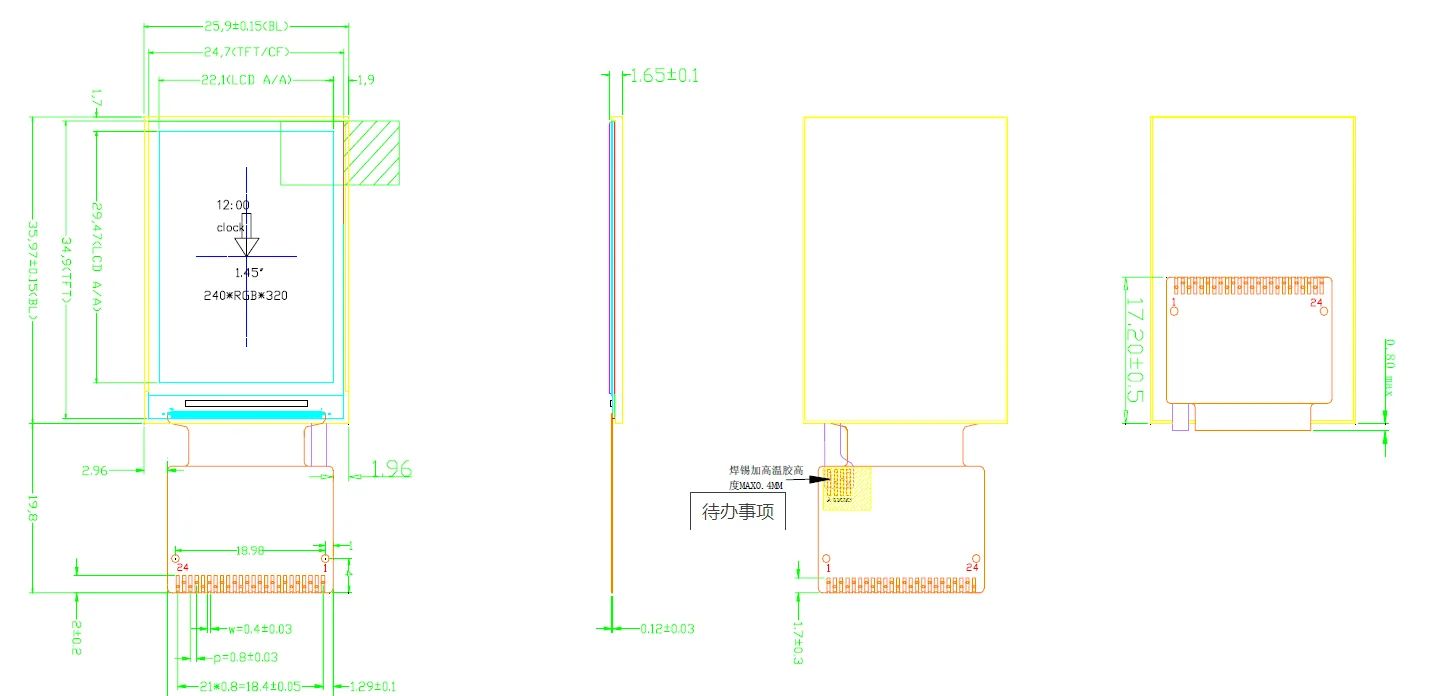

Drawing
Product details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
More Products
Size
Type
Item No.
Pixels
Active Area
(HxV mm)
Panel Size
(HxVxD mm)
Interface
0.96"
IPS
LH096T-IG11
80RGBx160
10.8x21.7
13.5x27.95x1.5
4-wire SPI
1.14”
IPS
LH114T-IG01
135RGBx240
14.864x24.912
17.6x31.0x1.6
4-wire SPI
1.0"
TN
G128128-27
128RGBx128
⌀26.67
32.67x36.39x1.95
1.28"
IPS
LH128R-IF04
240RGBx240
⌀32.4
35.6x38.1x1.5
4-wire SPI
1.28"
IPS
LH128R-IG01
240RGBx240
⌀32.4
35.6x38.1x1.5
4-wire SPI
1.3”
IPS
TFT13001
240RGBx240
⌀32.4
35.5x38.23x1.5
1.3”
IPS
LH133T-IG01
240RGBx240
23.4x23.4
26.16x29.22x1.5
4-wire SPI
1.44"
TN
TFT14406A
128RGBx128
25.5x26.5
30.9x36.51x2.3
4-wire SPI
1.54"
IPS
LH154T-PC03
240RGBx240
27.72x27.72
33.72x31.52x1.5
8 Bit 8080 MCU
1.54"
IPS
LH154T-PG04
240RGBx240
27.72x27.72
33.72x31.52x1.5
4-wire SPI
1.54"
IPS
LH154T-PF06
240RGBx240
27.72x27.72
33.72x31.52x1.5
4-wire SPI
1.77"
TN
TFT17702
128RGBx160
28.03x35.04
34x43.7x2.5
8-Bit Parallel
2.0"
IPS
LH200K-IG01
240RGBx320
30.6x40.8
35.7x51.2x2.3
4-wire SPI
2.0"
IPS
LH200K-IF02
240RGBx320
30.6x40.8
35.7x51.2x2.3
4-wire SPI/MCU
2.1"
IPS
TFT21001A
480RGBx480
⌀53.28
56.18x59.71x2.3
3SPI/RGB
2.1"
IPS
TFT21002A
480RGBx480
⌀53.28
56.18x59.71x2.3
MIPI
2.13"
Refl
B213HWG01
122x250
23.668x48.5
27.068x56.2x1.02
4-wire SPI
2.2"
TN
TFT22012A
240RGBx320
33.84x45.12
40.1x55.2x2.5
2.4"
IPS
LH240K-IC02
240RGBx320
36.72x48.96
40.44x57.0x2.2
8 BIT 8080 MCU
2.4"
IPS
TFT24020C
240RGBx320
36.72x48.96
42.72x60.26x2.2
Parallel/RGB/4-wire SPI
2.4"
IPS
TFT24065C
240RGBx320
36.72x48.96
42.72x48.96x2.2
Parallel/RGB/4-wire SPI
2.8”
TN
TFT28002B
240RGBx320
43.2x57.6
50x69.2x2.25
Parallel/RGB/SPI
2.8”
IPS
TFT28047D
240RGBx320
43.2x57.6
50x69.2x2.3
3.0"
IPS
LH3T-M2019
423RGBx423
77.9x77.5

SPI/Parallel 8-bit RGB
3.2"
IPS
TFT32009H
480RGBx800
41.76x69.6
43.76x78.7x1.86
RGB
3.5"
IPS
TFT35005B
320RGBx480
48.96x73.44
53.4x83.0x2.0
RGB
3.5"
TN
TFT35096A
320RGBx480
48.96x73.44
54.94x85.5x2.3
3.97"
IPS
TFT39710B
480RGBx800
52.44x87
57.14x96.85x1.97
MIPI
3.97"
TN
TFT39717
480RGBx800
51.84x86.4
57.14x96.85x2.0
4.0"
IPS
TFT40005B
480RGBx480
71.86x70.08
77x80x2.5
SPI/RGB
4.3"
IPS
TFT43002B
480RGBx800
56.16x93.6
60.66x104.25x2.3
Parallel/RGB/4-wire SPI
4.5"
IPS
TFT45001C
480RGBx854
55.44x98.64
60x109.00x2.25
MIPI
5.0"
IPS
TFT5011
720RGBx1280
62.1x110.4
64.9x117.8x1.55
MIPI
7.0"
IPS
B070T323C-21A
800RGBx480
154.08x85.92
164.9x100x3.5
Digital/Parallel/8-bit RGB
9.0"
IPS
B090TB409C-27A
800RGBx480
198.0x111.696
210.7x126.4x3.5
RGB
10.1"
TN
B101TB506C-21A
1024RGBx600
222.72x125.28
235x143x3.5
RGB
