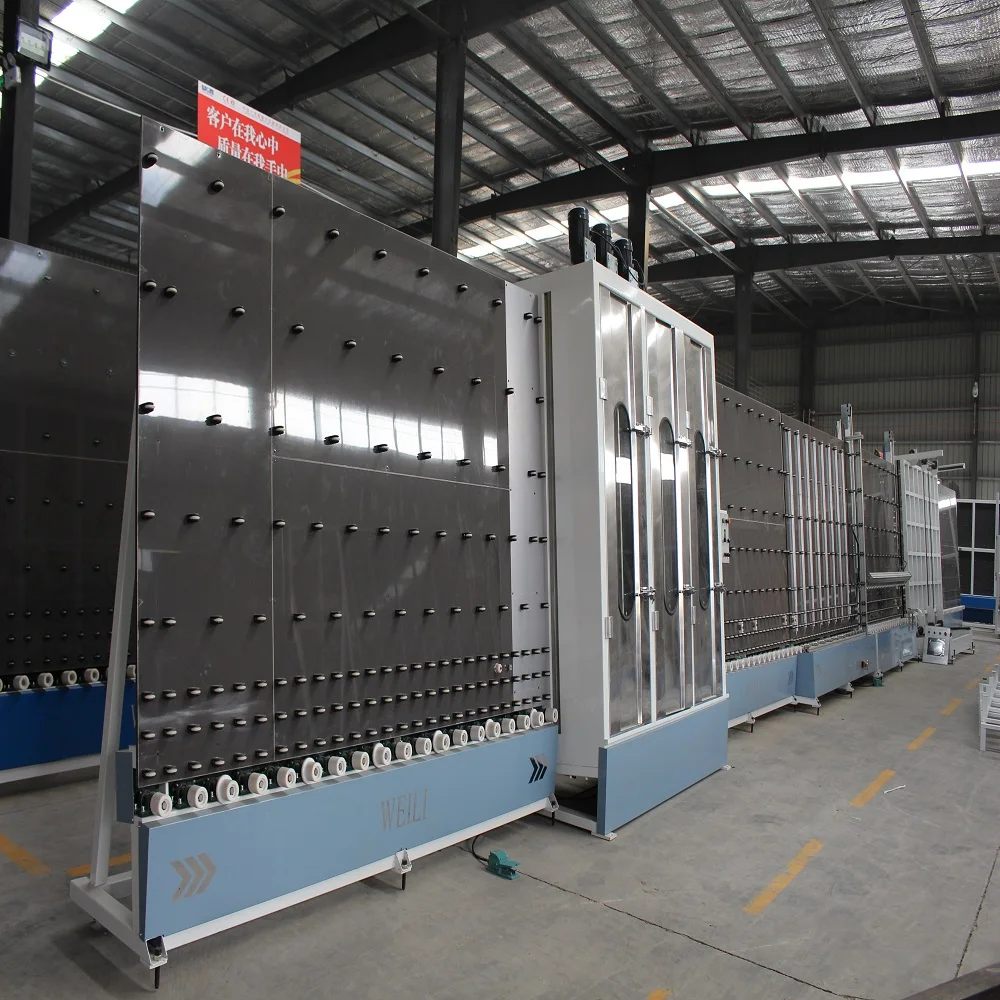

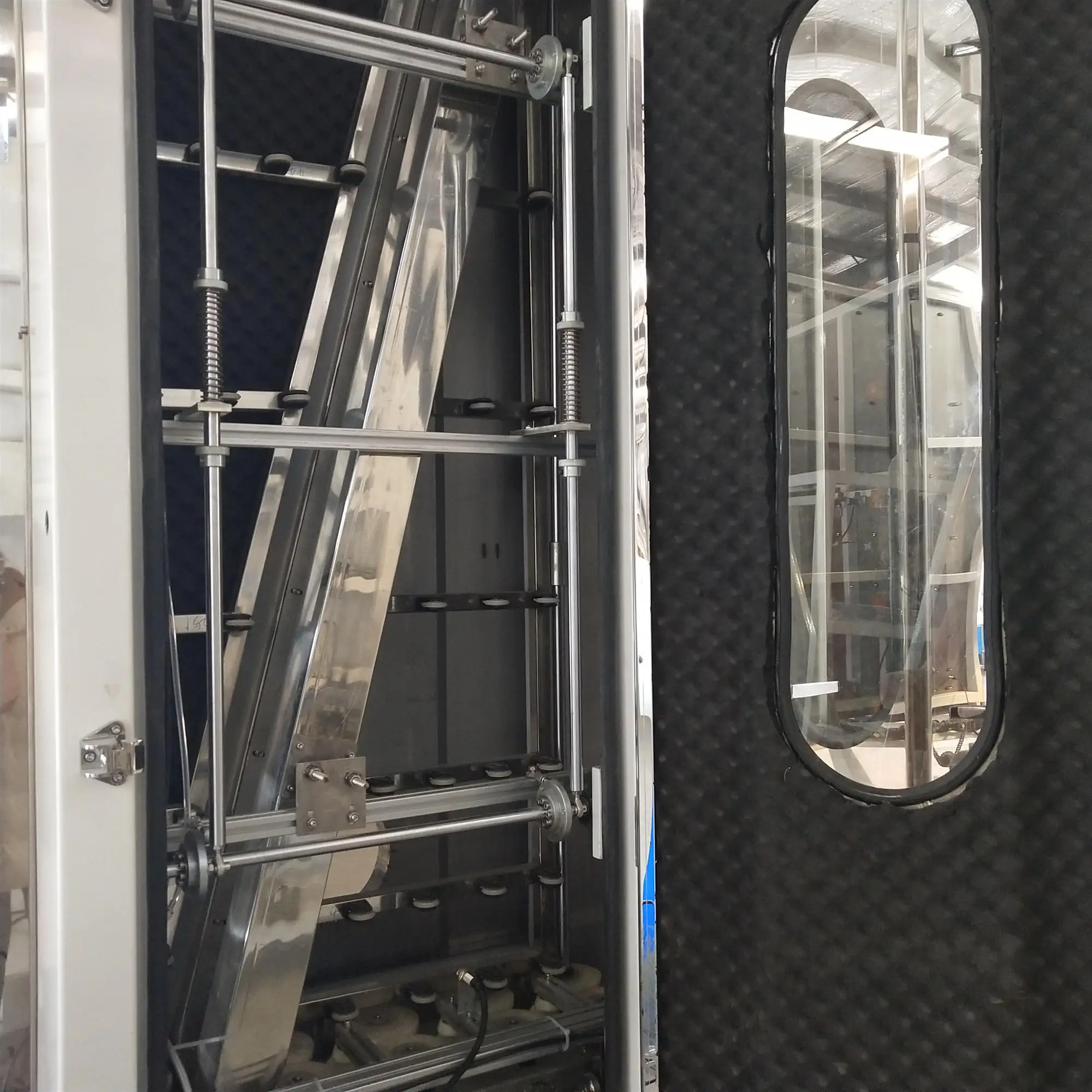

Insulating Glass Argon Gas Filling Production Line Double Glazing Glass Gas Filler Machine
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (62026284557):
Product Overview
Description
Product Description
Main Feature
1 Achieve the function of outside and inside asembly , automatic filling argon gas and stepped glazing.
2 Adopts the PLC to control the working condition and youch screen.
3 Automatic detact coated surface of coating glass and LOW-E glss.
4 Air knife can automatic adjust according to glass thickness.
5 Brushes's rotate speed variable frequency drive.
6 Aluminum spacer and glass automatic positioning system.
7 Automatic detect the length and height of glass , automatic adjust the best gas filling time.
8 Automatic gas filling press machine adopt 4 servo motors, which has assembling , pressing and automatic.
9 It has remote monitor and program upgrade fuctions.
It can be upgrade according customer's demands.
Technique parameter:
Power Supply | 380V 50 HZ 34KW |
Dimension (L x W x H) | 21300x2800x3300mm |
Production quantity | 700-800IG units/8hs |
Max glass size | 2000x3000mm |
Min glass size | 300mmx450mm |
Washing glass thickness | 3-15mm |
Washing glass speed | 0-10m/min |
Insulating glass thickness | 48mm(can adjust) |
Transmission glass speed | 45m/min |
Gas filling time | 3-5s adjustable |
Main components
NO. | Name | Brand |
1 | PLC | SCHNEIDER |
2 | 10.0 inch touch screen | SCHNEIDER |
3 | Photoelectric switch | AUTONICS |
4 | Limit switch | AUTONICS |
5 | Transducer | SCHNEIDER |
6 | Low voltage electric components | SCHNEIDER |
7 | Solenoid valve | AIRTAC |
8 | Cylinder | AIRTAC |
9 | Liner guide rail | HIWIN |
1 | Bearing of cleaning section | SKF |
11 | Servo motor | SIMENS / SCHNEIDER |
12 | Transmission motor | DPG |
13 | Triple | AIRTAC |
14 | Gas-type Filling | AIRTAC |
15 | Vacuum generator | SMC |
Related Products

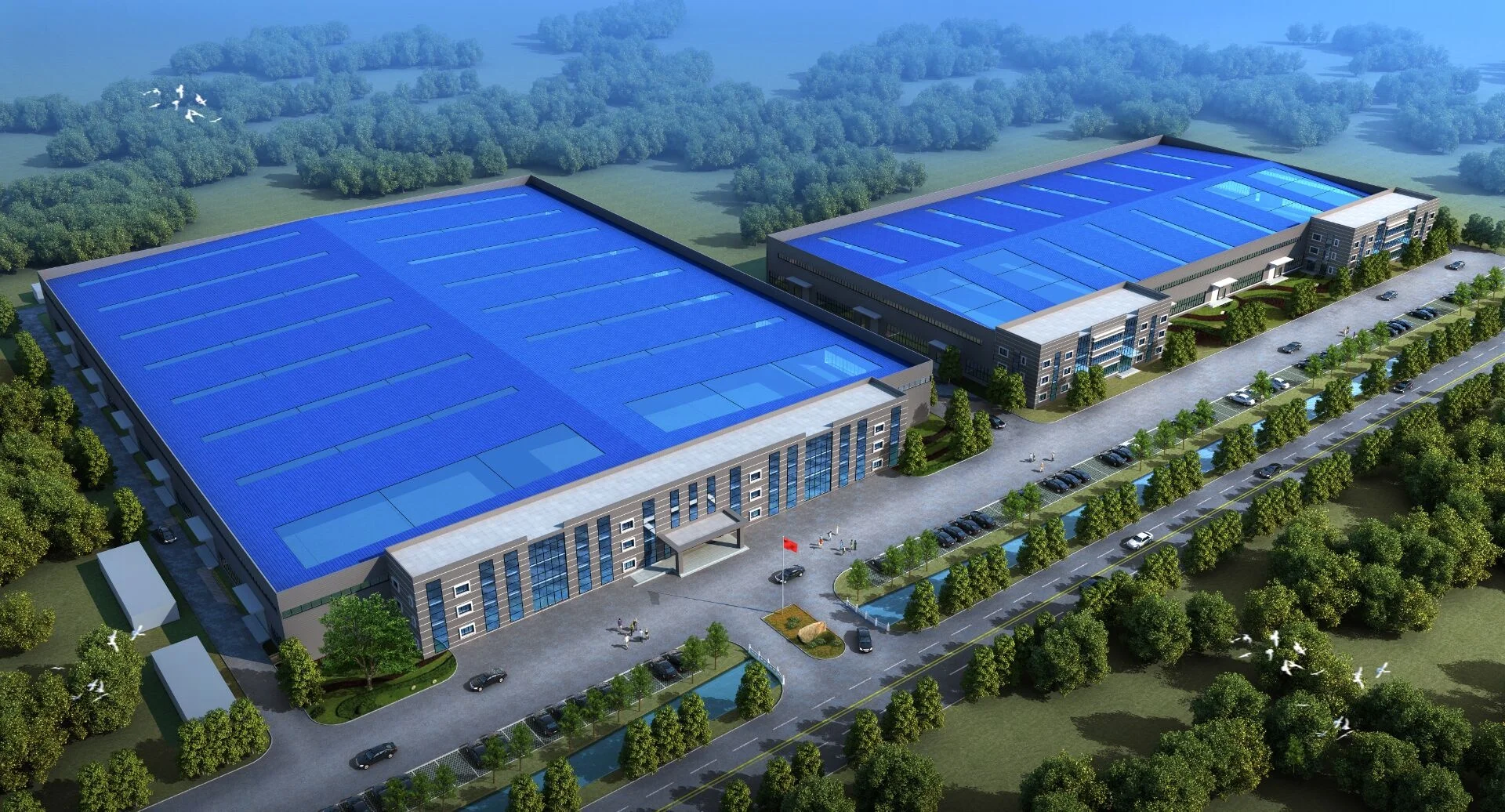

Company Profile
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Exhibition
Our Advantages
18 years experience
Jinan Weli Machine is a profession insulating glass machine manufacturer with 18 years experience.
Quality guarantee
We have professional after-service team for debugging installation and maintenance.
24-hour service
If you have any questions, please contact us and we will reply in time.
Certifications
Packing & Delivery
Deliver Sample
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to installand adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to installand adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
