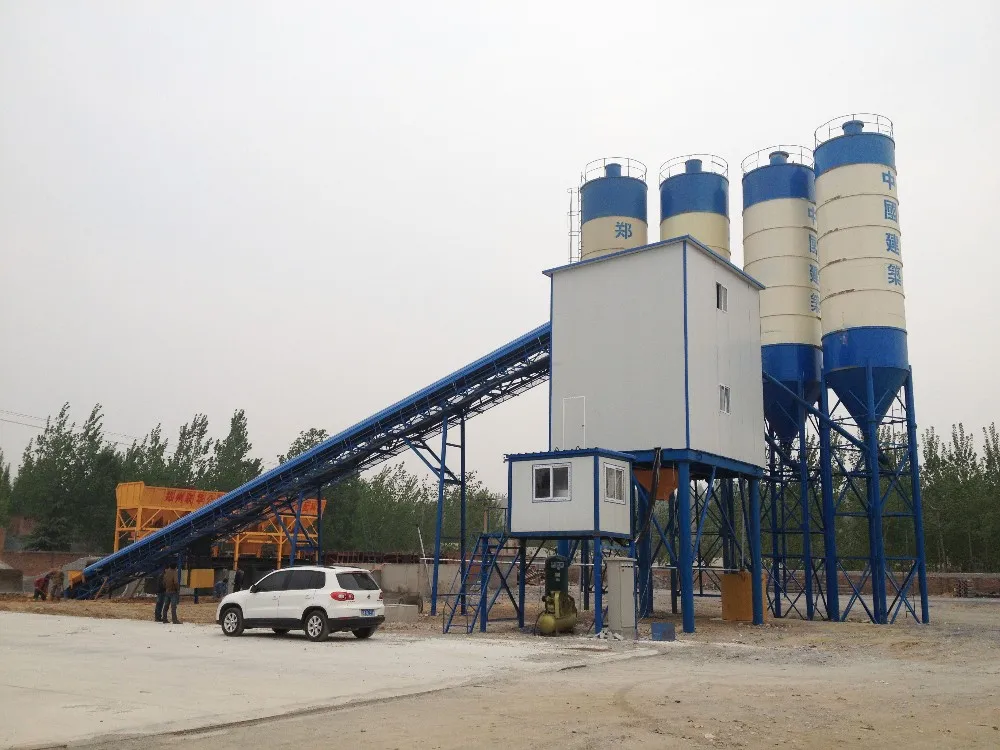

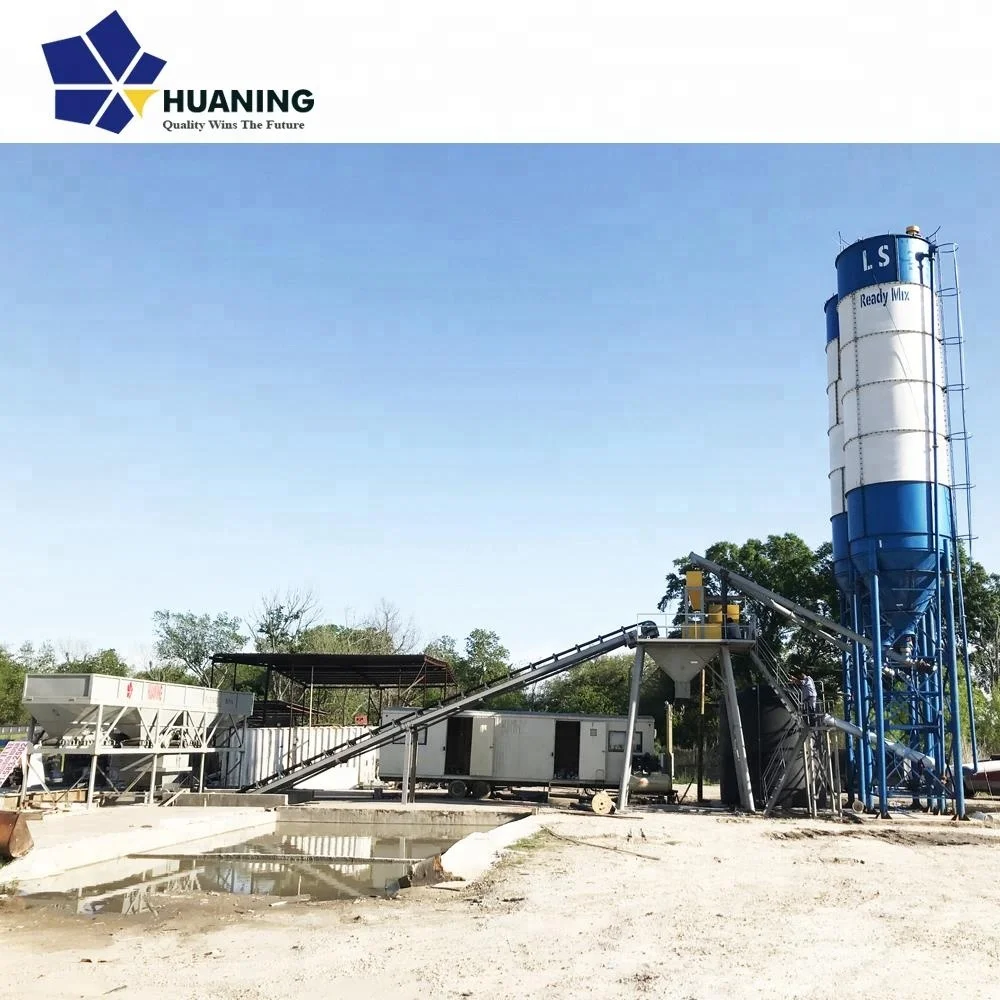

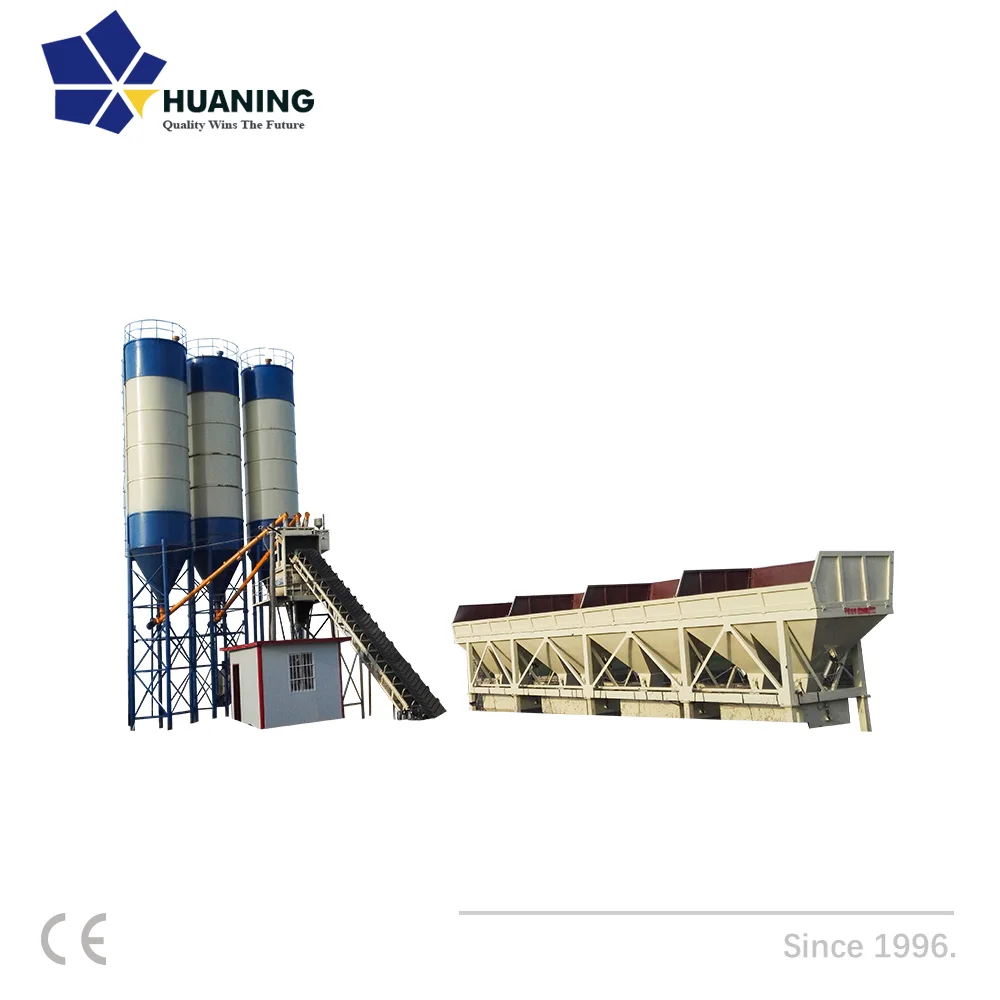

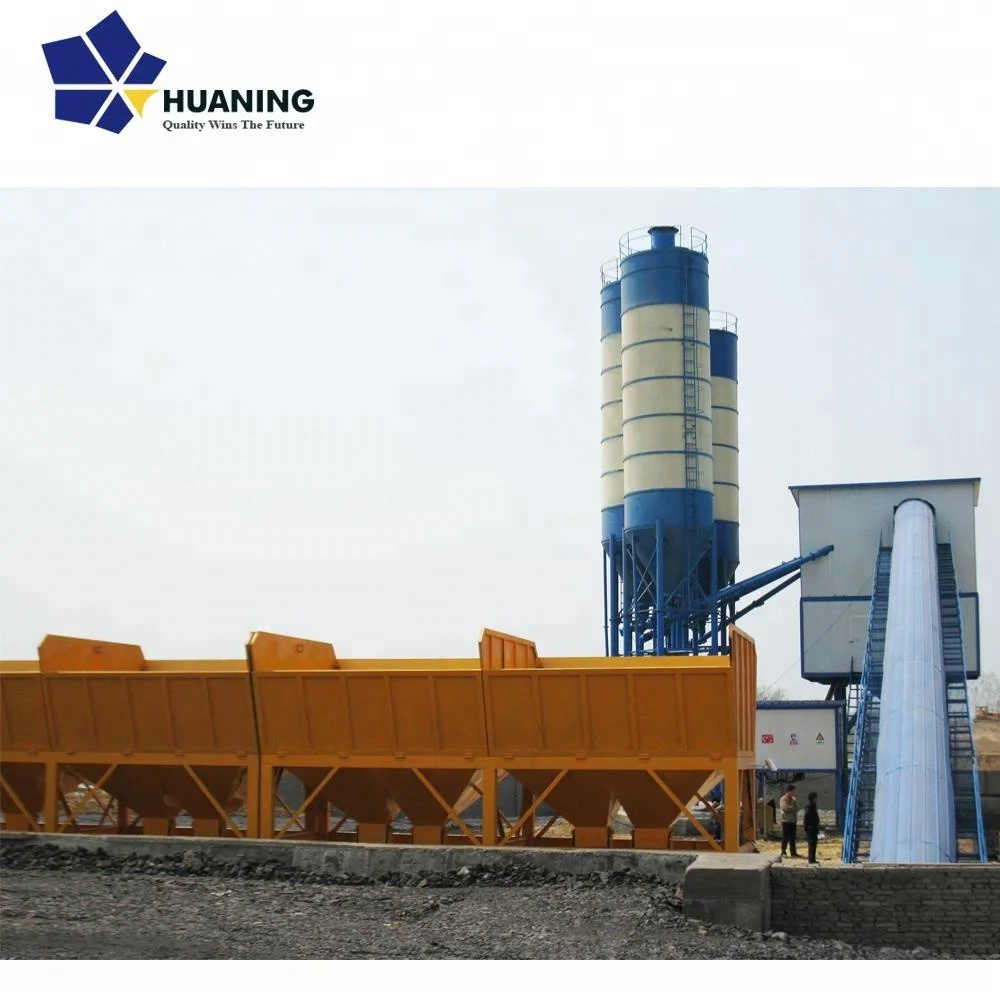

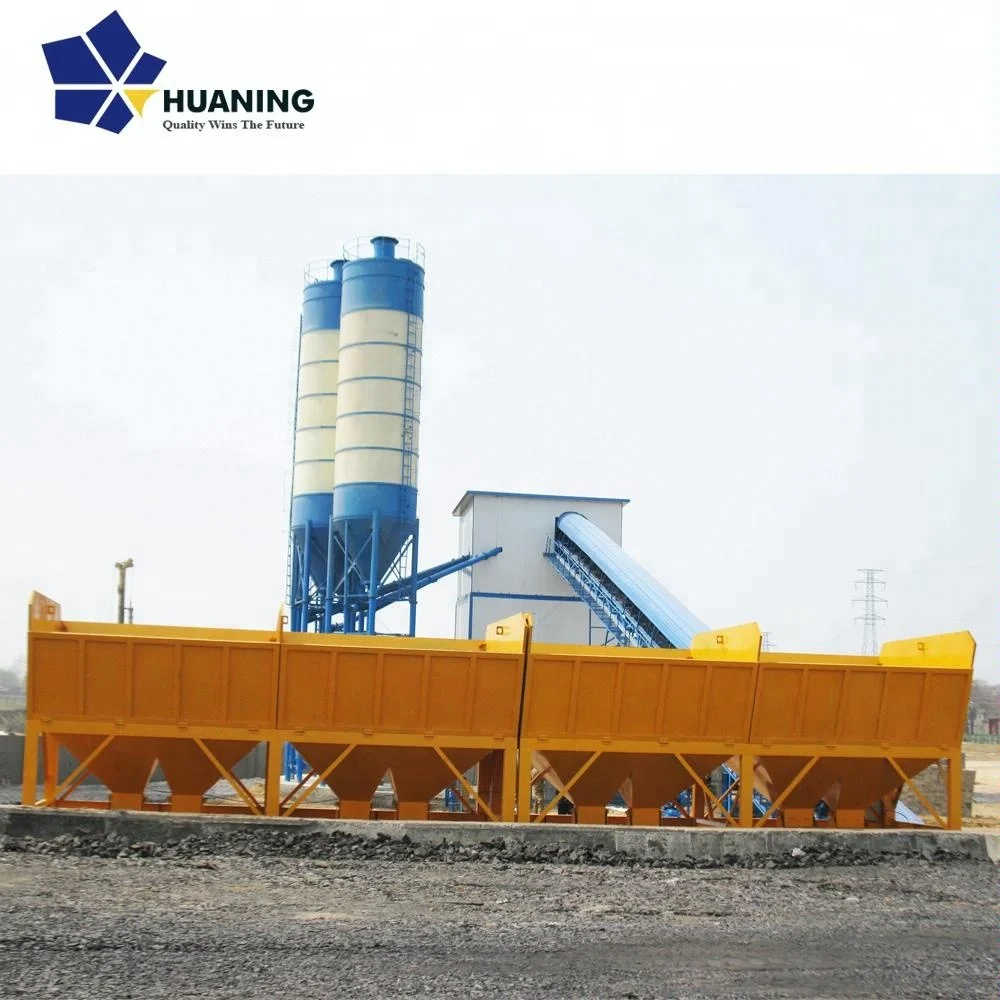

Factory offer low price HZS75 stationary portable concrete batching plant
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (62026301498):
Product Overview
Description
0
Concrete Batching Plant on Sale can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the raquirements for different forms and specifications.
HZS series Concrete Batching Plant on Sale is composed of feeding system,mixing system,electrical syatem and auxiliary equipents(such as air compressor,water pump etc.),fea-tured by high-precision computer control.And aslo there are manual system,automatic head-drop compensation and aggregate moisture compensation.
| Model | HZS75 | |
| The whole station | Max.Productivity | 75m³/h |
| Discharge Height | 3.8m | |
| Working Cycle | 60s | |
| Dimension (LxWXH) | 24350x10595x18704mm | |
| Power | 120kw | |
| Concrete Mixer | JS1500 | |
| Batching Machine | PLD2400 | |
| Pneumatic System | Air Compressor Model | 1.8-7 |
| Nominal Displacement | 1.67m³/min | |
| Rated Discharge Pressure | 0.8mpa | |
| Motor Power | 11kw | |
| Measurment Accuracy of Weighing system | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Admixture | ±1% | |
