hybrid process reactors Fully Customizable Fast Delivery High efficiency condenser 100L Double layer Jacketed glass reactor (62026310546)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





_01





  Stirring reaction can be carried out in the inner layer under vacuum condition . The intermediate layer can be heated or cooled by a hot or cold source (frozen liquid, water or hot oil).It is widely used in modern fine chemical industry, biological pharmacy, new material synthesis industry research and so on.

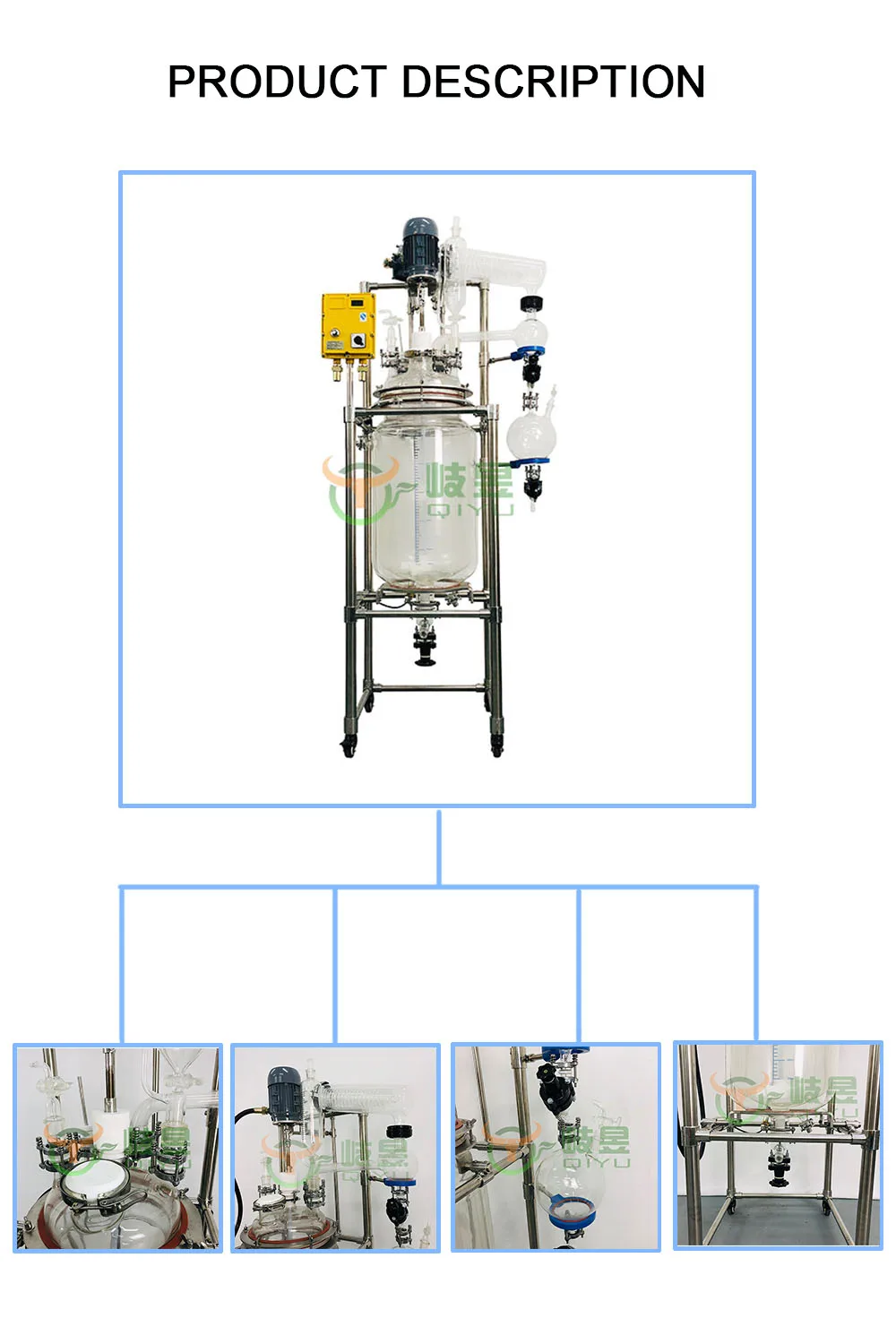

100L reactor.jpg

































































































































Model

EXQYSF


-10C



EXQYSF


-20C



EXQYSF


-30C



EXQYSF


-50C



EXQYSF


-100C



EXQYSF


-150C



EXQYSF


-200C


Capacity(L)10203050100150200
Jacketed volume(L)≈4≈5≈8≈15≈20≈40≈45
Support frame304 stainless steel

Number of openings


 in kettle lid



6(stirring,temperature measurement,liquid feeding,


solid feeding,Constant pressure drop,Reflux device)


RPM/minute0-4000-260

Motor/Specific


speed(W)


`120/1:3`200/1;3`400/1:5

Temperature


measurement(℃)


Single layer propulsionDouble decker propulsionThree layer propulsion
PTFE Stirring bladeTeflon PT100 without fracture   Accuracy ±0.1℃
Temperature displayDigital display
Discharge valveTop type without dead angle

Constant pressure


 funnel


1L2LOptional
CondenserStandard configuration

Collecting bottles


(L)


2L3LOptional
Liquid feed valve34#
Sealing methodSelf lubricating mechanical seal

Vacuum degree


(Mpa)


Water pump 0.098
Explosion proof motorSelecting configuration

Explosion-proof


frequency converter


Selecting configuration

Use of ambient


temperature(℃)


5~40

Dimension(L*W*H)


 (mm)



650*500


*1800



700*520


*1950



750*550


*2130



800*600


*2350



920*700


*2500


CustomizedCustomized
Voltage(V)220V/50Hz
