1480*670*30 Size and Polycrystalline Type Solar Panel Cells Solar Panel Price 150 Watt Solar Panel
- Category: >>>
- Supplier: Yangzhou Zhongming Technology Co. Ltd.
Share on (62026310973):
Product Overview
Description
1480*670*30 Size and Polycrystalline Type Solar Panel Cells Solar Panel Price 150 Watt Solar Panel
Product Description
150W Poly-crystalline silicon data sheet
Model Type | ZM-A-P-150 |
Nominal Maximum Power (Pmax) | 150W |
Optimum Operating Voltage (Vmp) | 17.80V |
Optimum Operating Current (Imp) | 8.43A |
Open Circuit Voltage(Voc) | 21.96V |
Short Circuit Current(Isc) | 8.65A |
Cell Type: | 156mm x 156mm |
Cell Arrangement | 36 cells in series |

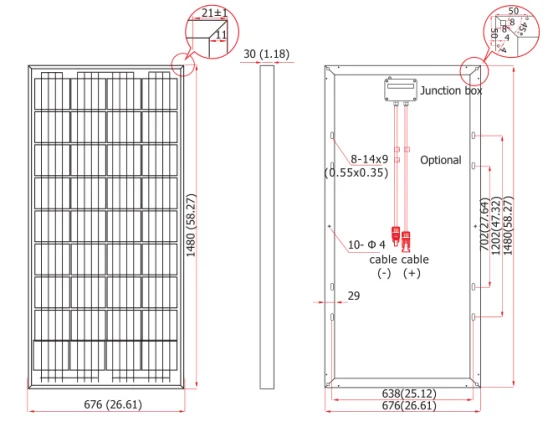

Dimensions(mm) | 1480 x 676 x 30 mm |
Frame(Material Corners,etc.) | Anodized aluminium alloy |
Maximum Series Fuse Rating | 15A |
Number of Bypass Diode | 2 |
Module Efficiency | 14.50% |
Cell Efficiency(%) | 17.12% |
Weight (KG) | 11.18KG |
Power Tolerance | 0 to +5W |
Front Glass Thickness(mm) | 3.2mm |

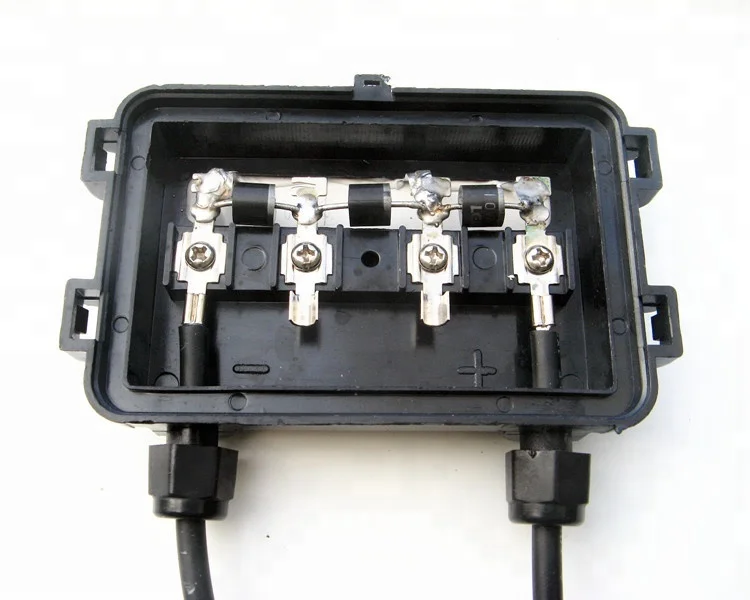

Junction- Box | IP65, 2 diodes |
Cable | 2.5mm2 (IEC) / 12AWG (UL), 900mm (650mm is optional) |
Connectors | MC4 or MC4 compatible |
Temperature Coefficient (Pmax) | -0.410% / °C |
Temperature Coefficient (Voc) | -0.346% / °C |
Temperature Coefficient (Isc) | 0.065% / °C |
Norminal Operating Cell Temperature | 45.3 ± 2 °C |
Temperature Range | -40°C to +85°C |
Warranty | 90% of 10 years,80% of 25 years. |
Packing | carton or pallet |
More detailed infomation or latest catalogue,send enquiry now.
Production Flow
Related Products
More detailed infomation or latest catalogue,send enquiry now.
Company introduction
Yangzhou Zhongming Technology Co.,ltd is a professional manufacture of new energy products,
Mainly including solar street lights,solar battery,solar panel,solar power system,etc.
We insist on quality first,customer first.
Our products are qualified with CE,ROHS,IEC,FCC,TUV,CCC,ISO,SONCAP,SASO certification.
We also have a factory in Vietnam, specialized in solar panels, annual output:1000MW Your satisfaction is our goal!
How to contact
Payment terms
Payment Term |
T/T | EXW |
30% T/T in advance, the balance before shipment |
FOB | |||
CFR(C&F) | 30% T/T in advance, the balance before shipment or against copy of B/L. | ||
CIF | |||
L/C | L/C amount above USD50,000, we can accept L/C at sight | ||
West Union |
Amount lower than USD5000
| ||
Delivery Time | 15~20days after receiving down payment | ||
We welcome use Trade Assurance order, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Packaging & Shipping
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
More detailed infomation or latest catalogue,send enquiry now.
