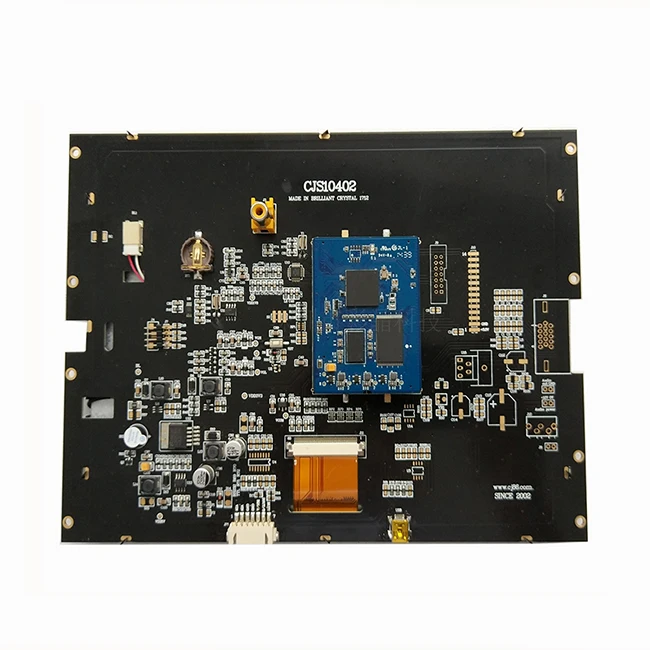

manufacturer 800x600 hmi 10.4 inch smart tft lcd display module controller board usb cable

• Model No.:CJS10402TS
• Size:10.4 inch
• Resolution:800x600
• Active view area:211.2x158.4mm
• View display area:212.35x159mm
• Module size:247.4mmx177mm
• Height:37.5mm
• Weight:0.85kg
• Display color:64K colors
• LED backlight type:LED
• Brightness:250cd/m2
• View angle L/R/U/D: 70°/70°/50°/70°
• Operate temperature range: -20~+70℃
• Storage temperature range: -30~+80℃
• Picture download mode: USB download mode

Selling Point

• support RS232 and RS485, USART (3.3 V TTL) interface, a serial port baud rate 1200 BPS to 115200 BPS
• wide VDD input voltage (5 v, 9 v - 26 v)
• support the RTC clock
• built-in 4 wire resistive touch touch screen controller
• supporting RGB display
• the built-in 10w audio power amplifier, support (such as mp3, wav audio file format)
• support custom voice recording
• support real-time transmission image display (embedded video decoder)
• support the SD card
• attached gbit 2 or 4 gbit Nand flash
• support USB download images
• Many pages memory
• Color - color depth: 65 k
• controlled PWM backlight

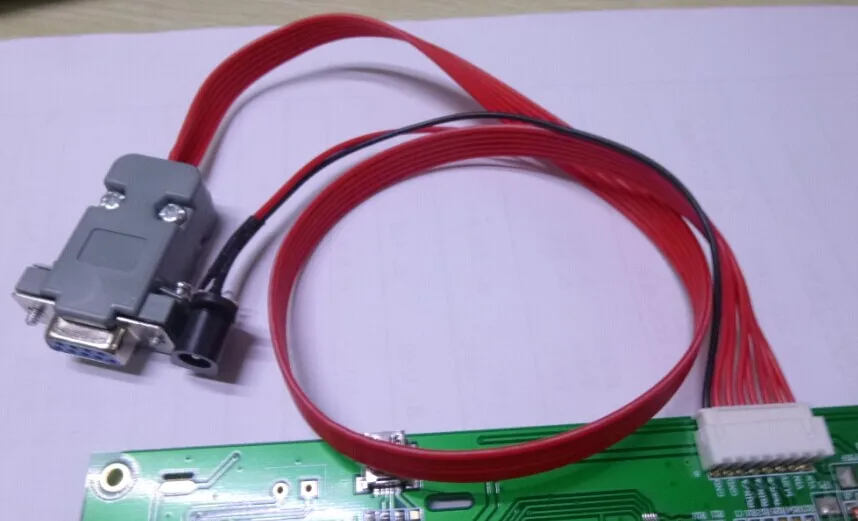

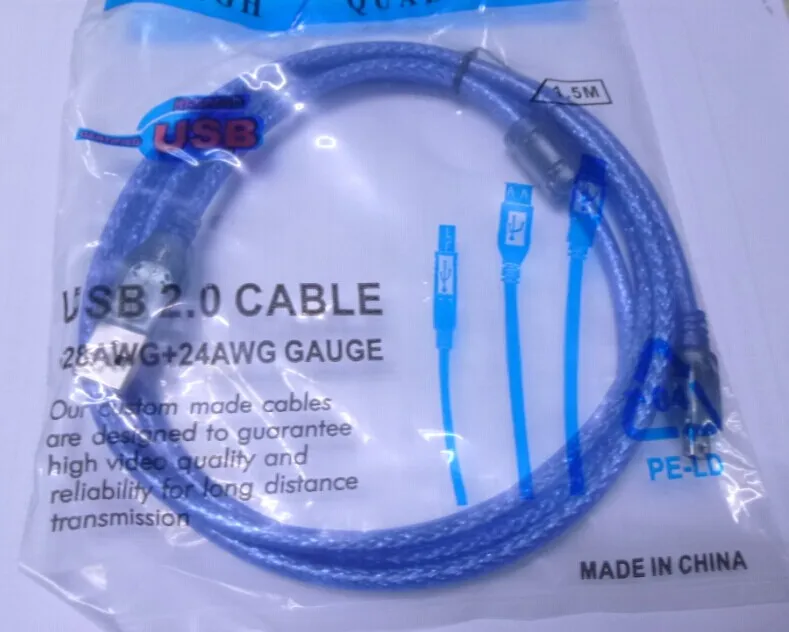

manufacturer 800x600 hmi 10.4 inch smart tft lcd display module +controller board+usb cable

•
•
•
• Drawing for 10.4 inch TFT color  smart terminal lcd module
•

manufacturer 800x600 hmi 10.4 inch smart tft lcd display module +controller board+usb cable

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

TFT smart termina LCD module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .
