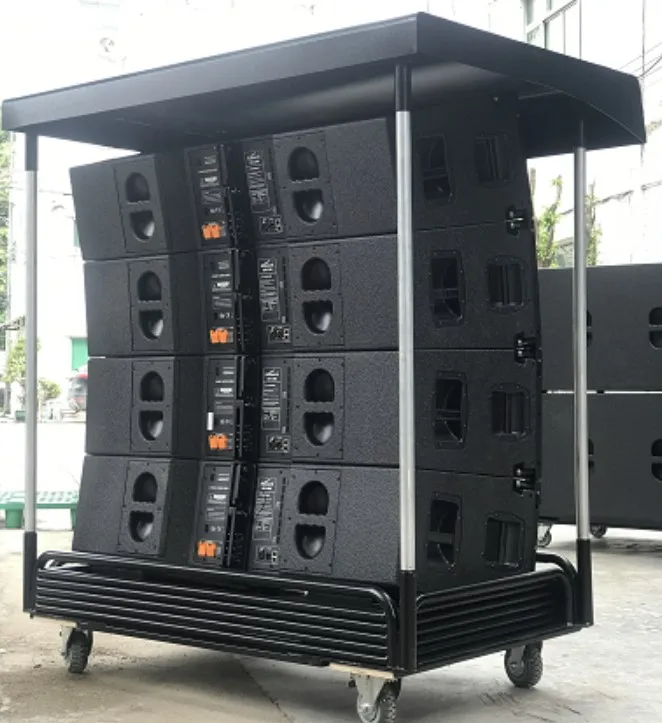

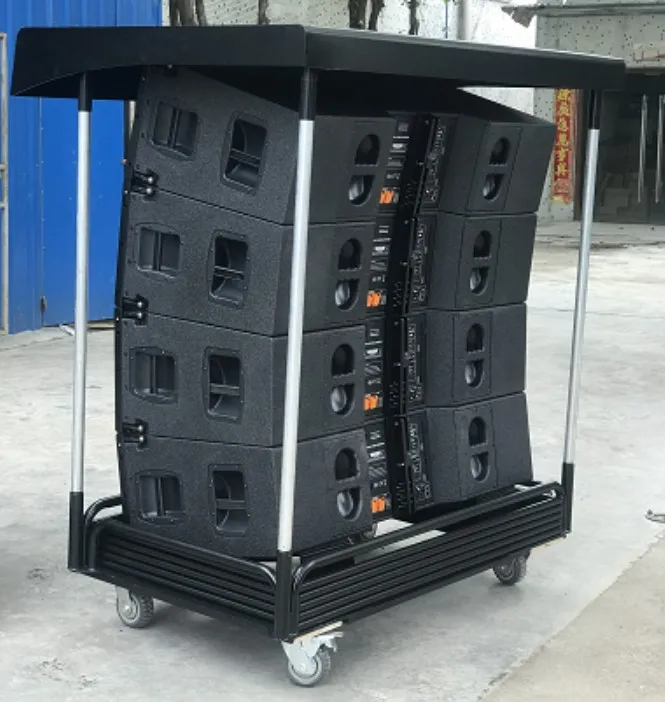

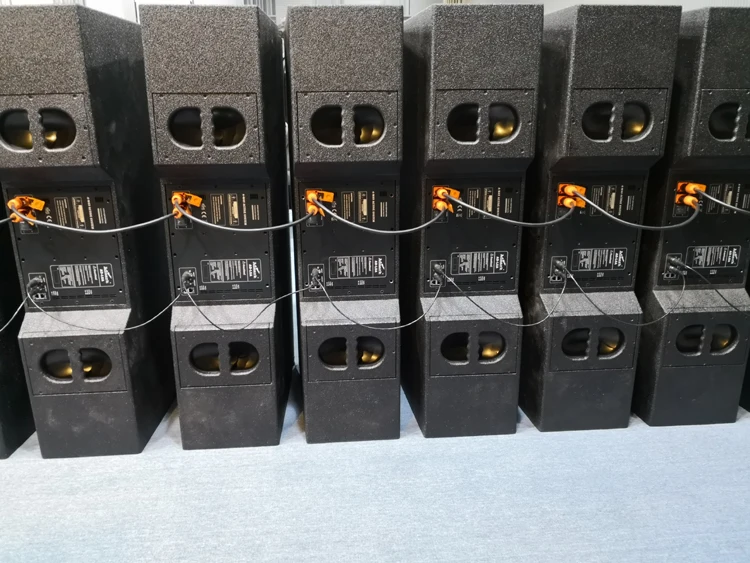

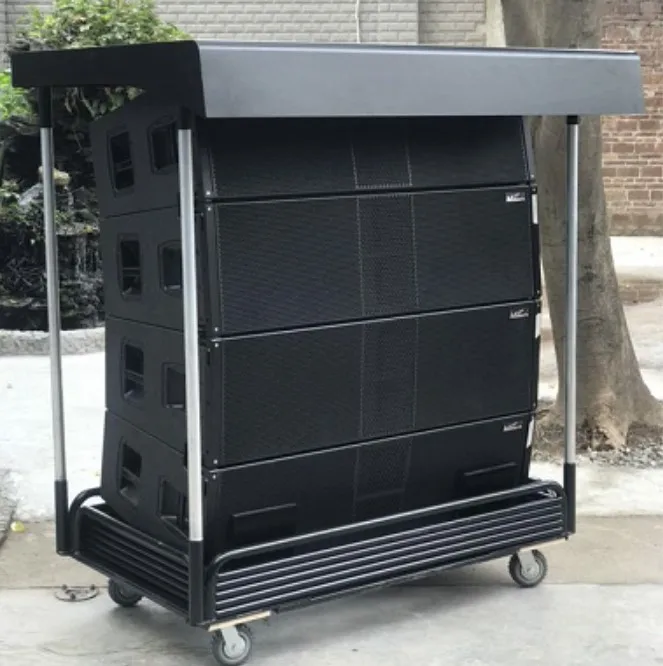

4 way active double 12 inch line array speakers system

Share on (62026469070):


Price:RUB 144,143.12

Quantity:


Product Overview

Description

4-way dual 12" Active Line Array Speaker
Features

HF:  2x2.4"Neo,4Ohm 160W,Original Celestion Driver(CDX4-2420)from UK ,neodynium

MF: 4x6.5" Neo,8Ohm,600W

LF:  2x12"Neo,1000W ,8Ohm,Original Paudio Driver ,neodynium

Sub:  2x10"Neo,1000W ,4Ohm

With 4 channel amplifier,Class-D,output power:1200W+1200W+1200W+1200W/8Ohm,with built-in DSP made in Germany



Specification
 Technical parameters



Configuration

2*12"LF Neo(neo Paudio)+2*10"SUB (neo)+                                                                         4*6.5"MF(neo)+2*2.5"Hi Neo (neo Celestion)

Power(AES/Peak)

SUB:1000W/2000W ,LF:1000W/2000W,                                                                                 MF:600W/1200W HF:160W/320W

Impedance for driver

Sub4Ω /LF8Ω /MF8Ω /HF4Ω

Impedance for amp

20KΩ

Rated Maximum SPL

146dB

Franquency Range

52Hz-20KHz (±3dB)

Dispertion angle(V × H)

H120°× V10°

Input Impendance:

20 KΩ

Input Sensitivity

0.775V

Amplifier Output Power

1200W+1200W+1200W+1200W/8ohm

Distortion

<0.05%

Power Connector

Power Con

Operating Voltage

90~120V/190~240V

Damping Factor

≥400

Color

Black

Weight:

79Kg

Shipping Size

1248*628*368mm




 750-3 750-4 750-2-750-1 750-5750-18750-16750-8750-15750-9750-13750-11 750-7750-20750-17-750-10

 147532



Related Products



 ² Quick response: Reply your inquiry within 12 working hours.

 ² Detailed recommendations: Experienced staffs answer all your questions and recommend related products in fluent

English.

 ² Insurance: Special discount and protection of sales provided to our distributor.

 ² Latest products news:The newest products and updates will be noted.





Guangzhou AD Audio Co.,Ltd is a company engaged in designing and manufacturing professional loud speakers and amplifiers.Being founded in 1998,the company started from a small workshop of 5 people. After years of efforts, the company has developed into a major loud speaker and amplifier manufacturer in this industry. The adhere to the " quality first, users first" purpose, strict quality management, continuous learning advanced management experience, improve the quality of products, firstclass service.



With almost 20 years of experience, our engineers develop high performance products for the proaudio market.We use mostly European drivers and only the best Chinese driver that had been approved good and stable enough,to make sure extraordinary reliability and highest quality of our products.Latest technologies in development and production enable manufacturing and pro-cessing at the highest level.



alishow





   Q1:We`d like to print our own design and logo on the products? Can you make it?

  • Of course we can. We offer OEM and ODM service and can customized to your specific requirements.

  Q2: How long is your guarantee/warranty?

  • We can provide 1 year guarantee/warranty for all our products. If any defective is confirmed to be caused by us,

           substitution or repair parts will be sent.



Q3:What is your main competitive advantages?

  • Strong design and development
  • capability
  • comparative price
  • experienced staff
  • customized products
  • prompt response
  • prompt delivery

 Q4:Where have you exported?

  • West Europe
  • Africa
  • East Europe
  • Asia Southeast
  • Asia
  • South America

 Q5:What is the MOQ? How can I pay?

  • Our MOQ is 1 piece. We accept cash, T/T, L/C and Western Union.

Q6:How about the delivery time?

  • 15-20 days after the receipt of deposit and confirmation on all design based of normal condition.

  If you ave any demand, don`t hesitate to contact us.
