Platinum cured medical grade silicone tube Extruded silicone rubber hose Pharmaceutical hose Medical grade capillary hose
- Category: Rubber Hoses >>>
- Supplier: Cjan Fluid Technology Co. Ltd.
Share on (62026512229):
Product Overview
Description
Product Description

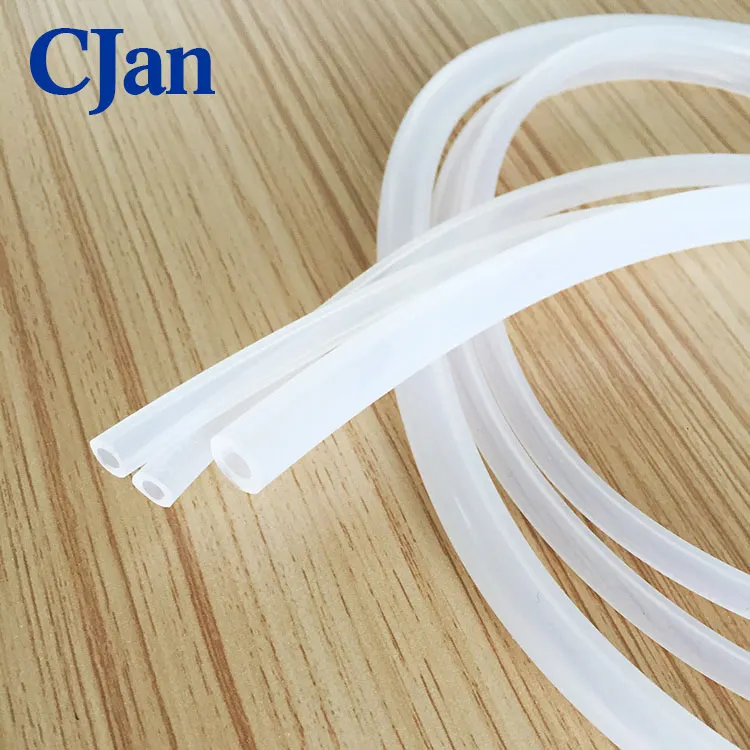

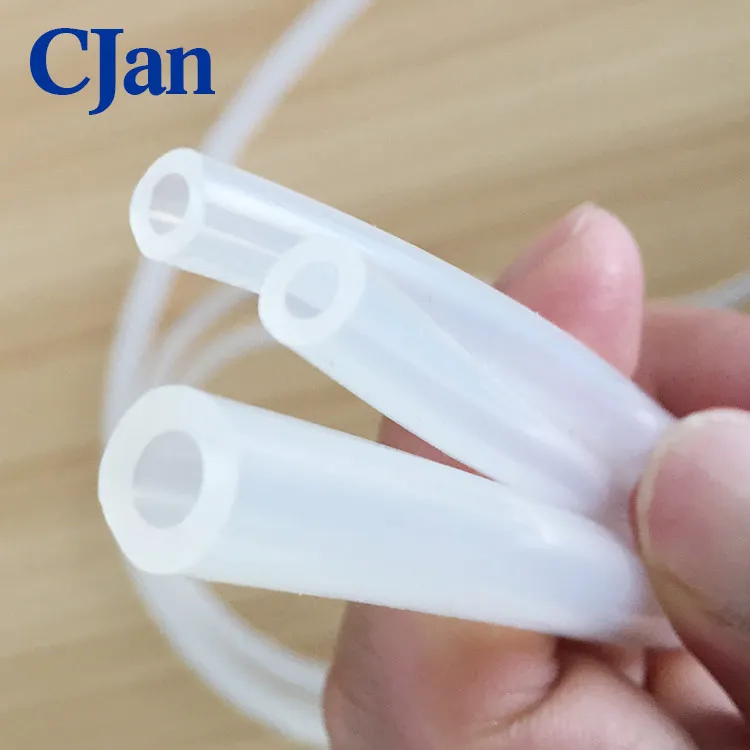

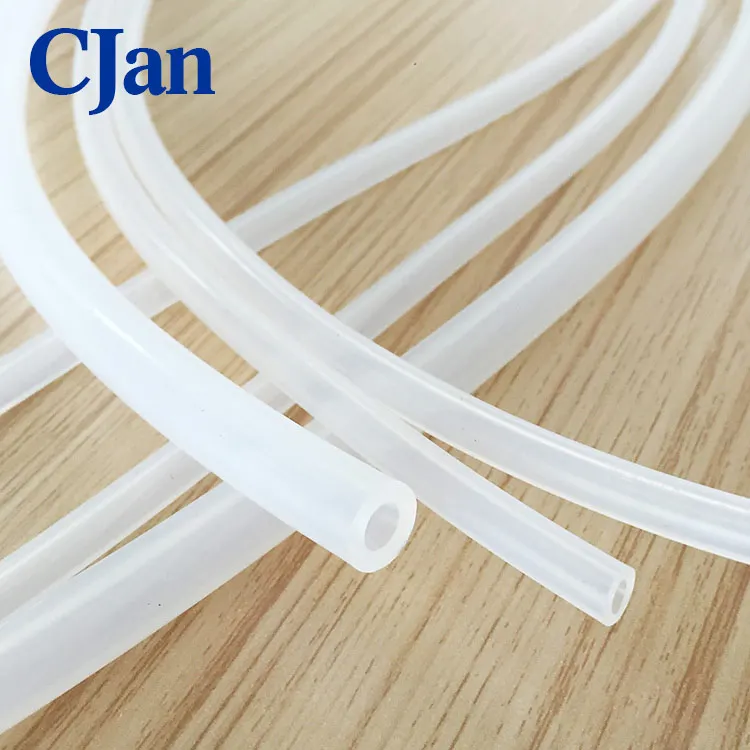

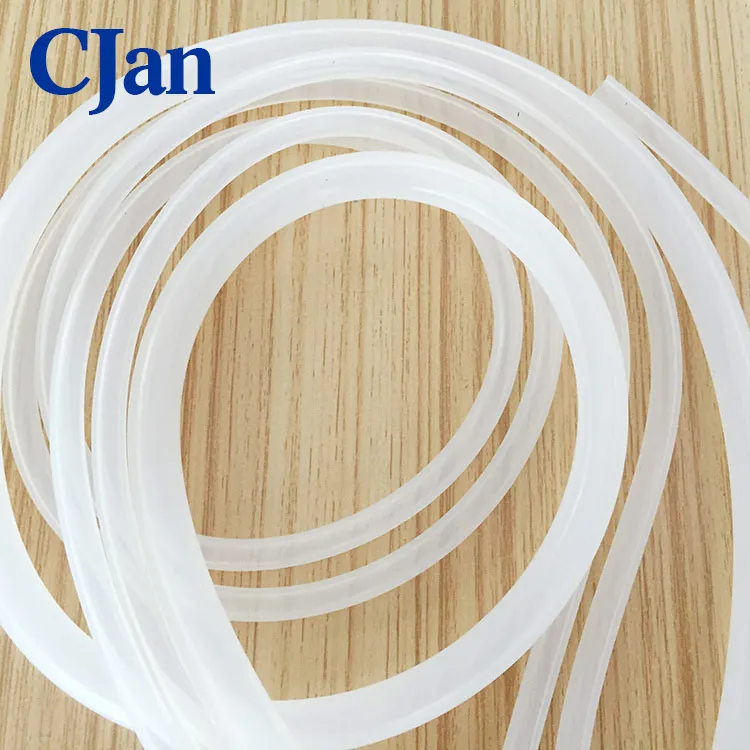

Platinum cured silicone hose
Applications:
Platinum-cured silicone tubing PT is produced for critical pharmaceutical, biomedical, cosmetic, and food applications. PT Unreinforced Silicone Tubing is not intended for implantation, continuous steam applications, or elevated pressure levels.
Temp. Range: -60°C and 200°C.
Colour: Translucent
Certification: F.D.A, USP, BFR, USDA, ISO 10993
| Part No. | ID | Thickness | OD | |||
| in. | mm. | in. | mm. | in. | mm. | |
| PT00760167 | 0.03 | 0.76 | 0.018 | 0.46 | 0.066 | 1.67 |
| PT00760406 | 0.03 | 0.76 | 0.065 | 1.65 | 0.16 | 4.06 |
| PT01020218 | 0.04 | 1.02 | 0.023 | 0.58 | 0.086 | 2.18 |
| PT01590318 | 0.063 | 1.59 | 0.031 | 0.79 | 0.125 | 3.18 |
| PT01590476 | 0.063 | 1.59 | 0.063 | 1.59 | 0.188 | 4.76 |
| PT01980358 | 0.078 | 1.98 | 0.031 | 0.79 | 0.141 | 3.58 |
| PT02380556 | 0.094 | 2.38 | 0.063 | 1.59 | 0.219 | 5.56 |
| PT02380714 | 0.094 | 2.38 | 0.094 | 2.38 | 0.281 | 7.14 |
| PT03180635 | 0.125 | 3.18 | 0.063 | 1.59 | 0.25 | 6.35 |
| PT03180794 | 0.125 | 3.18 | 0.094 | 2.38 | 0.313 | 7.94 |
| PT03180953 | 0.125 | 3.18 | 0.125 | 3.18 | 0.375 | 9.53 |
| PT03970714 | 0.156 | 3.97 | 0.063 | 1.59 | 0.281 | 7.14 |
| PT03971031 | 0.156 | 3.97 | 0.125 | 3.18 | 0.406 | 10.31 |
| PT04760794 | 0.188 | 4.76 | 0.063 | 1.59 | 0.313 | 7.94 |
| PT04760953 | 0.188 | 4.76 | 0.094 | 2.38 | 0.375 | 9.53 |
| PT04761111 | 0.188 | 4.76 | 0.125 | 3.18 | 0.438 | 11.11 |
| PT06350794 | 0.25 | 6.35 | 0.031 | 0.79 | 0.313 | 7.94 |
| PT06350953 | 0.25 | 6.35 | 0.063 | 1.59 | 0.375 | 9.53 |
| PT06531111 | 0.25 | 6.35 | 0.094 | 2.38 | 0.438 | 11.11 |
| PT06531270 | 0.25 | 6.35 | 0.125 | 3.18 | 0.5 | 12.7 |
| PT07940953 | 0.313 | 7.94 | 0.031 | 0.79 | 0.375 | 9.53 |
| PT07941111 | 0.313 | 7.94 | 0.063 | 1.59 | 0.438 | 11.11 |
| PT07941270 | 0.313 | 7.94 | 0.094 | 2.38 | 0.5 | 12.7 |
| PT07941430 | 0.313 | 7.94 | 0.125 | 3.18 | 0.563 | 14.3 |
| PT09531111 | 0.375 | 9.53 | 0.031 | 0.79 | 0.438 | 11.11 |
| PT09531270 | 0.375 | 9.53 | 0.063 | 1.59 | 0.5 | 12.7 |
| PT09531430 | 0.375 | 9.53 | 0.094 | 2.38 | 0.563 | 14.3 |
| PT09531588 | 0.375 | 9.53 | 0.125 | 3.18 | 0.625 | 15.88 |
| PT12701588 | 0.5 | 12.7 | 0.063 | 1.59 | 0.625 | 15.88 |
| PT12701748 | 0.5 | 12.7 | 0.094 | 2.38 | 0.688 | 17.48 |
| PT12701905 | 0.5 | 12.7 | 0.125 | 3.18 | 0.75 | 19.05 |
| PT14301905 | 0.563 | 14.3 | 0.094 | 2.38 | 0.75 | 19.05 |
| PT15882223 | 0.625 | 15.88 | 0.125 | 3.18 | 0.875 | 22.23 |
| PT15882540 | 0.625 | 15.88 | 0.188 | 4.76 | 1 | 25.4 |
| PT19052540 | 0.75 | 19.05 | 0.125 | 3.18 | 1 | 25.4 |
| PT19052858 | 0.75 | 19.05 | 0.188 | 4.76 | 1.125 | 28.58 |
| PT22232540 | 0.875 | 22.23 | 0.063 | 1.59 | 1 | 25.4 |
| PT22232858 | 0.875 | 22.23 | 0.125 | 3.18 | 1.125 | 28.58 |
| PT25403175 | 1 | 25.4 | 0.125 | 3.18 | 1.25 | 31.75 |
| PT25403493 | 1 | 25.4 | 0.188 | 4.76 | 1.375 | 34.93 |
| PT25403810 | 1 | 25.4 | 0.25 | 6.35 | 1.5 | 38.1 |
Company Information
CJan is a dynamic and versatile hose and fittings manufacturing company. We export our products to our customers all over the world and are recognised for our food-safe rubber hoses, silicone hoses, PTFE hoses, FEP/PFA lined fittings as well as sanitary stainless fittings.
First in China
1. FOOD RUBBER HOSES are first approved by SGS and pass F.D.A 21 CFR 177-2600 test in China.
2. FEP or PFA LINED FITTINGS are first liquefy-sintering fittings in China.
3. SILICONE HOSES are first approved by SGS and pass F.D.A /USP test in China.
- Certificate of Patent - F.D.A Test Reports
Packaging & Shipping
Our Equipment
Exhibition
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
