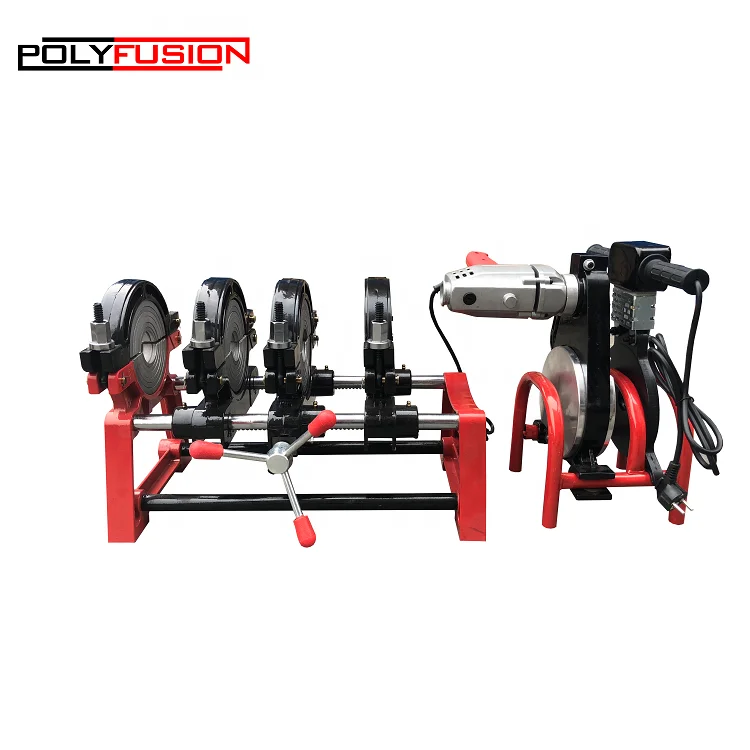

PFY160 4C PE пластиковые сварщики/HDPE Стыковая сварочная машина цена
- Category: >>>
- Supplier: Qingdao Suda Plastic Pipe Machinery Co. Ltd.
Share on (62026575116):
Product Overview
Description
Transaction History

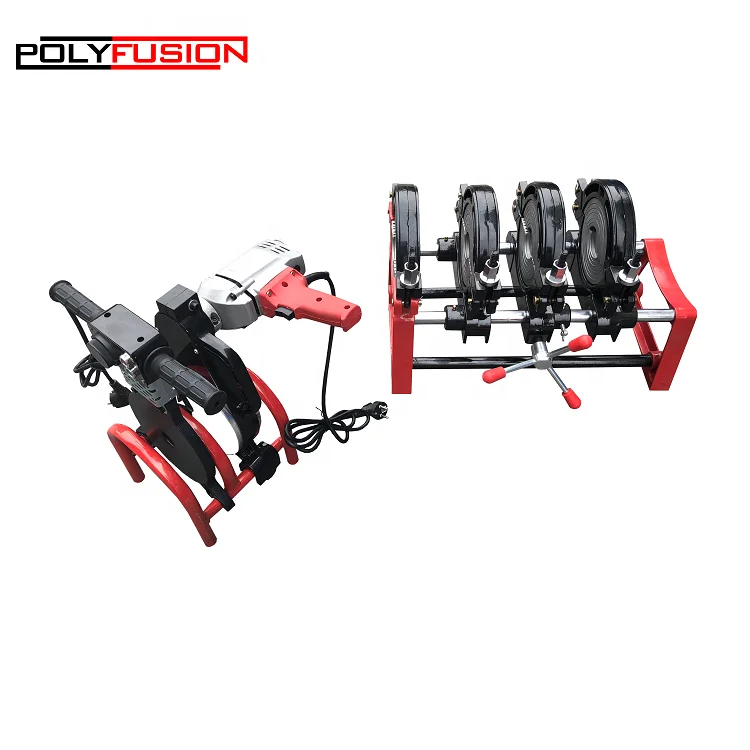

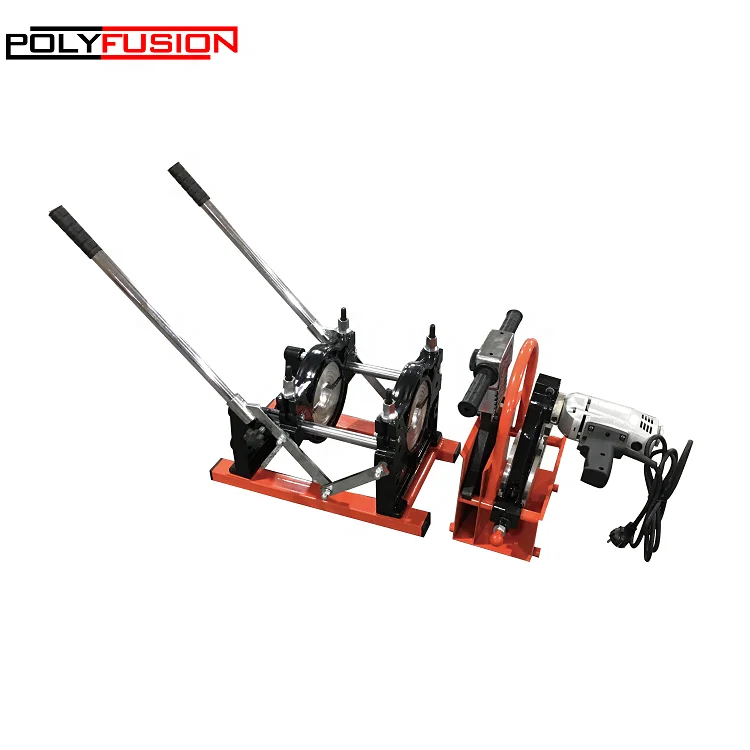

Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.

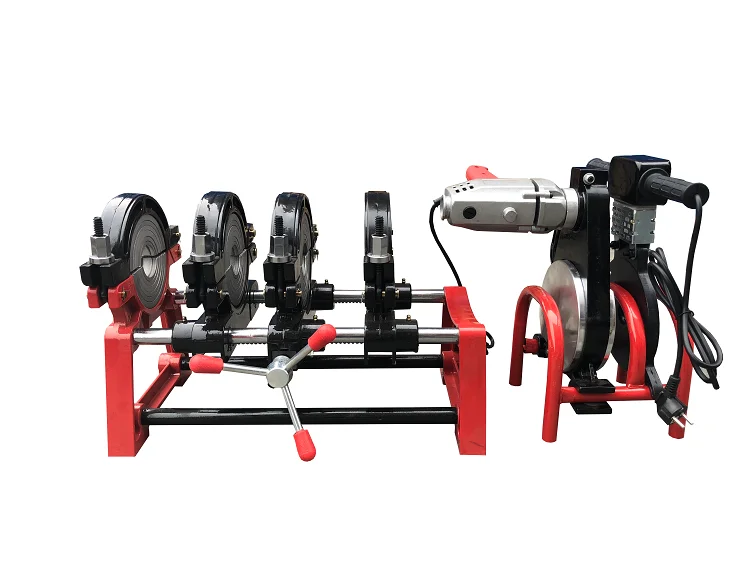

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Also supply Dightal Heating Plate
Model | PFY160-4C | PFY200-4C | PFY250-4C | |
Welding Range(mm) | 63 75 90 110 125 140 160 | 63 75 90 110 125 140 160 180 200 | 63 75 90 110 125 140 160 180 200 225 250 | |
Heating Plate Max. Temp. | 270℃ | |||
Temp. Deviation in Surface | ≤±5℃ | |||
Working Voltage | 220V,50HZ | |||
Heating Plate Power | 1.0KW | 1.60KW | 2.0KW | |
Planning Tool Power | 0.71KW | 0.71KW | 0.83KW | |
Total Power | 1.71KW | 2.31KW | 2.83KW | |
Pressure Adjustable Ranges | 0-6.3Mpa | |||
Weight | 50kg | 65kg | 97kg | |
Volume | 0.18CBM | 0.18CBM | 0.30CBM | |
Product Overviews

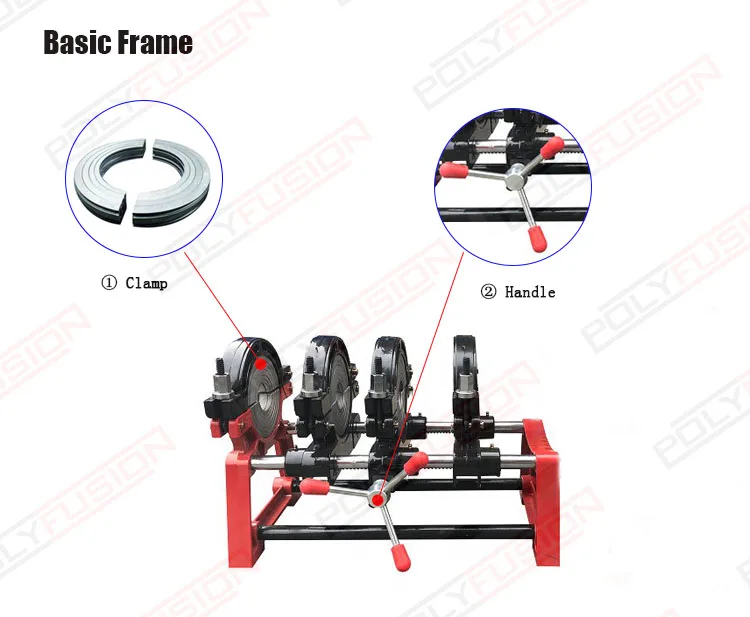

1. Clamp: The four clamps have good stability, 4 cm clamp, aluminum
alloy material, anti-corrosion, long service life, stable fastening,
precision grinding, positioning pipe is accurate, easy to operate,
clamps can be disassembled to handle different specifications of
pipe fittings.
2. Handle: sturdy and durable.

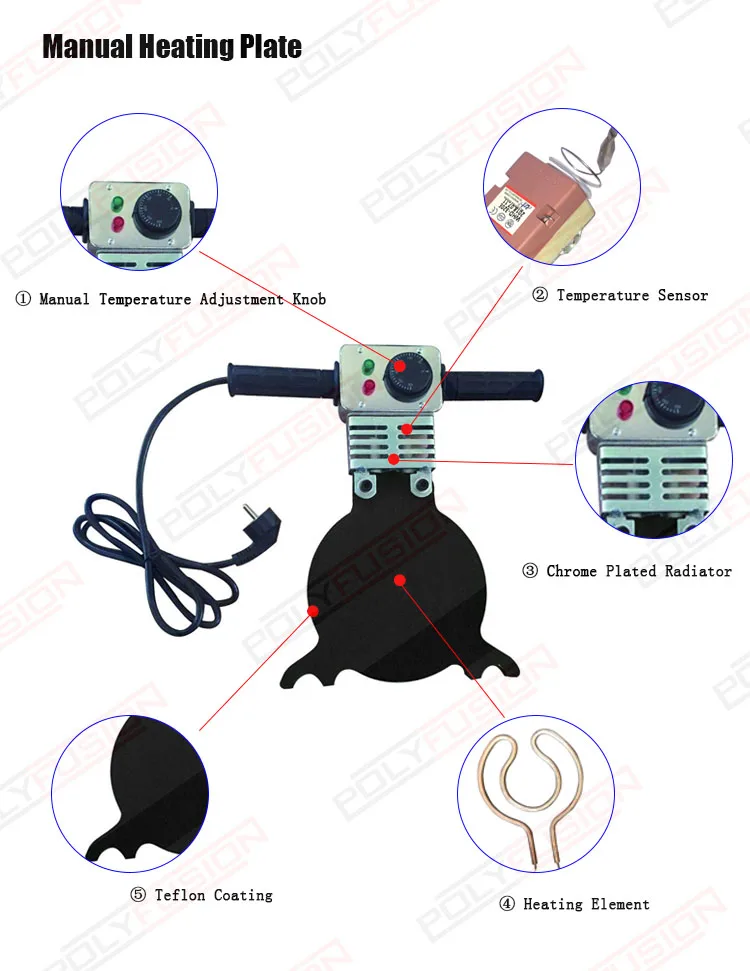

1. Manual Temperature Adjustment Knob: By rotating the temperature, adjustment knob, the heating plate reaches the use temperature.
2. Temperature Sensor: CE certification, accurate temperature control.
3. Chrome Plated Radiator: chrome-plated, corrosion-resistant, not easy to rust.
4. Heating Element: Jiangsu Brand, long service life.
5. Teflon Coating: imported Japanese Daikin Brand (Teflon).

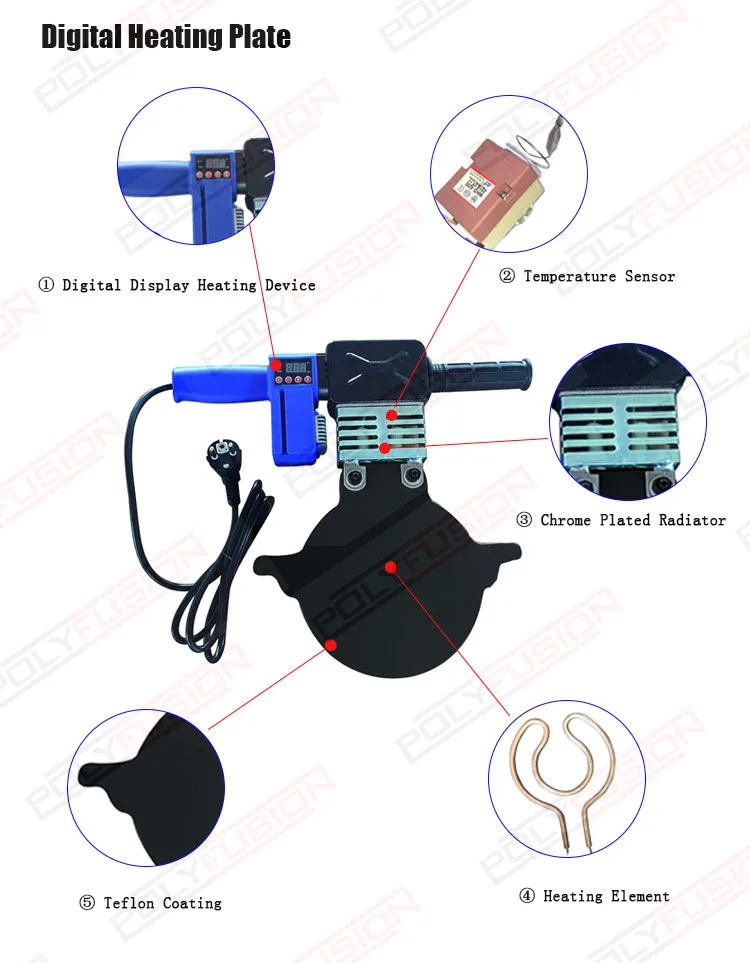

1. Digital Display Heating Device: digital display heating temperature, adjustable.
2. Temperature Sensor: CE certification, accurate temperature control.
3. Chrome Plated Radiator: chrome-plated, corrosion-resistant, not easy to rust.
4. Heating Element: Jiangsu Brand, long service life.
5. Teflon Coating: imported Japanese Daikin Brand (Teflon).

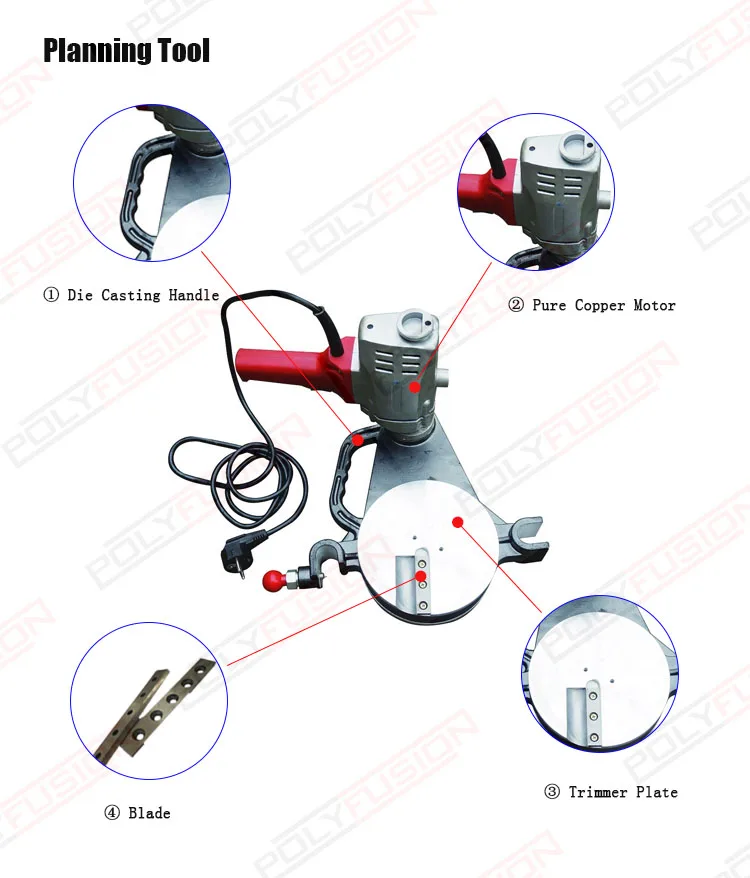

1. Die Casting Handle: Through the overall die casting, the handle is integrated with the basic frame and is more sturdy.
2. Pure Copper Motor: pure copper material(others are made of aluminum, easy to be burnt),the outer casing is made of aluminum, impact resistant.
3. Trimmer Plate: The trimmer plate is made of aluminum, by die casting, the surface becomes smooth, durable and anti-corrosion.
4. Blade: Carbon steel, strong and durable, double-edged edge, sharp blade, flattened pipe, and give a pair of blades for free.
Company Profile
QINGDAO POLYFUSION MACHINERY CO.,LTD. Is a professional manufacture for 10 years in China.In 10 years manufacturer and exporting, we have much professional technicians and agents in many foreign countries,we sincerely hope all same fields friends and customers come to visit and do business in the near futurer.

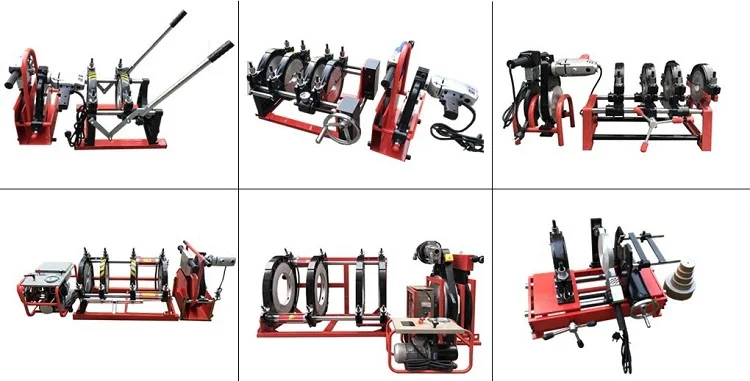

Our products including Butt Fusion Welding Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machines, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Welding Machines, Bending Machines and Rolling Machines.
ISO and CE certificate can supply, strcictly produce and quality managment, makes our machines have high feedback and best markets.
We do hope more business and chance with all of you, let's work together.
We do hope more business and chance with all of you, let's work together.
Certifications
Exhibition

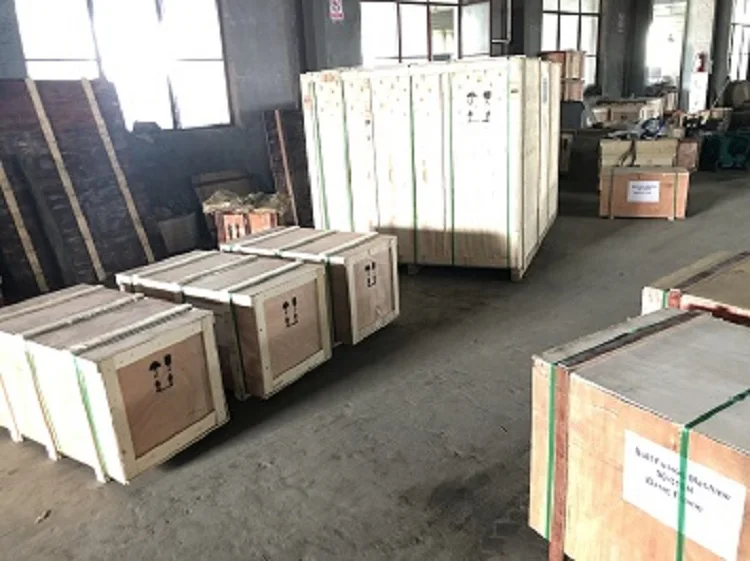

Packaging & Shipping
Company Information

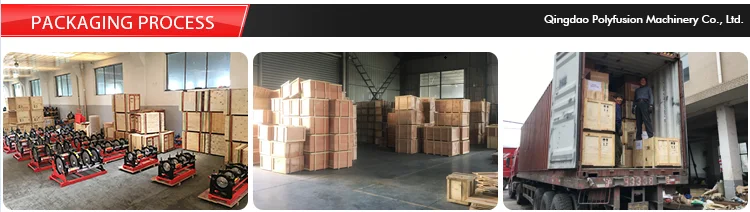

Package
