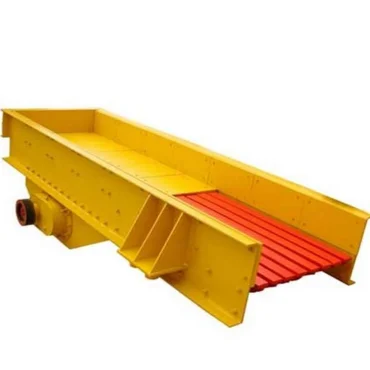

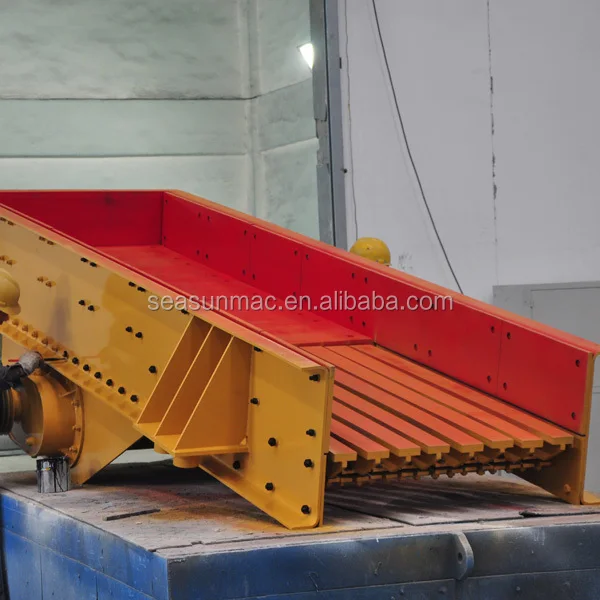

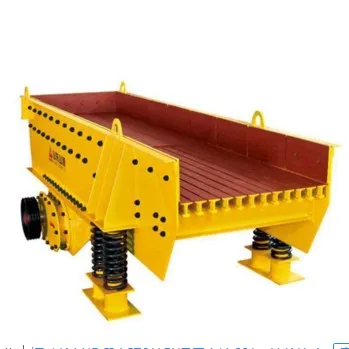

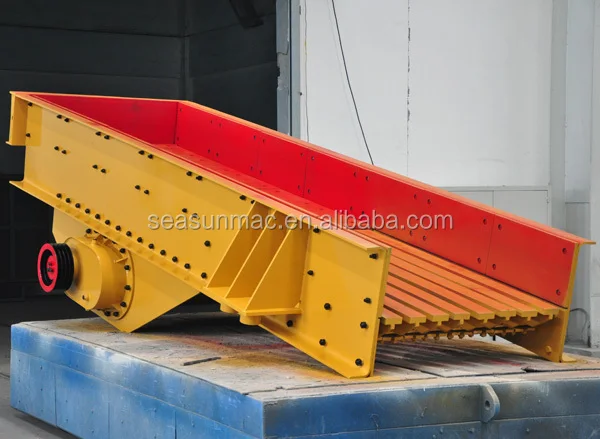

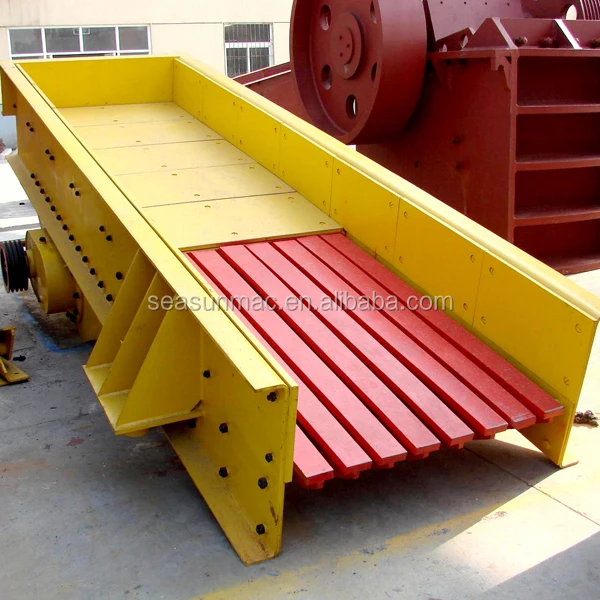

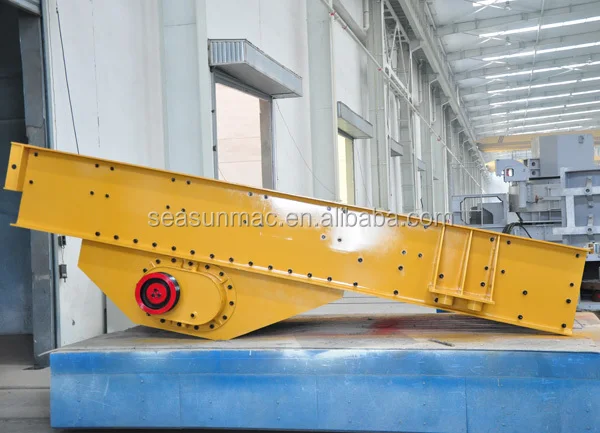

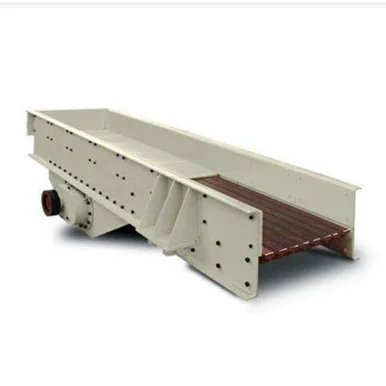

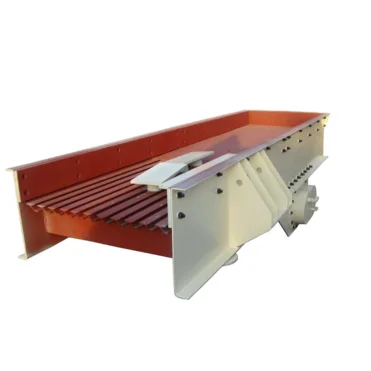

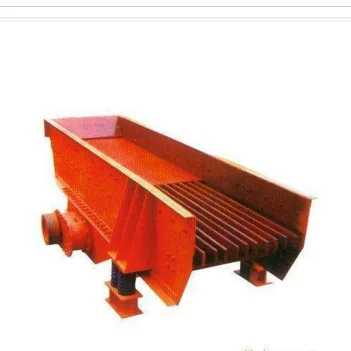

Large Capacity Stone Feeding Machine Vibrating Feeder in the work process can make the massive,granular materials from the storage bin in uniform,timing,continuously fed into feeding device,in the sand production line,it can feed materials to crushing machine continuously and uniform,and screening rough material,widely used in metallurgy,mining,mineral processing,building materials,chemical industry,abrasive and other industries crushing and screening combination equipment.




Vibration Feeder Advantages:
1. High efficiency and low operating cost
2. High adaptability and less investment
3. Stable and reliable working performance
4. Low noise and no pollution
Technical Data
Trough Size (mm) | Max Feeding (mm) | Capacity (t/h) | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) | |
GZD 800x1800 | 1800×800 | 300 | 30-80 | 970 | 6-1.5×2 |
| 2200×1100×800 |
GZD 1200x2000 | 2000×1200 | 300 | 80-500 | 970 | 6-2.2×2 |
| 2000×1200×855 |
GZD 850x3000 | 3000×900 | 300 | 40-100 | 970 | 6-2.2×2 |
| 3050×1430×1550 |
GZD 960x3800 | 3800×960 | 500 | 90-200 | 710 | 6-11 | Y160L-6/11 | 3880×2240×1880 |
GZD 1100x4200 | 4200×1100 | 580 | 150-350 | 710 | 6-15 | Y180L-6/15 | 4300×2450×2010 |
GZD 1100x4900 | 4900×1100 | 580 | 180-380 | 780 | 6-15 | Y180L-6/15 | 4980×2450×2010 |
GZD 1300x4900 | 4900×1300 | 750 | 250-450 | 780 | 6-22 | Y200L2-6/22 | 4980×2710×2050 |

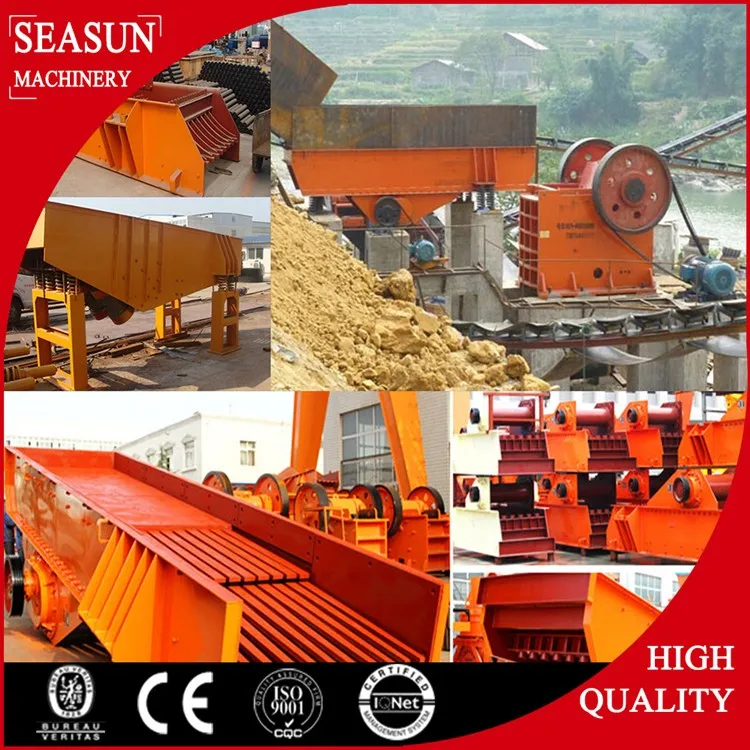

Working site

In order to give you a responsible quotation, you can inform us the following information:
1). What's the material you are going to deal with?
2). What's the granularity of the material?
3). What's the granularity of the final products are you going to achive?
4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
...
