HVAC supply air door ventilation grilles






Product Description







The door grille is processed by anodizing extruded aluminium profile of superior quality.It has special designed blades to provide high performance such as ventilation and privacy protection.





* It is an air grille or security grille that allows air transferring on doors or walls.

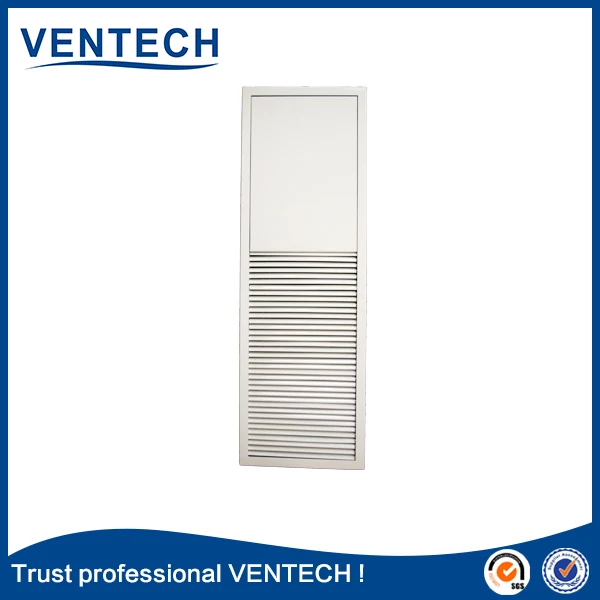

Door grille-1.jpg

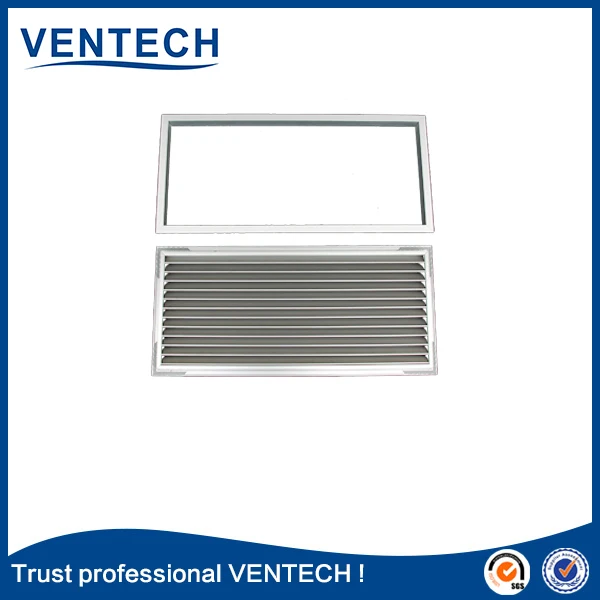

Door grille-2.jpg





Colour:


* White: RAL 9010, RAL9016,RAL9003


* Anodized


* Black


* Other color is available





Size:


*Nominal length: 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1500, 2000.


*Nominal height: 100, 125, 150, 200, 250, 300.


 *Other dimensions upon request.





Specification:





































































Standard size H/L (mm)Effective Area (m²)Air Volume(m3/h)
350x1500.029260
500x1500.05045
500x2500.088788
750x2500.1311180
750x3500.1831650
900x3000.2031830
900x5000.3383040
1000x2500.1881690
1000x3500.2632360
1000x5000.4003600
Assumed air velocity is 2.5m/s.

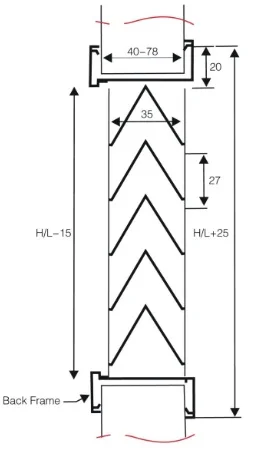

Structure :


door grille draw.jpg





Application








Company Information







VENTECH info.



Our Services







* VENTECH is the leading supplier of air diffusion products in the international market.We dedicated in manufacture and design of air diffusion and ventilation for air conditioning system.





*VENTECH was found in 2006.We have 30000 square meter production area .With about 250 experienced workers.And soon we became a leading air diffuser and grilless manufacturer.





*We concerntration on high quality and competitive price.We have strict qualtiy control process,and every product is hand inspected to ensure it will be in good quality condition.





* VENTECH will work to develop new design and technologies to achieve better product performance,easier to install and higher quanlty year on year .





* VENTECH personnel will always cooperate with the customer to make doing business together and efficient ,fast and pleasant experience .





* VENTECH is you best choice ,we are ready to cooperate with you to provide a comfortable way of handling air.








Hot selling :

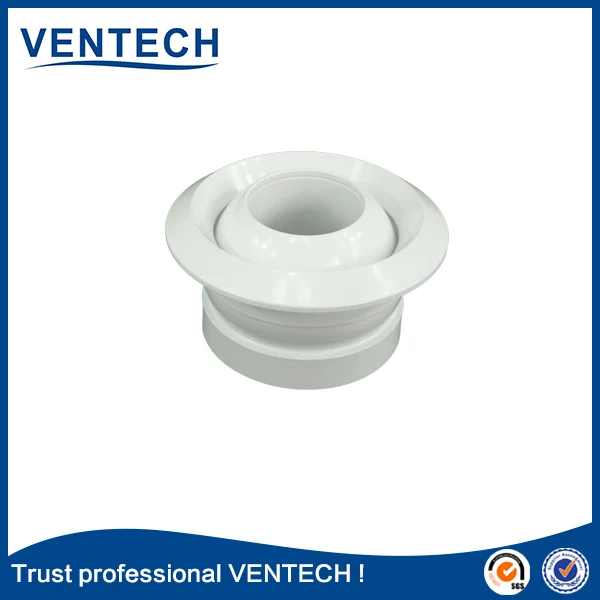

31 Egg crate grille Jet diffuser





11.jpg Disc vavle-1 100














Packing Details:


*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.





Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.
