High Thermal High Quality Zirconia Ceramic Foam Filter for Steel Casting Industry

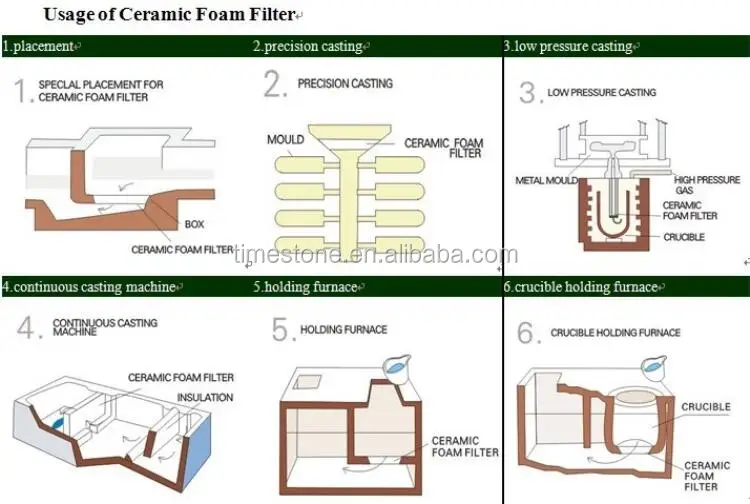

Function.

*Decontaminate the molten metal liquid
*Simplified gating system
*Improve the metallurgical structure of the castings
*Reduce slag inclusions of the castings
*Increase the casting quality rate
*Reduce casting internal re-oxidation defects
*Reduce the surface defects after machining of the castings

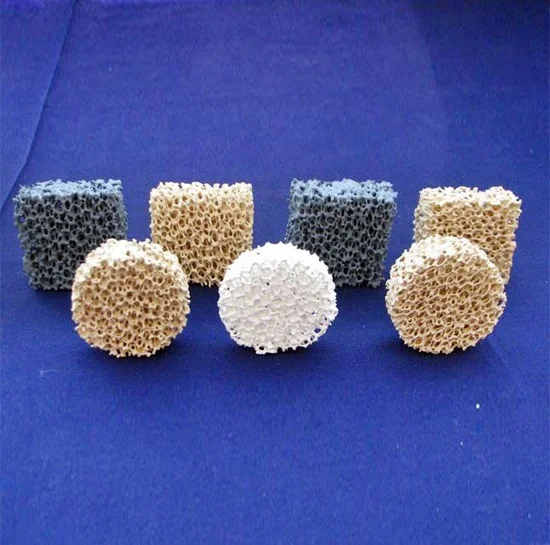

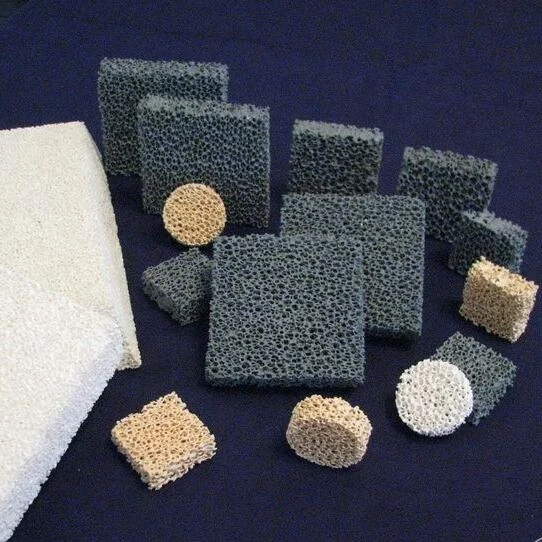

We can supply ceramic foam filters are as follows:

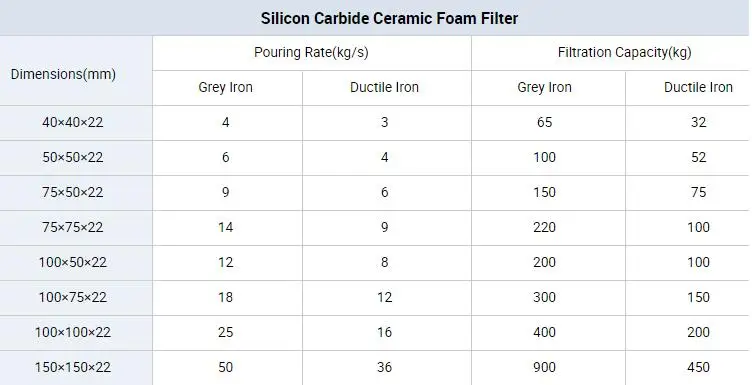

1. Silicon Carbide Ceramic Foam Filter is applied to purge and filter solution of ductile iron casting, grey iron and other iron casting.

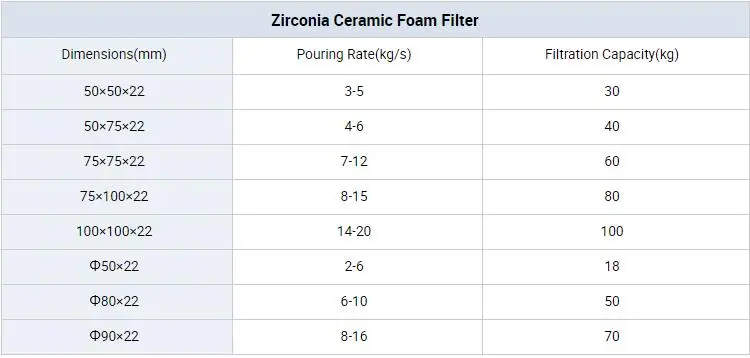

2. Zirconia Ceramic Foam Filter is applied to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc.
3. Magnesia Ceramic Foam Filter is applied to purge and filter solution of magnesium and magnesium alloy.

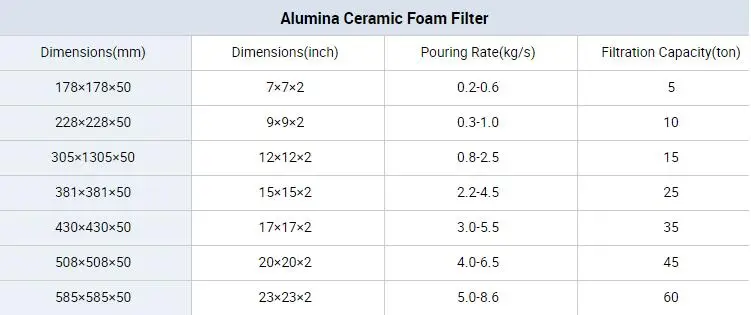

4. Alumina Ceramic Foam Filter is applied to purge and filter solution of aluminium and aluminium alloys.

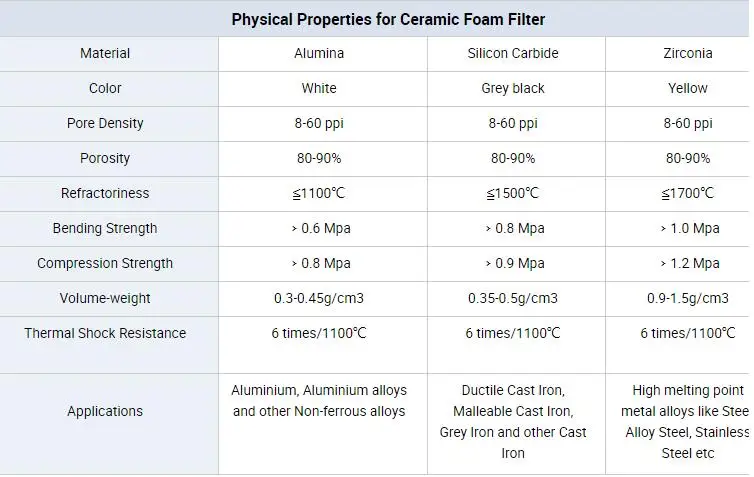

Specifications Ceramic foam filter:
*Material: Al2O3, Sic, ZrO2
*pore density: 10-60 PPI
*Variety of size, shape and bore density

Size

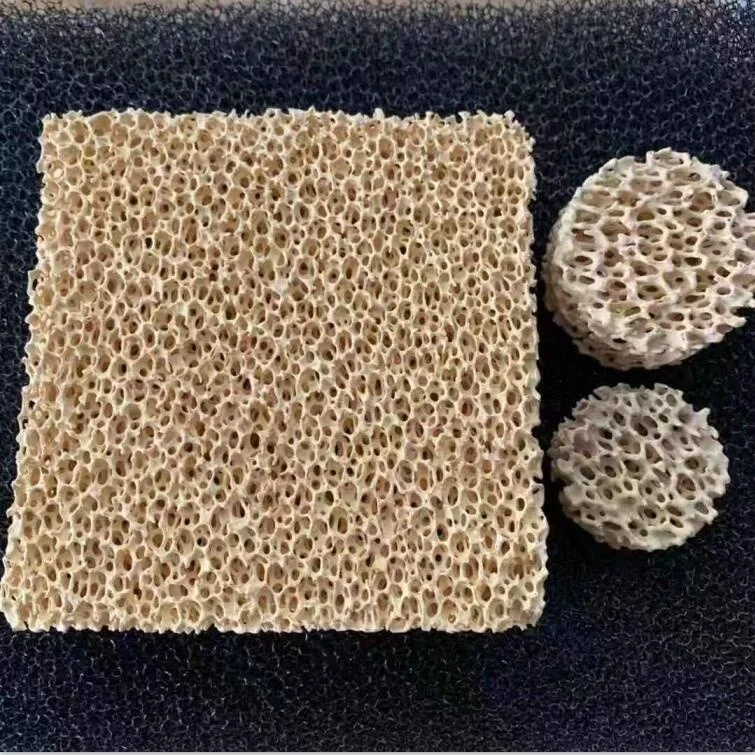

The size are available in square, round and custom geometric shapes; sizes ranging from 10mm up to 600mm, and thicknesses from 10-50mm. The most common porosities are 10ppi, 15ppi, 20ppi, 25ppi. Higher porosities are available upon request. Custom-made cut-to-size filters are also possible.

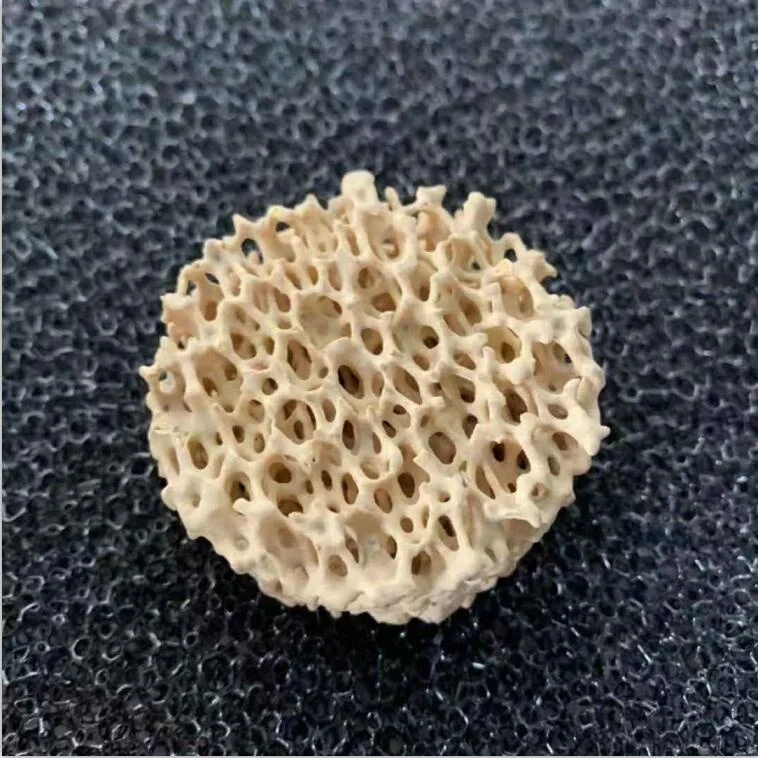

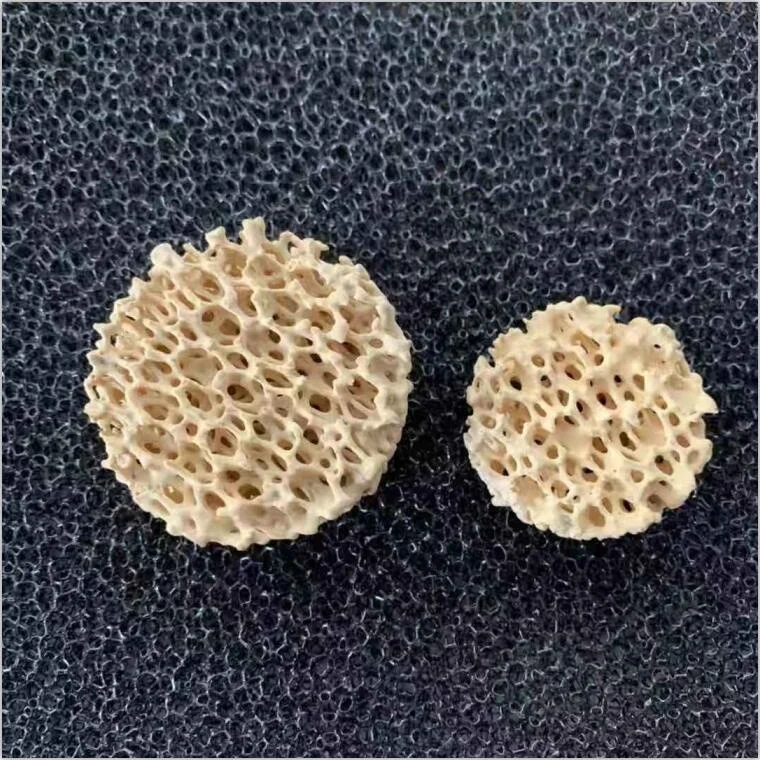

Common size in Round shape:

40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm,
70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm

Common sizes in Square shape:

40x40x13mm, 40x40x15mm, 50x50x15mm, 50x50x22mm, 75x75x22mm,

50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm .
