Product Overview
Description

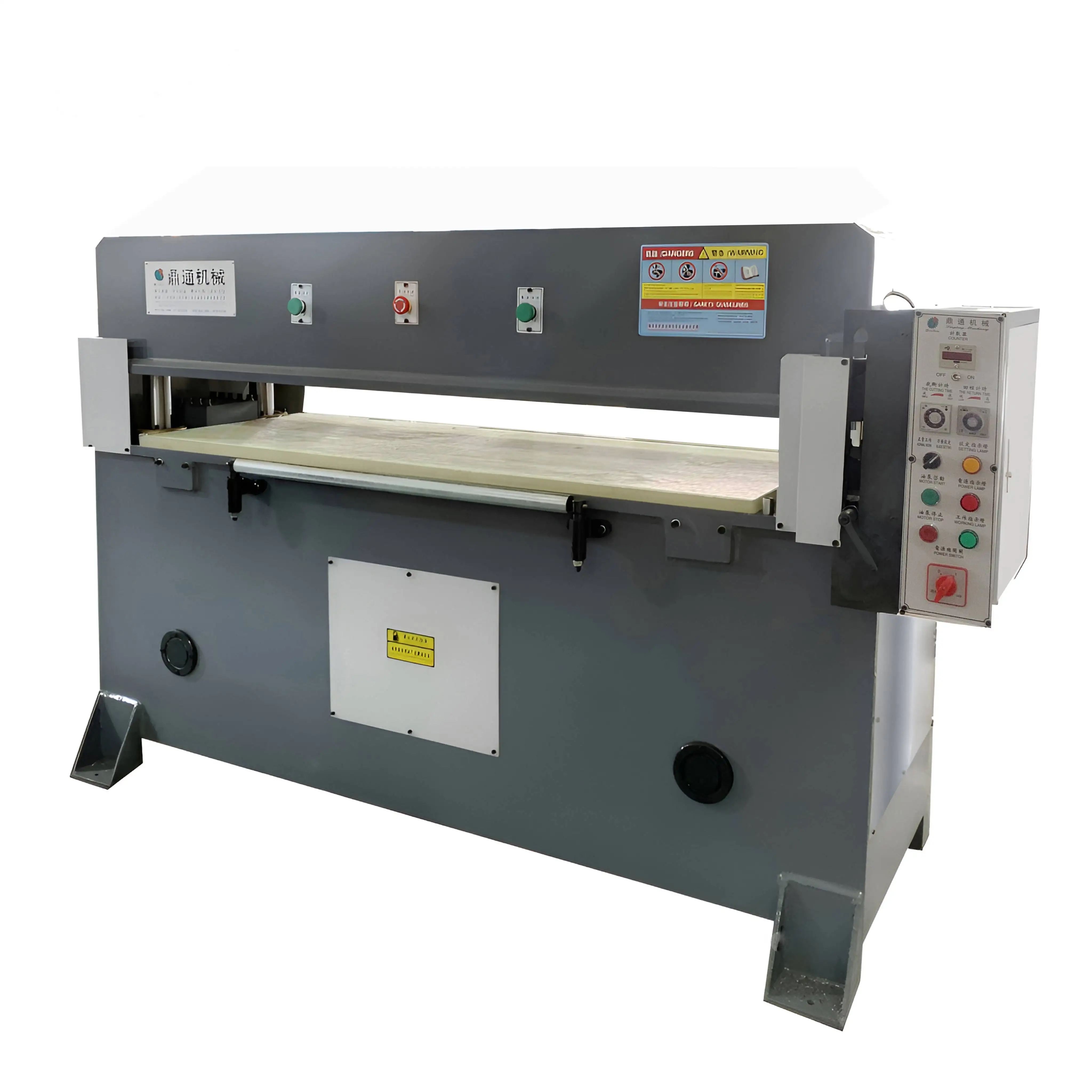

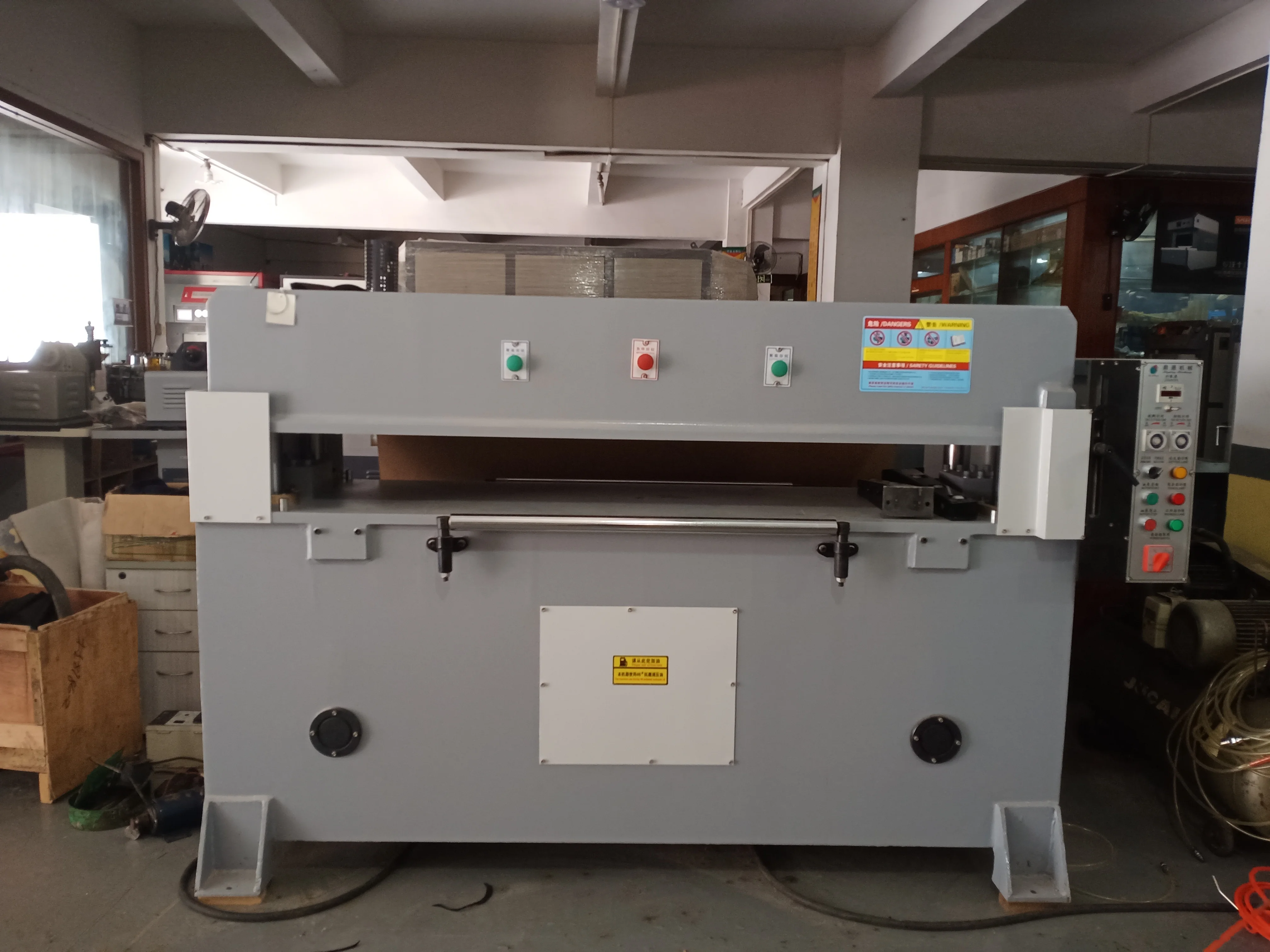

FOUR COLUMNS HYDRAULIC DIE CUTTING MACHINE
Main Features
1. The machine is widely applied to cutting various of nonmetal materials by die cutter.2. Adopted double oil cylinder and precise double-crank connecting rod structure, which can guarantee the same cutting depth of each cutting position.
3. With special setting structure of die cutter and the depth of cutting, the traveling adjustment is simple and accurate.
4. When the press head close die cutter, will automatically slow down, no dimension variation from the top layer of
material to the bottom layer.
Model | DT138-30T | DT138-40T | DT138-50T | DT138-60T |
Dimensions | 2300*1130*1450mm | 2300*1230*1450mm | 2300*1500*1450mm | 2400*1400*1400mm |
Working Area | 1600*510mm | 1600*610mm | 1600*800MM | 1600*850m |
M.F.C | 30T | 40T | 50T | 60T |
Stroke | 50-200mm | 50-200mm | 50-200MM | 50-200mm |
Motor Power | 2.2kw | 3kw | 4KW | 4kw |
Machine Weight | 1750kg | 1800kg | 2350KG | 2500kg |

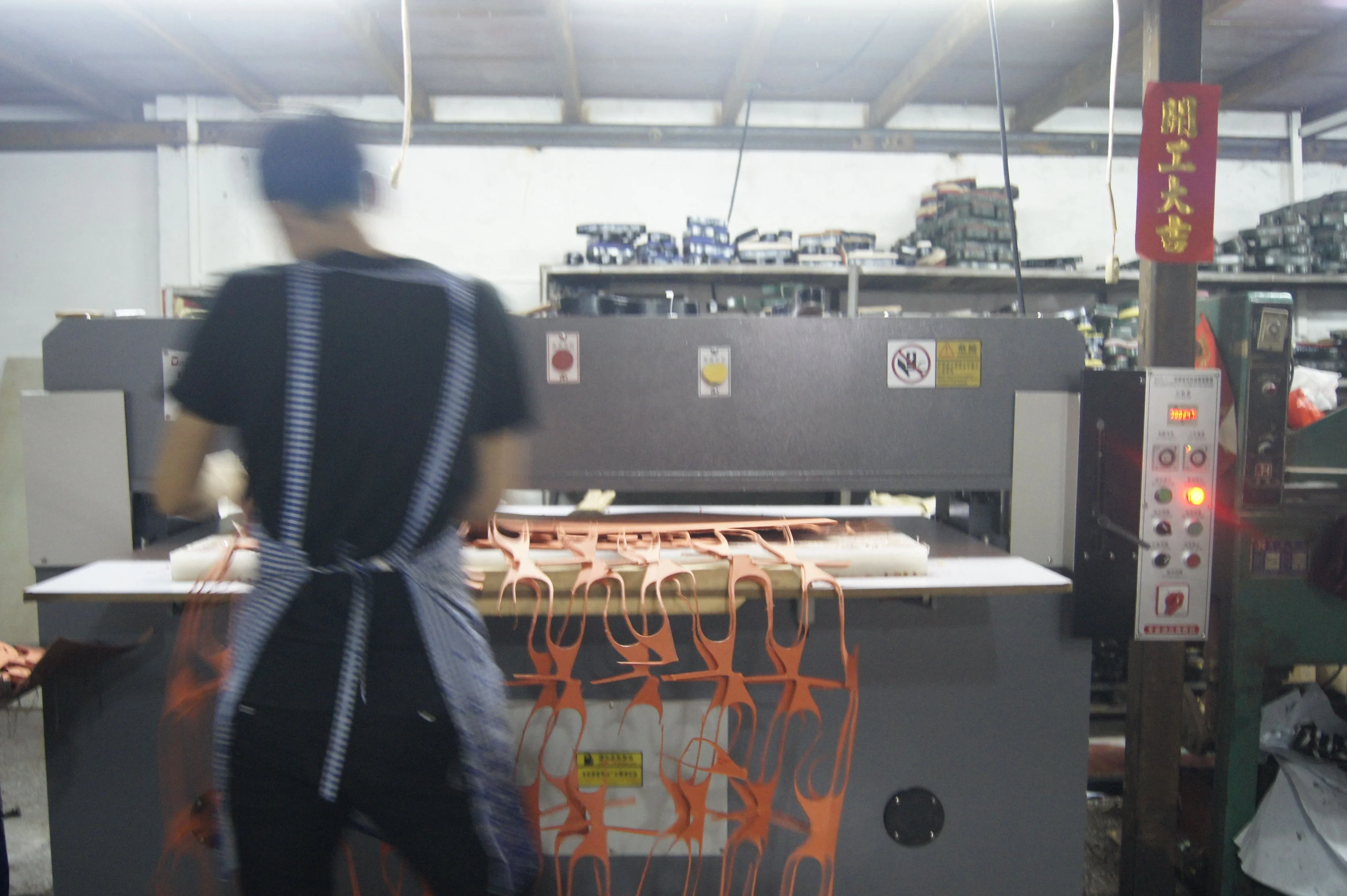

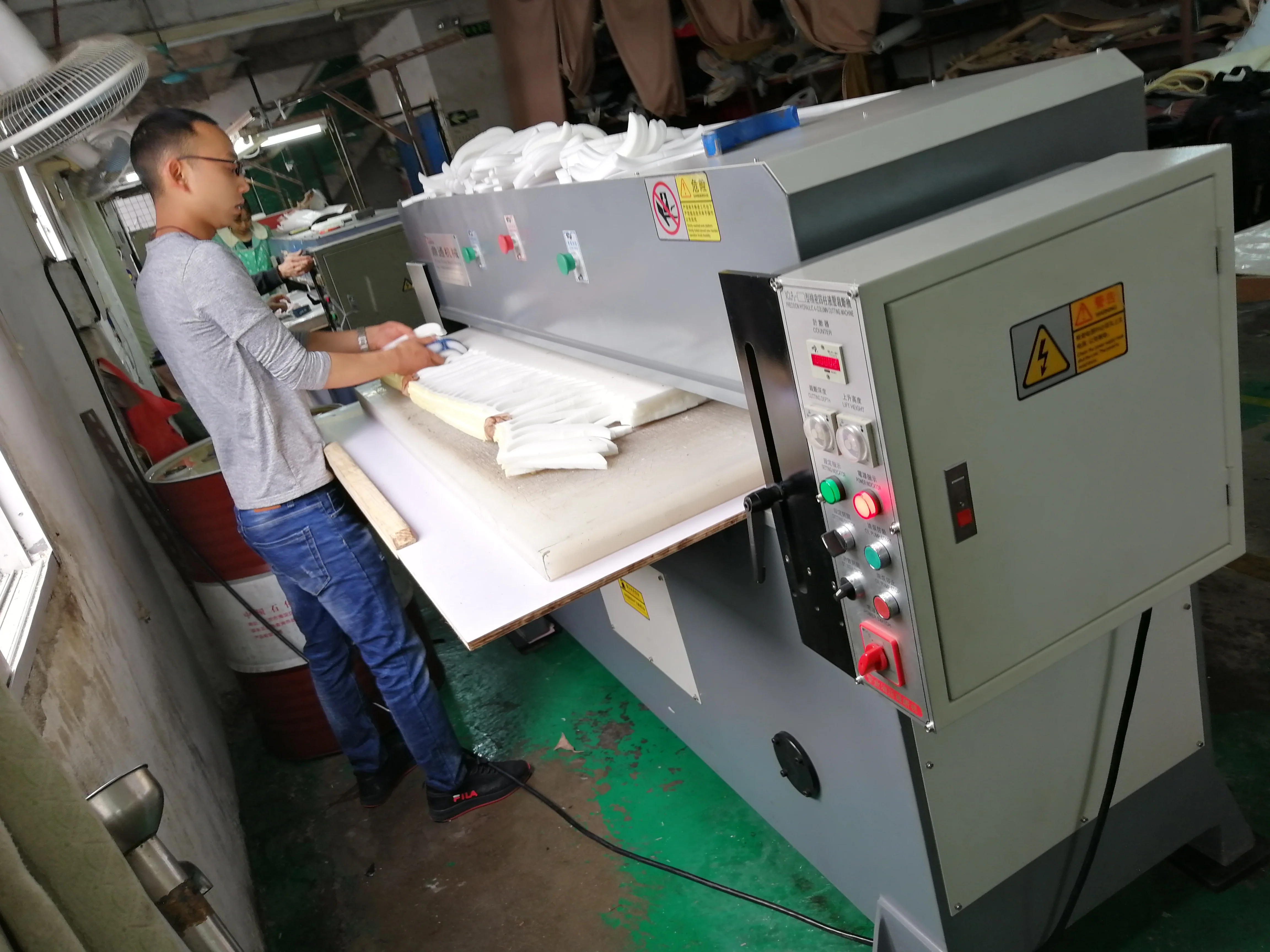

Application
Related Products

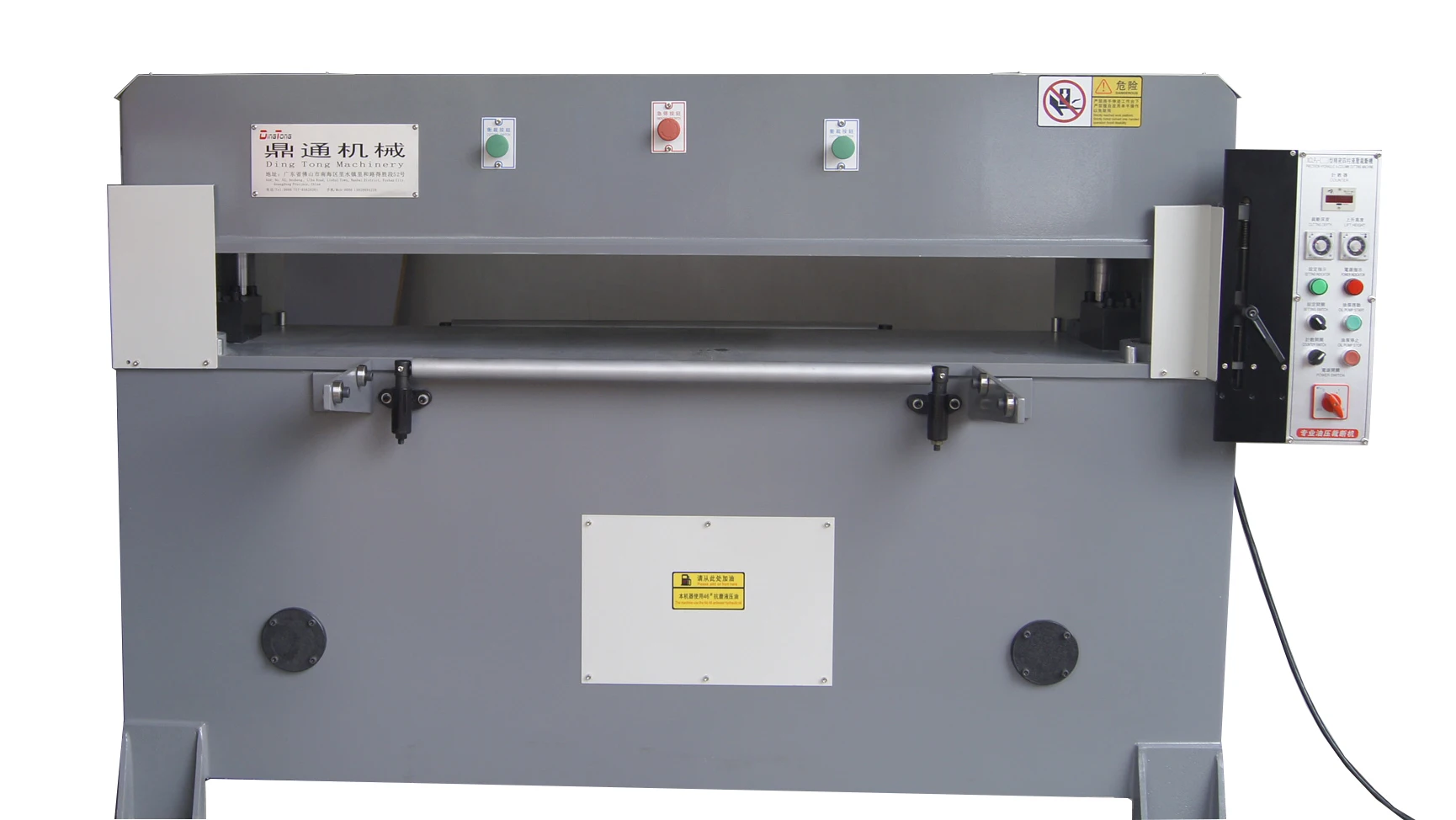

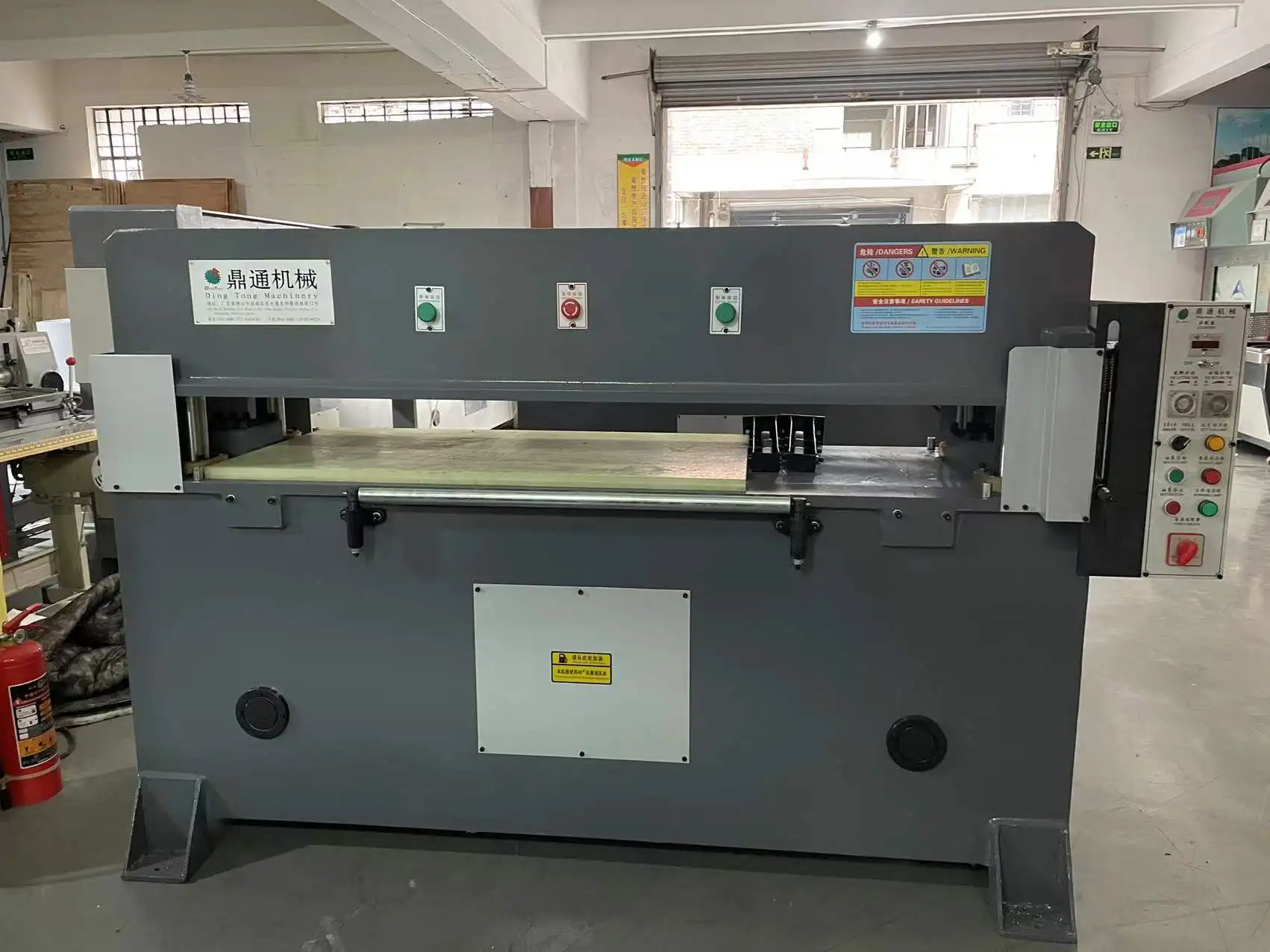

Detailed Images

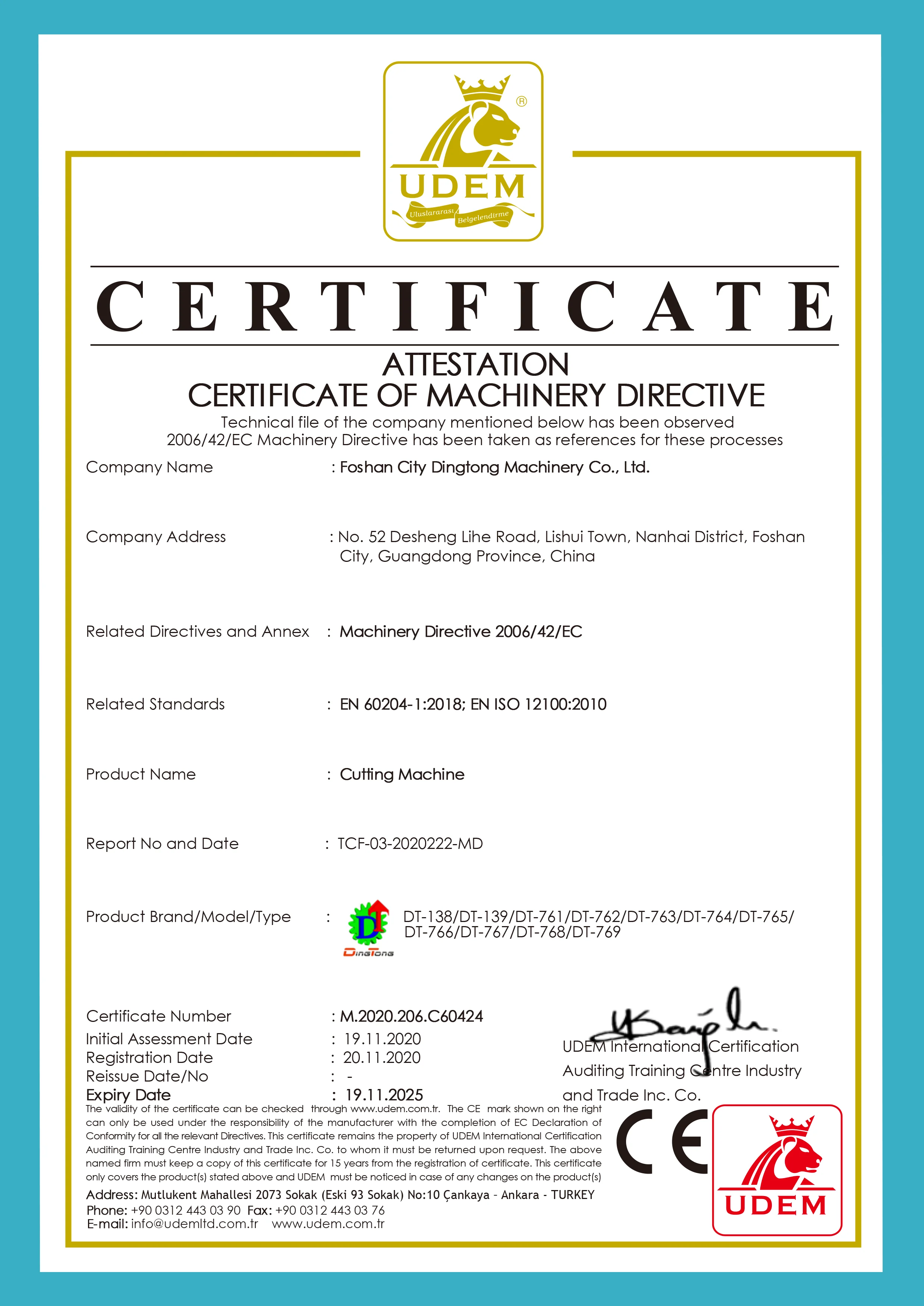

Certifications
