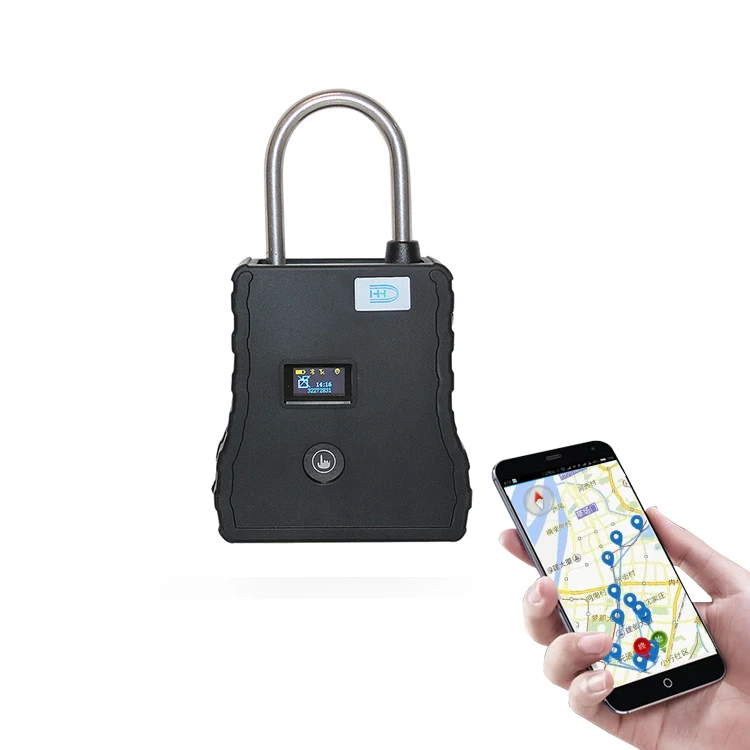

G420 GPS Tracking Remote Control Container Truck E Lock
- Category: >>>
- Supplier: Shenzhen Hhd Technology Co. Ltd.
Share on (62026800334):
Product Overview
Description
Product Description
Are you interested in learning about an innovative new smart lock solution?

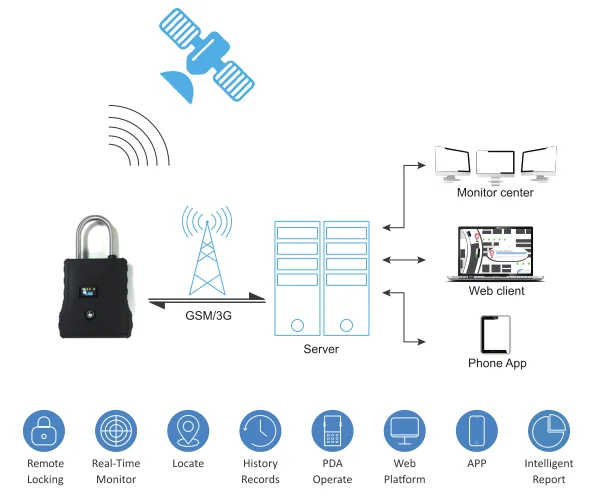

By combining a robust lock with GPS, Internet, Sensor, and Reader feature-based IoT devices on a single consolidated platform.A solution for every supply chain application (trailers, Truck, containers, facilities, yards, etc.)
● GPS Tracker
● Keyless Lock
· ● Smart Sensor
● Data Exchange
● Remote Access Control
All of our products and solutions are flexible which means we always can provide for your individual needs to meet your different project requirements. For quick response, WhatsApp / Skype / WeChat +86 18664565702
● GPS Tracker
● Keyless Lock
· ● Smart Sensor
● Data Exchange
● Remote Access Control
All of our products and solutions are flexible which means we always can provide for your individual needs to meet your different project requirements. For quick response, WhatsApp / Skype / WeChat +86 18664565702
Specification
Product Model | G-420N |
Name | GPS Smart Electronic Lock (U-shaped hard lock lever, buit-in large capacity battery, with RFID Card ) |

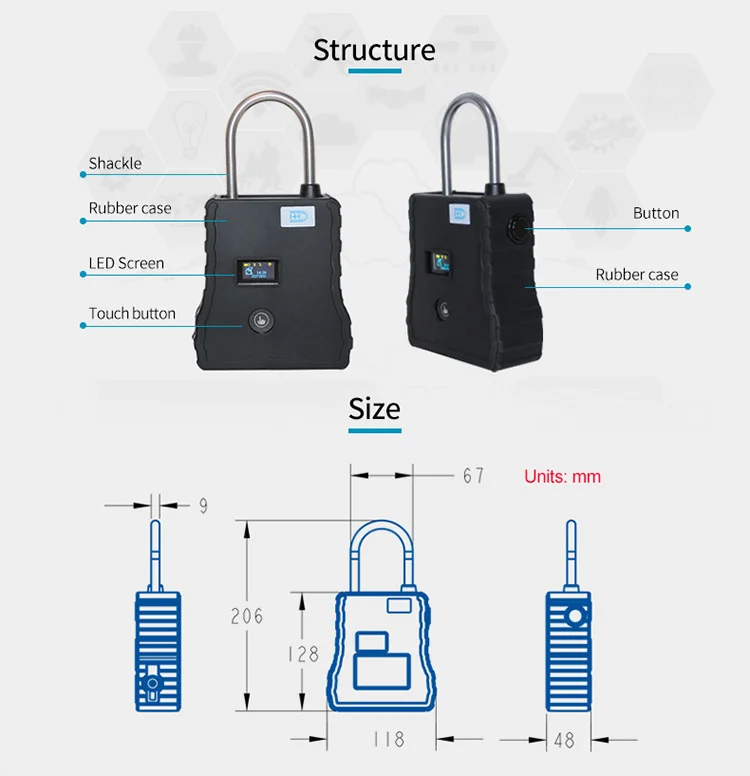

Appearance | Body Size: 128mm*118mm*48mm No keyhole on lock body. |
The lock body is made of die-cast aluminum alloy, the display window is made of 5MM thick tempered glass, and the outside of the lock body is provided with a silicone protective cover. | |
The lock rod is inserted into the lock body, and when the electronic lock is unsealed, the lock rod can be pulled. | |
Material | Lock rod: Stainless steel (Φ9MM) Lock body material: Die-cast aluminum alloy |
Communication Module | Support RFID card sealing, unsealing, wake-up operations Frequency: 13.56MHZ Standard: ISO14443A |
Support GPRS communication, quad-band 850/900/1800/1900MHZ; (4G version can be selected, there are a variety of 4G network band versions in different countries and regions, and 4G global version, to ensure the best cost performance, customers need to provide country and region information, to match the network standard and frequency band. Generally, the battery life of the 4G version will be about 1/4 less than that of the 2G version.) The GPRS terminal and the server use the Chinese Ministry of Communications standard JT808 protocol framework; (Optional support for AES256 encryption.) After connecting to the platform, it can realize real-time location tracking, historical track playback, abnormal real-time alarm, and other functions. | |
Support BLE 5.0 communication and SMS management. | |
Positioning Module | Support GPS, Beidou, LBS positioning Positioning accuracy ≤10m |
Display | LED display, which can visually display information such as power, signal, lock state,etc. |
Seal and Unseal | Support 5 ways: RFID card, SMS, platform client terminal, mobile client terminal, mobile phone BLE.(Optional password version with touch input keyboard) |
Anti-vandal Alarm | ■ The lock body contains anti-disassembly detection. When the lock body is disassembled, it will trigger the start-up alarm function to feed back the dismantled information to the platform. ■ The lock rod is embedded with anti-shear detection. When the lock rod is cut off, the alarm function will be triggered and the dismantled information will be fed back to the platform. |
Under the condition that no hardware failure occurs, the omission rate of alarm information (including omission and mistake) is <0.01%. | |
Security Strength | The lock body is made of high-strength die-casting aluminum alloy, which is not easy to be damaged. At the same time, it adopts mechanical and electronic double locking, which has the dual functions of mechanical sealing and electronic sealing. The lock can resist the collision and vibration that may occur in daily use (excluding deliberate destruction such as man-made violent hammering) |
Power and Battery Life | Lithium battery capacity: 12800MAH |
Battery life 10-360 days (depending on the set backhaul interval, supports two modes of platform long connection and short connection) | |
Intelligent power distribution management, with a low-power working mode, automatically avoids the problem that the lock cannot be unlocked due to lack of power when reaching the destination. | |
Data Storage | Built-in flash memory card, can store 8000 blind spot data. |
Operating Invironment | Operating temperature: work at an ambient temperature of -20℃to 70℃; (low temperature battery version can reach -30°C); Storage temperature: -40℃～+85℃ |
Waterproof grade: IP67 | |
Humidity: The device is not damaged under 95% non-condensing humidity test environment | |
Mechanical vibration: under the test environment of half-cycle sine wave 30g acceleration vibration lasting 11 milliseconds to ensure that the equipment is not damaged, in line with the methods specified in IEC60068-2-2; | |
Random vibration: The security smart lock needs to be able to ensure that the device is not damaged under the test environment of -20 to +70 ℃, and the random vibration acceleration of all axial vibration reaches 3g for 2 hours. The test conforms to the method specified in IEC60068-2-53 ; | |
Salt spray: The security smart lock can ensure that the device is not damaged in the salt spray environment. The test meets the method specified in IEC60068-2-11; | |
Electromagnetic field: The security smart lock can ensure the integrity of the data and the equipment is not damaged under the test environment with a high magnetic field strength of 50V/m for 60 seconds; the security smart lock can withstand the 25kV electrostatic discharge test and ensure the integrity of the data and the equipment is not damaged. | |
Charging Port | Charging DC5.5 interface (DC5V/3A) |
Certifications

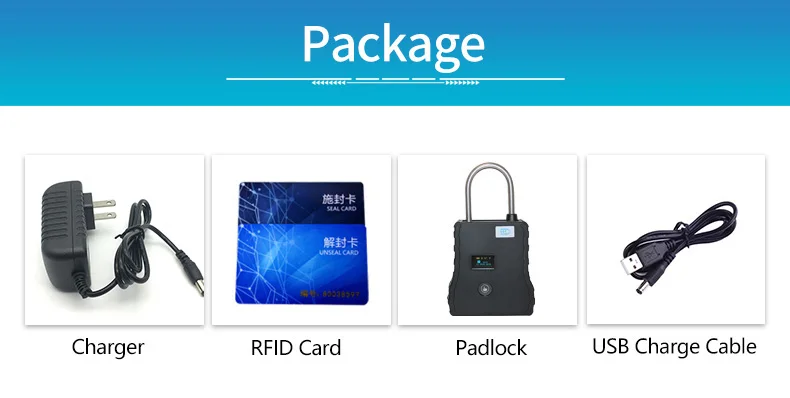

Packing & Delivery
FAQ
● Are you a factory or a trading company?
● How is your quality?
● Do you accept OEM/ODM projects? Can you produce our design products?
Yes, welcome to share your artwork and detail with us then our team will evaluate and work out the right solution.
● How could I get samples?
Founded in 2009, we are a professional IoT products manufacturer and solution provider with an excellent R&D team and production lines in China.
● How is your quality?
We control the whole production process according to ISO international quality standards. From the beginning to the end of production.
● Do you accept OEM/ODM projects? Can you produce our design products?
Yes, welcome to share your artwork and detail with us then our team will evaluate and work out the right solution.
● How could I get samples?
We support sample orders to our new clients for testing and quality inspection, mixed samples are also acceptable, but you need to pay,
● If anything I can help with your business, please don't hesitate to contact me.
Email: Vincent at HHDlink.com For quick response, WhatsApp / Skype / WeChat +86 18664565702
Other model
Company Profile
HHD
Shenzhen HHD Technology Co., Ltd., founded in 2009, focuses on visualizing low-carbon logistics supply chain security, electronic data, and traceability of IoT products’ research and development, manufacturing, marketing, and service high-tech company.
The company's products mainly focus on "people", "vehicles" and "objects", carrying out innovation and exploration of logistics intelligent locks, smart sensors, electronic seals, intelligent collectors, and wearable devices. Based on GPS Positioning, video, smart sensor, big data analysis, image analysis, and other technologies to improve anti-theft, predictive security, and intelligent management.
HHD Tech with the technical development capabilities of low-power IoT technology, image analysis, satellite positioning, and micro motor structure design. its main products include Logistics intelligent lock, Electronic seal, Smart safety box, Smart sensor, and Intelligent collector.
About IoT
What is the internet of things (IoT)?
The internet of things, or IoT, is a system of interrelated computing devices, mechanical and digital machines, objects, animals, or people that are provided with unique identifiers (UIDs) and the ability to transfer data over a network without requiring human-to-human or human-to-computer interaction. A thing in the internet of things can be a person with a heart monitor implant, a farm animal with a biochip transponder, an automobile that has built-in sensors to alert the driver when tire pressure is low, or any other natural or man-made object that can be assigned an Internet Protocol (IP) address and can transfer data over a network.
How does IoT work?

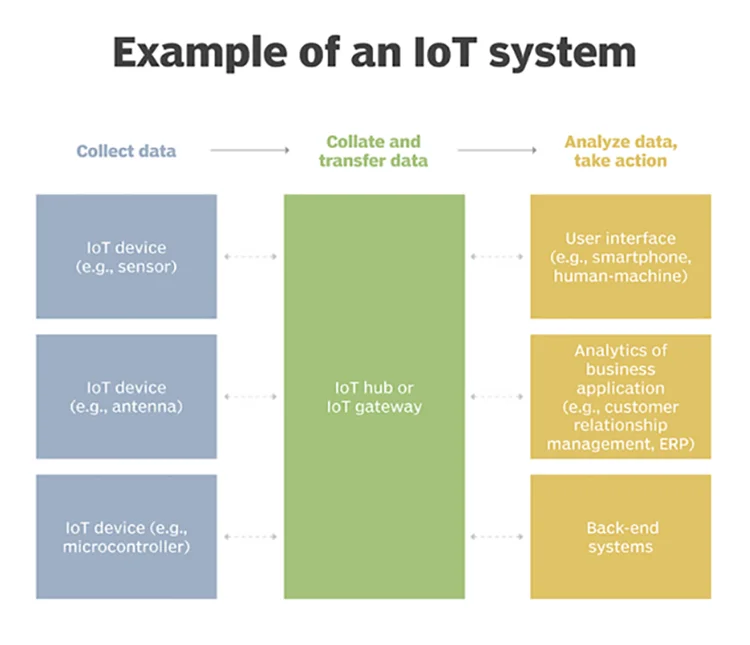

An IoT ecosystem consists of web-enabled smart devices that use embedded systems, such as processors, sensors, and communication hardware, to collect, send and act on data they acquire from their environments. IoT devices share the sensor data they collect by connecting to an IoT gateway or other edge device where data is either sent to the cloud to be analyzed or analyzed locally. Sometimes, these devices communicate with other related devices and act on the information they get from one another. The devices do most of the work without human intervention, although people can interact with the devices -- for instance, to set them up, give them instructions or access the data.
