Product Overview
Description
BRIEF INTRODUCTION

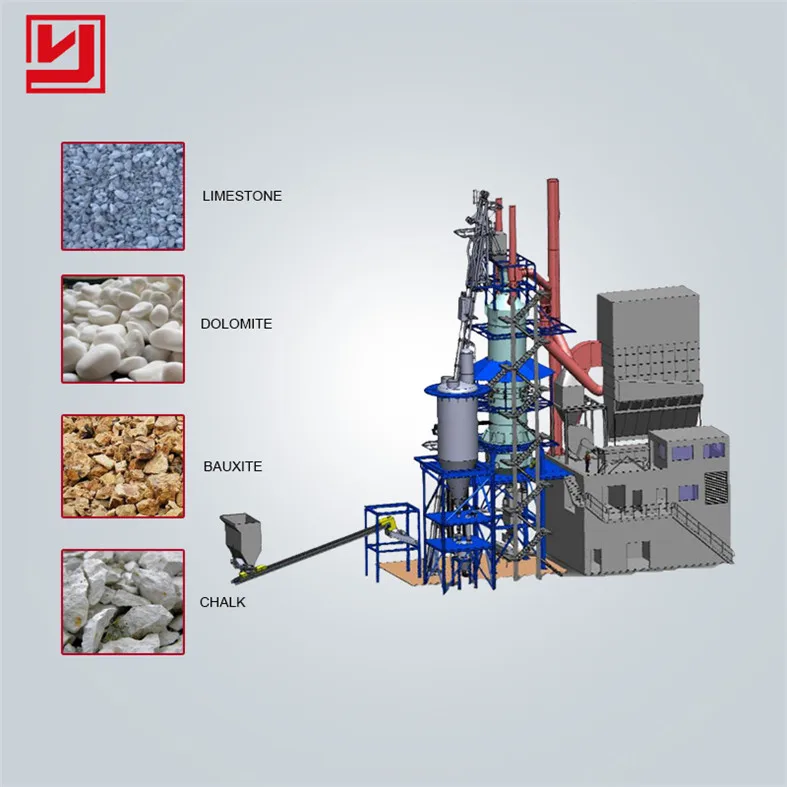

The shaft kiln, which also called vertical kiln, due to the vertical position of its kiln shell does not rotate, is always used to produce the products, such as cement, refractory materials (bauxite and mullite), lime, etc. Thus, the commonly used shaft kiln is also known as cement vertical kiln, lime vertical kiln and so on.
Lime shaft kiln has many forms, the vertical kiln with continuous operation is mostly adopted. Its heating fuel includes coal, nature gas and coal gas,and oil. The solid fuel can be added together with the limestone, it can also be burned into gas outside the kiln and then introduced into it. The former is called mixing shaft kiln, the latter is called gas kiln and oil kiln. Mixing shaft kiln has the advantages of large production capacity, fully mechanized procedure, high concentration of kiln gas, high thermal efficiency, good lime quality and so on, so it is often adopted.
FEATURES
1. Using energy-saving way of calcination.
2. Dust removal system makes flue gas and dust keep clever collocation flue gas emissions meet standards;
3. Scientific process the waste heat can be most effectively used.
4. Distributing equipment has unique structure and uniform distributing quantity.
5. Uniform wind supplying maintains good furnace condition.
6. High automation level.
PRODUCT PARAMETERS
Capacity | Effective volume | Effective height | Cross section diameter | Limestone size | Heat consumption | CaO | Active Degree |
(t/d) | (m3) | (m) | (m) | (mm) | (KJ/kg) | (%) | (ml) |
100 | 98 | 20 | Ø2.5 | 40~80 | <4600 | >90 | >300 |
120 | 141 | 20 | Ø3.0 | 40~80 | <4600 | >90 | >300 |
150 | 202 | 21 | Ø3.5 | 40~80 | <4500 | >90 | >300 |
200 | 301 | 24 | Ø4.0 | 40~80 | <4500 | >90 | >300 |
300 | 397 | 25 | Ø4.5 | 40~80 | <4400 | >90 | >300 |
400 | 491 | 25 | Ø5.0 | 40~80 | <4200 | >90 | >300 |
500 | 735 | 26 | Ø6.0 | 40~80 | <4200 | >90 | >300 |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for vertical kiln material?
A2: Our Yuhong has a high standard on choosing material of vertical kiln.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2. What is the heating fuel?
4. What is the capacity per hour or per day?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
