CHANGBAO Cat6 Utp 4pair Twisted Pair Lan Cable Wire Network Computer Ethernet Cables
- Category: >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (62026869749):
Product Overview
Description
Product Description
CHANGBAO utp cat6 ethernet cables
* UTP , Twisted Pair Cable
* Pass FLUKE Test High Performance Computer Networking Cable
* Suitable for Fast, Gigabit Ethernet
* Digital Communication Applications of up to 550MHz Bandwidth for Cat6
* Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
* Tangle Free Reelex and Easy Pull Box Packing
* ETL Listed, CMX / CM / CMG / CMR / FT4 / CMP / FT6 Rated Are Available
* PVC or LSZH Jacket For Indoor ,PE Jacket For Outdoor
* UTP , Twisted Pair Cable
* Pass FLUKE Test High Performance Computer Networking Cable
* Suitable for Fast, Gigabit Ethernet
* Digital Communication Applications of up to 550MHz Bandwidth for Cat6
* Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
* Tangle Free Reelex and Easy Pull Box Packing
* ETL Listed, CMX / CM / CMG / CMR / FT4 / CMP / FT6 Rated Are Available
* PVC or LSZH Jacket For Indoor ,PE Jacket For Outdoor

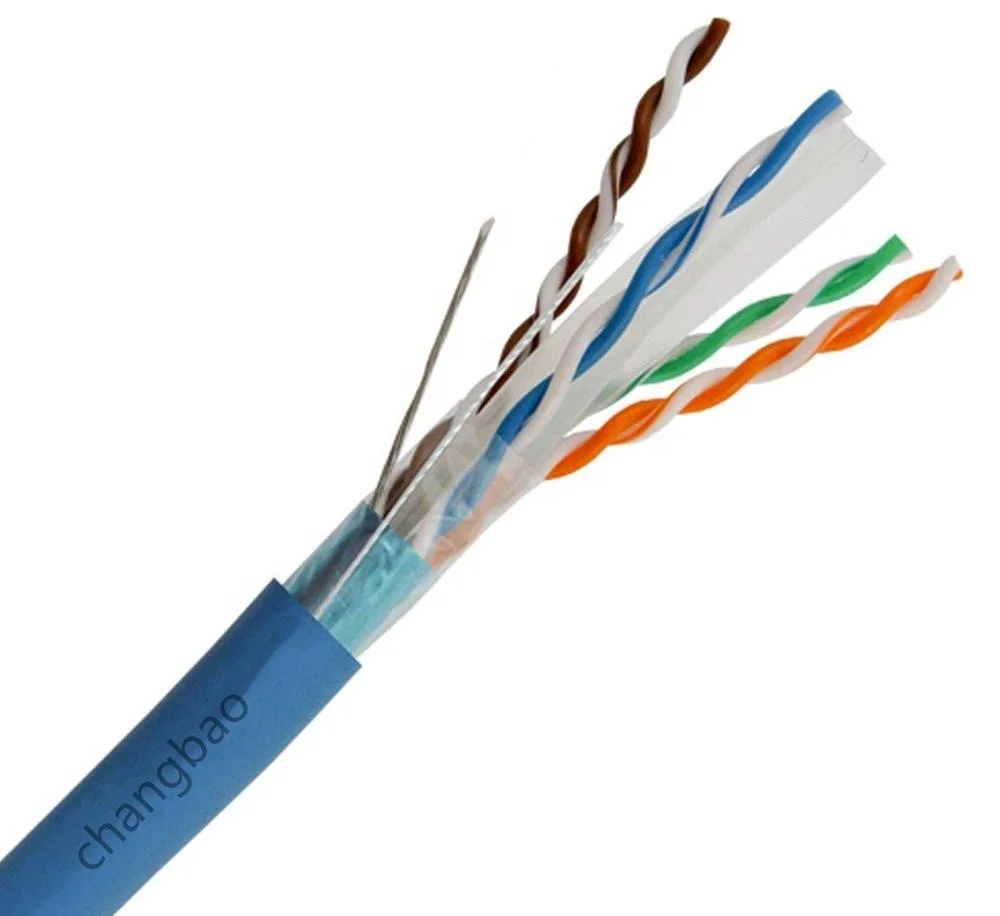

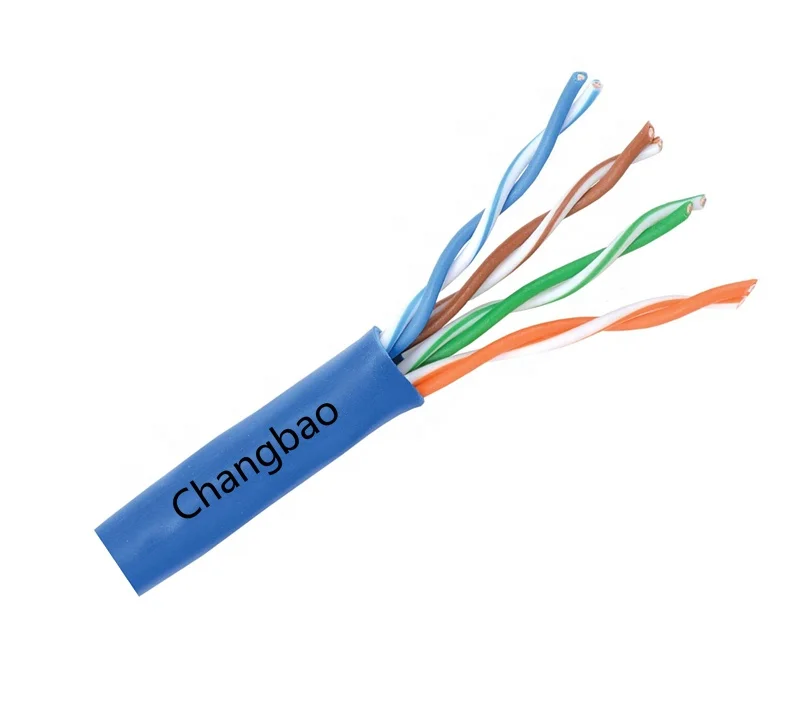

Cat6 UTP 4Pairs Lan Cable
Details Images

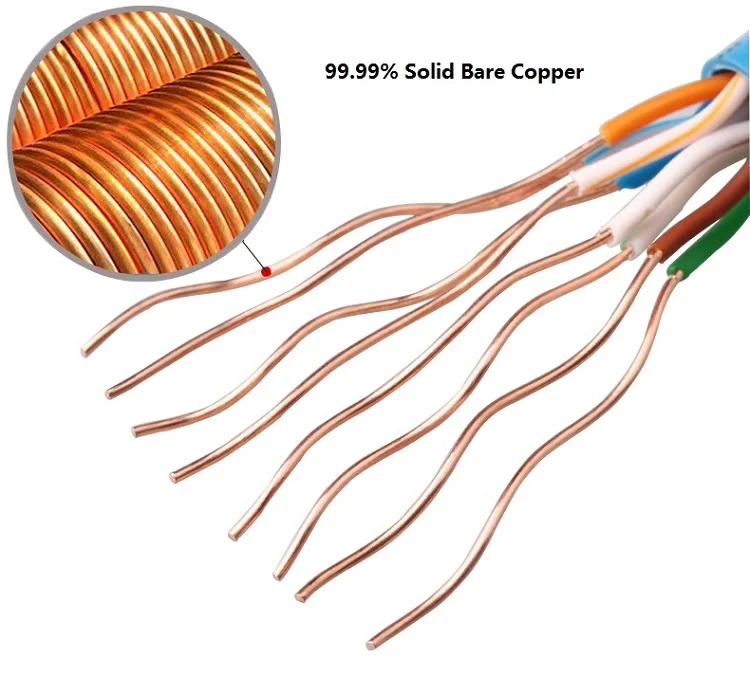

Conductor | Material | Solid Bare Copper |
Size | 23AWG X 4P | |
Insulation | Material | HDPE |
Diameter | 1.01±0.01mm | |
Colors | Blue-White/Blue | |
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Filler | Filler | PE |

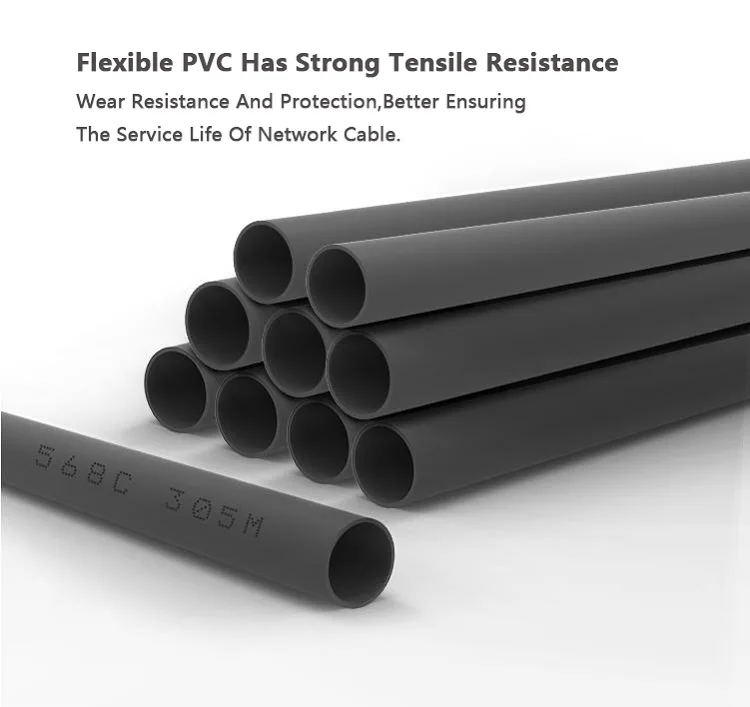

Jacket | Material | PVC / LSZH / PE |
Diameter | 6.20±0.10mm | |
Colors | Per request | |
Rip Cord | Nylon |
rating | 75℃ 30V | ||||
Conductor Resistance | Max 72.2ohm/km at 20℃ | ||||
Dielectric Strength | Min AC1.5KV | ||||
Spark Test | 5.0KV | ||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | ||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | ||
Elongation | 500% | ||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | |||
Elongation | 250%(100℃ 168h) | ||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | ||
Elongation | 150% | ||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | |||
Elongation | 80%(100℃ 168h) | ||||
Cold Bend Test | -20℃ 4hours No Cracking | ||||
DC Resistance Unbalance | Max 5% | ||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | ||||
Characteristic Impedance | 1~500MHZ 100±15OHM | ||||
Propagation Delay | 500MHZ Max 536ns/100m | ||||
Delay Skew | 1~500MHZ Max 40ns/100m | ||||
* Values above 250MHz are information only
Related Products
Packing&Shipping
Company Introduction
CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development, production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.

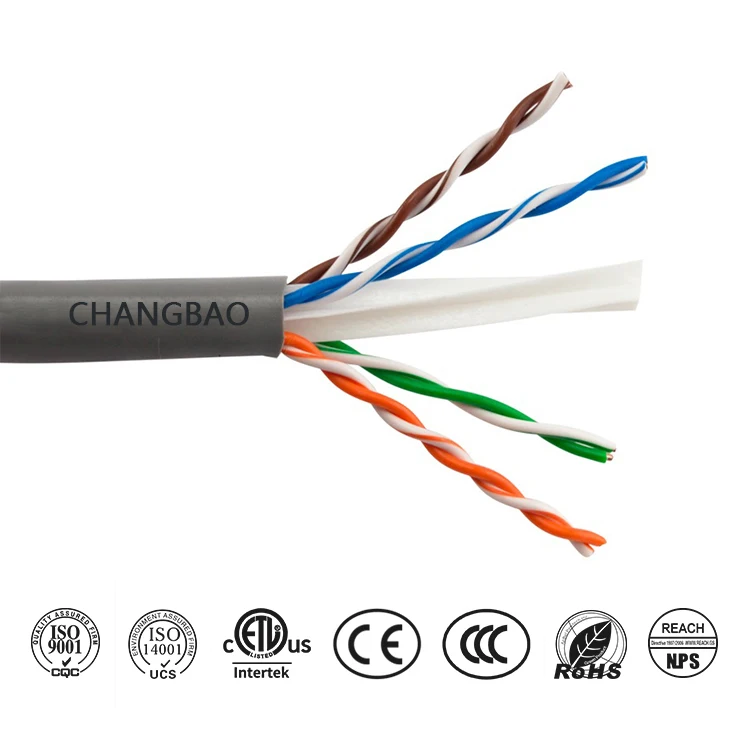

We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
