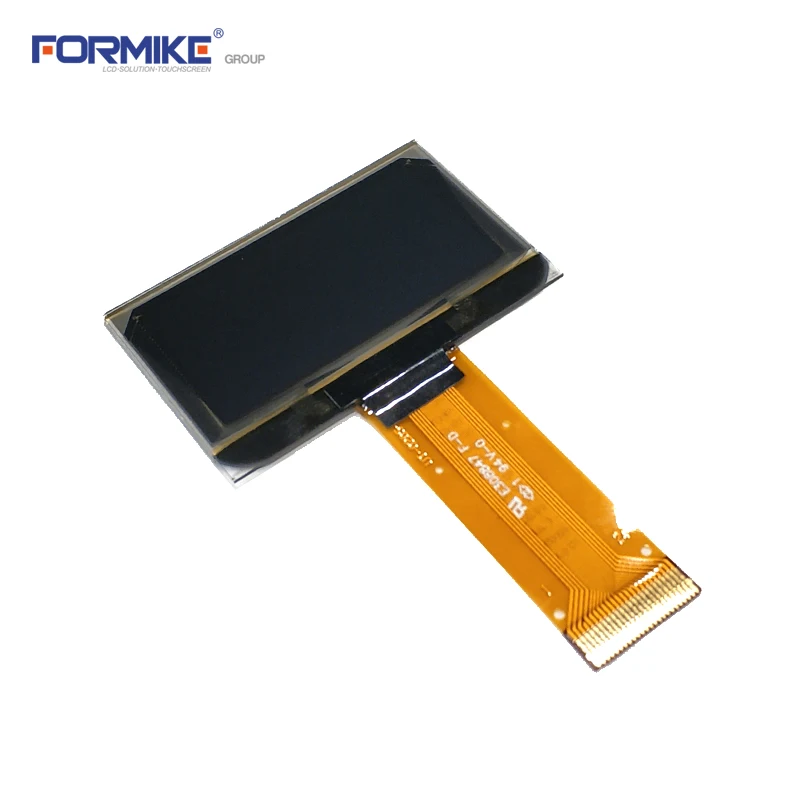

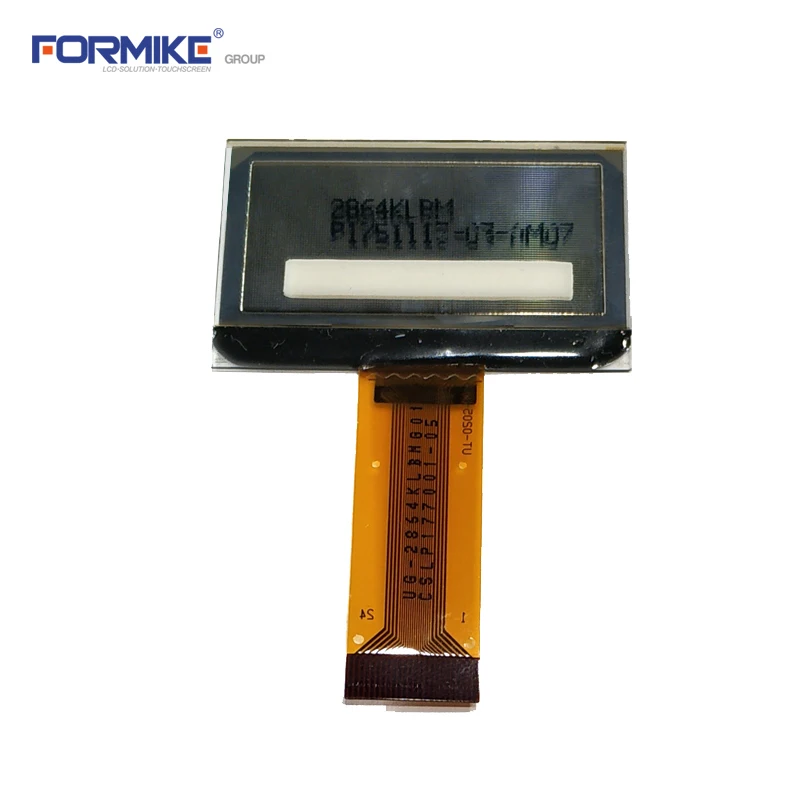

1.54'' OLED 128x64 SSD1309 Character OLED Display For USB Tester
Name
1.54'' OLED 128x64 SSD1309 Character OLED Display For USB Tester
Module Size
1.54 inch OLED Module
Dox Matrix
128x64 Resolution
Display Color
Monochrome (White or blue light)
Dark Room Contrast Ratio
10000:1

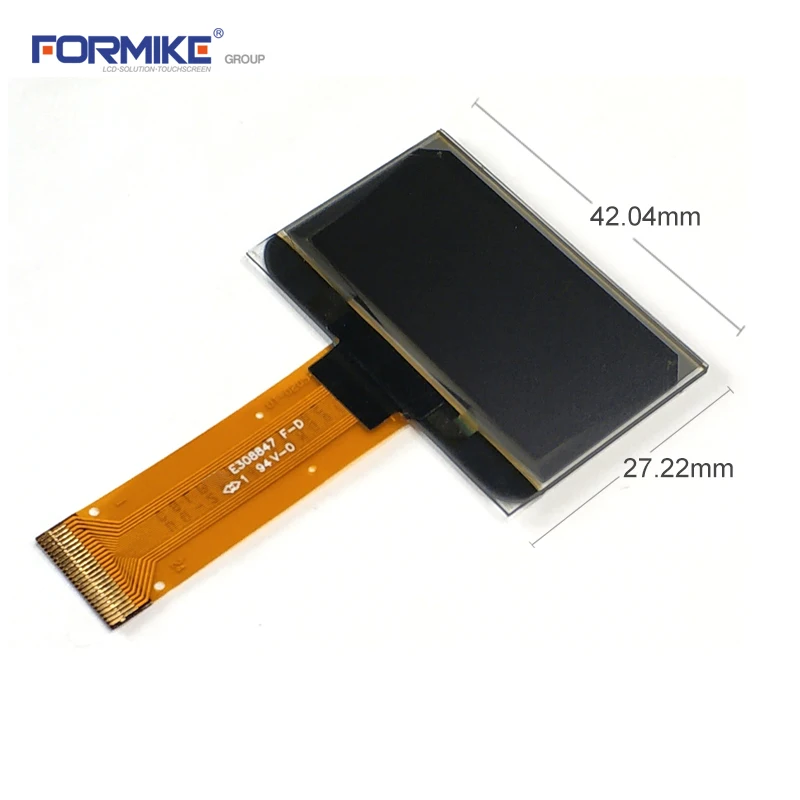

Outline Dimension
42.07 x 27.22 x 1.45mm
Active Area(HxV mm)
35.05 x 17.52mm
Response Time
10 μs

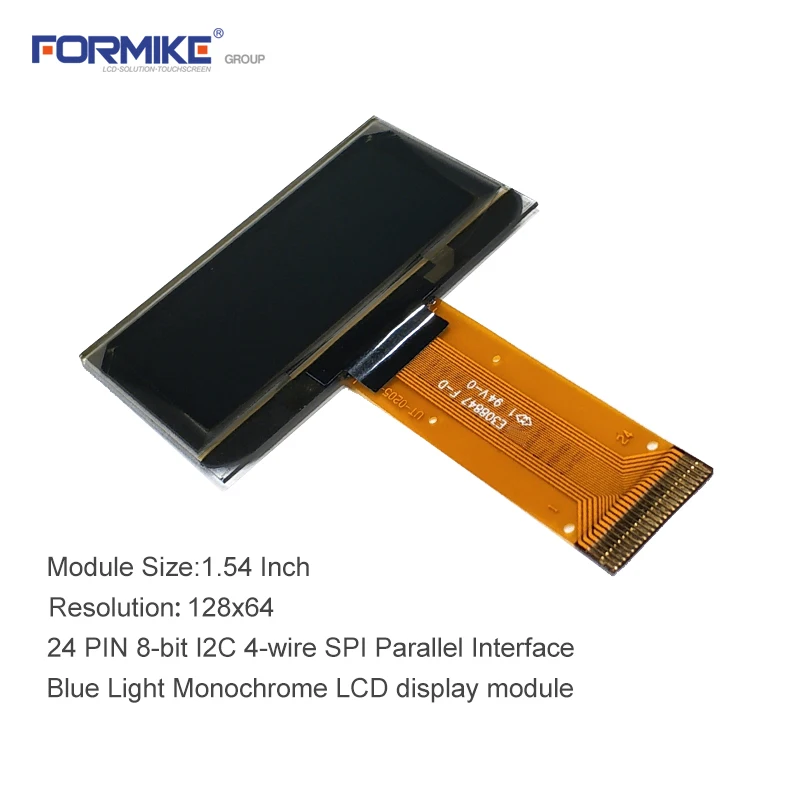

Interface

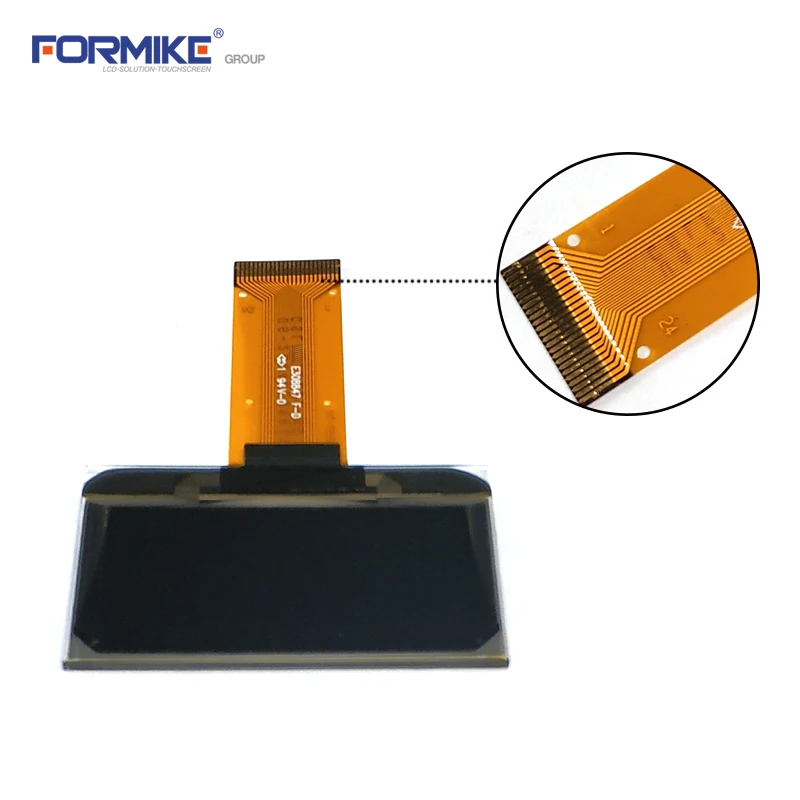

SPI, I2C, 24pin
Drive Duty
1/64 Duty
Brightness
120cd/m2
IC Driver
SSD1309
Supply Current/Voltage
180mA,2.8V
Viewing Angle
Free
Resolution Pitch
0.27x0.27 (mm)
Operation Temperatue
-40~70℃
Storage Temperatue
-40~85℃
* KWH0154UL02 is a passive matrix monochrome white light (optional blue light) OLED Display.
* It is composed of a Monochrome OLCD panel, driver IC, FPC.
* It is 128x64 Resolution OLED module.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
