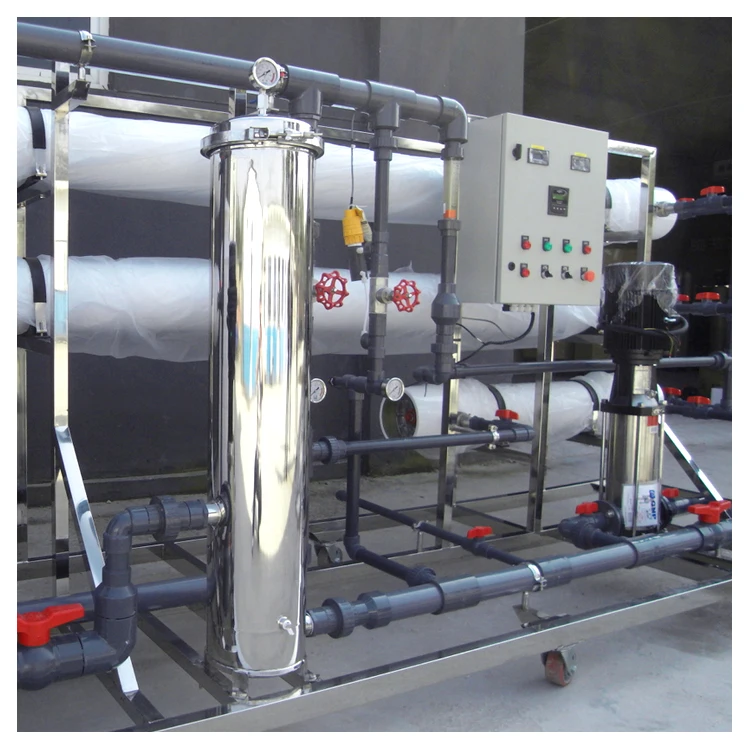

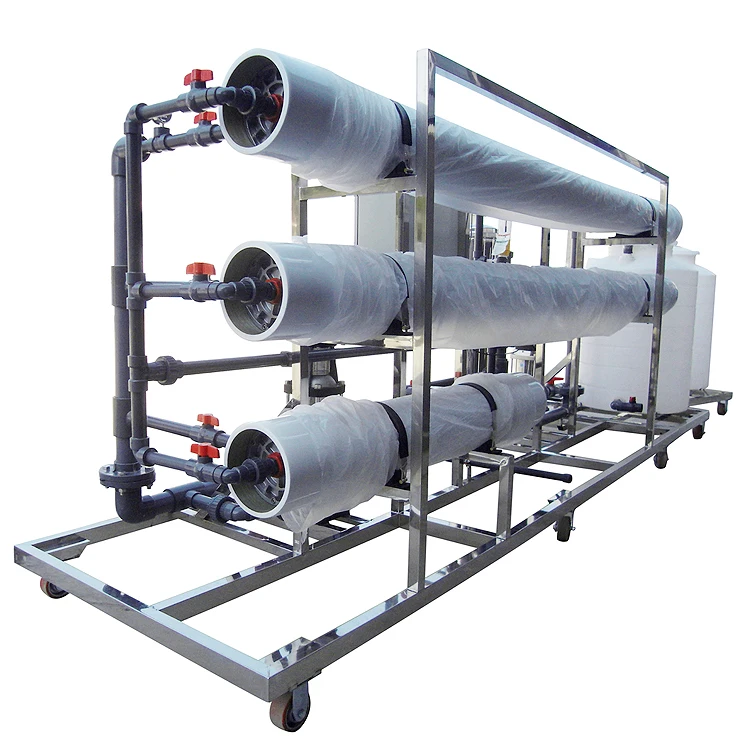

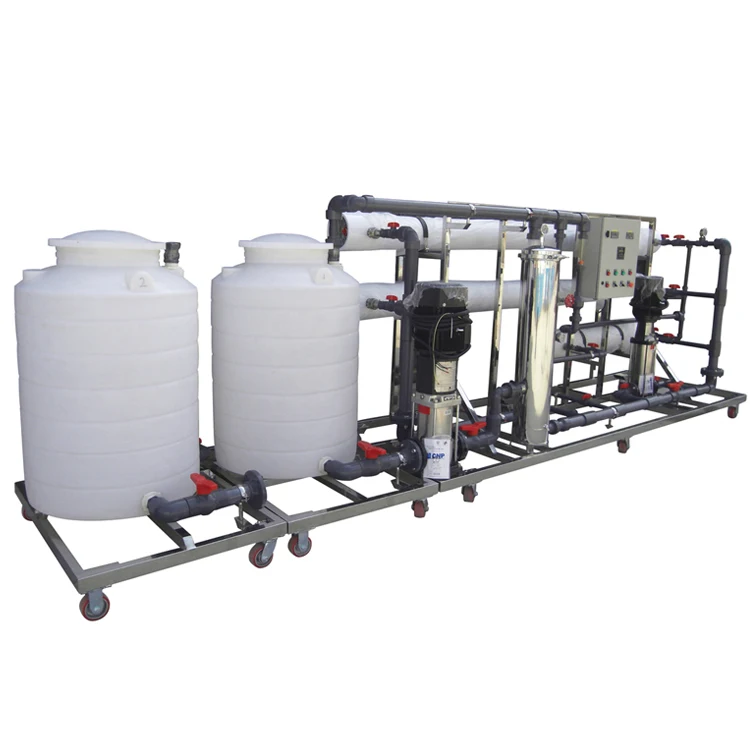

RO Membrane Washing Machine To Clean RO Membrane
- Category: >>>
- Supplier: Beijing Jiuzhou Qingyuan Technology Development Co. Ltd.
Share on (62026905919):
Product Overview
Description
Product Description
JZWM-RO8 RO Pure Water Plant Parameters:
| JZWM-RO8 RO Water Treatment Parameters | ||
| 1 | Washing Membrane QTY | 8pcs or acc to request |
| 2 | Working Power | 5.5KW |
| 3 | Washing PH Value | Citric acid PH=2 Sodium hydroxide PH=12 |
| 4 | Chemical Tanks | 500L or Acc to Customer need |
| 5 | RO Membrane Model | Mainly for |
| 6 | Booster&High Pressure Pump | CNP Brand CHL8-30 &CDMF5-23 |

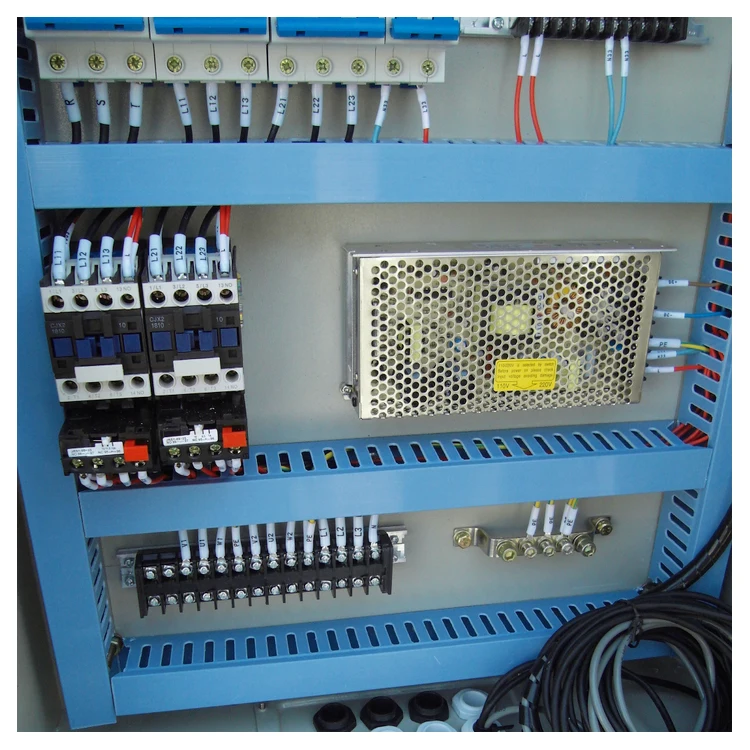

| 7 | Relay Brand | Schneider or CHNT or Customize |
| 8 | Frame Size: | 350*80*160cm |
| 9 | Weihgt(KG): | 300KG |
Feed Water Quality Request: ATTENTION PLEASE!!!
| Feed Water Quality Request | ||
| 1 | Minimum flow rate | 4m3/h |
| 2 | Minimum inlet pressure | 45PSI |
| 3 | water temperature | 5-45℃ |
| 4 | PH value | 4-9 |
| 5 | Hardness(mg/l,CaCO3): | ≤17 |
| 6 | Turbidity: | <1.0NTU |
| 7 | Max. SDI(15min): | <5.0 |
| 8 | residual chlorine density: | <0.1ppm |
Our RO System Process:
| TECHNOLOGICAL PROCESS | |||
| No. | Adoption process | Main Function | Pure Water Quality |
| 1 | Multi- Media Filter | Remove suspended solids, colloids and other impurities. | SDI Valve < 4 NTU<1 |
| 2 | Activated Carbon Filter | Adsorb Odor, bacteria, remove chlorine. | Bacteria <10000cfu/ml |
| 3 | Softener System | Reducing the concentration of calcium and magnesium ions to prevent fouling of reverse osmosis membrane surface | Hardness <0.03mmol/l |
| 4 | Cartridge Filter | Removal particles and other impurities that diameter greater than 5um,and Prevent RO membrane from scratching or dogging by Fine suspension | |
| 5 | Reverse Osmosis Machine | Mainly removal various inorganic salts ions, bacteria, viruses and other substances | Conductivity ≤20us/cm SiO2≤50ug/l No Bacteria&Virus |
| 6 | UV System | Remove Bacteria | |

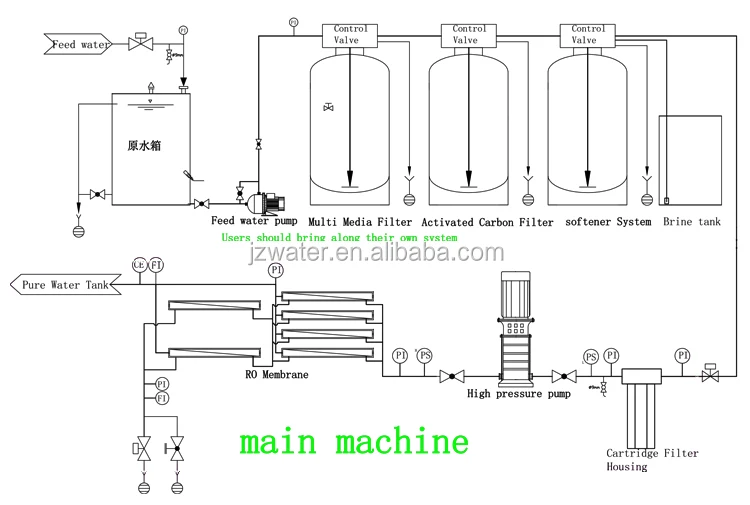

Our machine Process Drawing (Pretreatment system offered by Customer)
