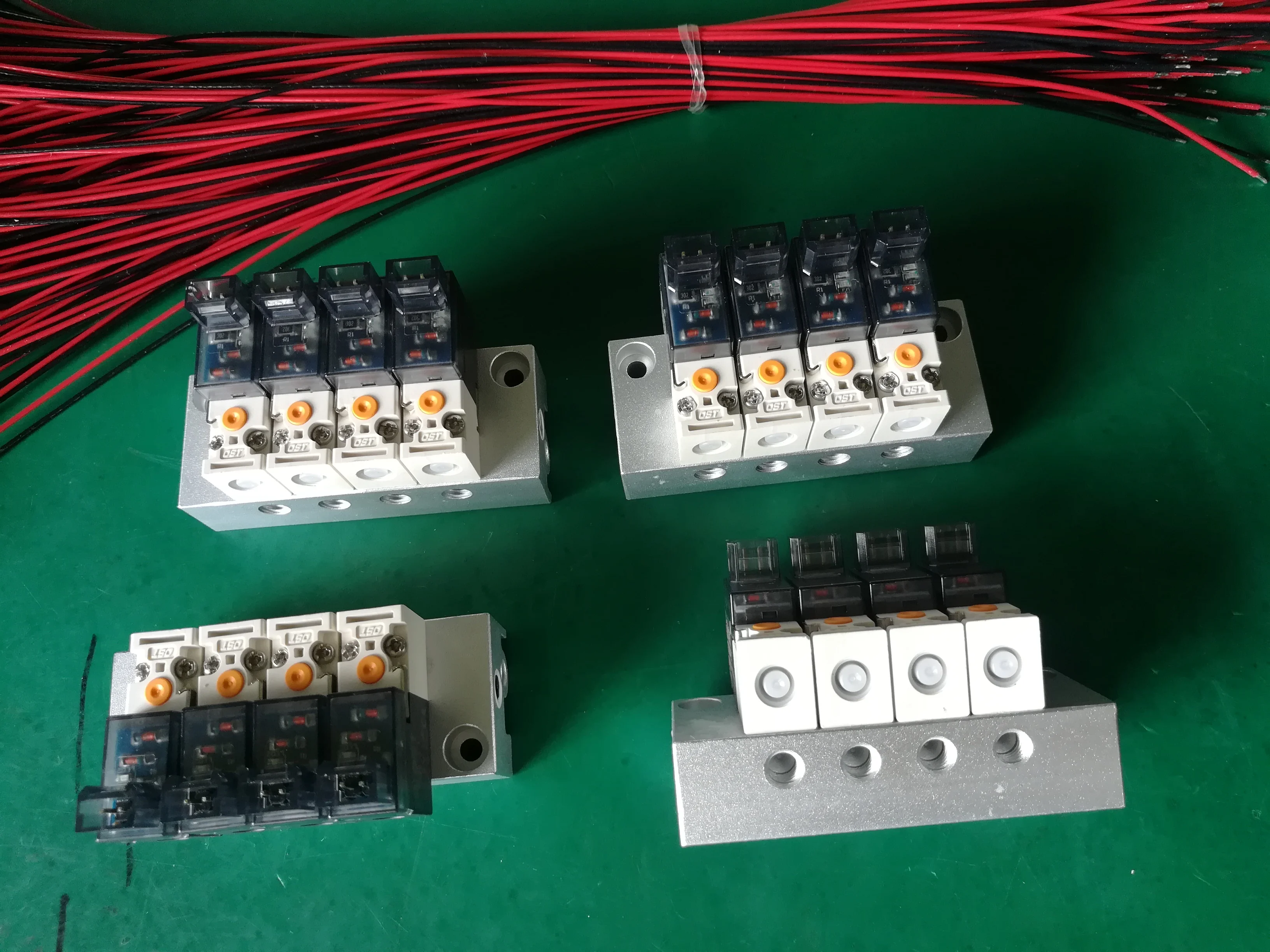

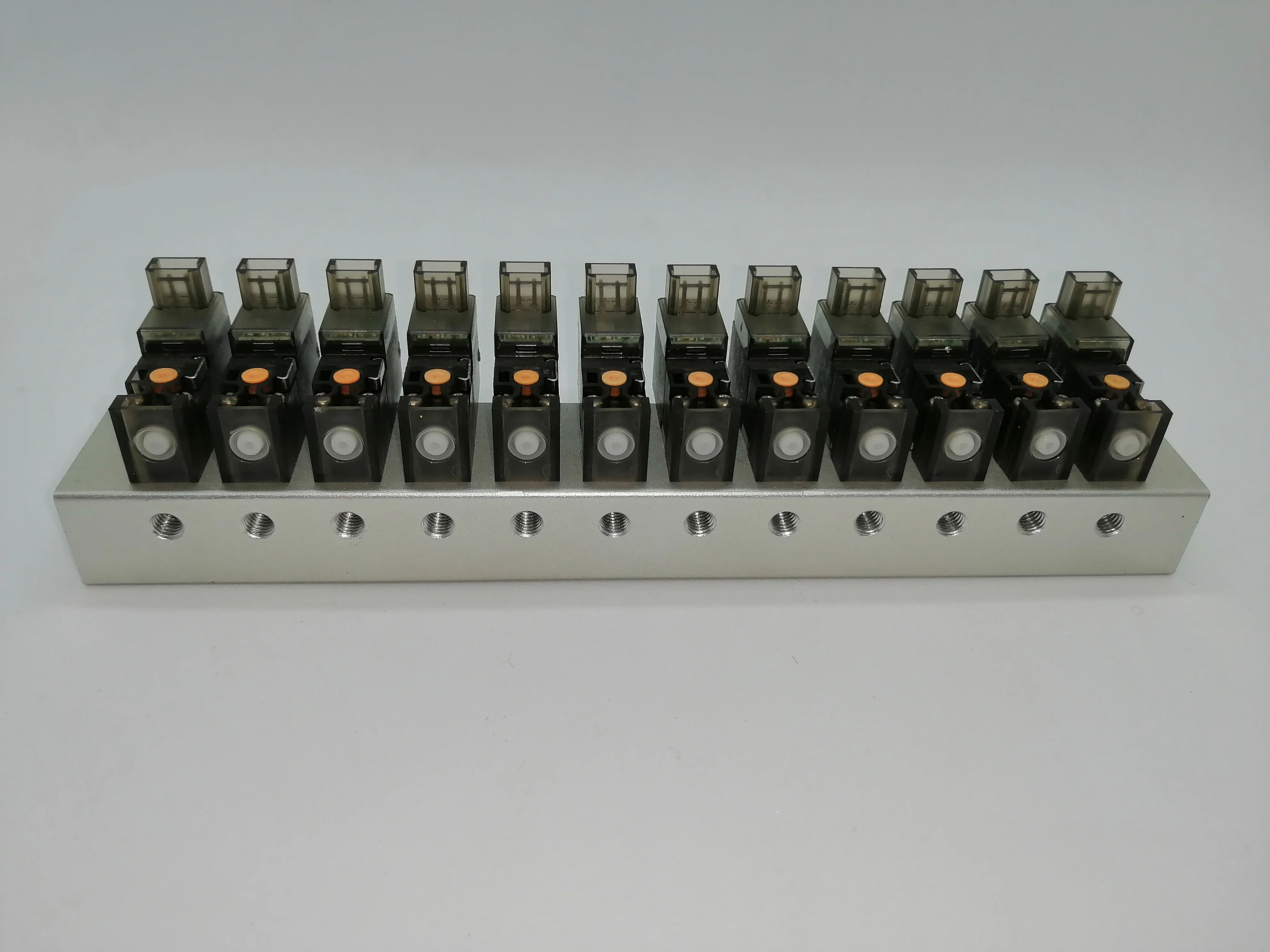

hosiery machine Miniature valve group 12V 24v solenoid coil combined 3 way solenoid valve hosiery machine
- Category: >>>
- Supplier: Ningbo Xinyi Sunshine Pneumatic Science& Technology Co. Ltd.
Share on (62026908484):
Product Overview
Description
Product pictures
Product Description
air manifold valve
low-energy
compact design,
easy to integrated installation
Working medium : 5um filtered air
Motion pattern: inner guide
working pressure: 0.15~0.7Mpa
Max pressure: 0.8Mpa
working temperature: -10~60℃
Max pressure: 0.8Mpa
working temperature: -10~60℃
Voltage range : ±15%
protection class: Anti dust
power consumpiton: AC: 1.2VA DC: 1.2W
Highest action Frequency: 10 cycles/ Sec
power consumpiton: AC: 1.2VA DC: 1.2W
Highest action Frequency: 10 cycles/ Sec
respond time: 15ms
life time : 100,000,000 cycles
