SEAFLO 12V 5.3LPM 100PSI Mini Pump Sprayer Solar Water Pump for Irrigation
- Category: >>>
- Supplier: Fujian Aidi Electric Co. Ltd.
Share on (62026966256):
Product Overview
Description
SEAFLO Profile
Product Description

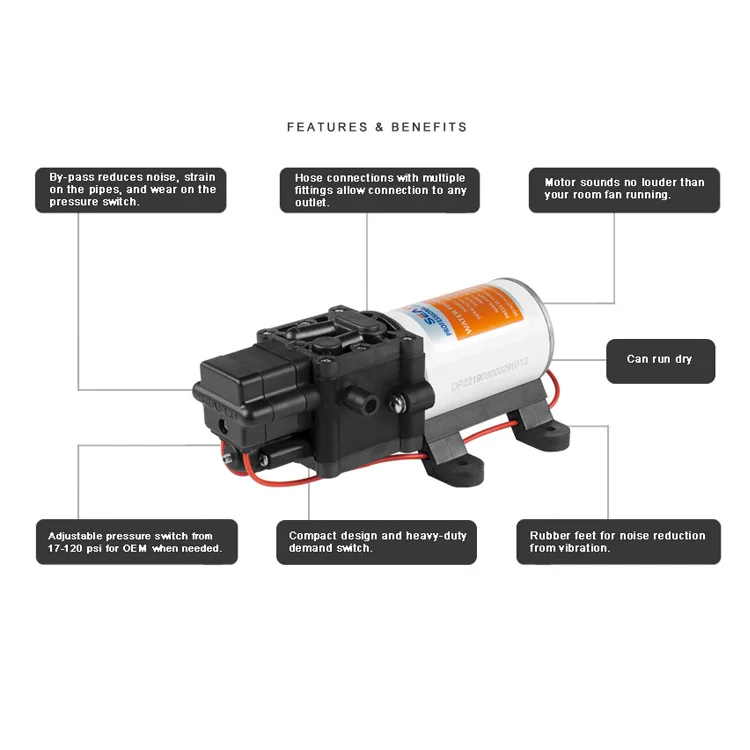

Features & Benefits |
| 1.Flow rate up to 1.4 GPM [5.3 LPM] 3.Automatically turns on and off 5.Quiet operation 7.On demand & by pass use | 2.Can run dry without damage 4.Self priming & built-in check valve |
| Product Name | SEAFLO 12V 5.3LPM 100PSI Mini Pump Sprayer Solar Water Pump for Irrigation |
| Pump Type | 2 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 1.4 GPM [5.3 LPM] |
| Max Pressure | 100 PSI [6.9 Bar] |
| Voltage | 12 VDC, and 24 V, 115 V, 230 V are available |
| Max Amp | 6.0 A |
| Fuse | 7.5 A |
| Switch Type | On Demand [Cut-off Switch], and By Pass, none switch are available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber, and EPDM is available |
| Duty Cycle | Intermittent |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Oulet Port | 3/8" [10mm] hose barb, and contact us for more ports |
| Lead | 10" [25 cm] 18 AWG lead |
The SEAFLO 22 series pumps are your best choice when looking for a high performance diaphragm pump at an economical cost. Simple but highly versatile, the Seaflo 22 series pumps are perfect for fluid handing applications such as purification, light industrial, food and beverage, agricultural, and automotive. Additionally, it's packed with features and capabilities you'll never find in other pumps at this price point. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute.

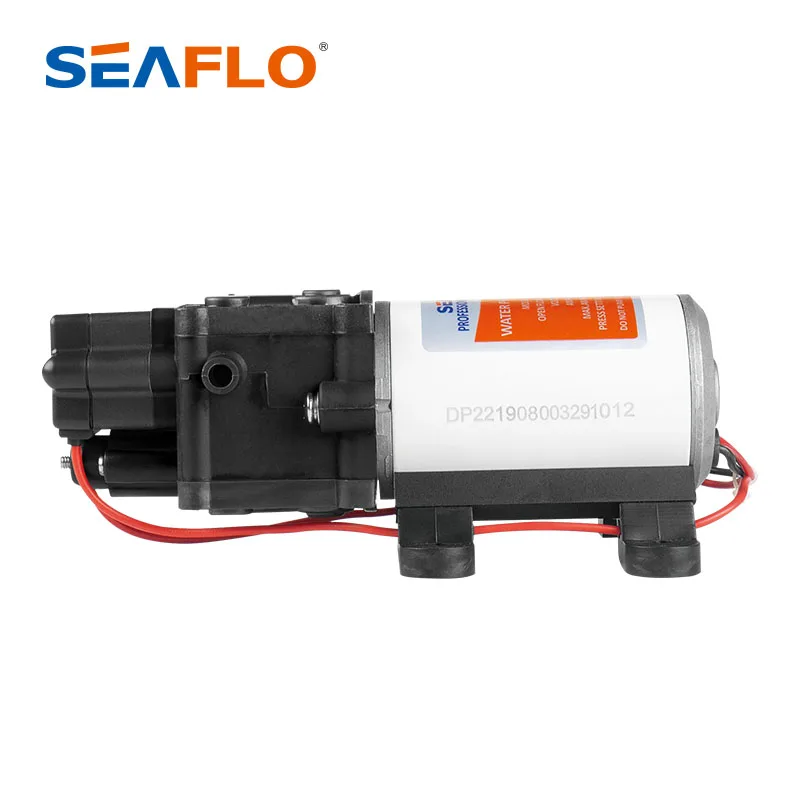

| Product Show |

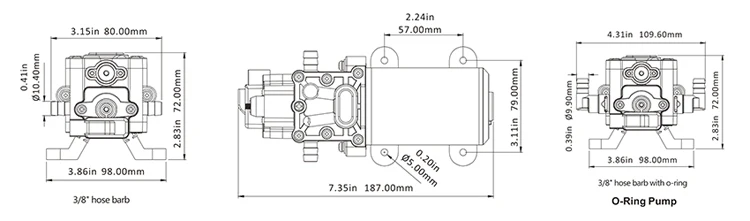

| Dimensions |

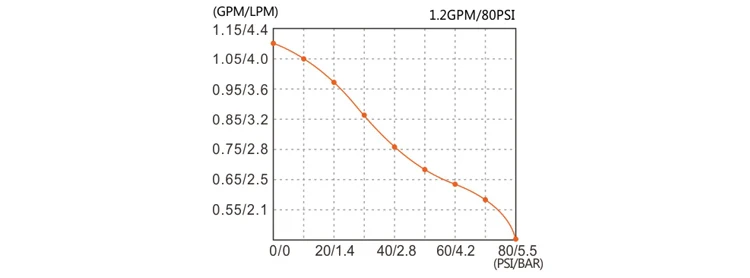

| Performance |

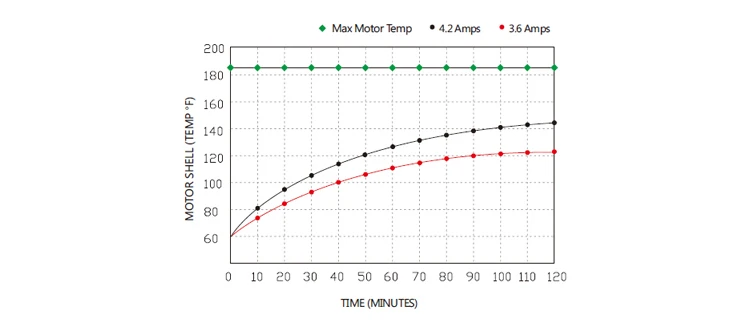

| Motor Heat Rise |

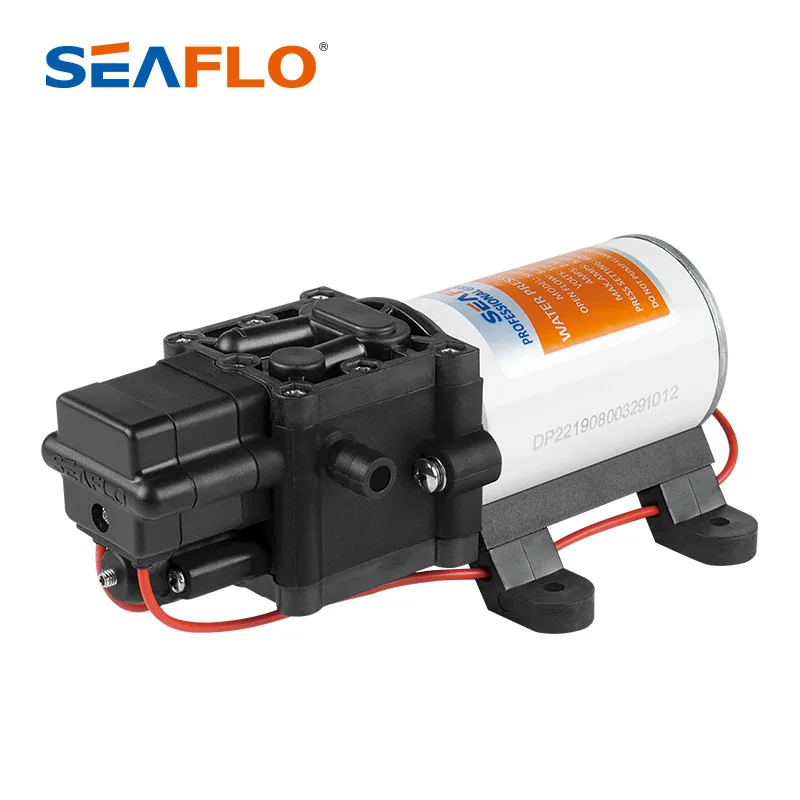

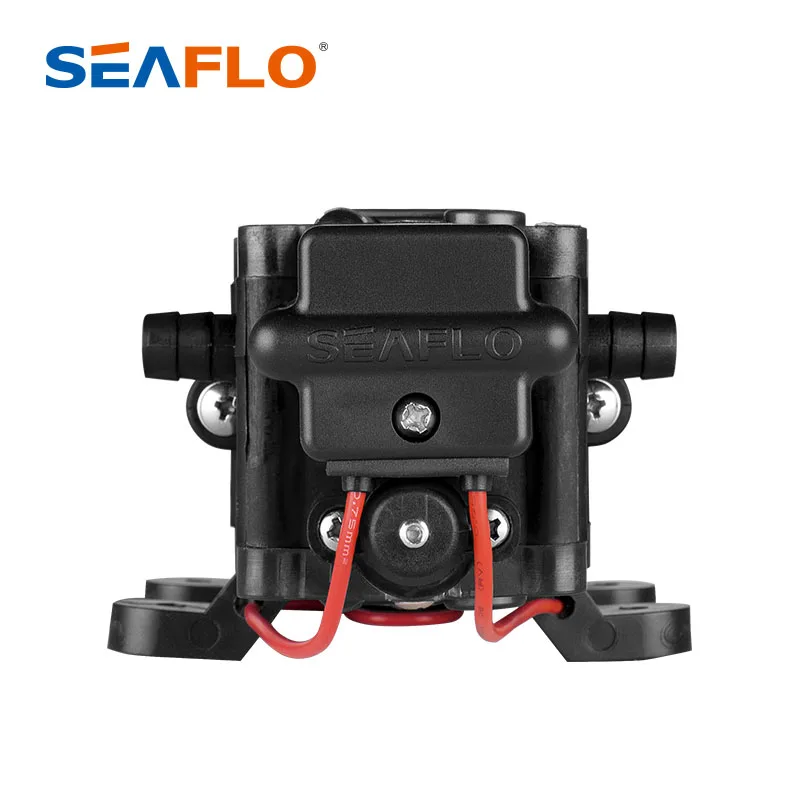

| Product Details |
Standard Pump Configurations
| Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
| SFDP1-013-060-22 | 12 V | 1.3 [5.0] | 60 [4.1] | 5.0 A | Santoprene | EPDM |
| SFDP2-013-060-22 | 24 V | 1.3 [5.0] | 60 [4.1] | 2.5 A | Santoprene | EPDM |
| SFDP1-013-100-22 | 12 V | 1.3 [5.0] | 100 [6.9] | 6.0 A | Santoprene | EPDM |
| SFDP2-013-100-22 | 24 V | 1.3 [5.0] | 100 [6.9] | 3.0 A | Santoprene | EPDM |
| SFDP1-014-080-22 | 12 V | 1.4 [5.3] | 80 [5.5] | 5.5 A | Santoprene | EPDM |
| SFDP2-014-080-22 | 24 V | 1.4 [5.3] | 80 [5.5] | 3.0 A | Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 100 PSI [6.9 Bar]; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 1.4 GPM [5.3 LPM]. Material can be adjusted according to your requirement.
Application
Packaging & Shipping
Package Infomation
 | Unit Pump Weight | 2.43 lbs [1.10 kg] |
| Selling Unit Size (L x W x H) | 8.15" x 4.16" x 2.91" [20.7 x 10.5 x 7.4 cm] | |
| Selling Unit Weight | 2.64 lbs [1.20 kg] | |
| Master Carton Qty | 16 pcs / carton | |
| Master Carton Size (L x W x H) | 17.36" x 13.66" x 9.84" [44.1 x 34.7 x 25.5 cm] | |
| Master Carton Weight | 50.41 lbs [23.00 kg] |
Company Information
More Products
FAQ
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as LILIE, Lippert, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
