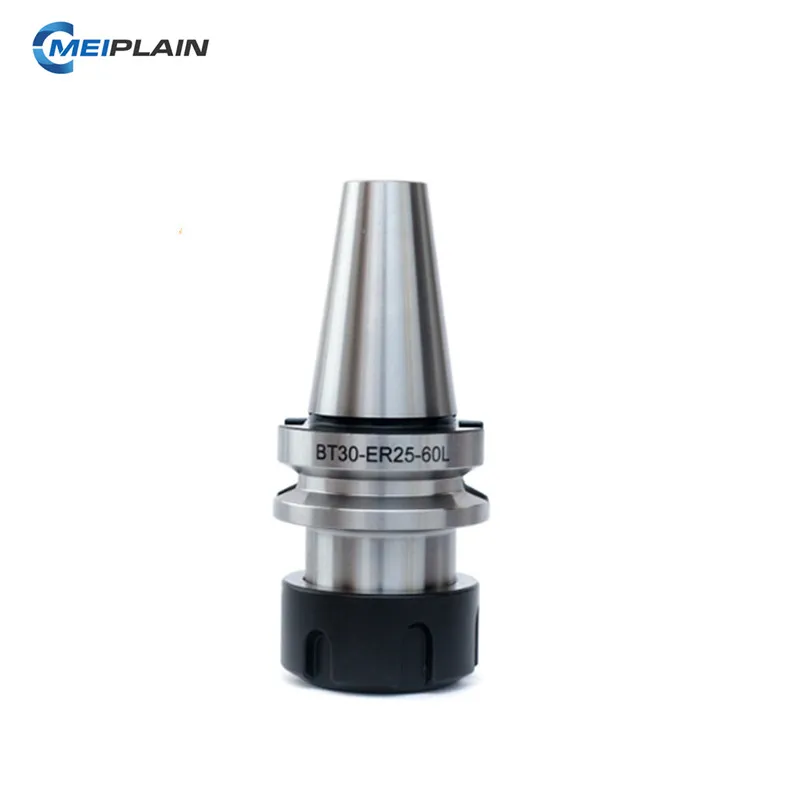

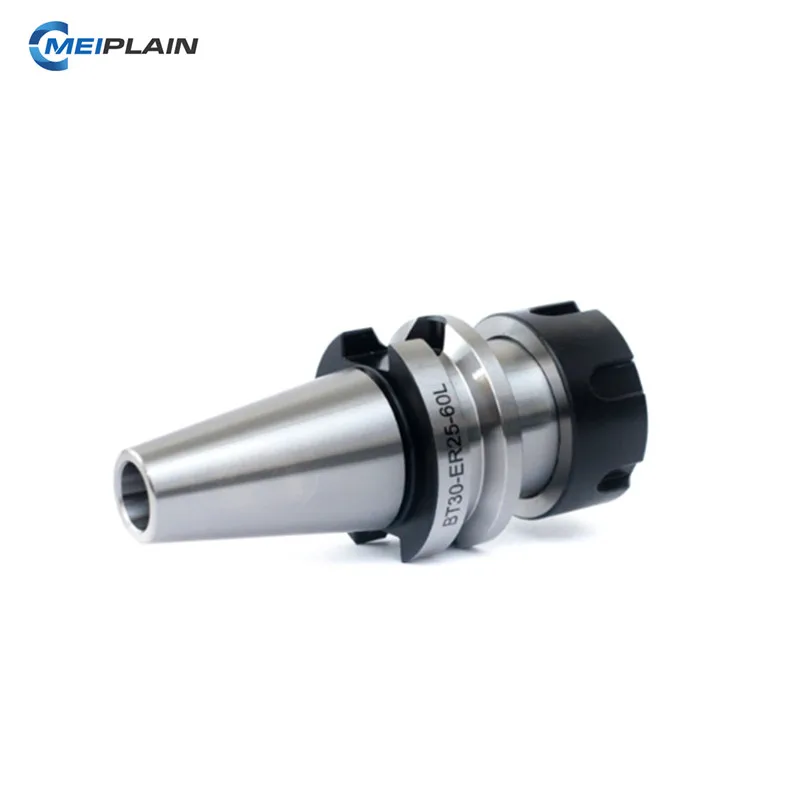

High precision bt 30 tool holder for CNC drilling or milling machine

Product Overview

Description

High precision bt 30 tool holder for CNC drilling or milling machine



• Material: JIS - SCM418(After heat treatment, it has rigid hardness and toughness, better grinding quality, good flexibility and longer using life span)
• HRC: 46°;Accuracy of deviation:below 5μ (4D length)

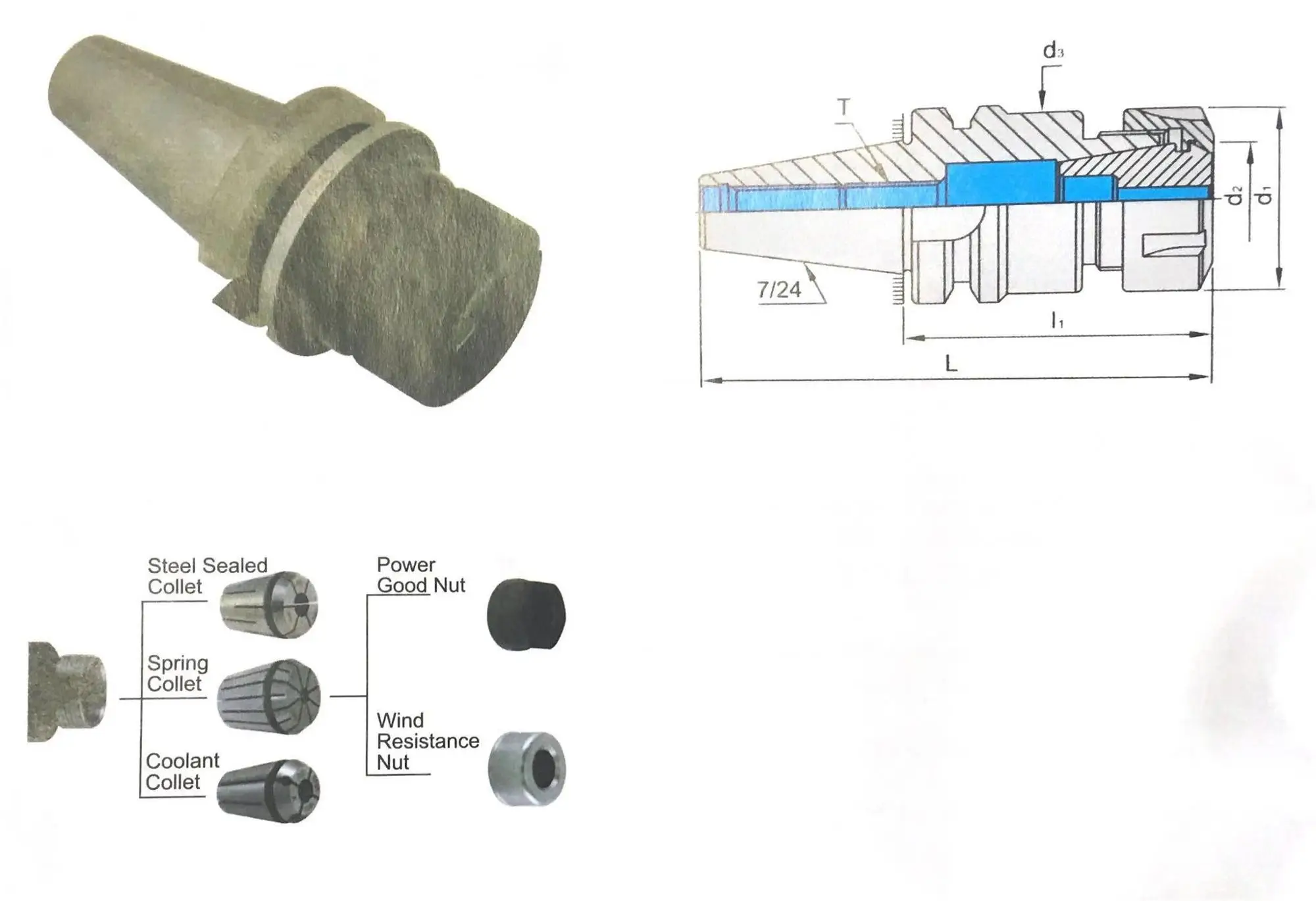

• The ER collet has three kinds of classes for precision: general class 0.02mm, A class 0.01mm, and UP class 0.05mm.

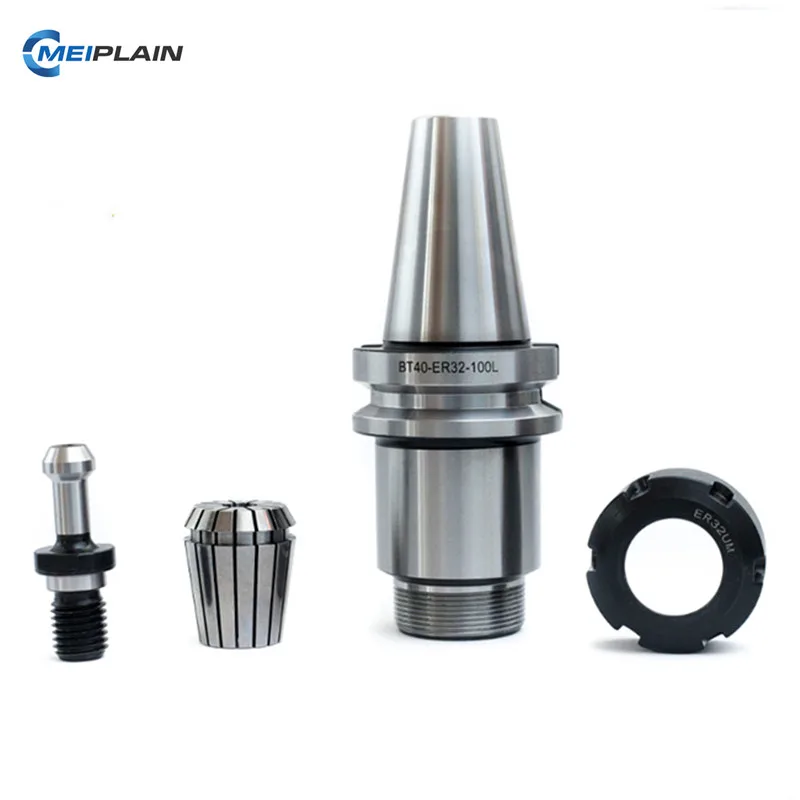

• Please put the collet into the nut and then put them into the body together during using.
• The tool holder is through-hole, which is better for water to get through and anti-vibrant.
• The nut has preinstalled Dynamic balancing design, so it can be used for RPM10,000.

 If you have special requirement of design or size, we can produce as your request.

Checkout equipments:

Surface Rust Prevention Of BT Tool Holder:

• Antirust
•  Increase the hardness and abrasive resistance of the surface
• Better cleanliness; Precision stability
• Smooth surface; Look better and feel comfortable.

Surface Rust Prevention Of BT Tool Holder:

• Antirust
•  Increase the hardness and abrasive resistance of the surface
• Better cleanliness; Precision stability
• Smooth surface; Look better and feel comfortable.

The packaging of the product should be wrapped in plastic transparent packaging bags, and then packed into cylindrical plastic buckets or paper boxes. Our products are packed in groups of ten.We can laser mark your logo and pack according to your requirement.
Shipping :

• FedEx/DHL/UPS/TNT for samples, Door-to-Door
• By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
• Customers specifying freight forwarders or negotiable shipping methods!
• Delivery Time: 3-7 days for samples; 30-40 days for batch goods.
