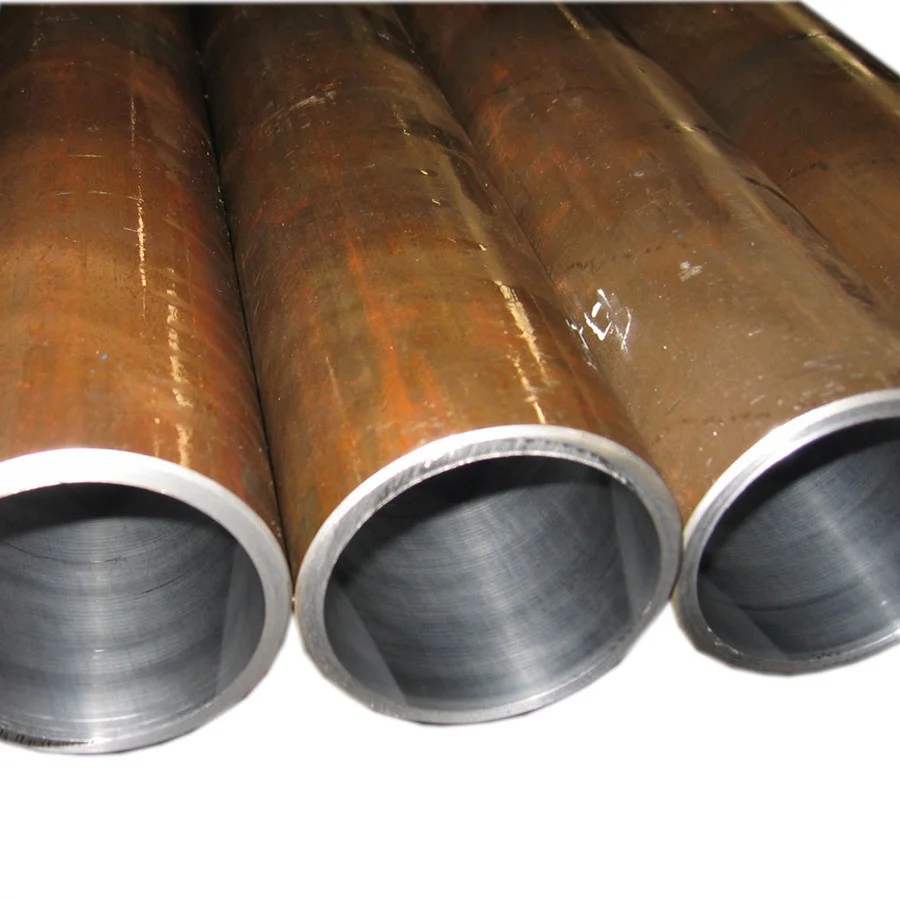

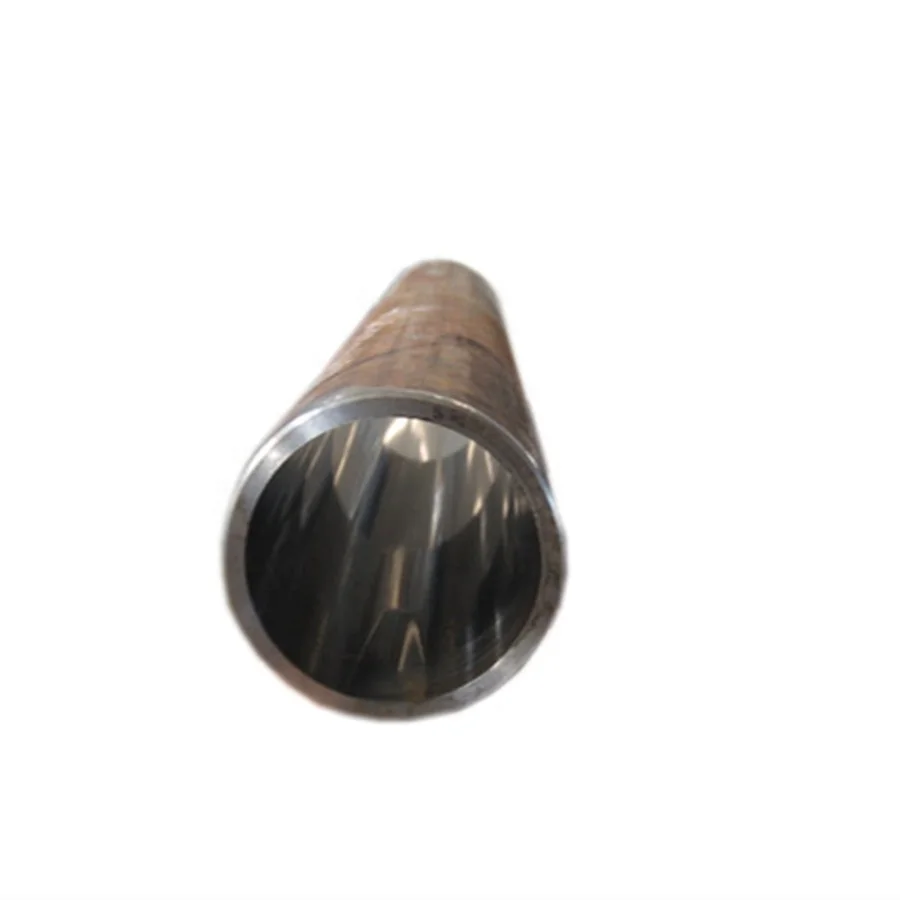

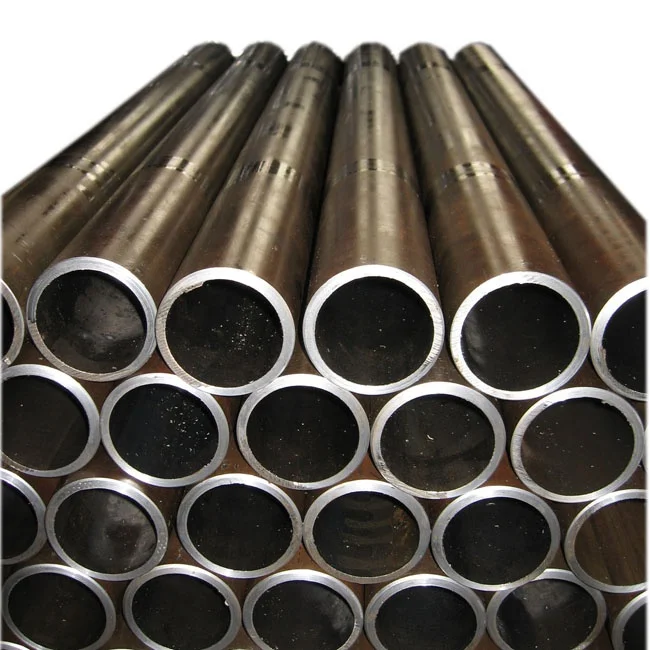

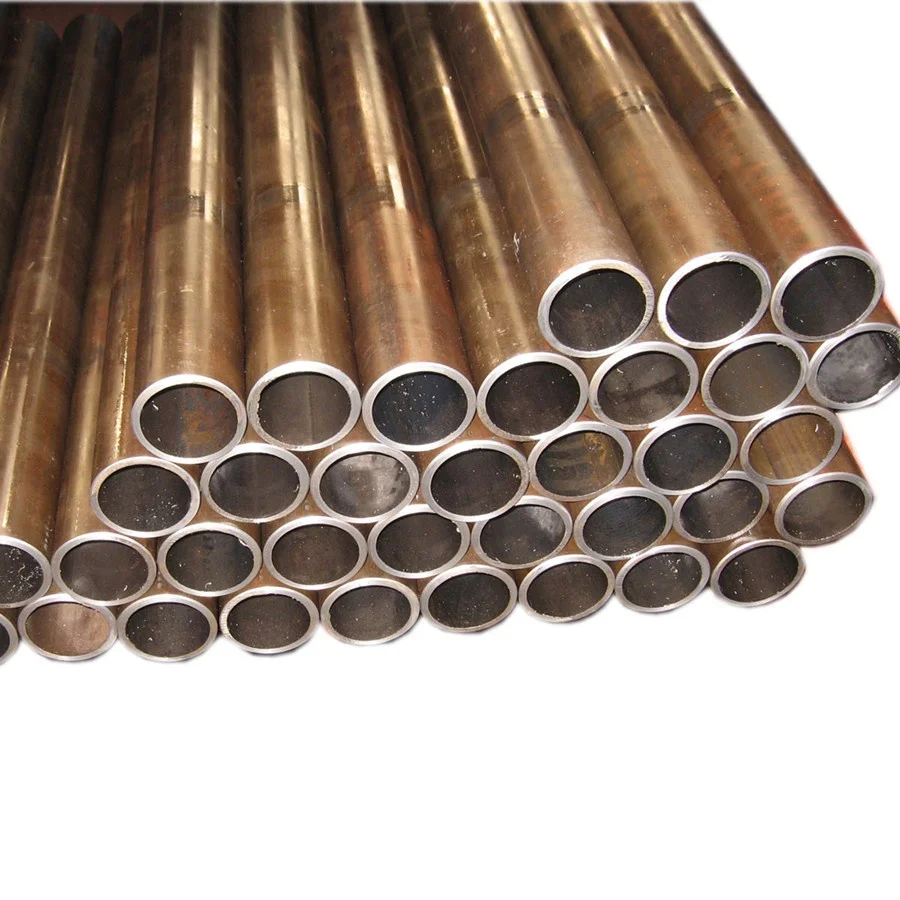

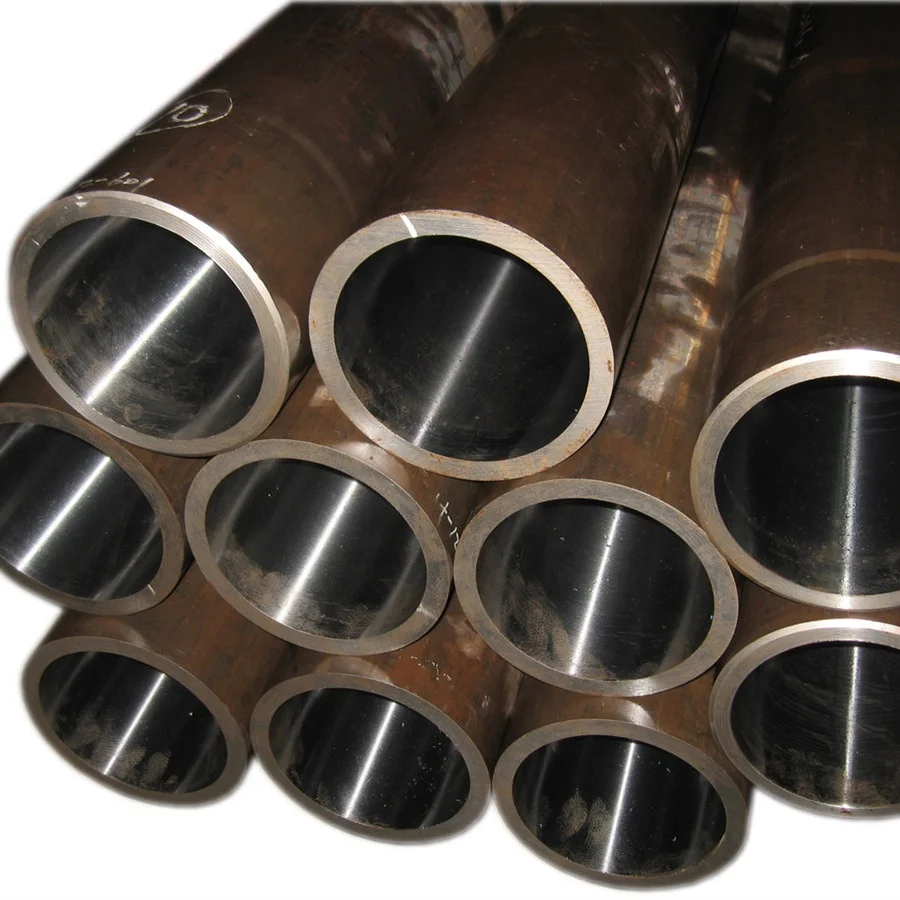

DIN2391 Hydraulic cylinder Seamless Steel st52 honed tube
- Category: >>>
- Supplier: Yantai Xinpeng Steel Pipe Co. Ltd.
Share on (62027080817):
Product Overview
Description

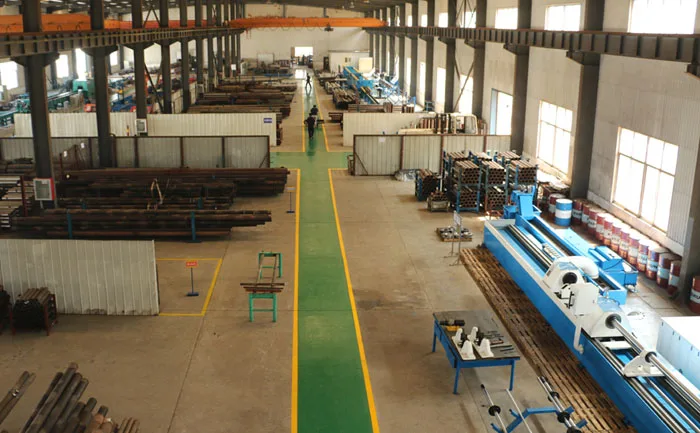

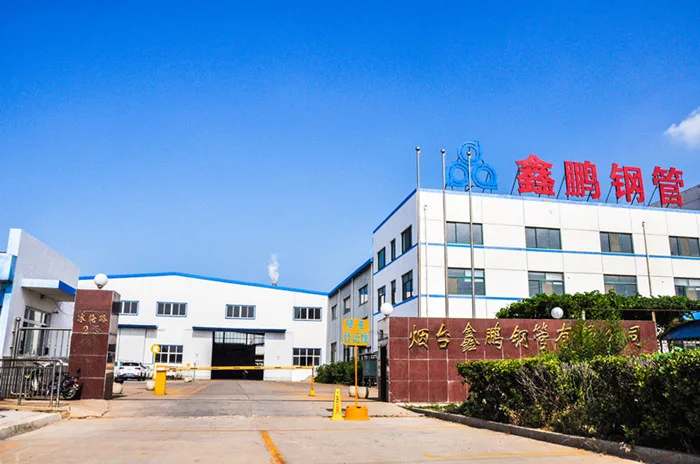

Company Profile
XINPENG--ONE OF THE BEST MANUFACTUER ON PRECISION STEEL TUBE!!
Yantai xinpeng steel pipe co, .ltd. established in 1992, mainly produces precision cold drawn/rolled tube, honed/SRB tube,Hydraulic cylinder tube. The company is excellent equipped, good technology and powerful. Products widely used in hydrauliccylinder, Car manufacturer, excavator and many other areas. Xinpeng strictly obey ISO9001 2015 Quality System, High quality products sold to all over the World, have got good reputation.
Product Information
Technology Parameter
Condition | Material Grade | T.S (MPa) lowest | Y.S (MPa) lowest | Elongation (%) |
BKS | ST35 (10#) | ≥420 | ≥315 | ≥14 |
BKS | ST45(20#) | ≥520 | ≥375 | ≥12 |
BKS | ST52(16Mn) | ≥580 | ≥420 | ≥10 |
GBK | ST35 (10#) | ≥315 | ≥35 | |
GBK | ST45(20#) | ≥390 | ≥32 | |
GBK | ST52(16Mn) | ≥490 | ≥30 | |
NBK | ST35 (10#) | 340-470 | ≥235 | ≥32 |
NBK | ST45(20#) | 440-570 | ≥255 | ≥30 |
NBK | ST52(16Mn) | 490-630 | ≥335 | ≥28 |

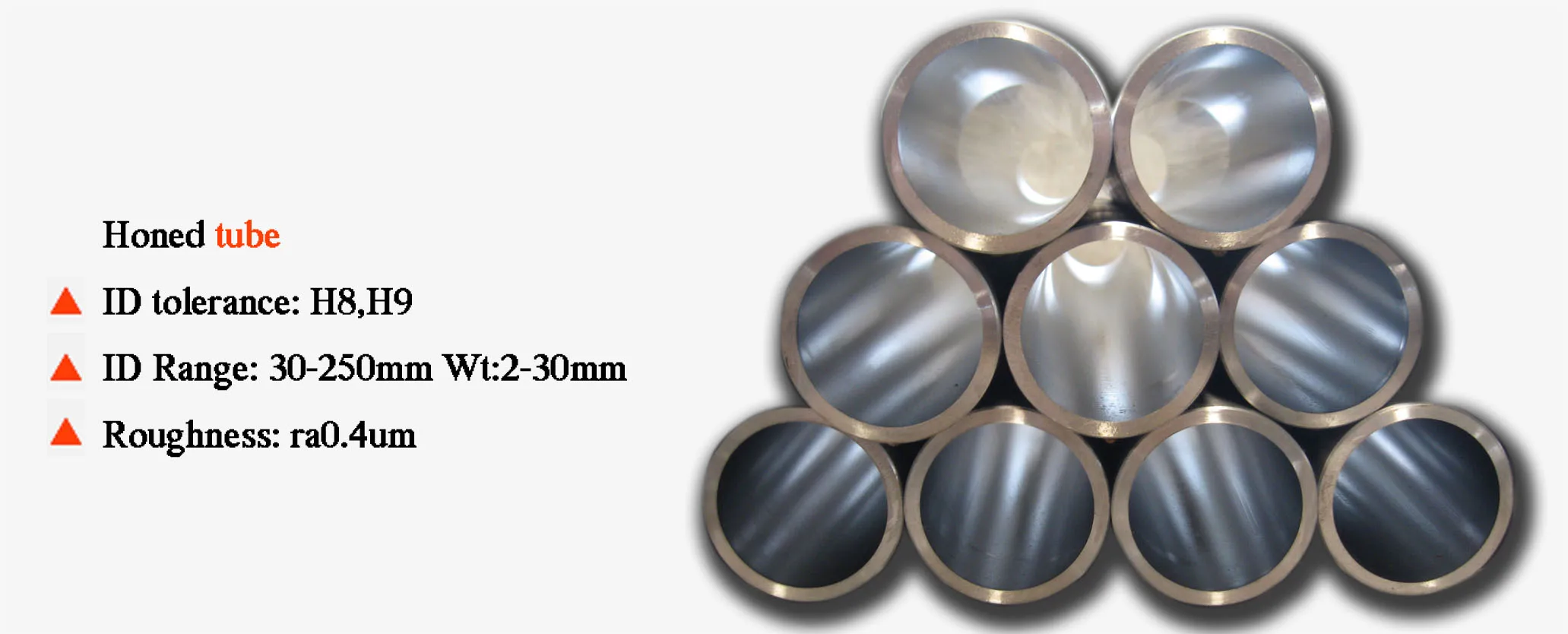

ID size | ID deviation (mm) | ||||||
HONED/SRB TUBE | H7 | H8 | H9 | H10 | |||
30 | +0.021 0 | +0.033 0 | +0.052 0 | +0.084 0 | |||
>30~50 | +0.025 0 | +0.039 0 | +0.062 0 | +0.100 0 | |||
>50~80 | +0.030 0 | +0.046 0 | +0.074 0 | +0.120 0 | |||
>80~120 | +0.035 0 | +0.054 0 | +0.087 0 | +0.140 0 | |||
>120~180 | +0.040 0 | +0.063 0 | +0.100 0 | +0.160 0 | |||
>180~250 | +0.046 0 | +0.072 0 | +0.115 0 | +0.185 0 | |||
>250~315 | +0.052 0 | +0.081 0 | +0.130 0 | +0.210 0 | |||
>315~400 | +0.0527 0 | +0.089 0 | +0.140 0 | +0.230 0 | |||

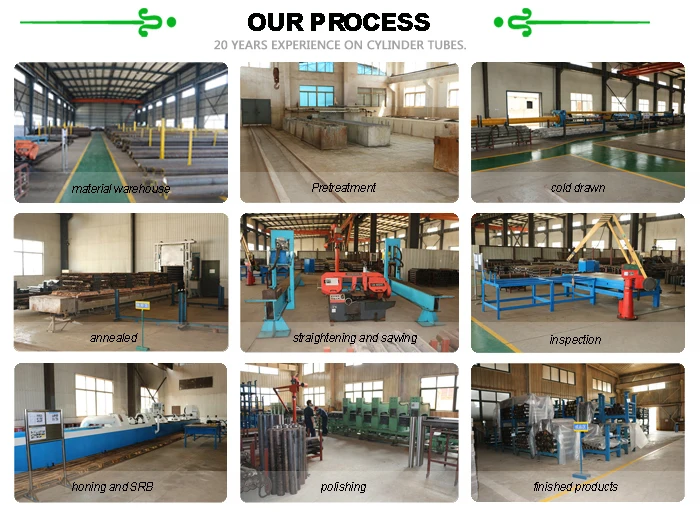

OUR PROCESS
Application
widely used in hydraulic system ,injection molding machine, hydraulic press, ship building with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestry machinery, etc.
PACKAGE AND DELIVERY
Customer Photos
FAQ
1. How many employees in your company? More than50 people.
2 Could you produce the cylinder according to our request?
Yes, we could design the cylinder according to your request or your drawing.
3 What's your main export market?
Middle East, Africa, Southeast Asia, European and South America
4. What’s your leading time?
About 10days to 40 days after payment
5. What is your MOQ?
3-5tons start on each specification.
6. Can you sent samples?
Yes we can, the freight need to stand by customer.
Any need or request, please feel free to contact us!
2 Could you produce the cylinder according to our request?
Yes, we could design the cylinder according to your request or your drawing.
3 What's your main export market?
Middle East, Africa, Southeast Asia, European and South America
4. What’s your leading time?
About 10days to 40 days after payment
5. What is your MOQ?
3-5tons start on each specification.
6. Can you sent samples?
Yes we can, the freight need to stand by customer.
Any need or request, please feel free to contact us!
