Sea Food Radiation Monitor Portable Neutron and Gamma Radiation Survey Meter for sale

Product Overview

Description

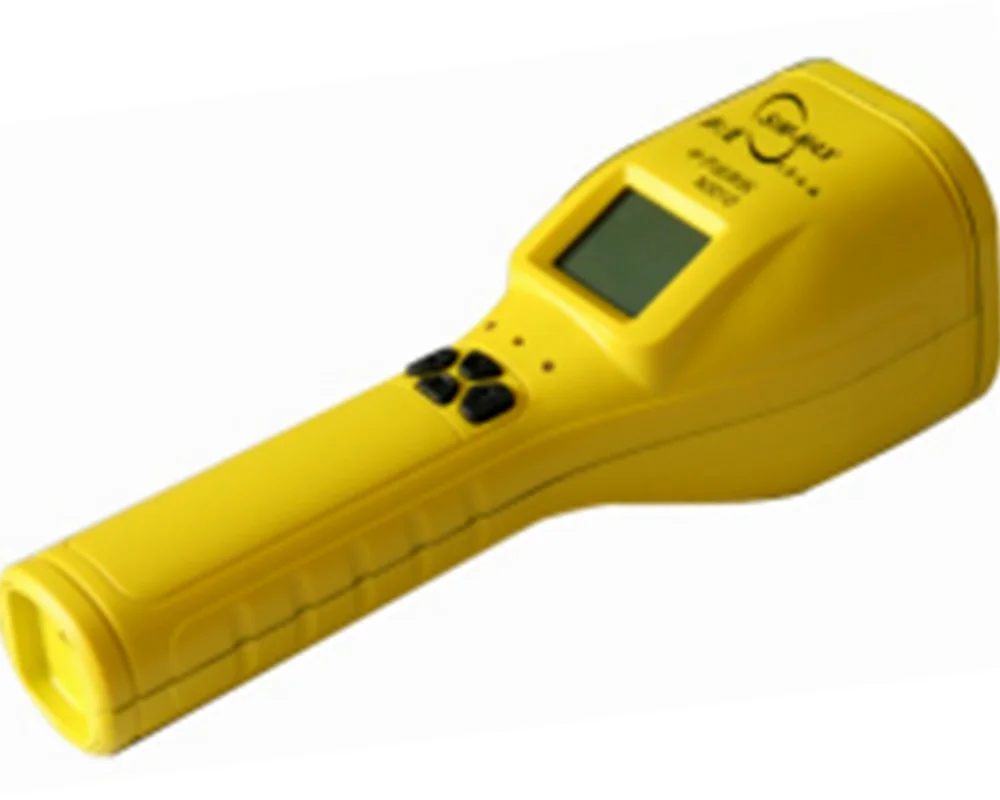

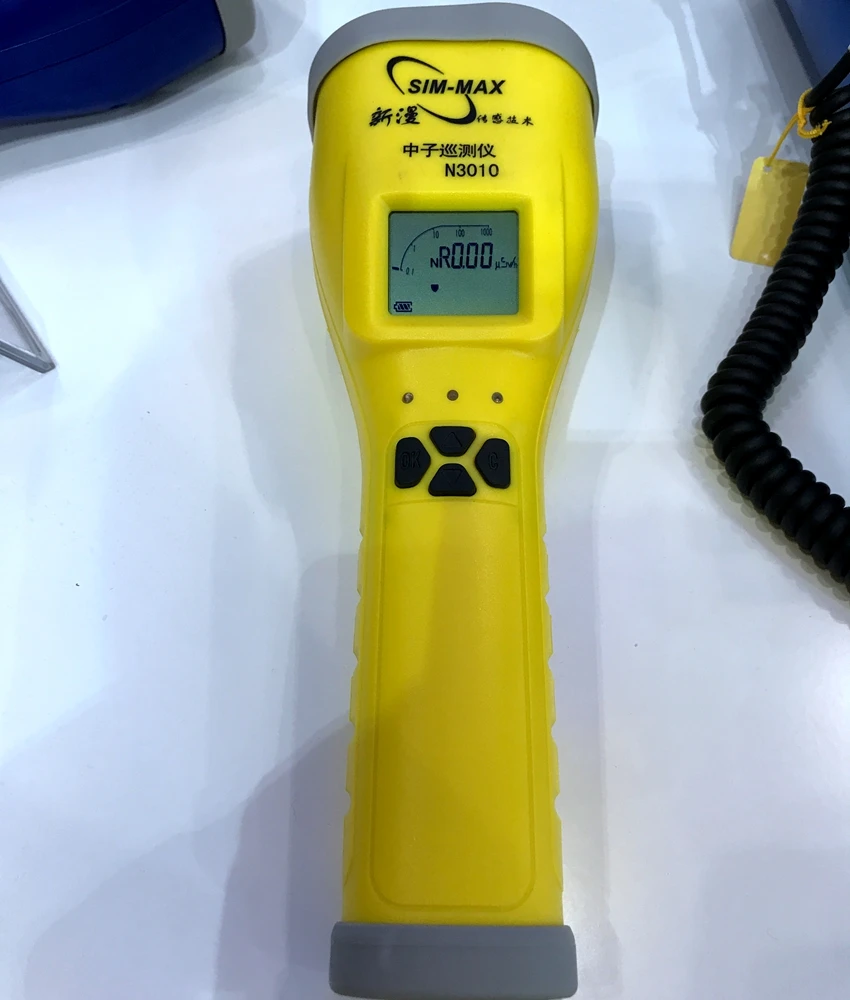

GF NG3010 Neutron& Gamma Radiation Survey Meter

Overview

Green Founder NG3010 is the only hand-held radiation survey meter designed for detection of neutron and gamma radiation at the same time in China. Its neutron detector and gamma detector are ⁶LiI (Eu) and CsI (Tl) scintillation crystal coupled with photodiode respectively. The neutron detector is surrounded by unique cylindrical moderator which greatly improves the sensitivity of neutron detection.

Features

* High sensitivity and fast response

* Neutron/Gamma independent channels

* Durable, compact, user friendly

* High-definition colorful LCD

* audible and visible alarm simultaneously

* Electro-magnetic interference immunity, CE compliant

* ANSI N42.35 and ITRAP standard compliant



Specifications

	neutron	gamma ray
Detector	6LiI(Eu)	CsI(Tl)
Energy range	0.025 eV to 14 MeV	30keV to 3.0 MeV
Sensitivity	0.5CPS/(μSv·h-1),252Cf source	≥110CPS/(μSv·h-1),137Cs source
Dose rate range	1μSv·h-1 to 100mSv·h-1	0.01μSv·h-1 to 100μSv·h-1
Dose range	0.01μSv to 1Sv	0.01μSv to 10 Sv
DER Relative error	< ±20%(200keV to 7MeV)	< ±20%
Relative Humidity	90%(30℃,non-condensing)
Temperature	-10 ° C to 50 ° C (14° F to 122° F)
IP rating	IP65
Power supply	2600mAh lithium ion battery,≥ 20 hours
Weight	690g
Dimensions	90×267 (mm)  (3.5"×10.5" )
Communication	USB, RS232,wireless port

Application

* Radiation protection of nuclear facilities, nuclear regulation departments and the enterprises with radioactive sources

* Emergency response for Disease Control Centers and environment monitoring department

* Security of large-scale activities, embassies and consulates abroad

* Prevent illegal transport of radioactive materials or radioactive terrorist attacks from occurring
